Arms crane extensible, painted, gray mouse
m500000918
€1,595.00
1.595,00 € (tax incl.)

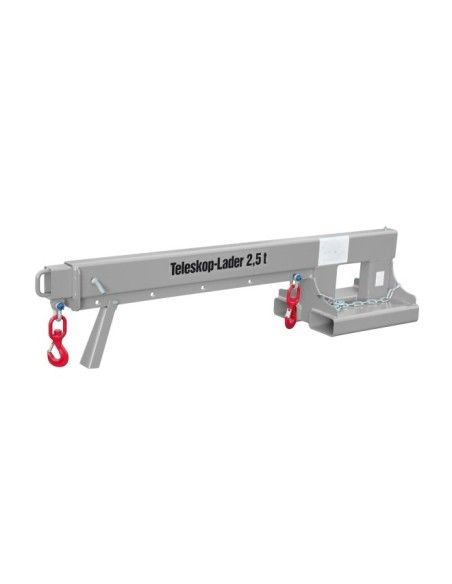

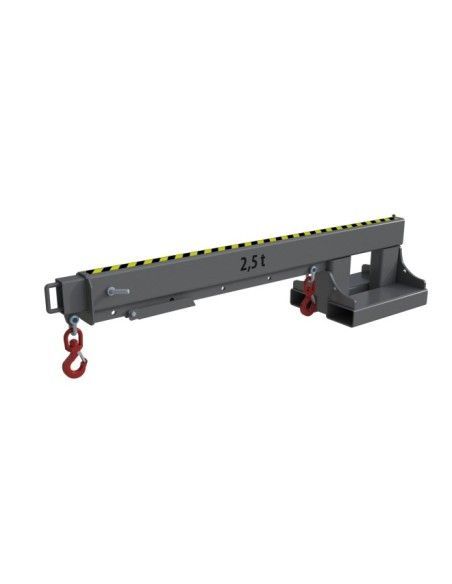

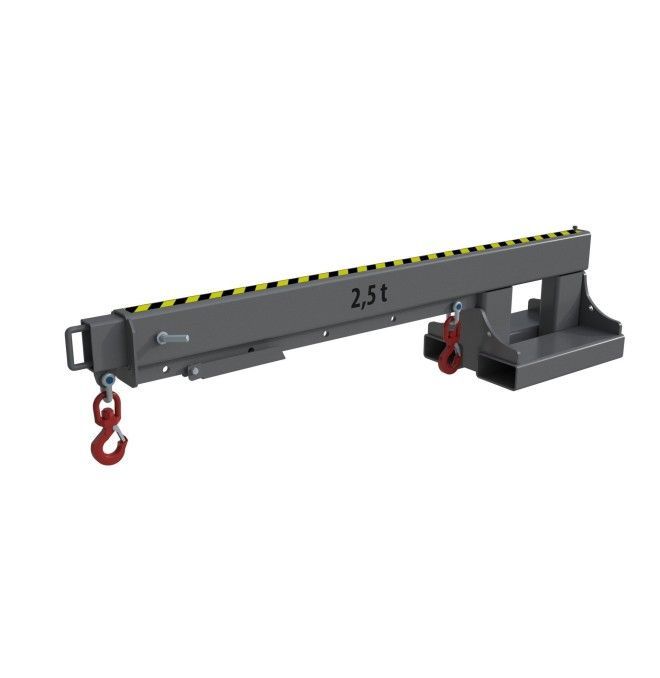

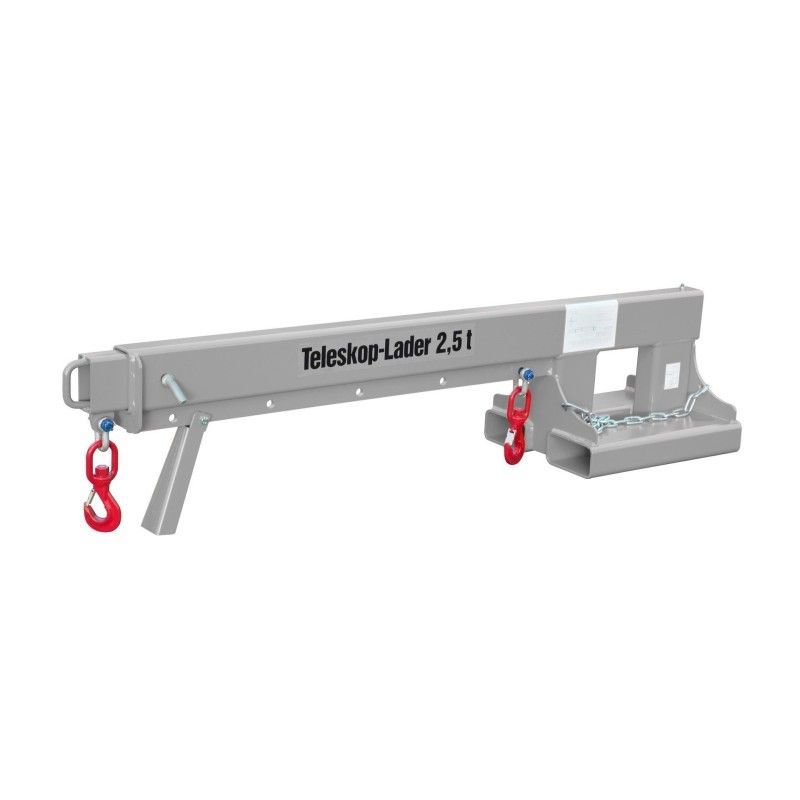

Arm crane extendable for forklift Trucks Designed for handling suspended loads in warehouses and industrial sectors. It allows to expand the operational range of the machinery safely.
- Steel structure: Construction High strength rigid with finish painted in gray mouse RAL 7005.
- Charging capacity: Supports up to 2500 kg with fourteen adjustable hook positions in eight steps.
- Security fixation: Coupling system by pockets for chain secured forks to avoid slides.
- Rotary hooks: Equipped with two positionable loading hooks for the lift and transport of materials.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Construction rigid
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2160.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 175.0
- GTIN (Previous EAN)
- 4052462036833.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 7005 gray mouse
- cod
- RAL 7005
- type of collection
- pockets for forks
- distance between forks (mm)
- 106.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 710.0
- open/closed fork cavities
- total length
- Total height (mm)
- 480.0
- Width (mm)
- 490.0
- Color
- grey mouse
- position of load hook (02) (mm)
- 1000.0
- Position of load hook (03) (mm)
- 1290.0
- position of load hook (04) (mm)
- 1590.0
- position of load hook (05) (mm)
- 1870.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
- position of load hook (06) (mm)
- 2055.0
- position of load hook (07) (mm)
- 2255.0
- load capacity (06)
- 1200.0
- load capacity (07)
- 1050.0
- position of load hook (08) (mm)
- 2455.0
- position of load hook (09) (mm)
- 2655.0
- position of load hook (10) (mm)
- 2855.0
- position of load hook (11) (mm)
- 3055.0
- position of load hook (12) (mm)
- 3255.0
- position of load hook (13) (mm)
- 3455.0
- position of load hook (14) (mm)
- 3655.0
- load capacity (08)
- 950.0
- load capacity (09)
- 850.0
- load capacity (10)
- 770.0
- load capacity (11)
- 700.0
- load capacity (12)
- 650.0
- load capacity (13)
- 600.0
- load capacity (14)
- 560.0
New
4052462036833
