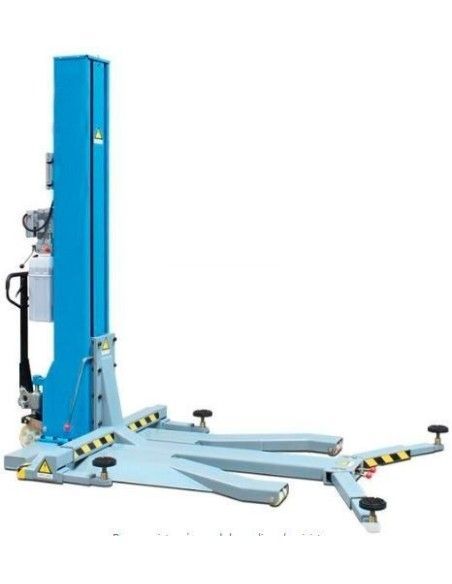

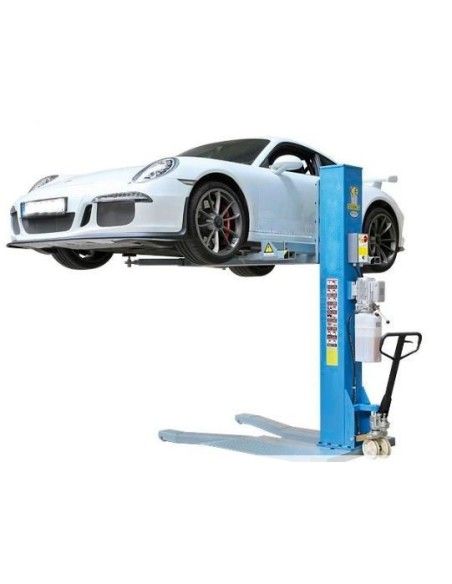

1 column 2500kg

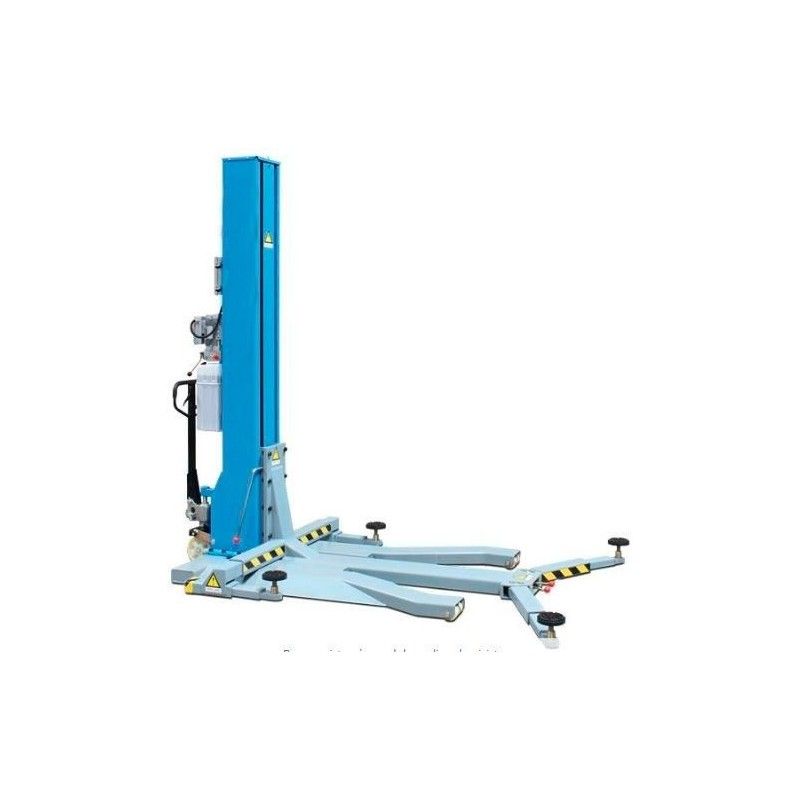

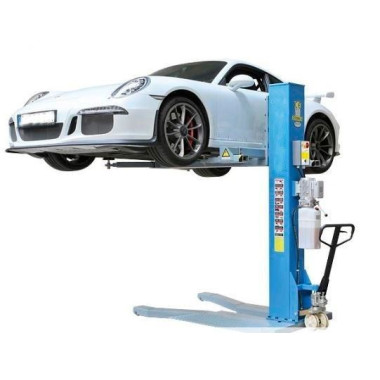

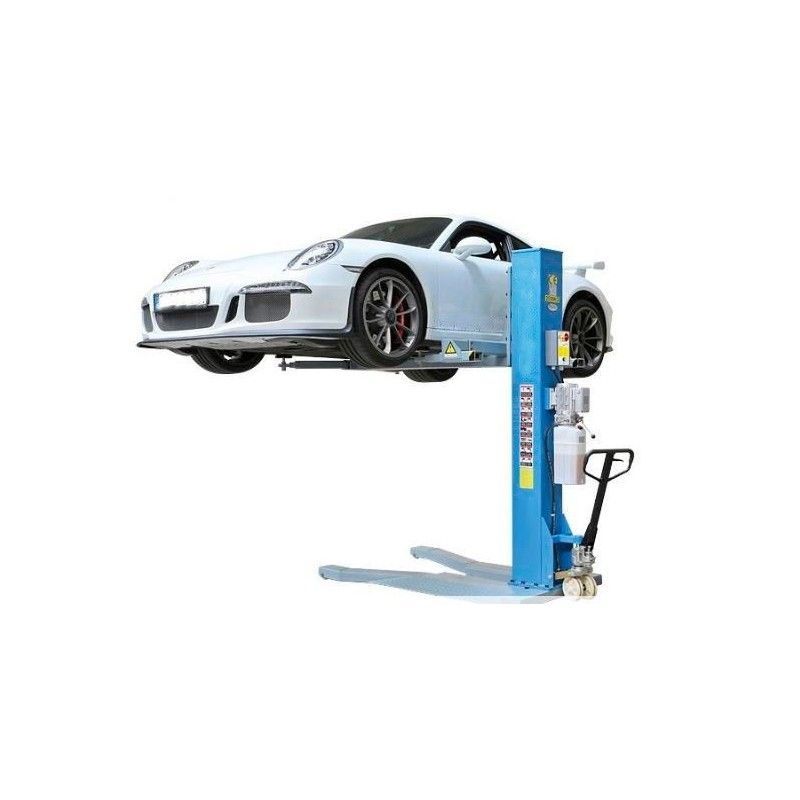

1 column lift for vehicles up to 2500kg weight. Ultraplane and mobile, ideal for reduced spaces. Robust and stable manufacturing.

It can be used on any leveled soil. It has CE Certificate.

CHARACTERISTICS

• Manufactured according to ISO 9001.
• CE certificate.
• Powerful hydraulic lifting cylinder.
• Height adjustable swivel plates.
• Telescopic lifting ties.
• Mechanical safety locks.
• Manual release.
• High quality cold laminated steel column.
• 24V motor in aluminum and 24V control unit
• Column protection coverage that protects the cylinder.

TECHNICAL CHARACTERISTICS

• Load capacity: 2.500kg.
• Maximum elevation: 1830-1930mm.
• Minimum height: 98mm
• Lift/off time: 35/30 segs.
• Power supply: Single-phase cable 230V
• Engine power: 2.2kW.
• Fusible: 16A
• Net weight: 720kg.

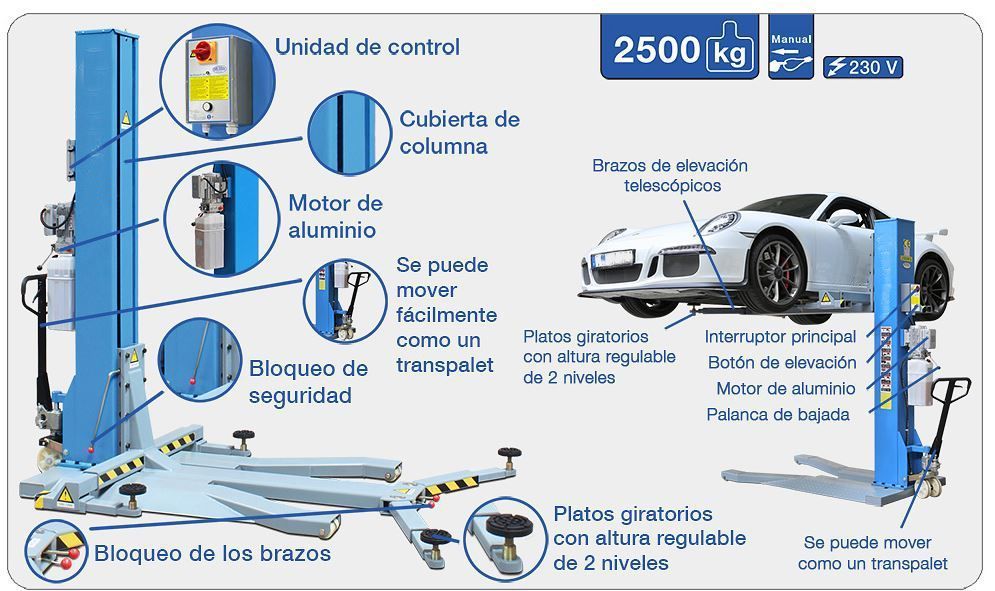

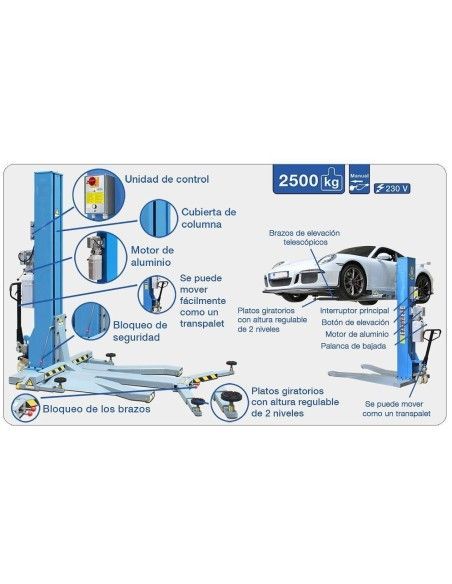

SUMMARY RECORDS

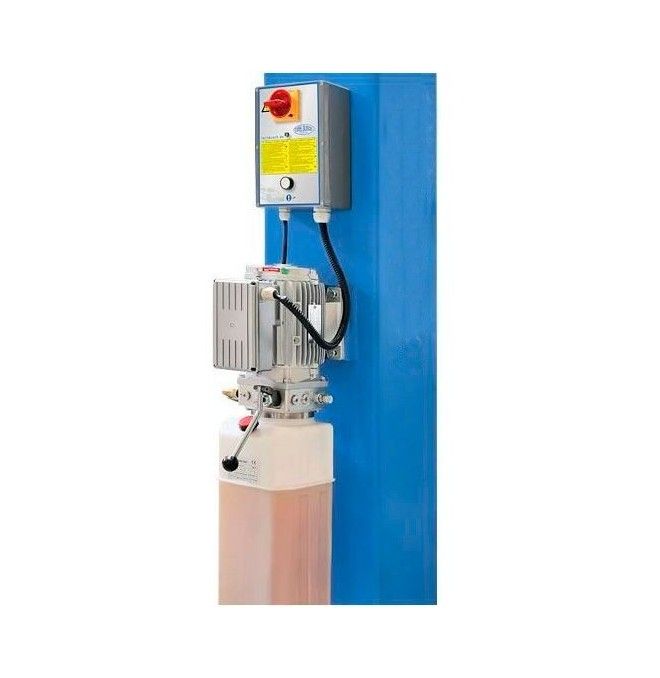

-Unity of control: Your control unit has IP54 protection and 24 V voltage voltage, lift height limiter and automatic lock to work safely.

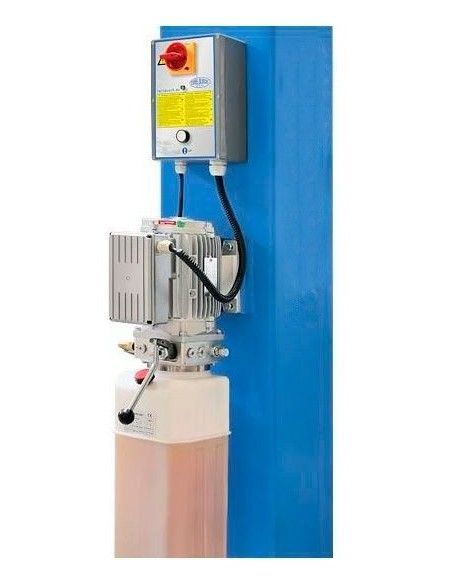

-Aluminum switch: It is a powerful hydraulic unit with high-quality aluminum hydraulic pump and has a safety valve for overpressure.

-Arms block: The locking of the lifting arms provides a high level of safety and comfort of use.

-Rotary plates: It has adjustable swivel plates on two lower height levels (95mm). And it has ultra-flat lifting arms to work with sports vehicles.

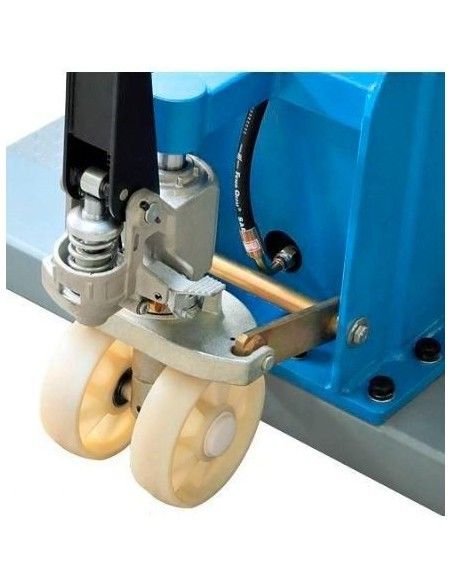

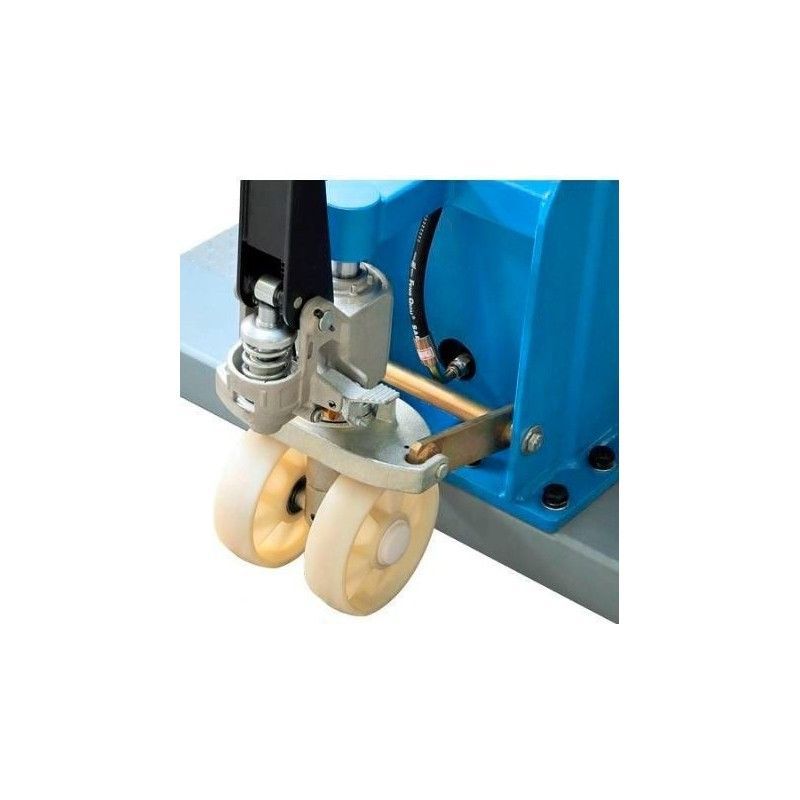

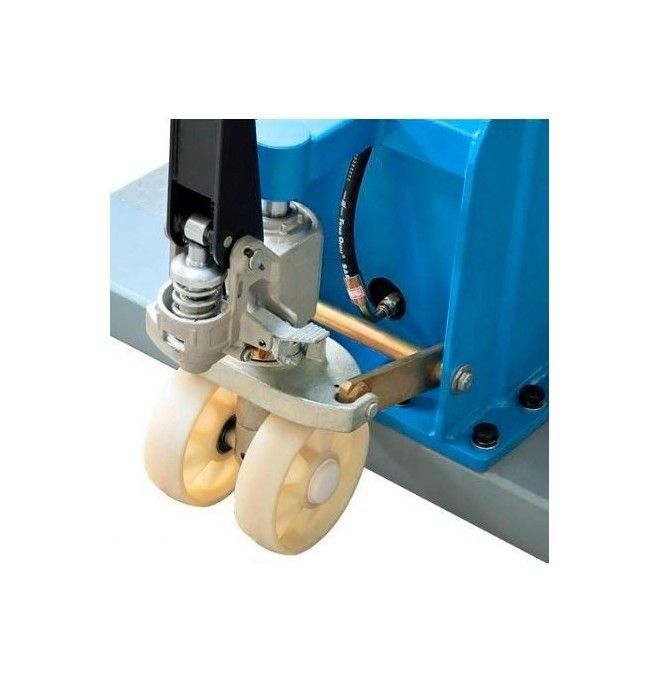

-Móvil: It has a handle like that of a transpalet, to be able to move it through reduced spaces and in a simple and flexible way on any flat surface.

-Extraplane: Height of the ultra flat frame of only 85mm, with a height of support arms of 95mm.

SUMMARY OF CARACTERISTICS

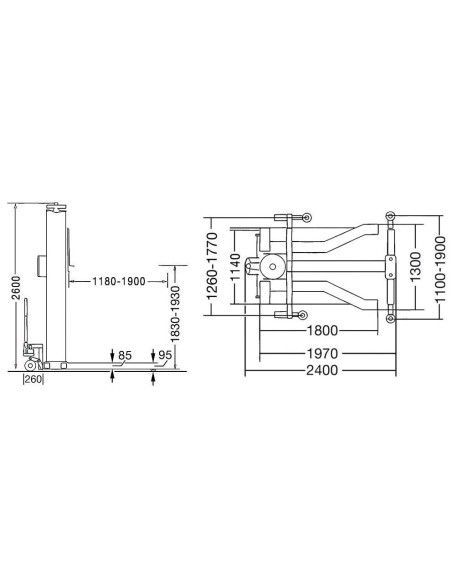

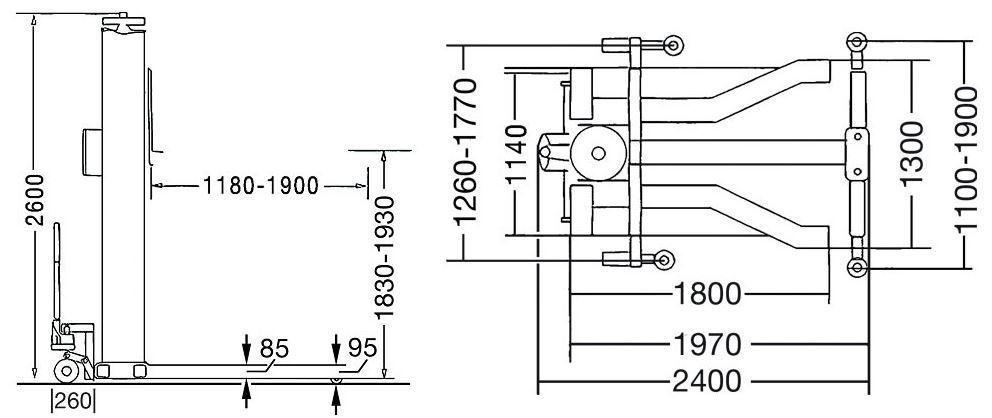

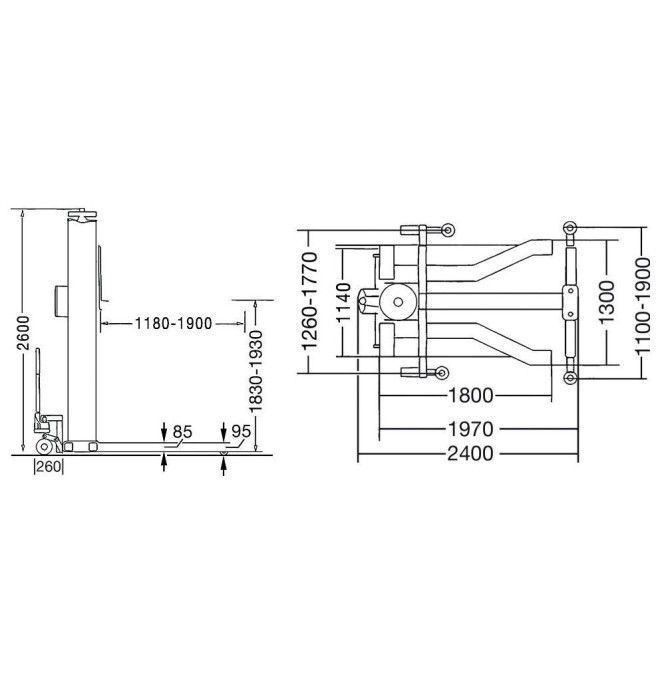

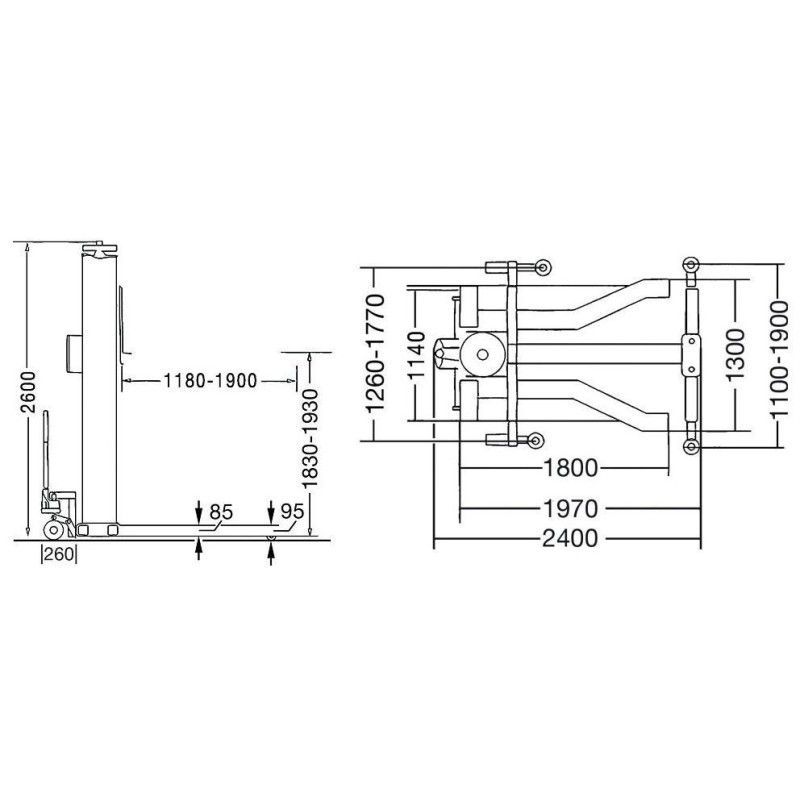

ELEVADOR MEASURES
