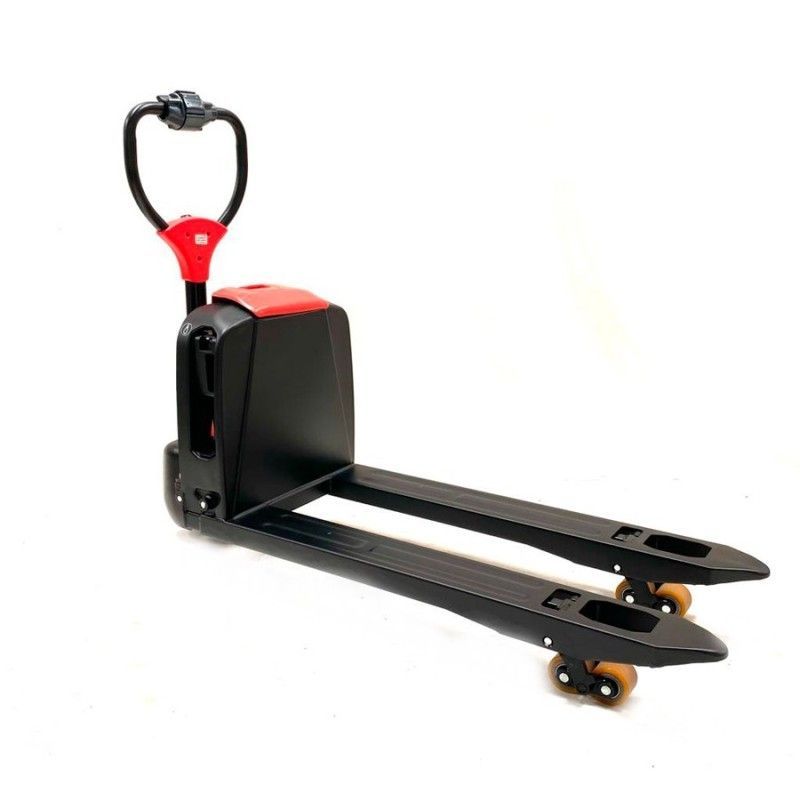

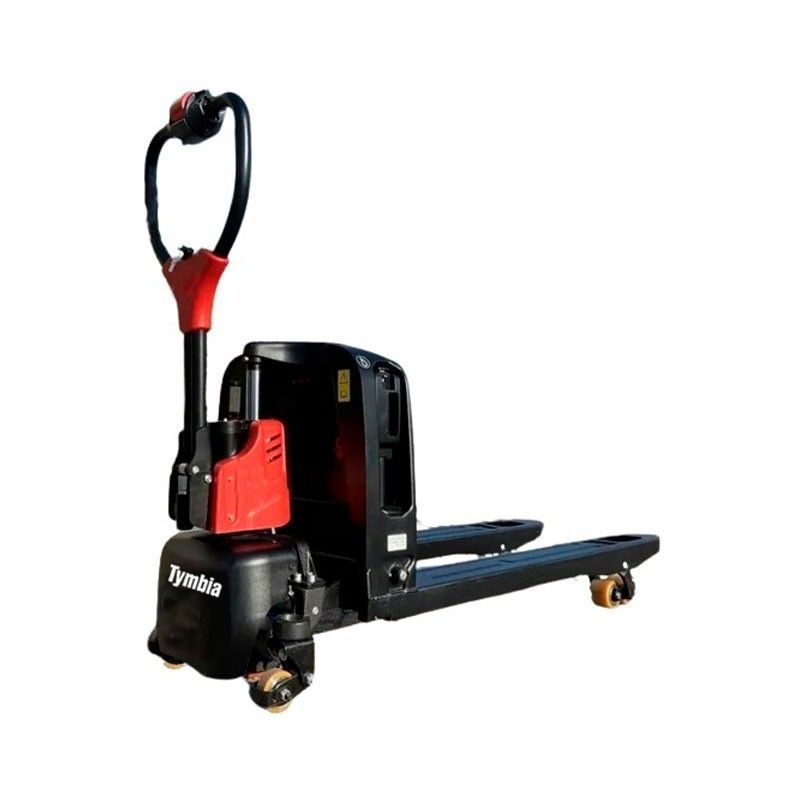

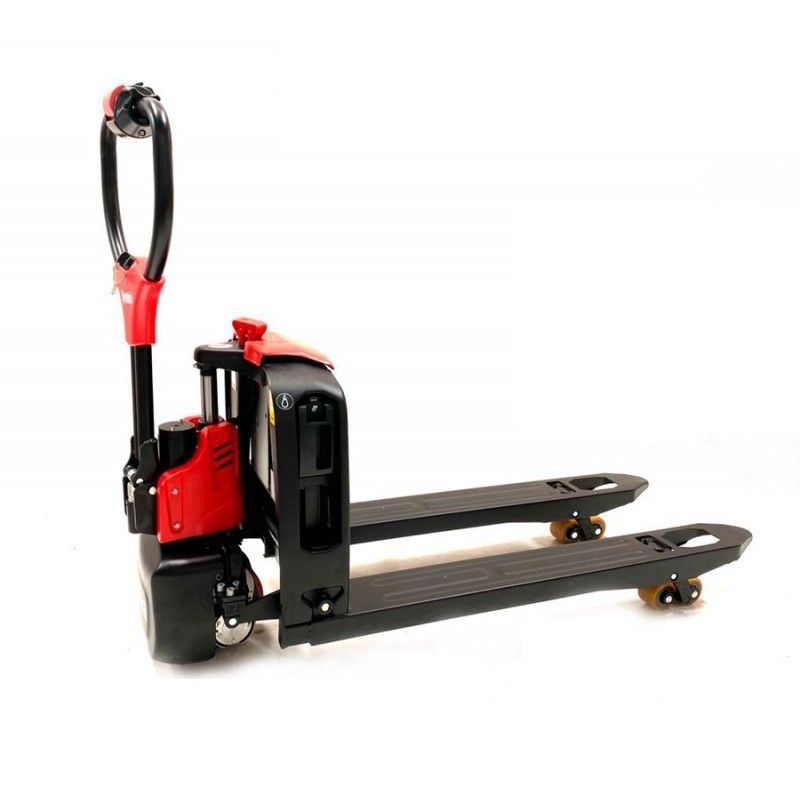

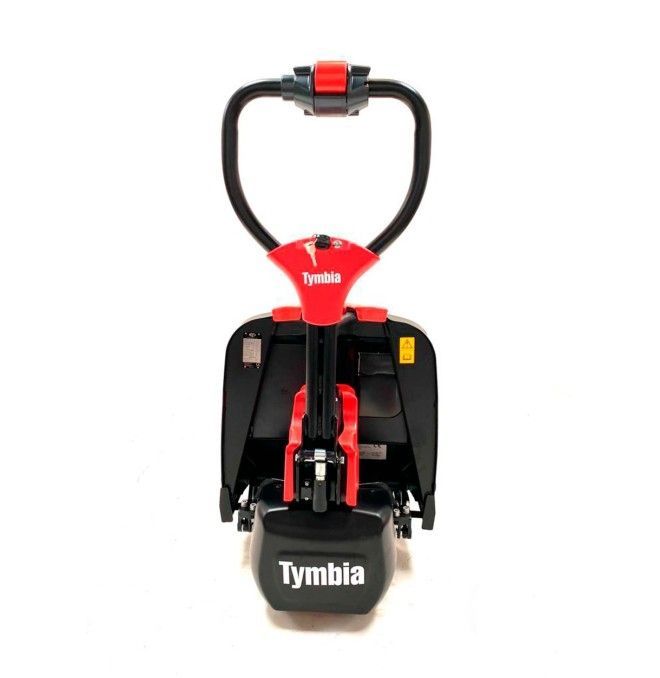

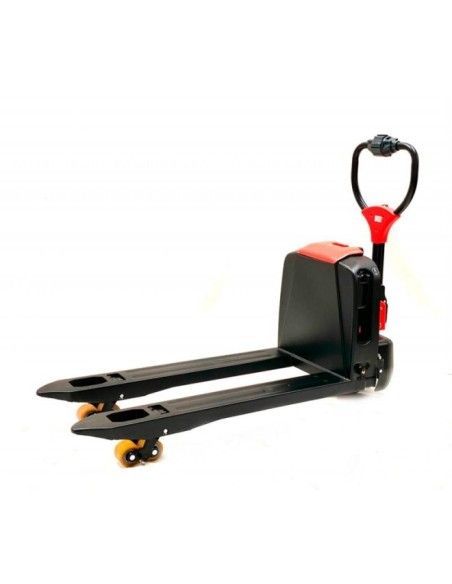

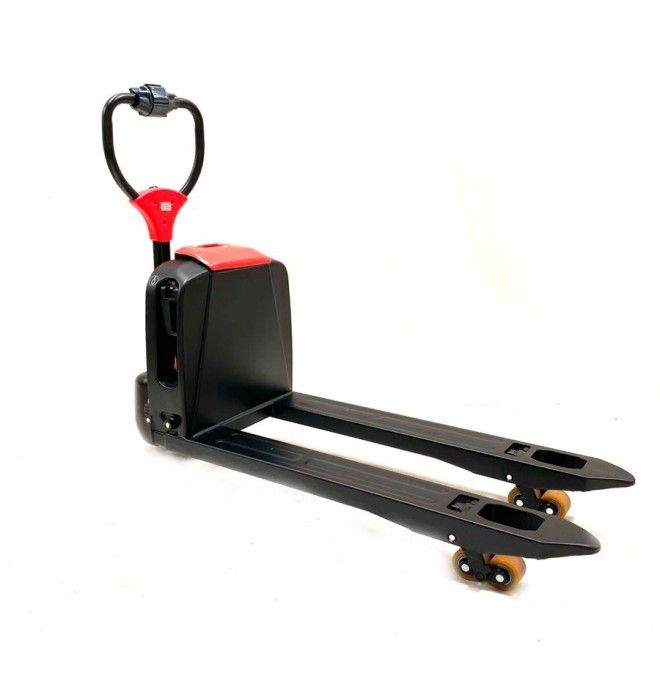

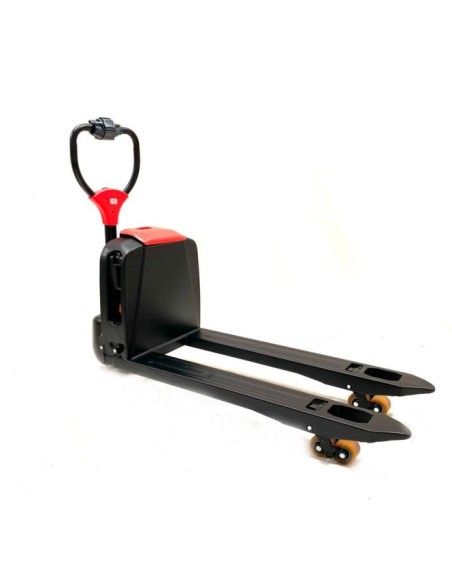

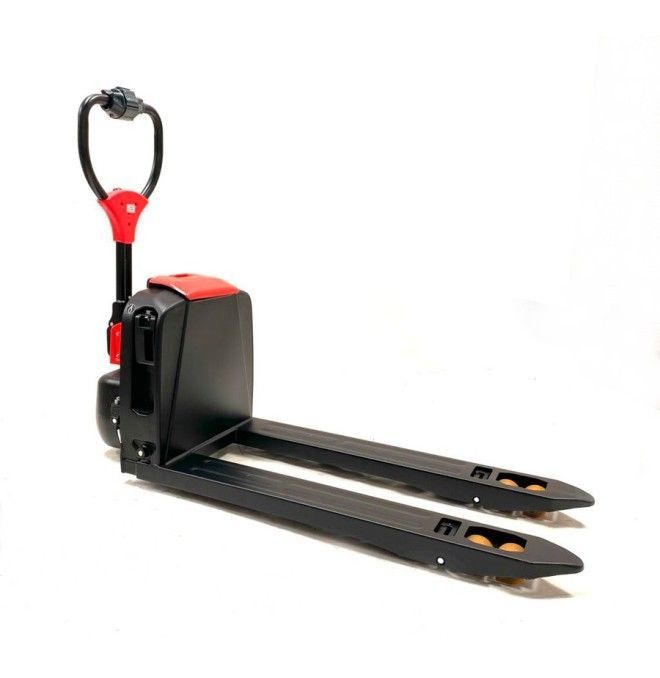

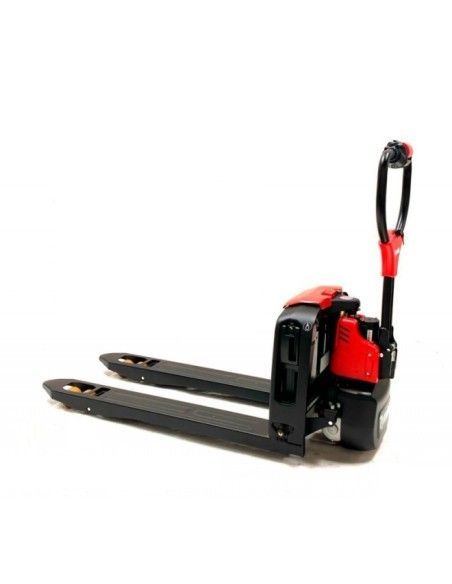

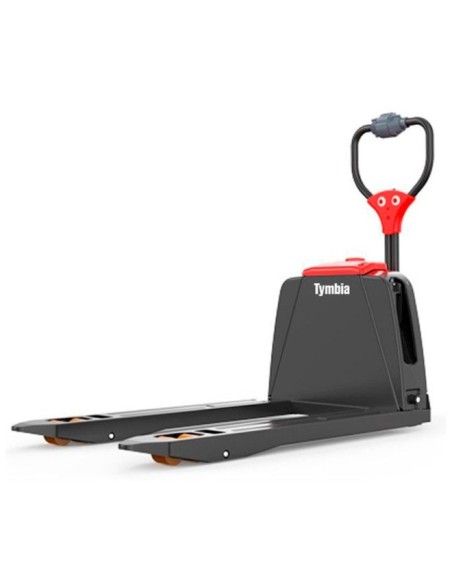

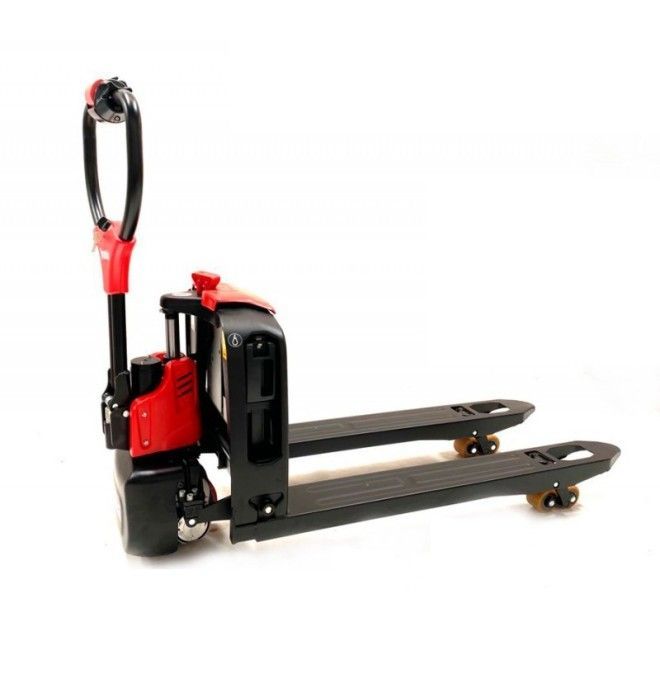

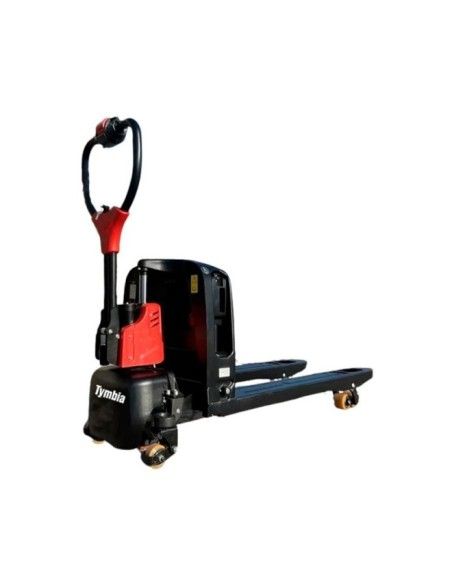

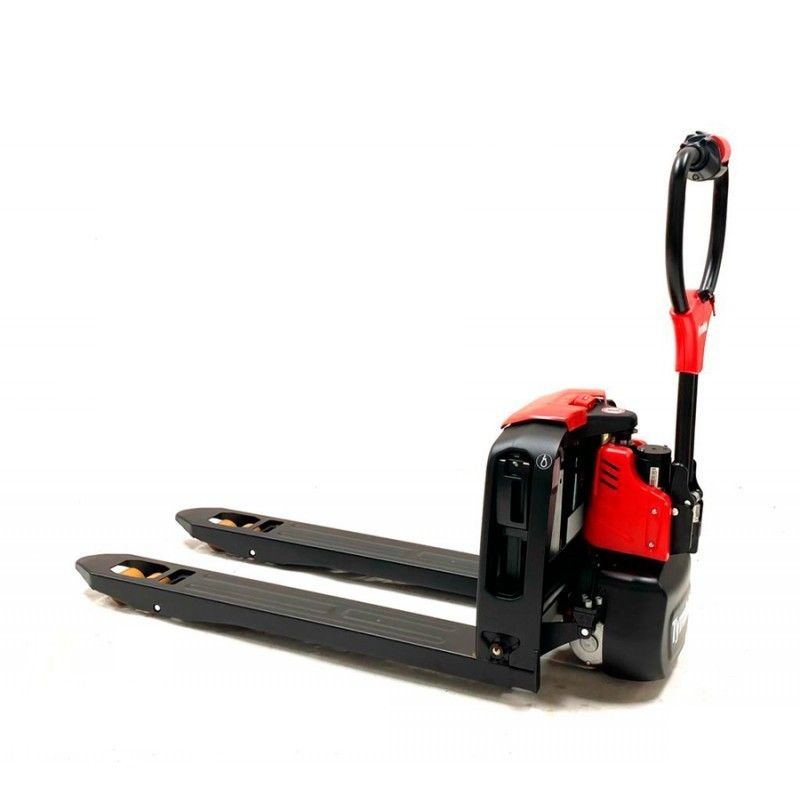

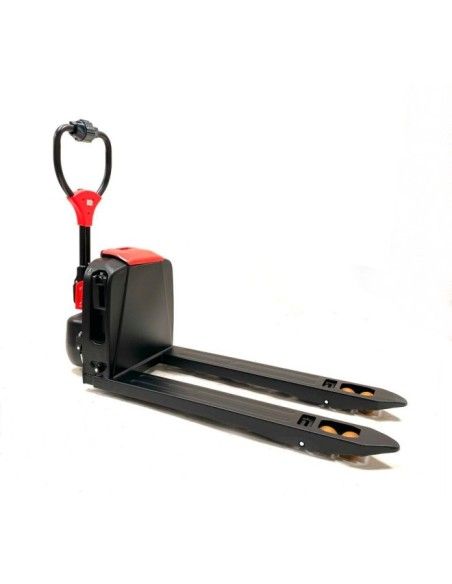

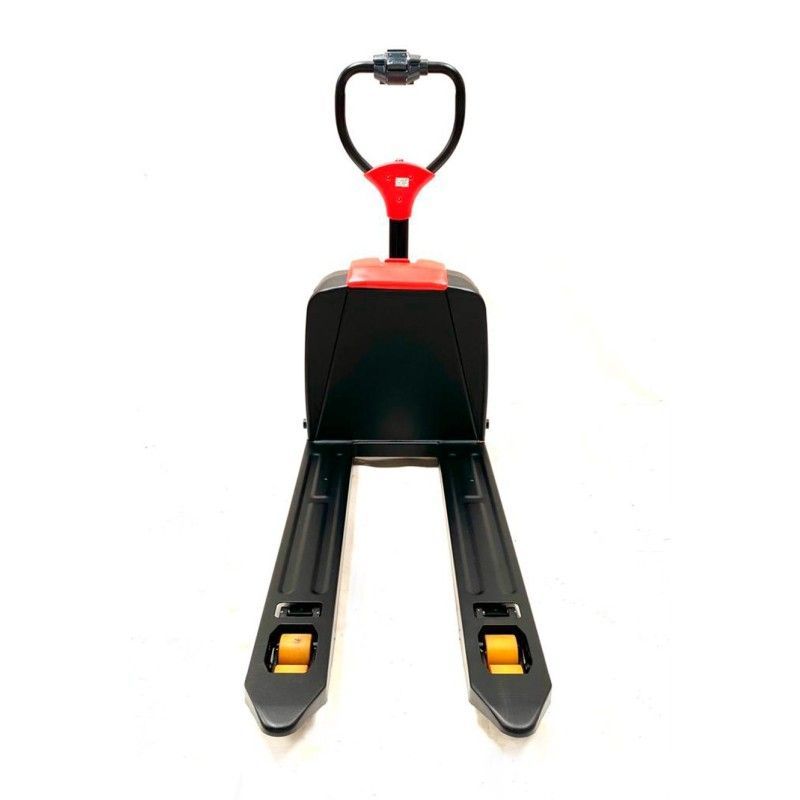

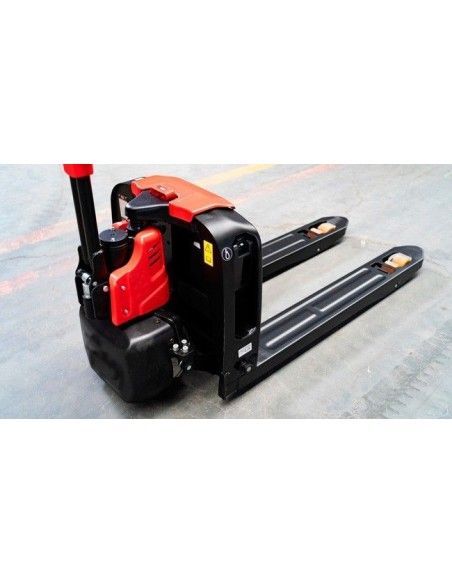

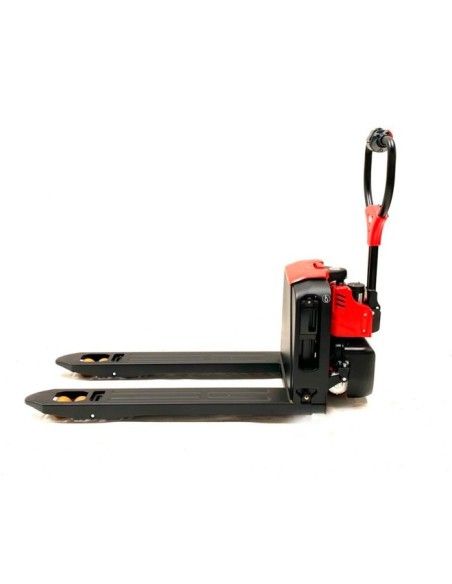

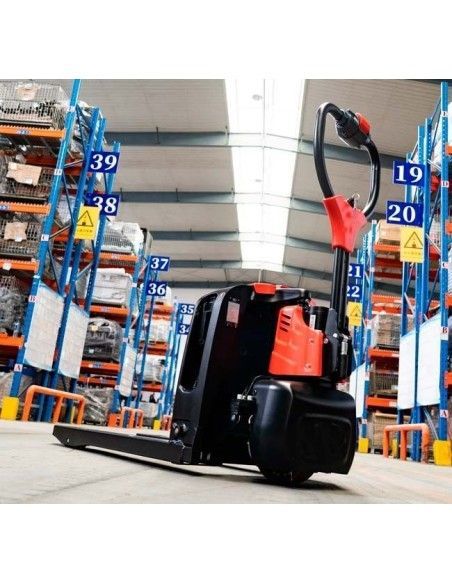

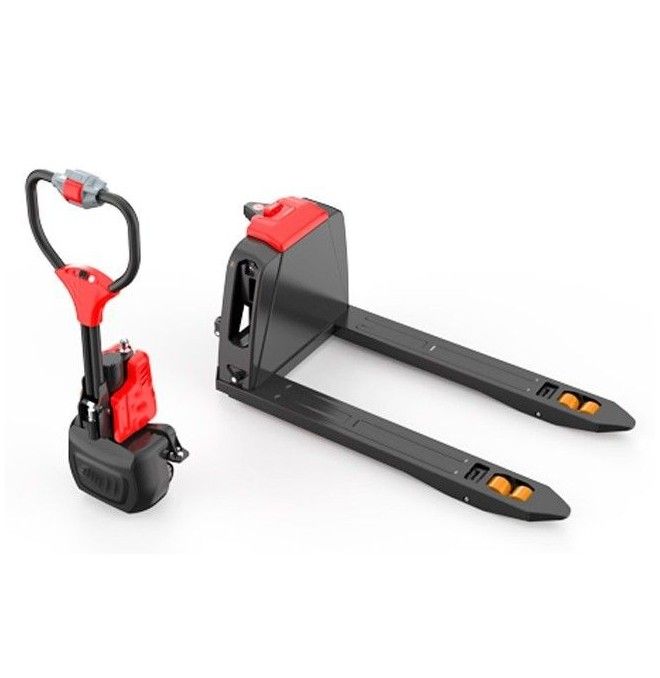

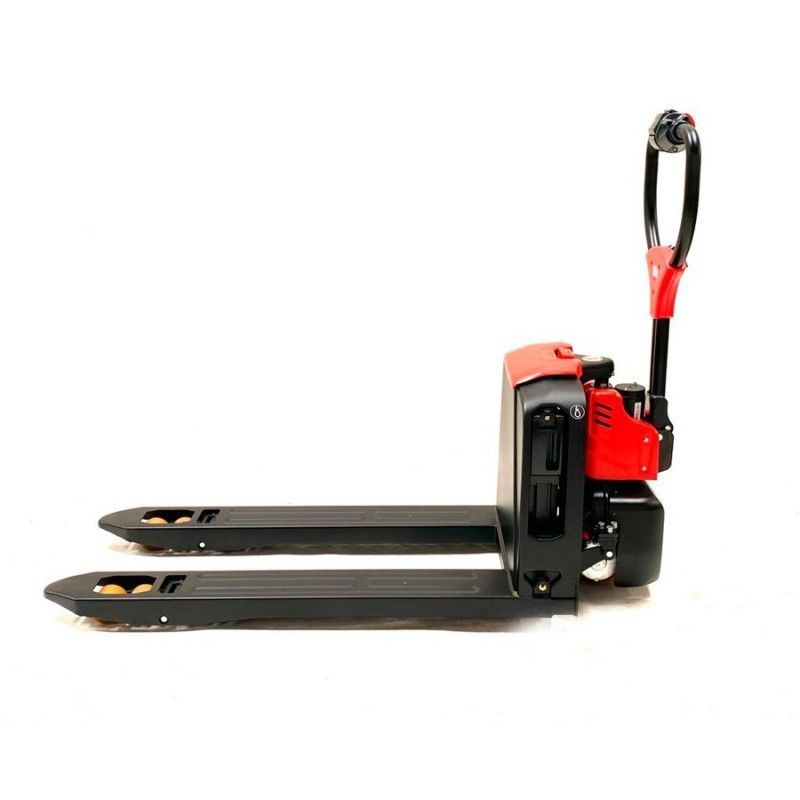

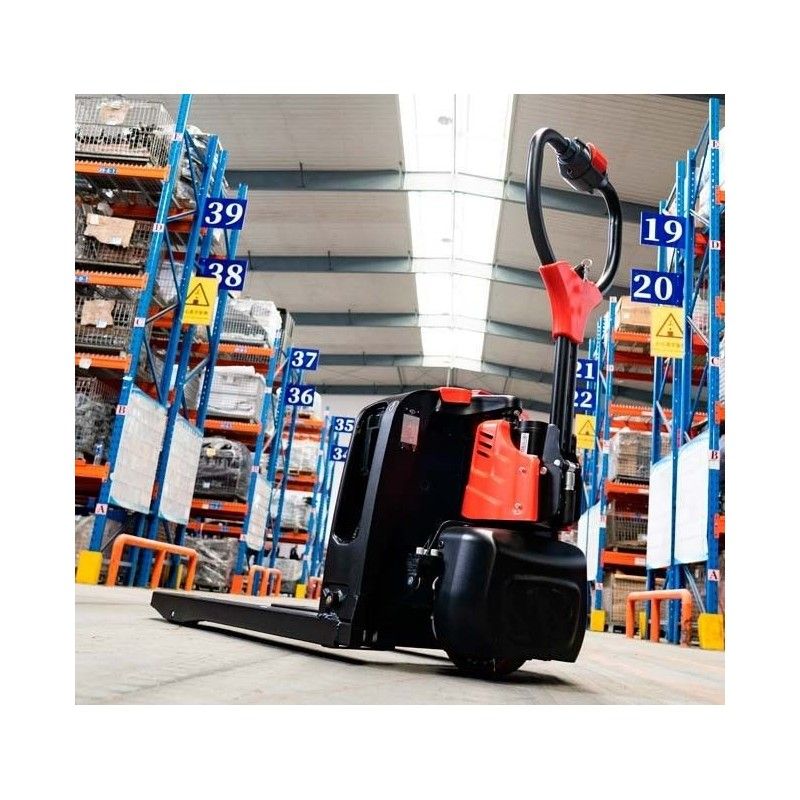

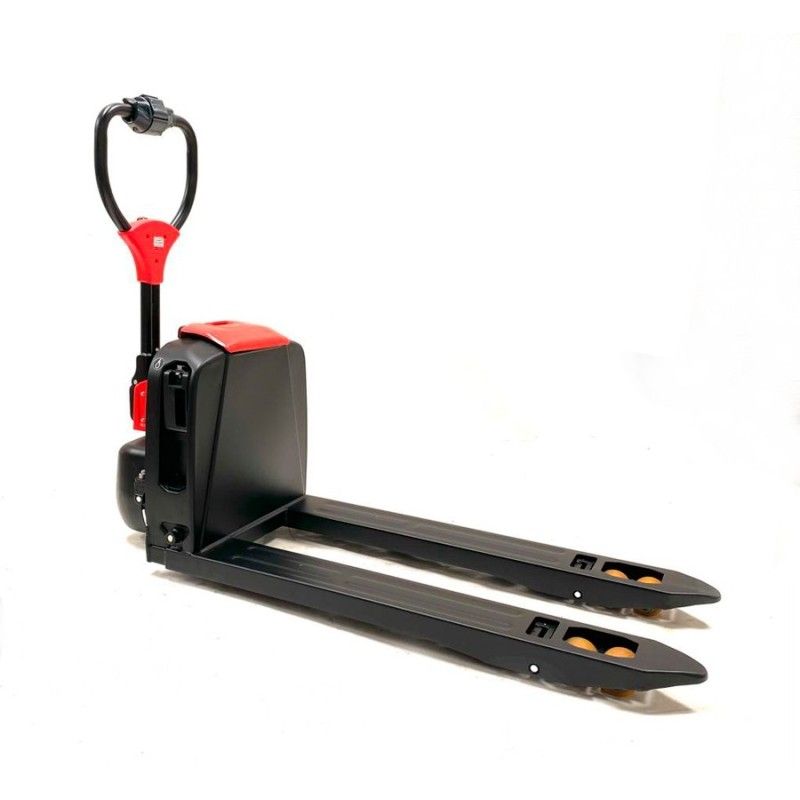

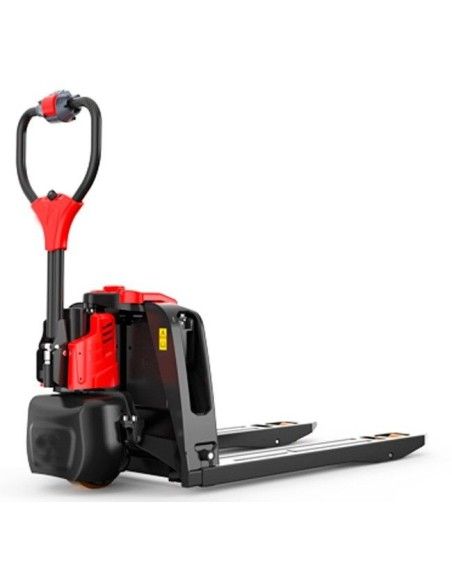

Electrical Transparement 1500kg with Lithium - Logistics Agility

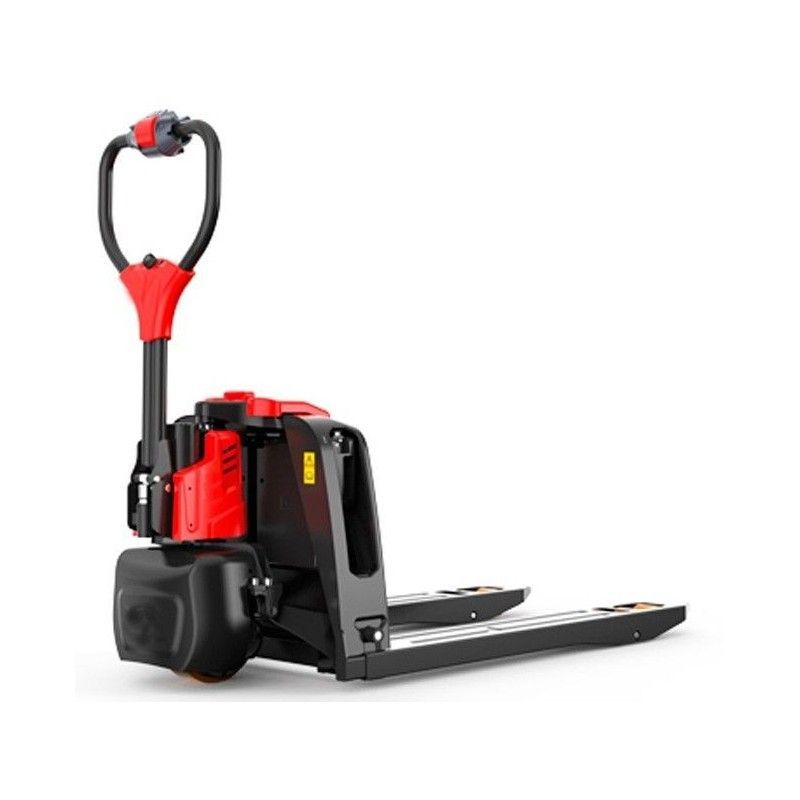

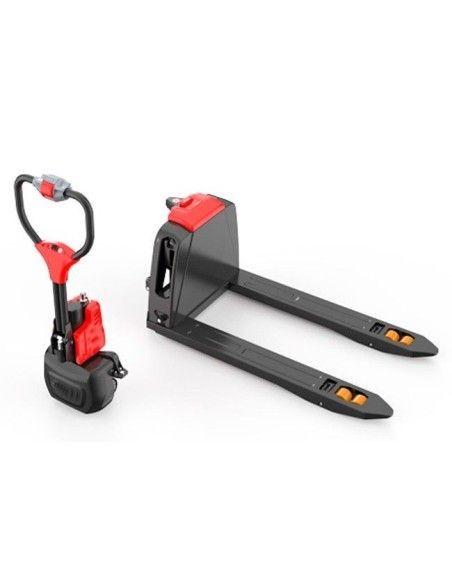

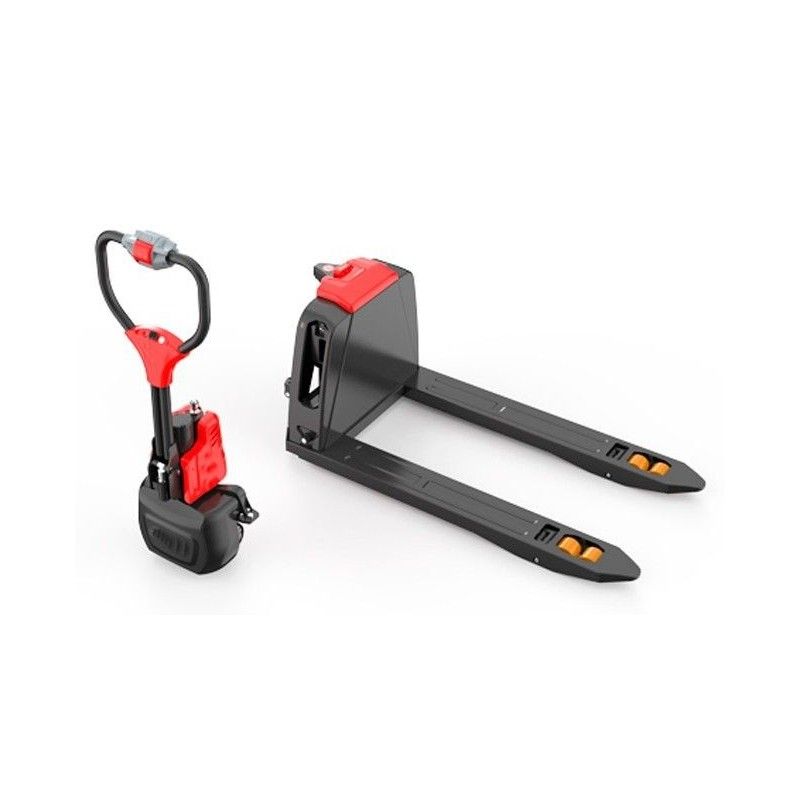

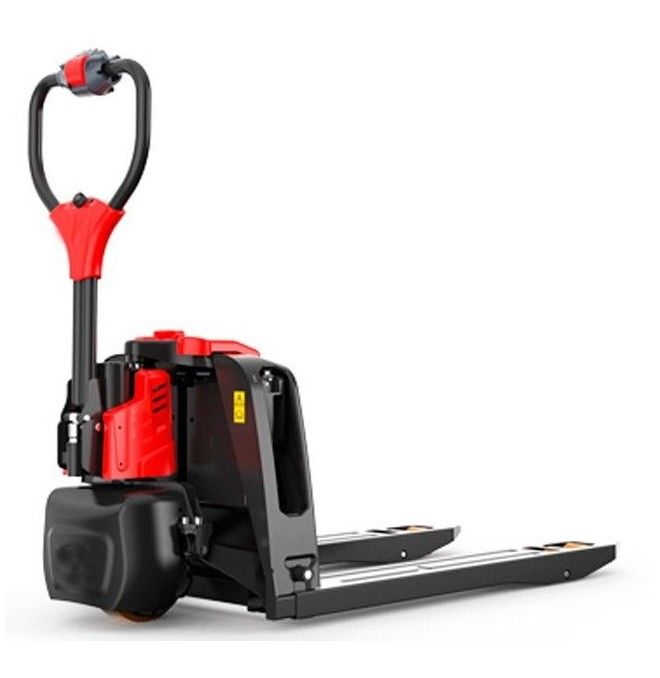

Fully electric transparent, 1500kg of load capacity. This new model allows maximum flexibility in configurations for each type of application, from occasional use to heavy work.

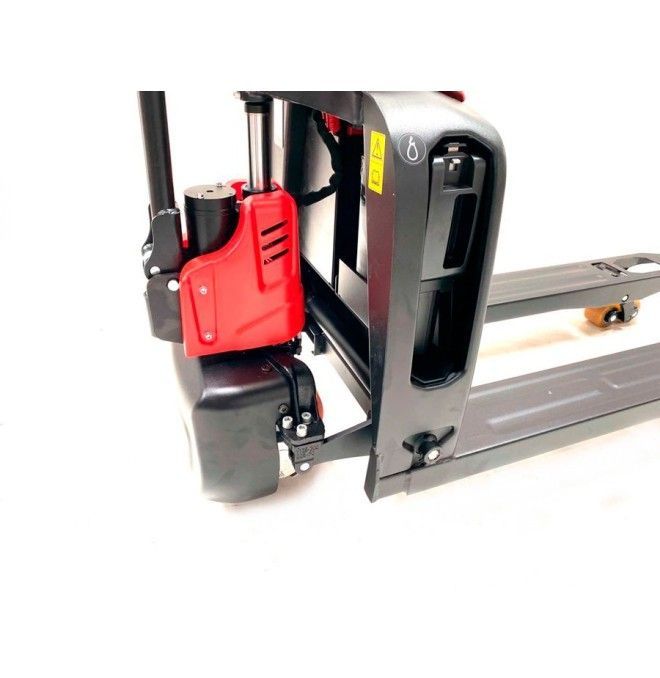

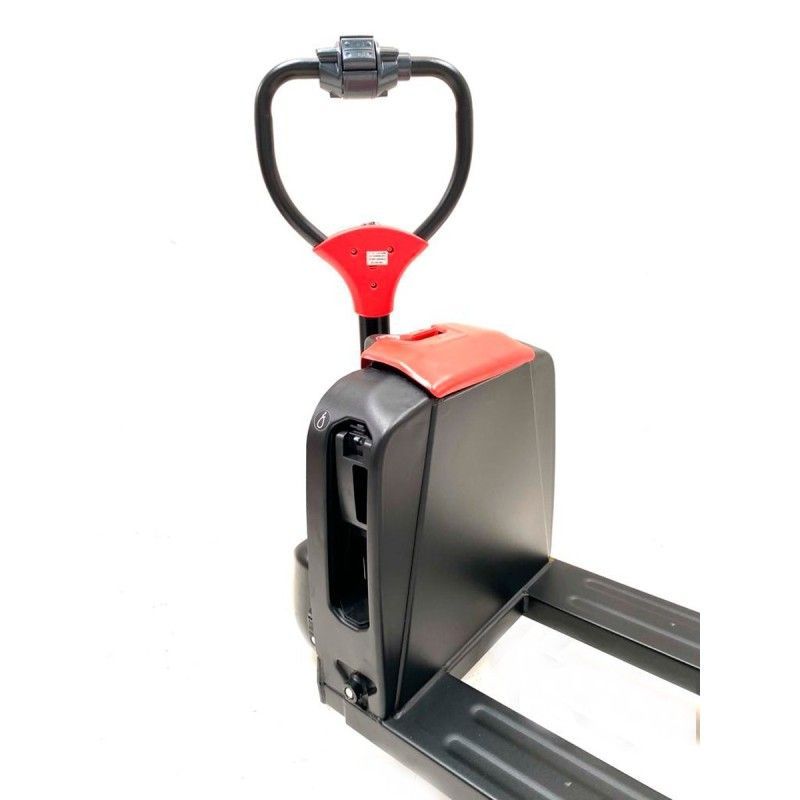

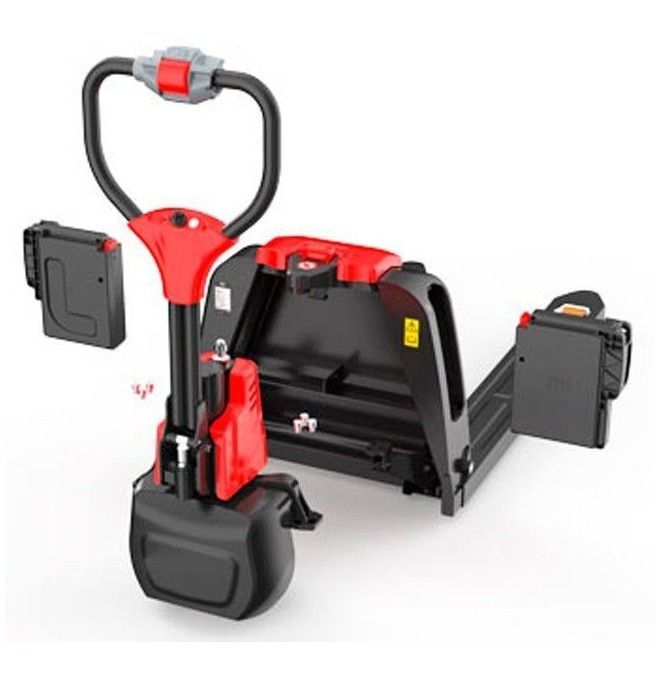

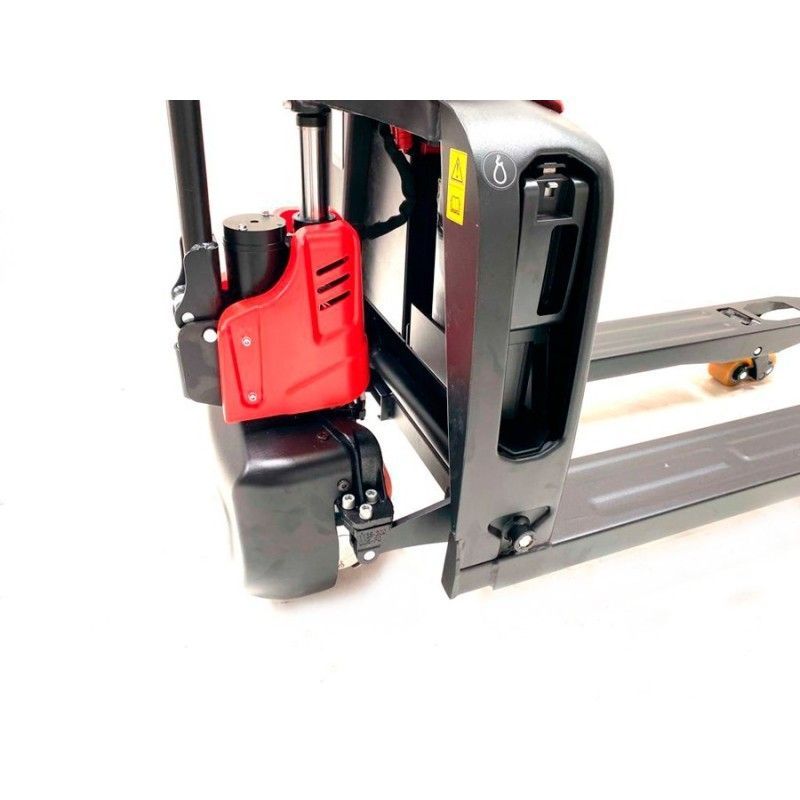

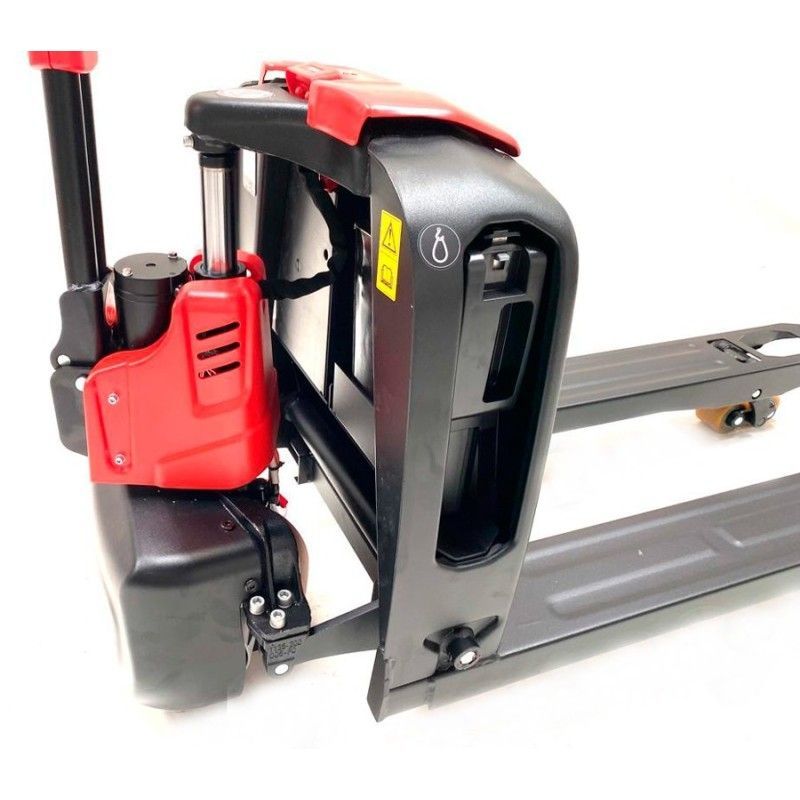

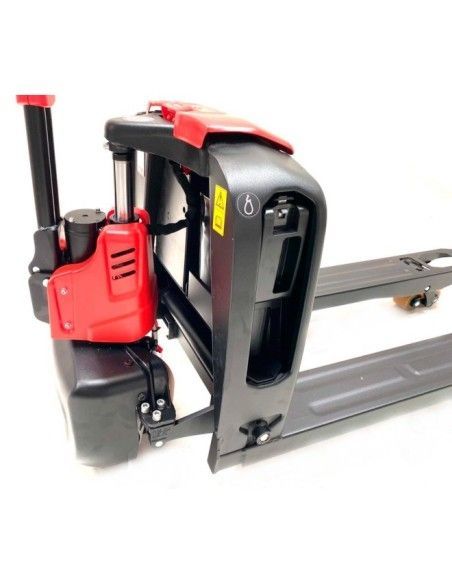

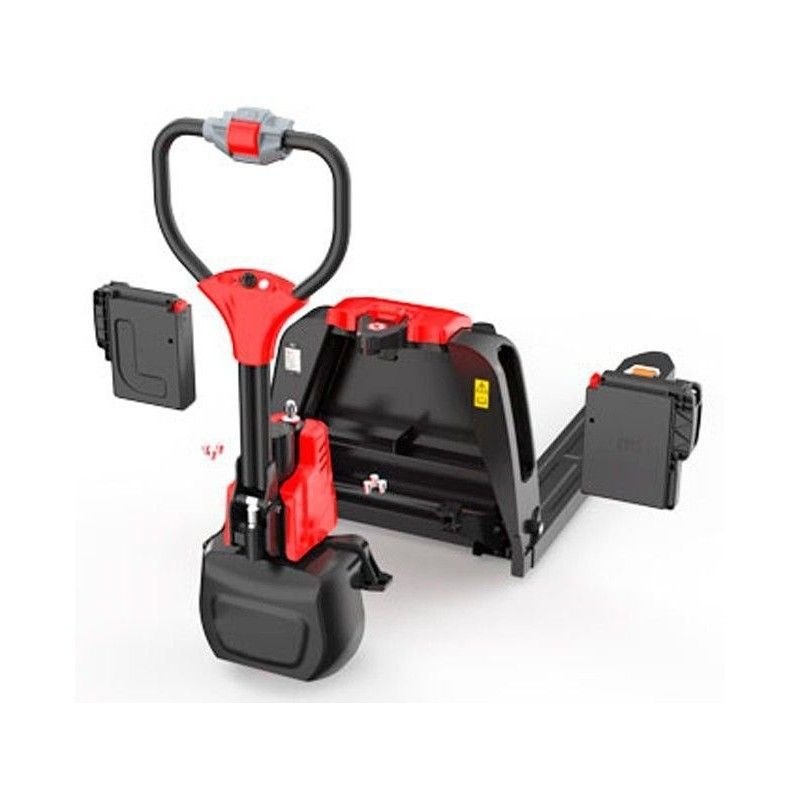

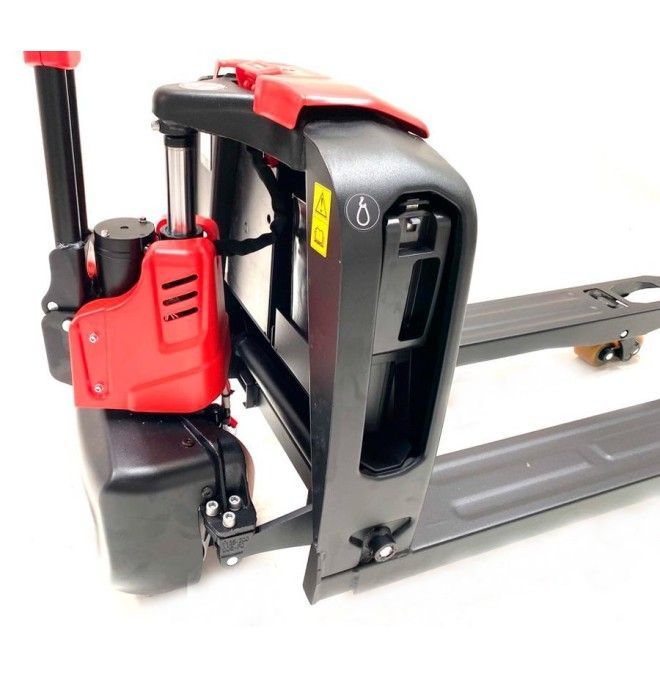

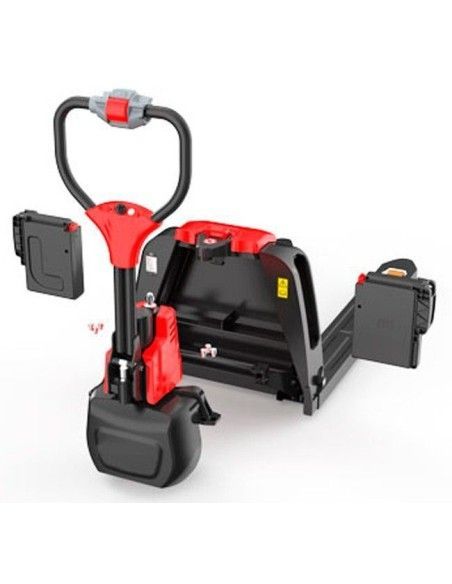

With a design of two feed slots, to offer the option of two 24V / 20Ah batteries, in order to maximize the activity time for full-time applications. You will have the battery fully charged in just 2 hours; This battery is designed to facilitate its handling and can load it into any standard power outlet, without the need for special loading pieces.

Integrated charger included. Single-phase load

The standard configuration of a single battery comes with a portable storage space for greater storage ease. Its versatility converts the electrical turns into a perfect tool for different tasks in the smaller environments or spaces.

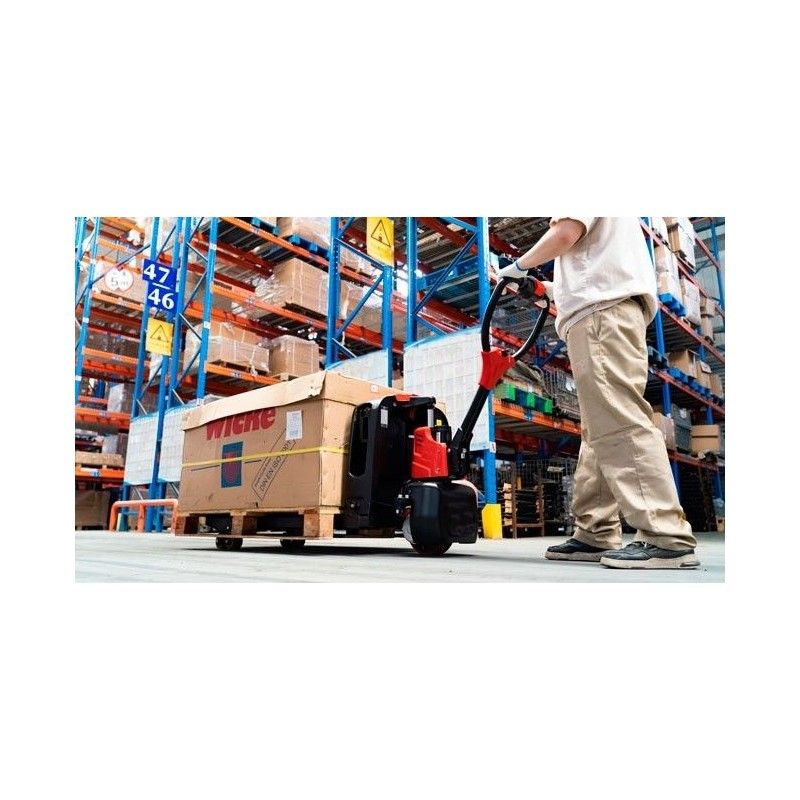

Manufactured and designed to improve your experience in transport and loading materials. Ideal for spaces reduced by its design and easy handling. An economical way of transporting your packages comfortably and easily.

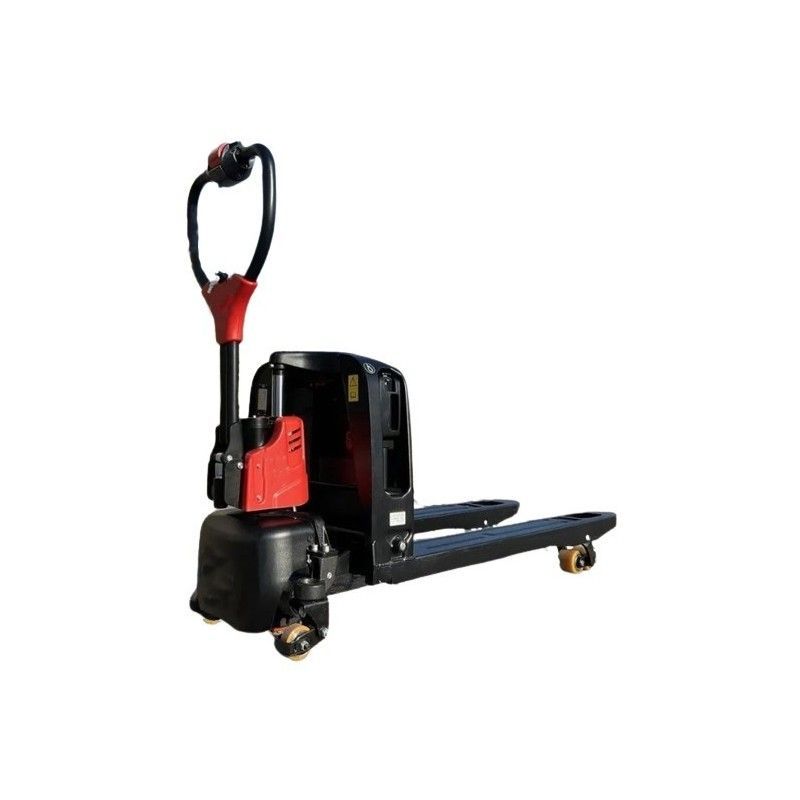

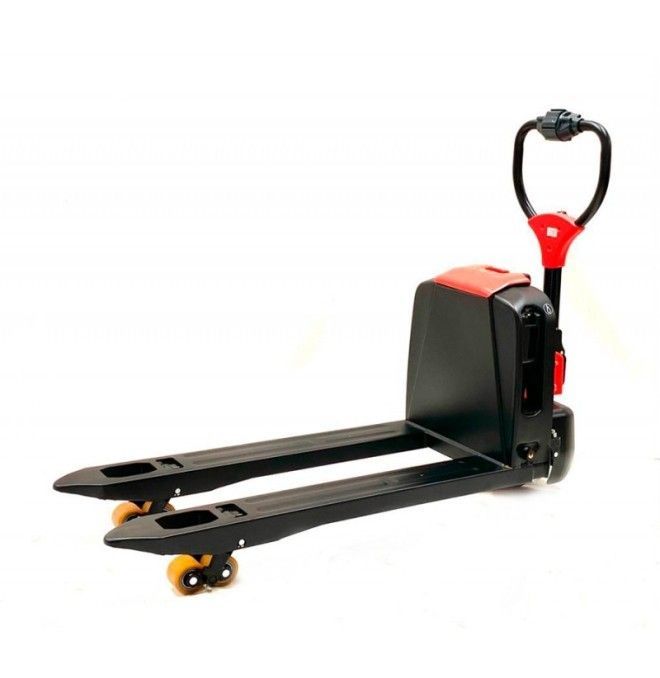

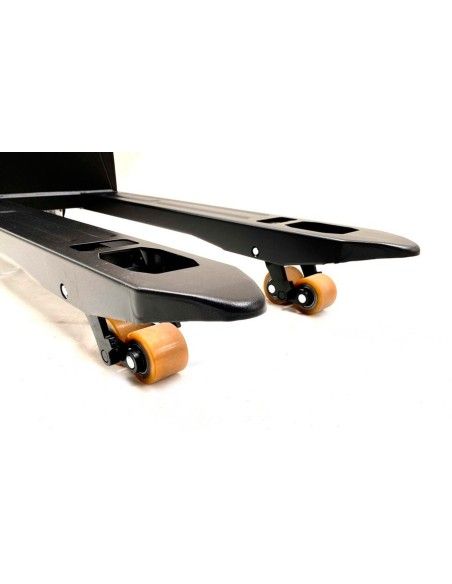

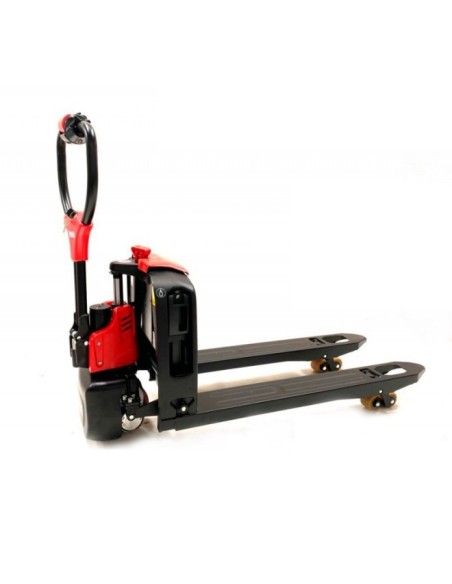

The stabilizing wheels are included in this model.

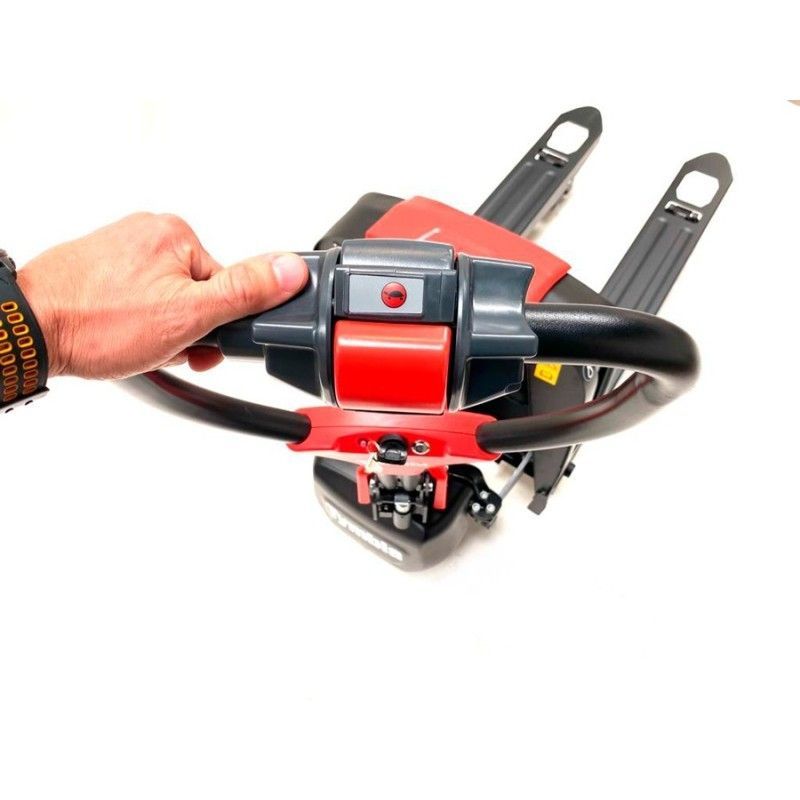

Its structure and design facilitates operator its use, and its maintenance is minimal.

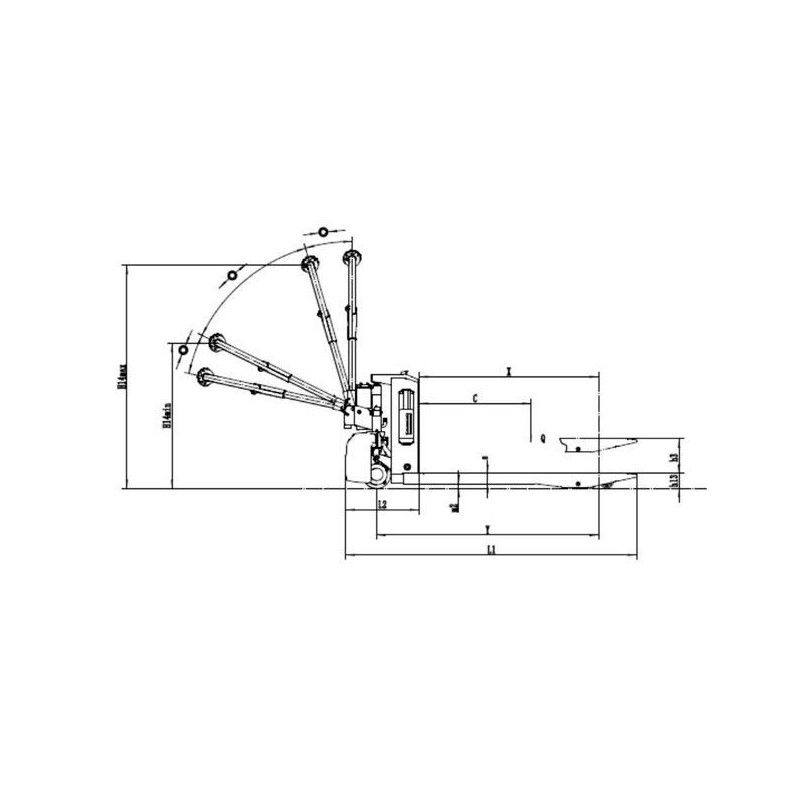

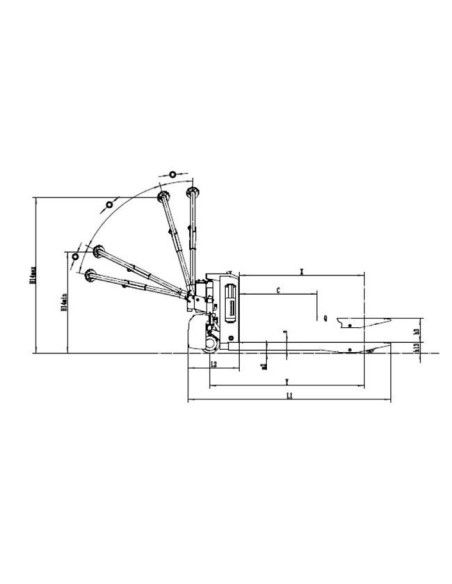

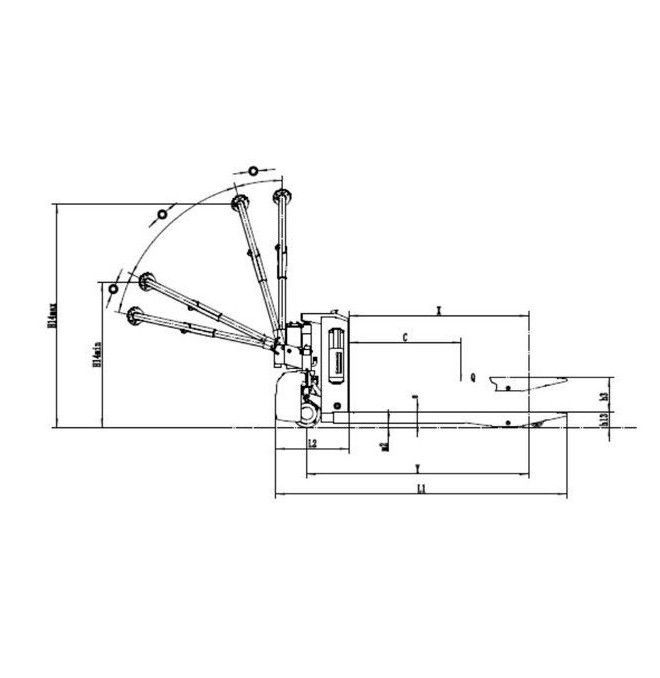

Technical characteristics

(Q) Load capacity: 1500kg

(c) Cargo center: 600mm

(x) Load distance: 950mm

(y) Axles distance: 1180mm

Type of wheel drive: Polyurethane

Size of the wheel drive: 210x70mm

Roller size: ф80x60 (ф74x88) mm

Motor wheels: 1

Side stabilizing wheels: 2

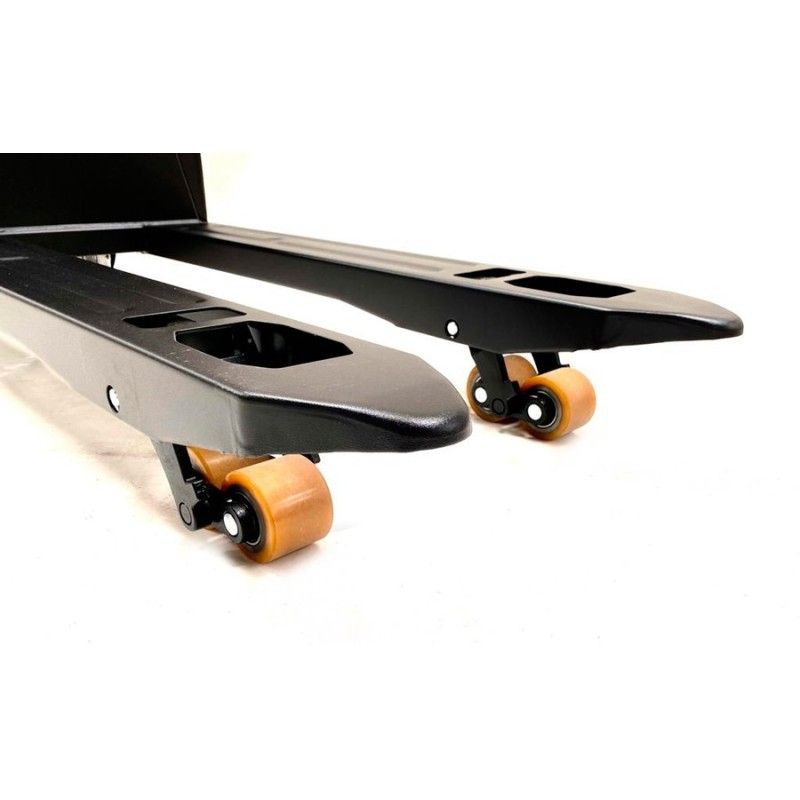

Rollers: 4

(H3) Lifting height: 105mm

(H14) Min. / Max. of the rudder: 750 / 1190mm

(H13) Height Min: 82mm

(L1) Total length: 1550mm

(B1) Total width: 590mm

(S / E / L) Dimensions Forks: 55x150x1150mm

(B5) Distance from forks (Width): 560mm

Floor Distance, Downtown Between Axles: 25mm

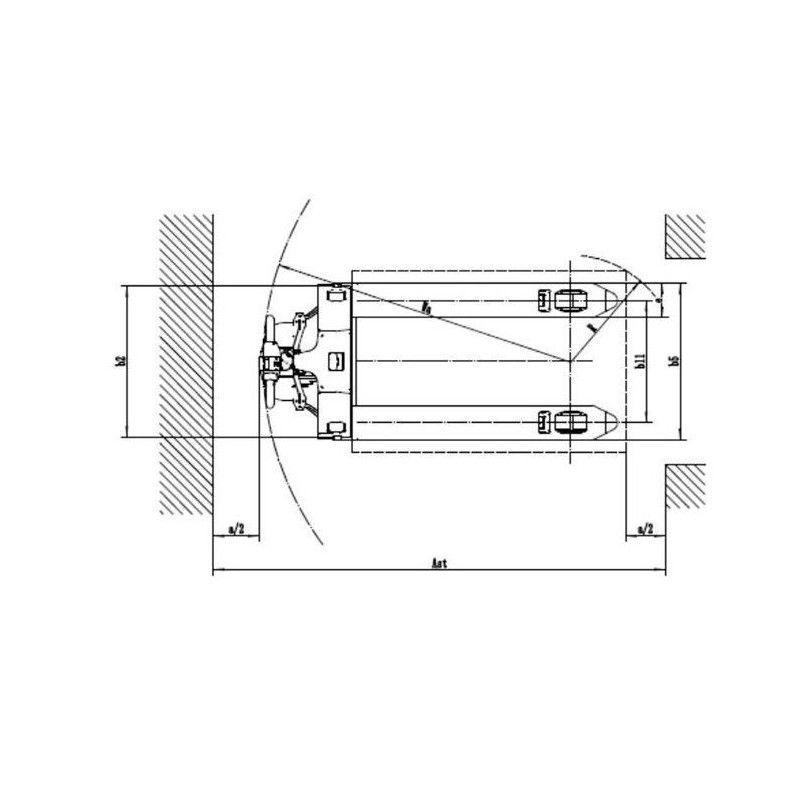

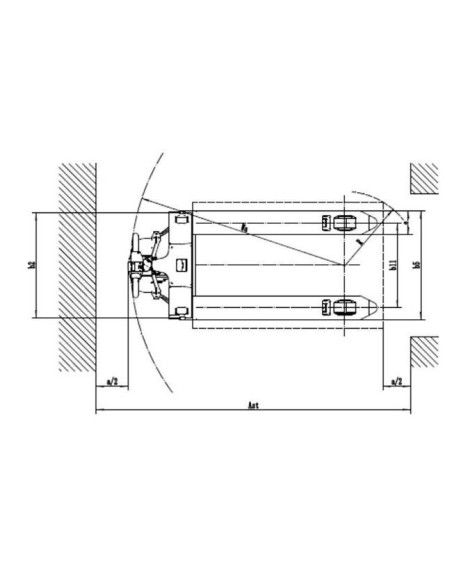

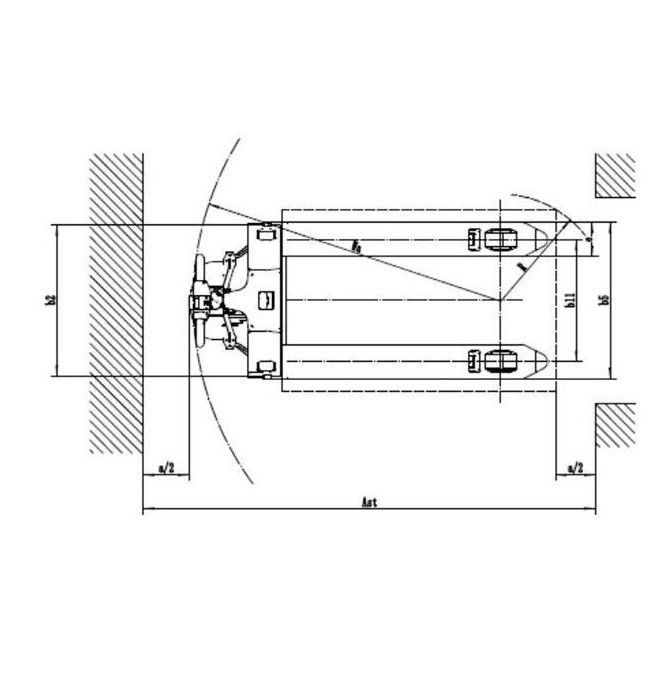

(WA) Radio rotation: 1360mm

Scroll speed, with / without load: 4 / 4.5 km / h

Lifting speed, with / without load: 0.017 / 0.020 m / s

Drop speed, with / without load: 0.046 / 0.058m / s

Overlavable pending: 5% (load) / 16% (downloaded)

Brake type: Electric

Push motor power: 0.75KW

Lifting motor power: 0.5KW

Battery voltage / Nominal capacity: 24 / 20V / AH

Battery weight: 5kg

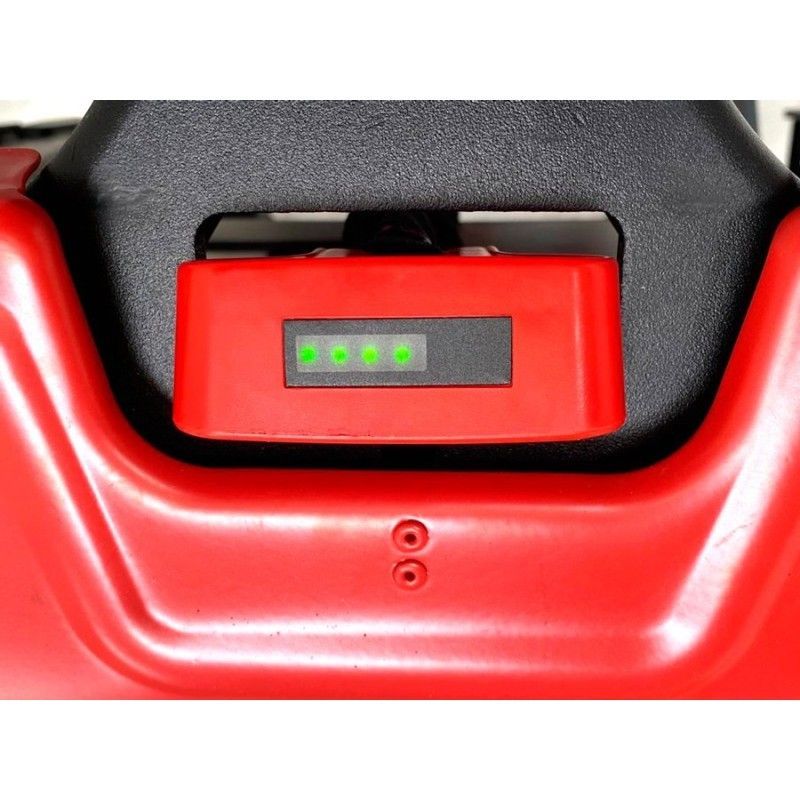

Lithium battery

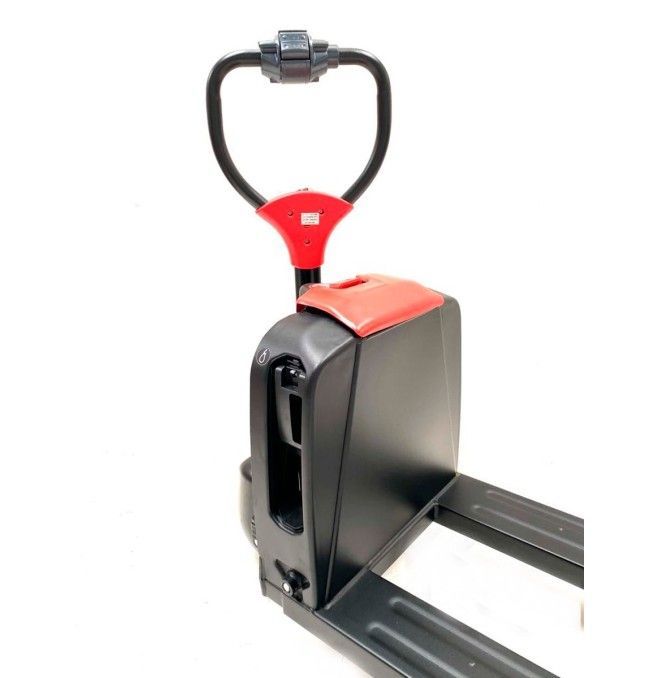

Removable battery

Controller: DC

Type of address: Mechanics

Weight: 120kg

CE

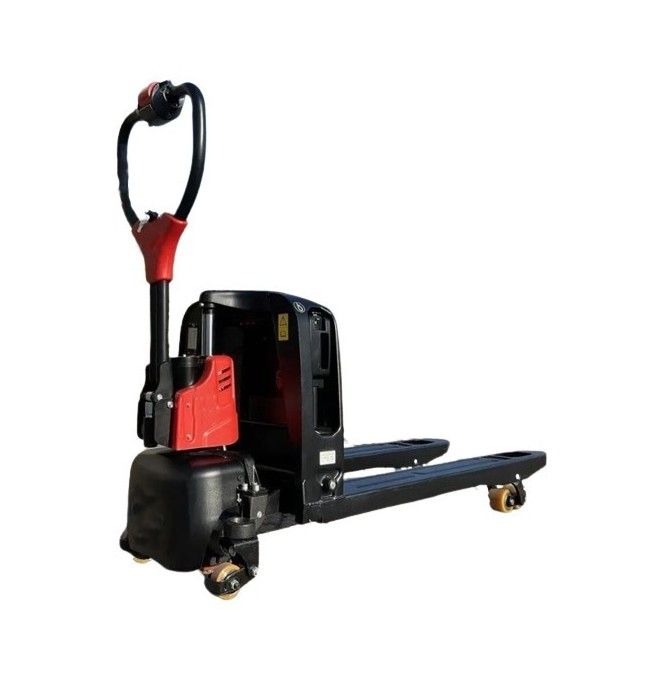

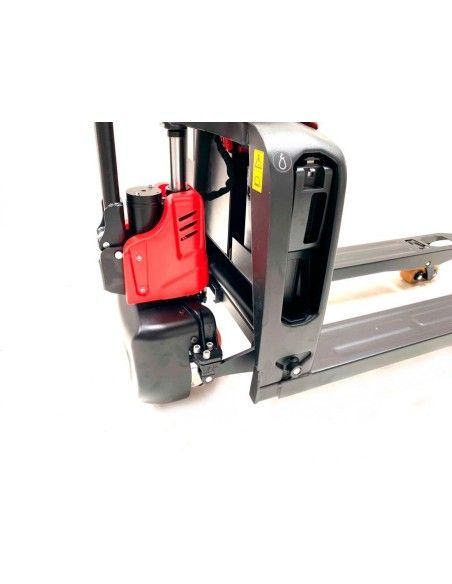

 Stabilizing wheels

Set of two side stabilizers.
