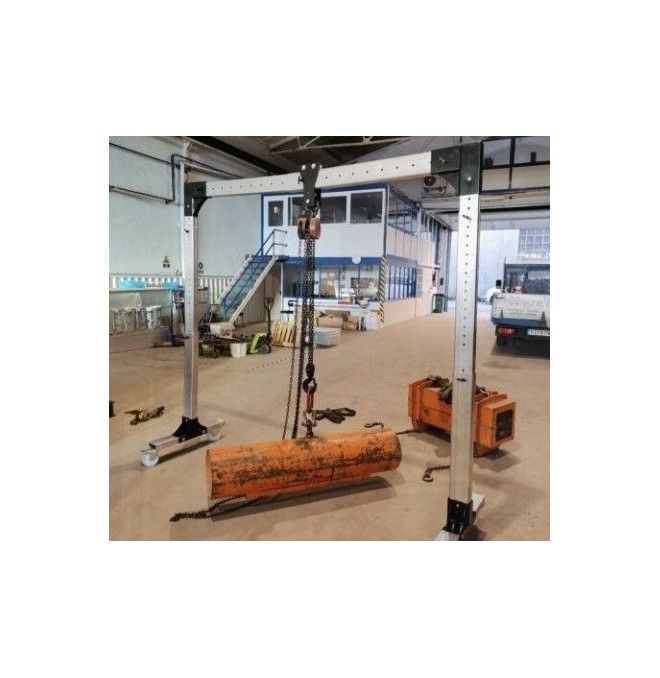

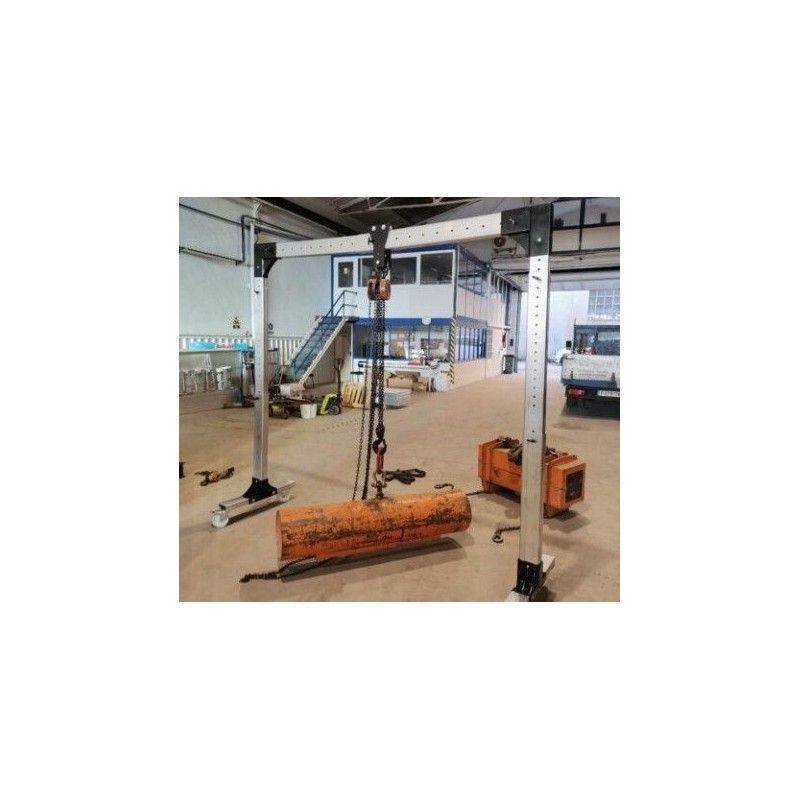

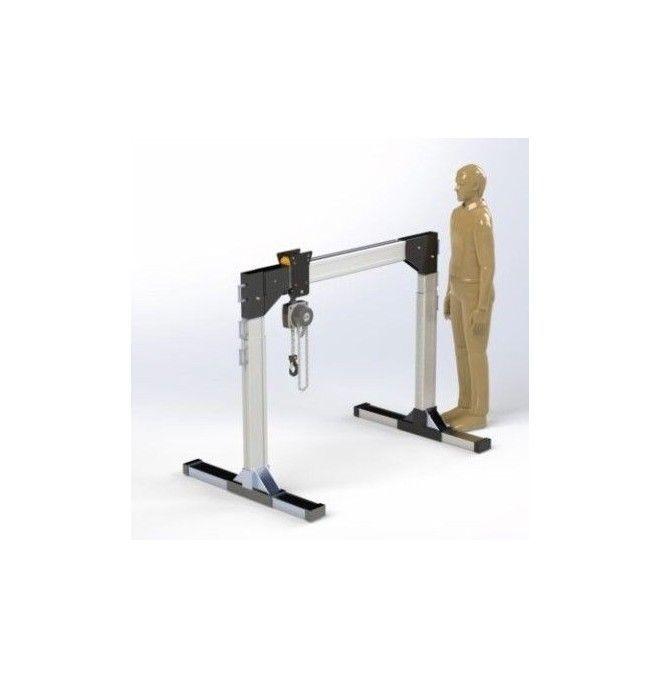

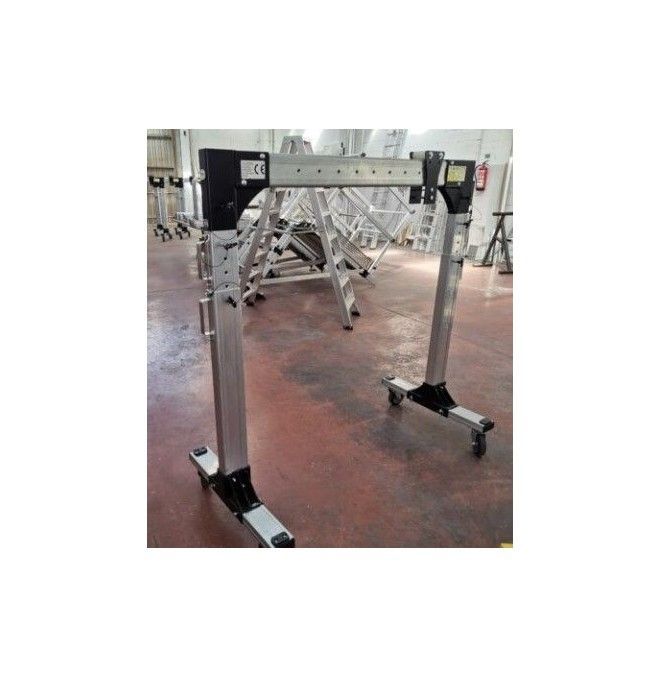

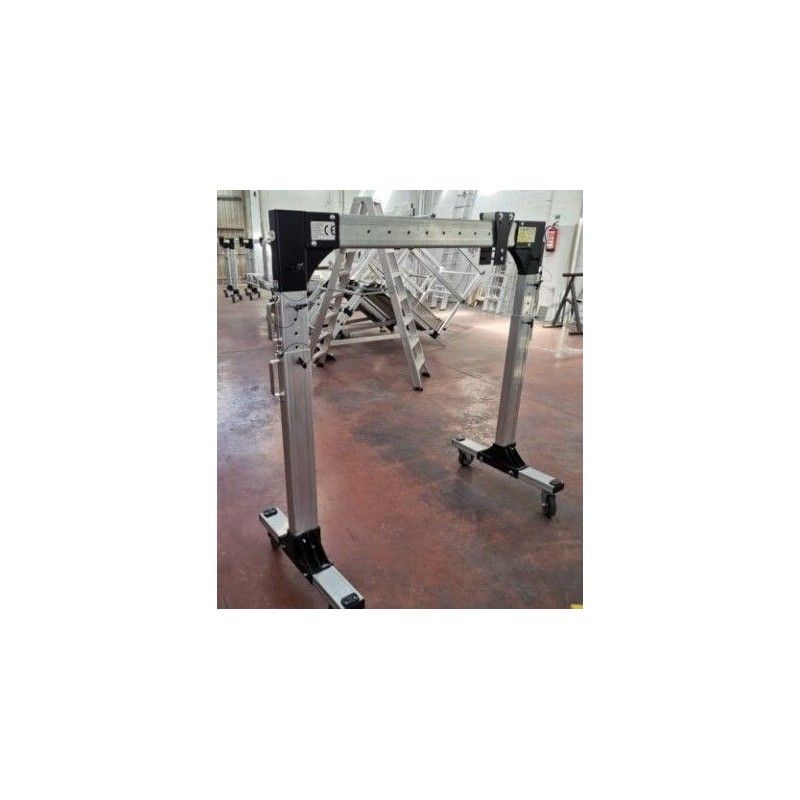

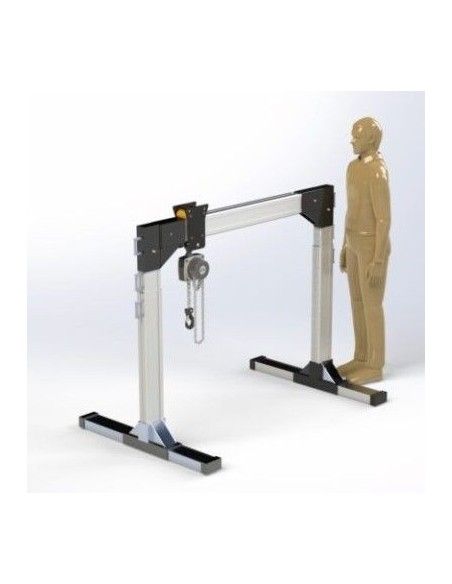

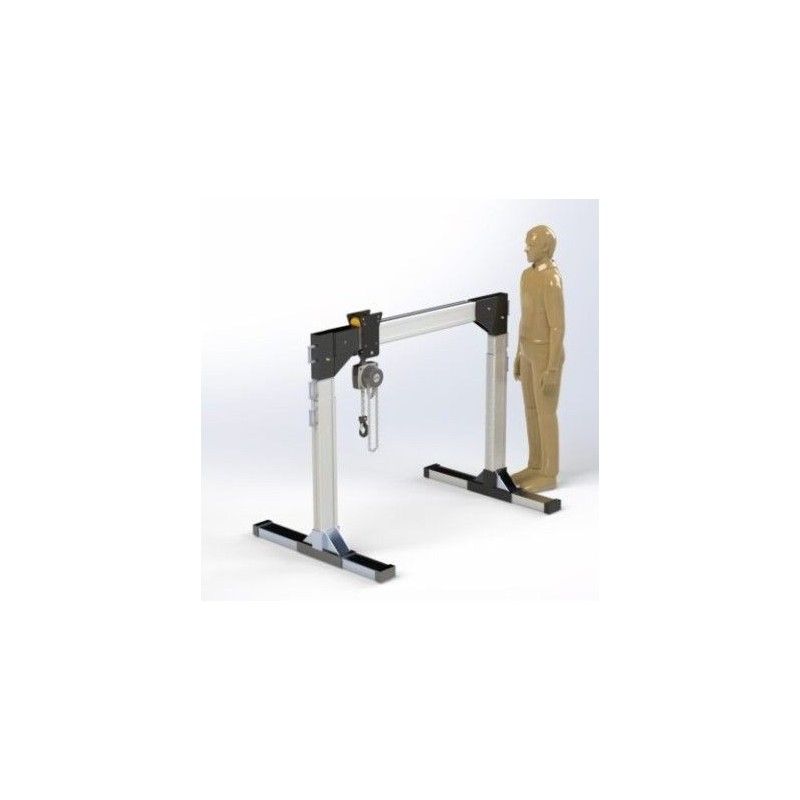

Portico of light aluminum adjustable legs 1000/500kg

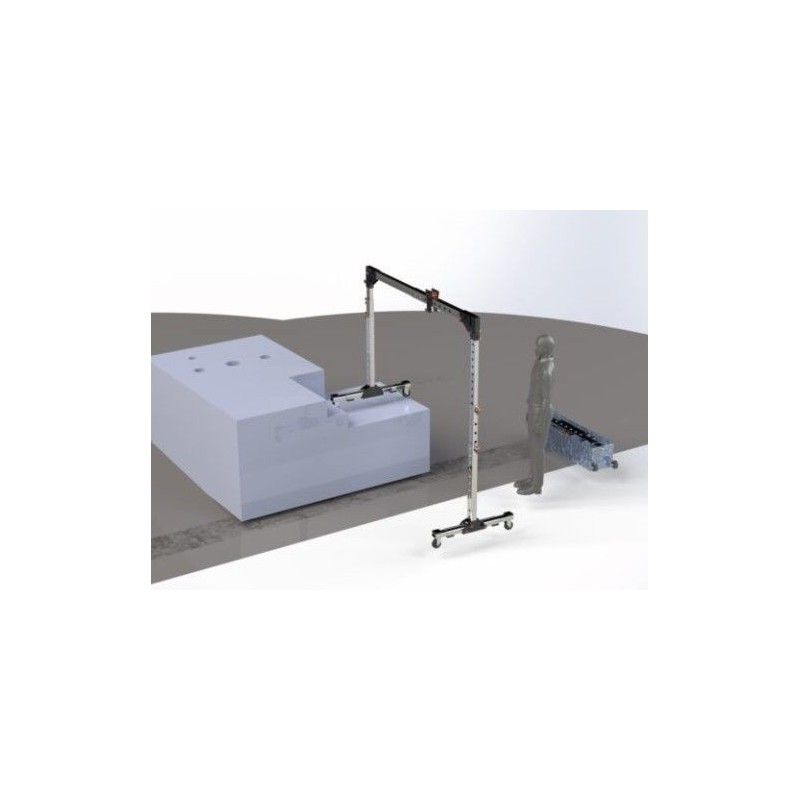

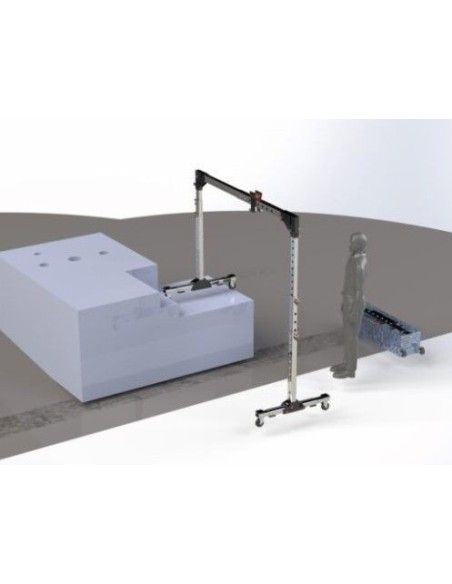

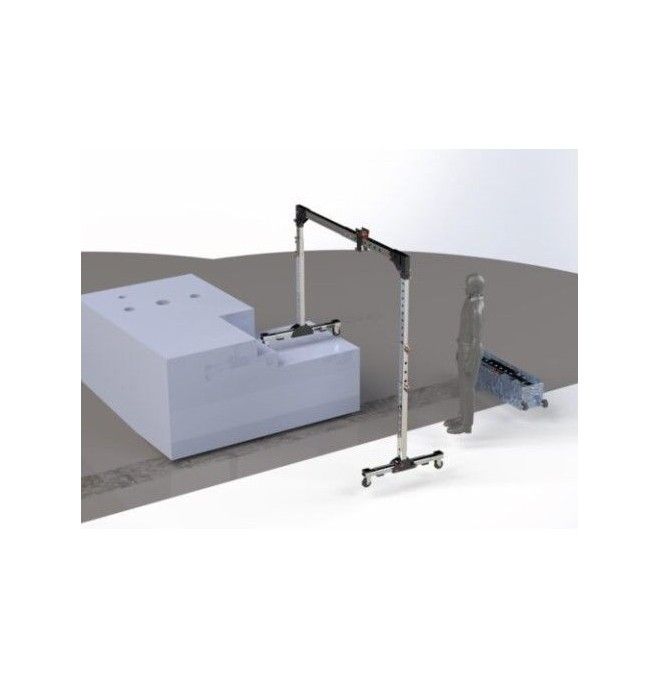

Lightweight and portable aluminium porch made entirely of resistant aluminum. It has adjustable legs that can work each at a level. Easy assembly in less than two minutes by a single operator without need tools additional thanks to its fast action ball connectors.

Formed by an extendable beam and two pillars, with security factor for loads 2,1:1.

TECHNICAL CHARACTERISTICS

• 100% made of aluminum A6082T5

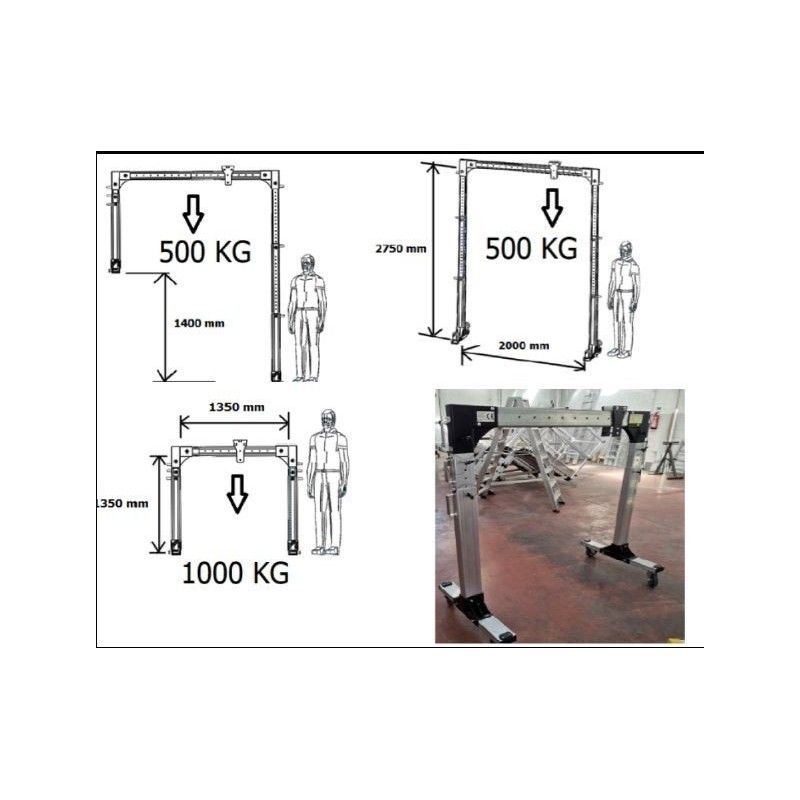

• Folded maximum load: 1000kg
• Precise polypast with hook up.

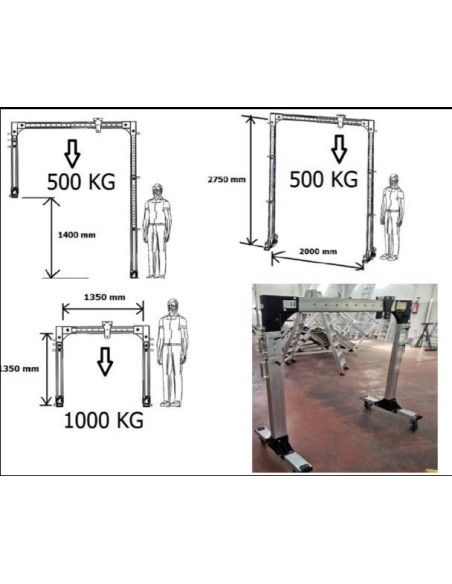

• Maximum load extended in width and height: 500kg

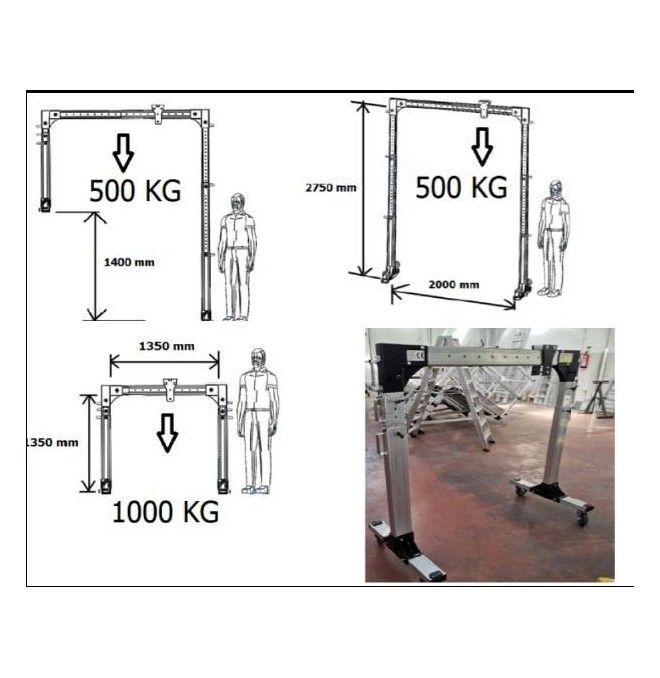

• Minimum working area width: 1350mm
• Maximum work area width: 2000mm
• Minimum height under adjustable upper beam: 1350mm
• Maximum height under adjustable upper beam: 2750mm
• Weight: 38kg
• Dimensions porch packaging 1000kg: 3000x500x450mm
• Dimensions porch packaging 500kg: 2000x500x450mm
• Operators required for handling:1
• Welding in the visible areas: Free
• Welding parts in certified union: Laser
• Telescopic Extendable Pillars - expansions:3
• Equipment designed and manufactured in Spain

IMPLEMENTED

• UNE15011;2011+A1
• UNE EN 58144-5
• UNE EN 58104-3
• UNE EN 58132-5
• RD 1215/1997
• UNE EN 795:2012

Valid for:

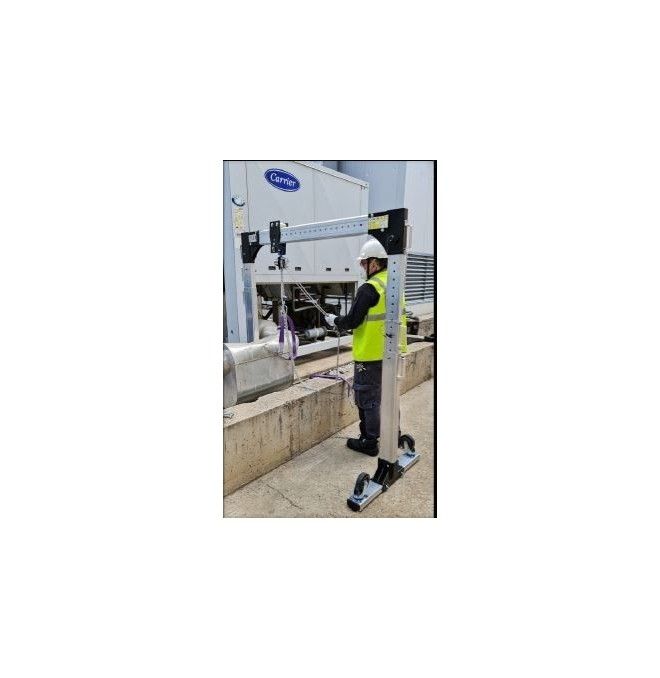

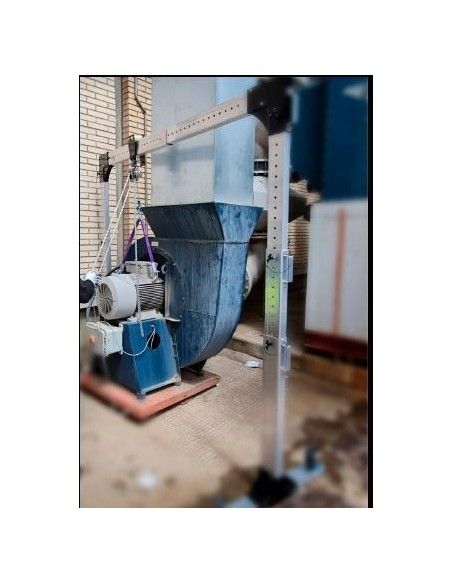

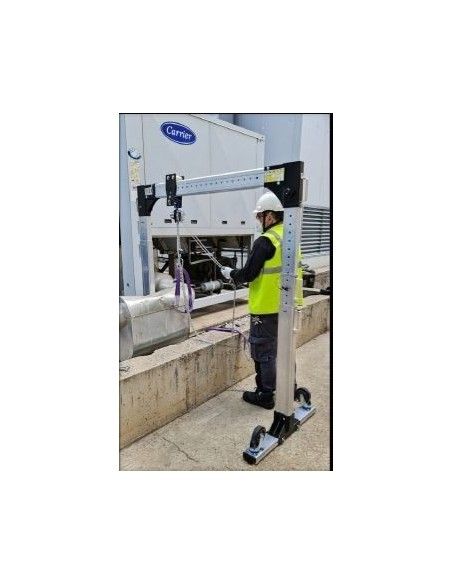

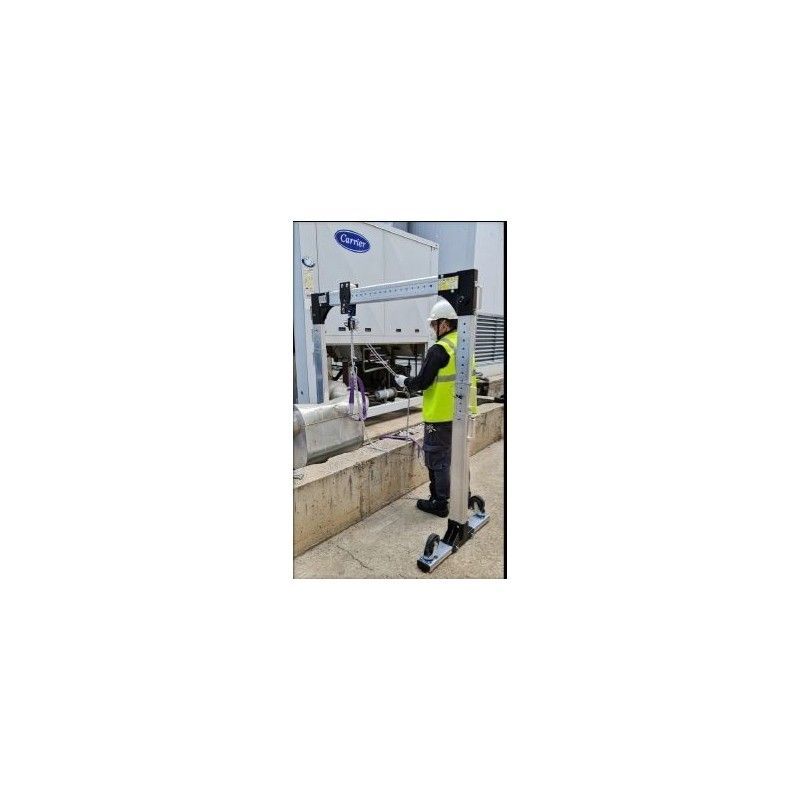

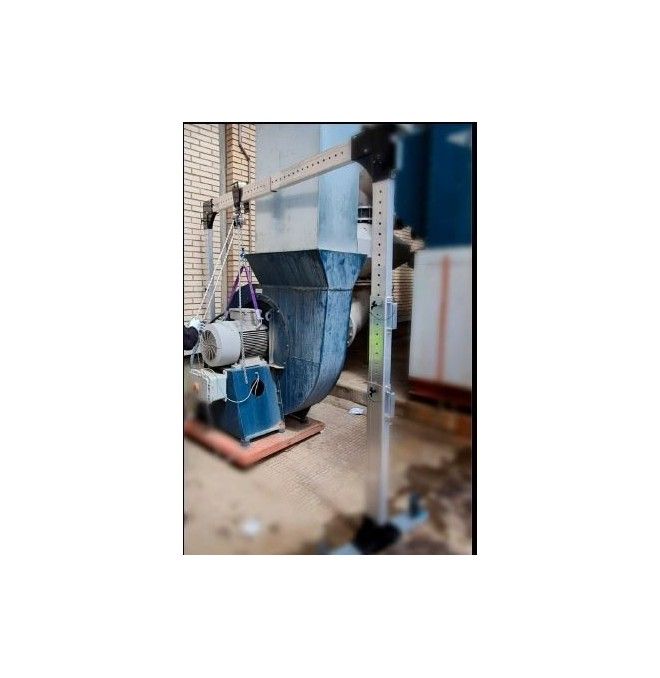

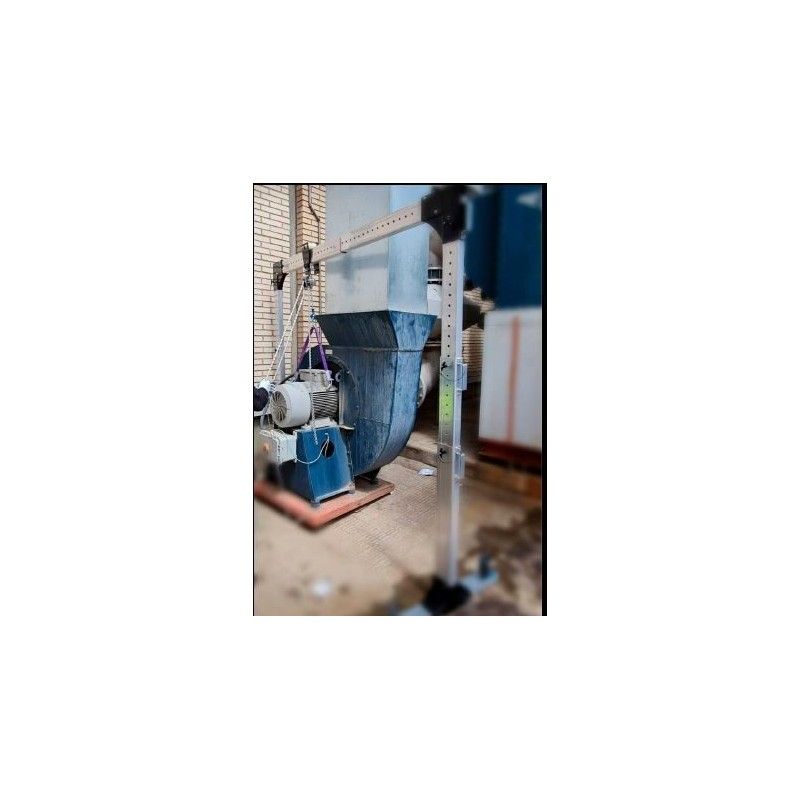

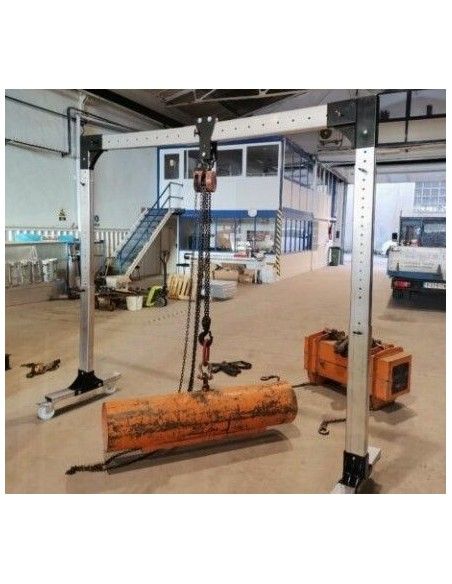

• New work/rehabilitation/reforms/maintenance: movement of heavy loads on smooth surface and at different levels.
• Movement of tractor groups and other components.

Characteristics

• Access to the height machine rooms max 1400mm
• Telescopic portal three expansions

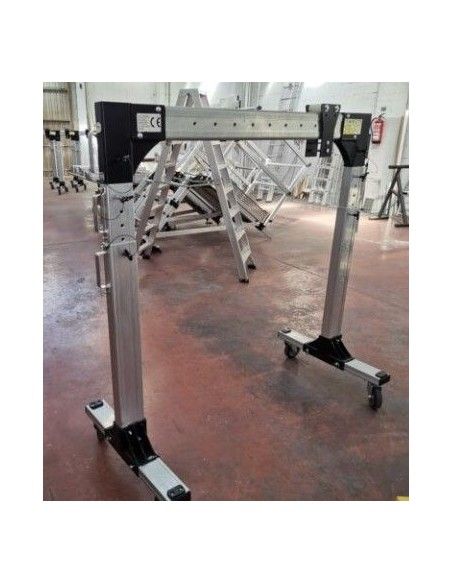

• Built-in wheels for easy and comfortable transport
• Exclusive use of loads; not valid for loading people.
• Security signs.
• Plaque of features.
• Declaration of conformity: Loading: E:500/1000kg/1H
• Certified as a safe product.
