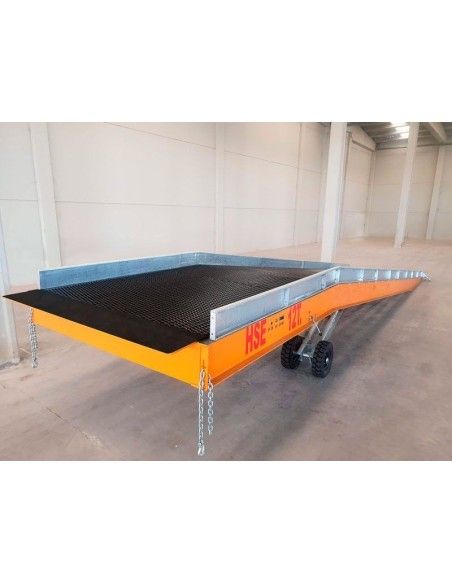

Loading ramp electric 12 ton. with battery platform

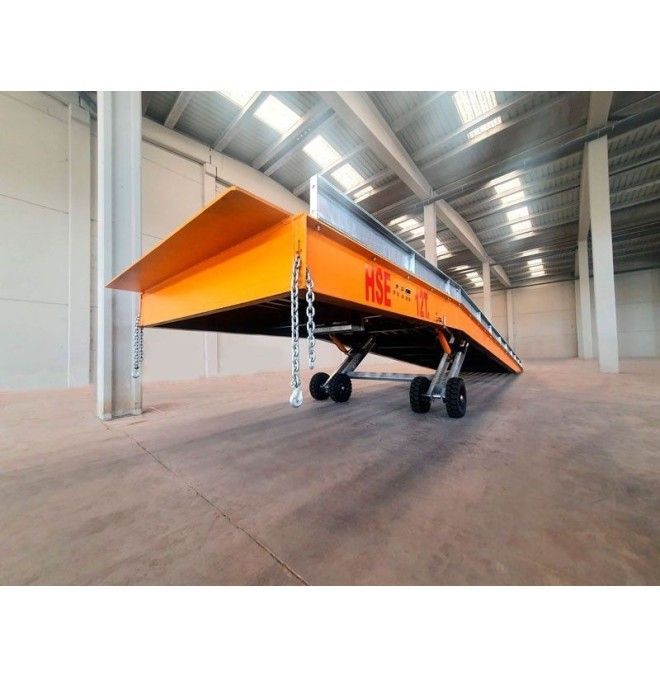

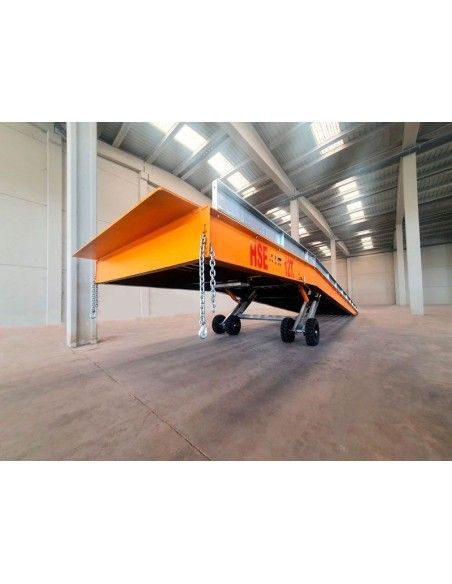

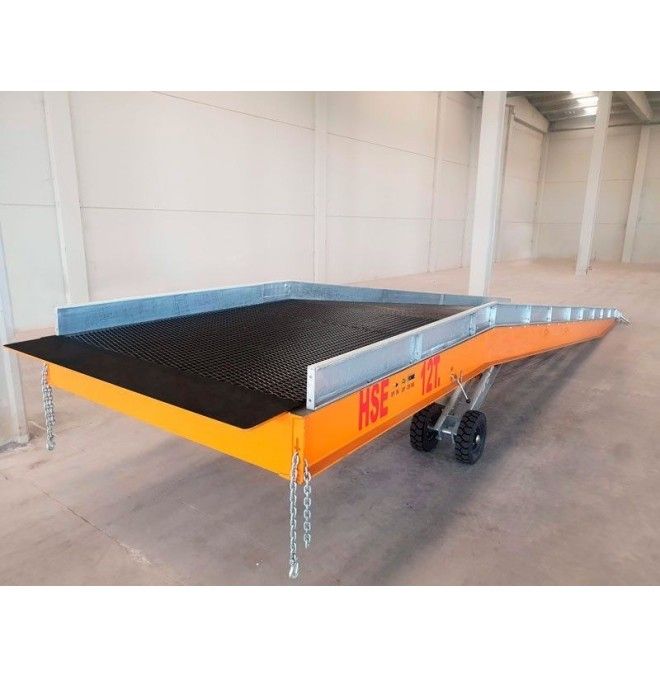

Loading ramp for trucks with electrically powered platform through batteries, of 11.6 meters in length and up to a maximum of 12 tons. Robust and resistant manufacturing. It has a useful width of 2m meters and is adjustable in height by electric drive (from 920 to 1750mm). It includes safety side rail, pneumatic wheels and lateral structure to be able to move it with a standard wheelbarrow.

It is an effective solution when there is no high loading dock, to be able to download the trucks.

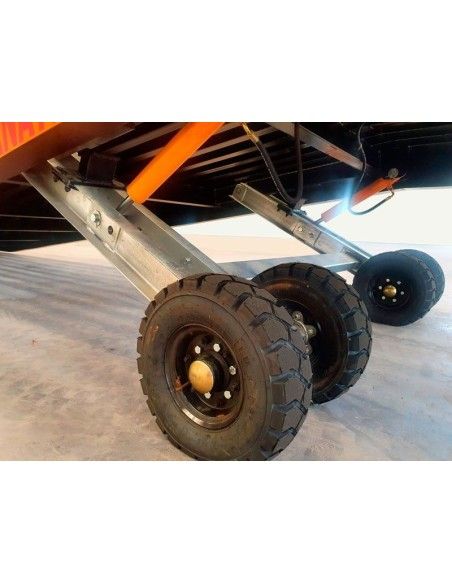

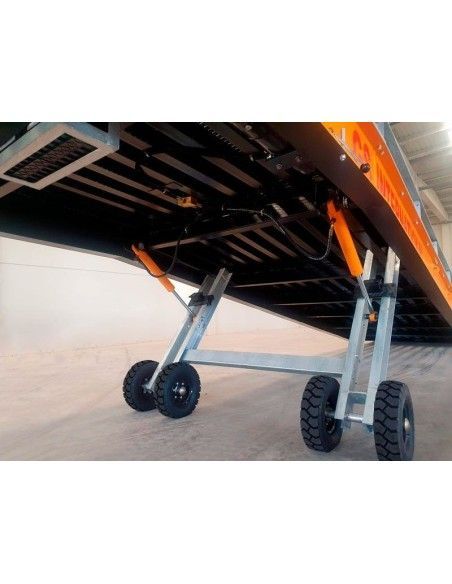

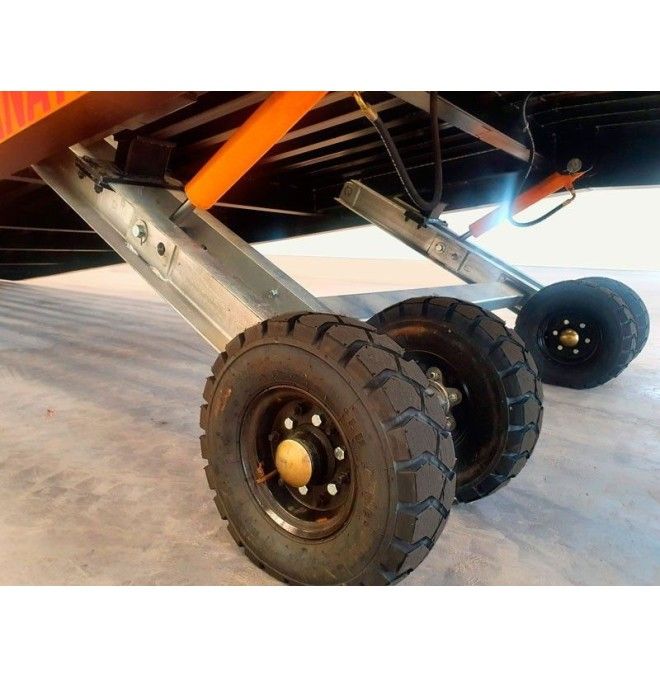

Includes 2 central support wheels, facilitating transport with forklift.

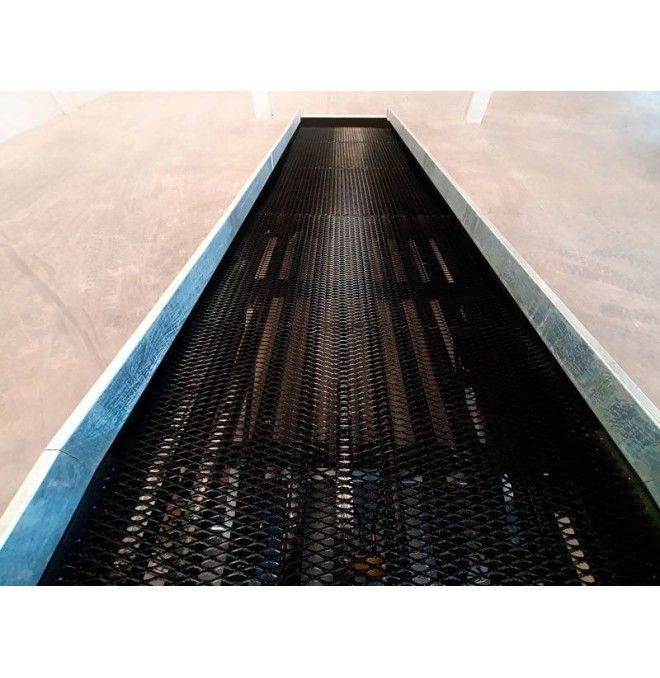

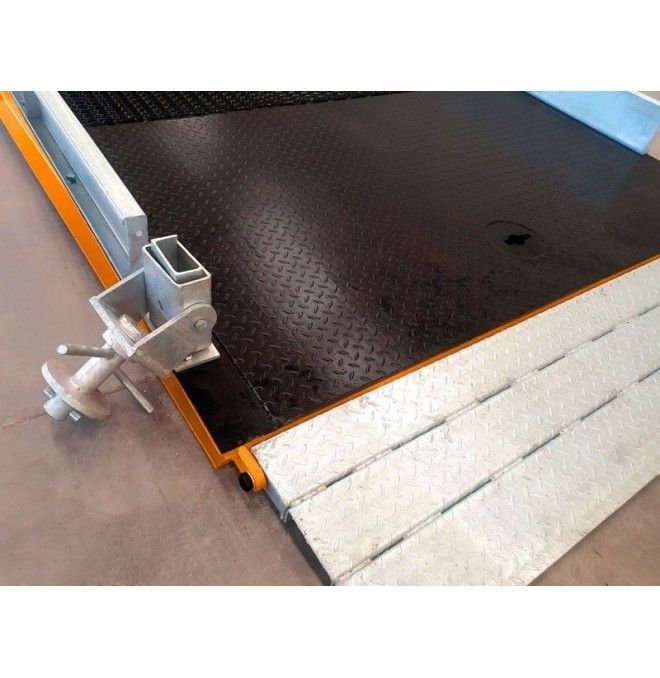

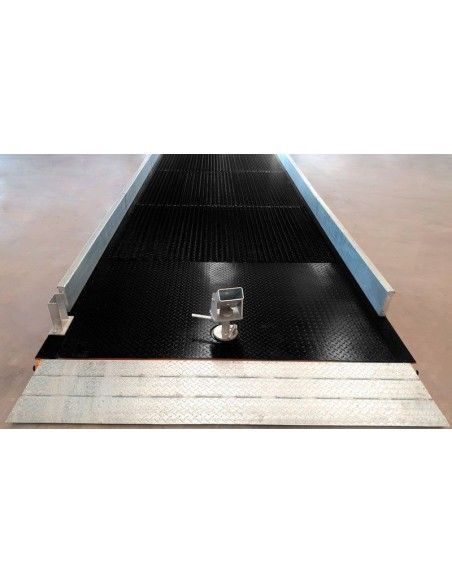

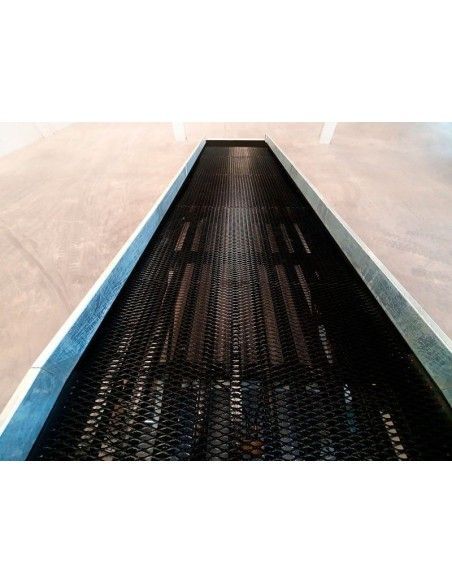

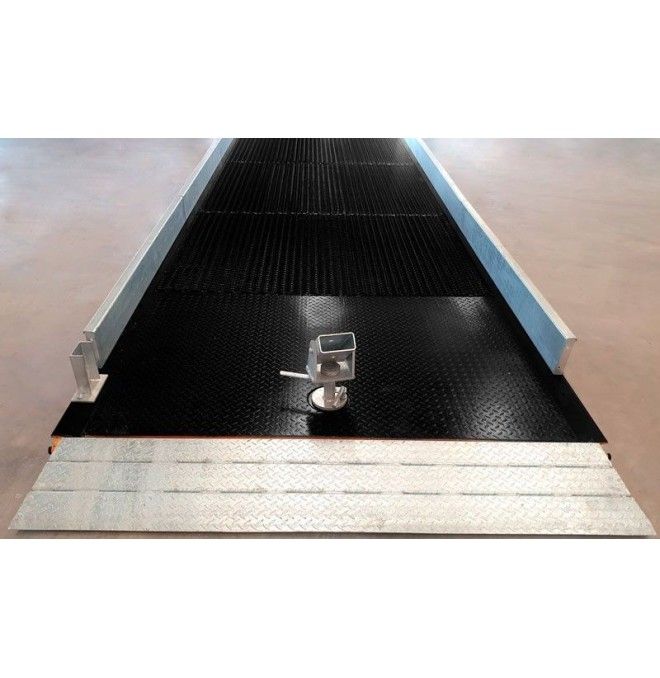

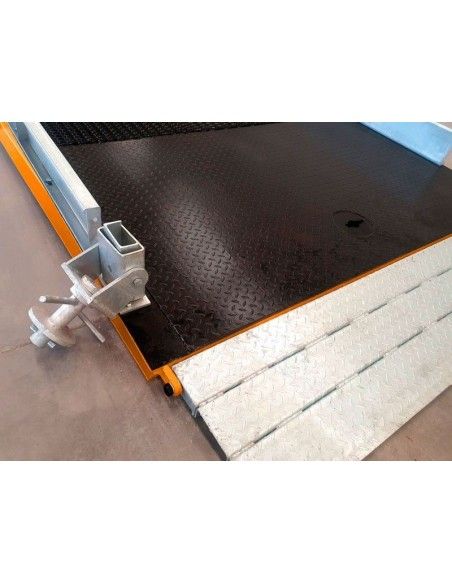

Made of resistant steel and anti-slip Mayan sheet pavement of the entire flat area, ideal for outdoor loading and unloading.

These ramps are manufactured according to all safety standards and directives and have MARCADO CE, which will be sent with the ramp.

The ramp it is sent completely mounted.

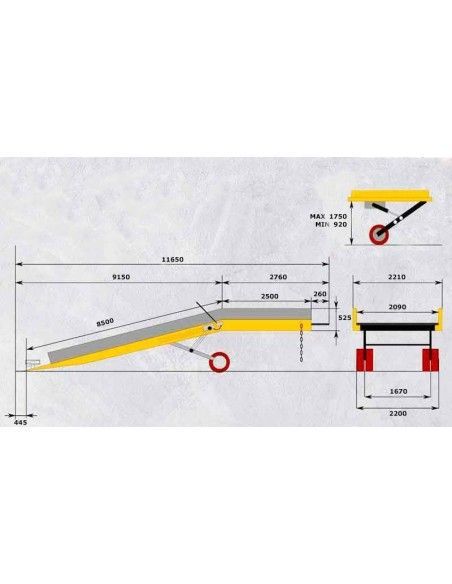

CHARACTERISTICS

• Load capacity: 12,000kg
• Lift height: 920/1750mm

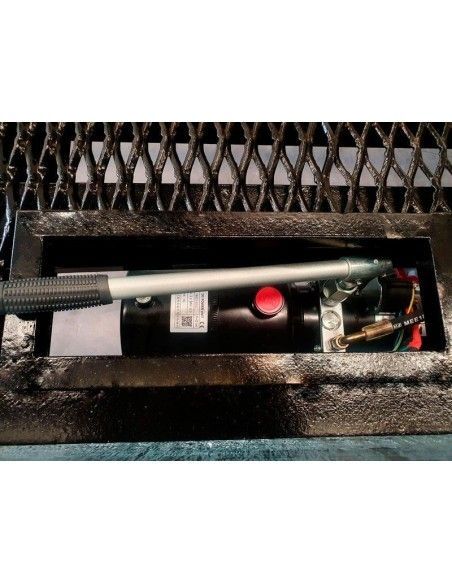

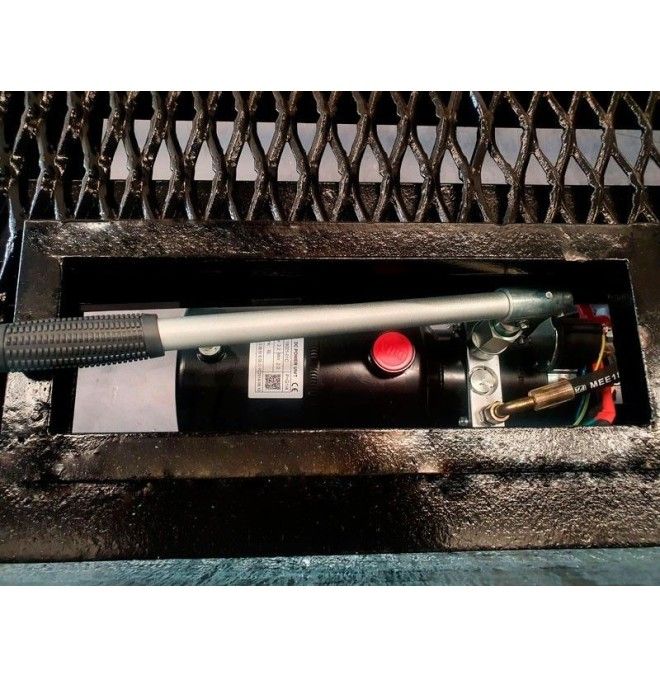

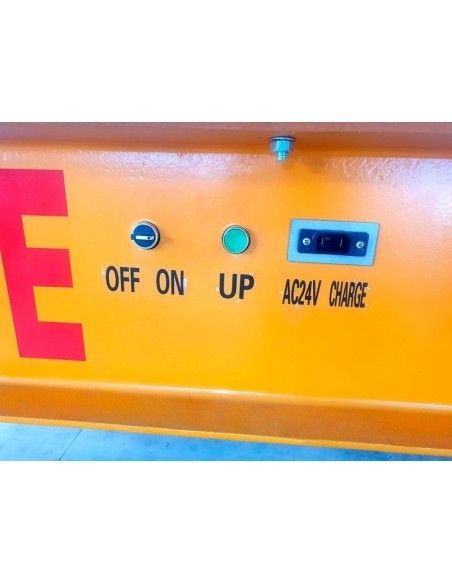

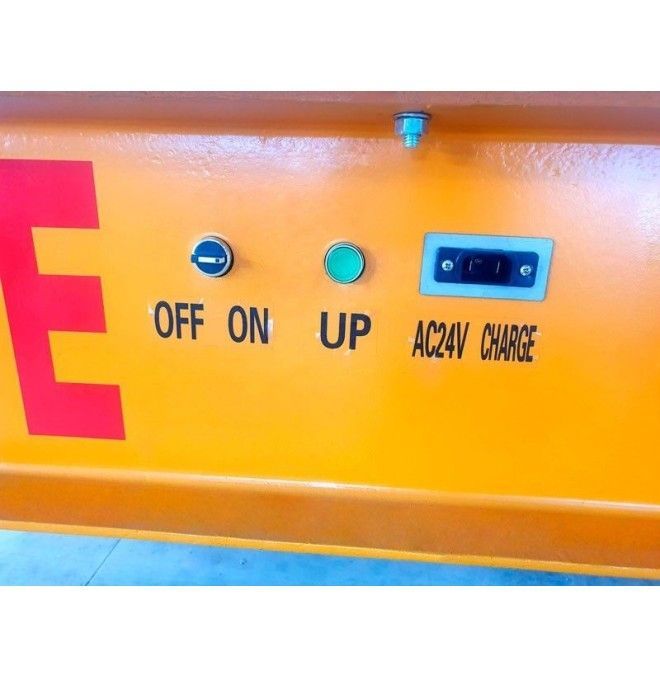

• Power supply: 24V battery
• Total width (with wheels): 2200mm
• Total width (without wheels): 2210mm
• Useful width: 2090mm
• Total length: 11650mm
• Long ramp8500mm
• Long platform: 250mm
• Weight: 3260kg

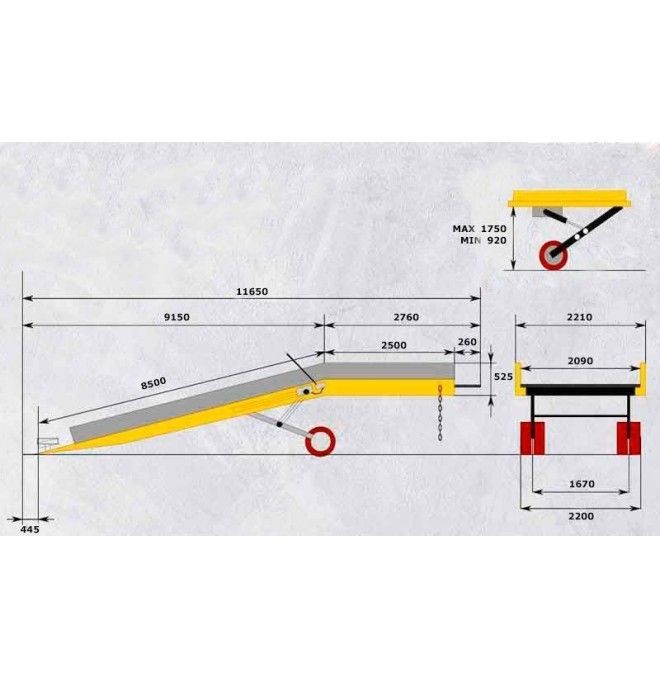

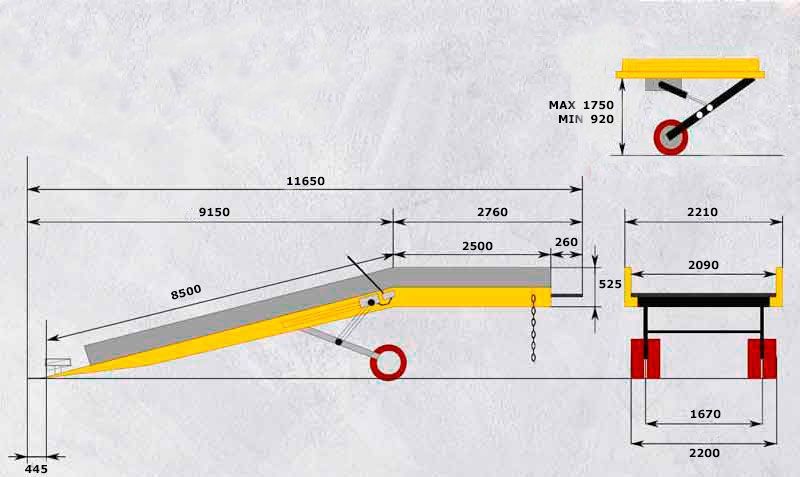

MEDIDA PLATAFORM

*Consult us for any doubt you have or if you want a quote.

To download the ramp, the client must have a forklift in any case; if you have a wheelbarrow of at least 6 tons, the porte will be the standard, otherwise the porte will be added the download on our part with a crane pen.

* THE PORTS WILL ALWAYS BE CONVENIENT ACCORDING TO DESTINY

*PLAZE TO CONSULT
