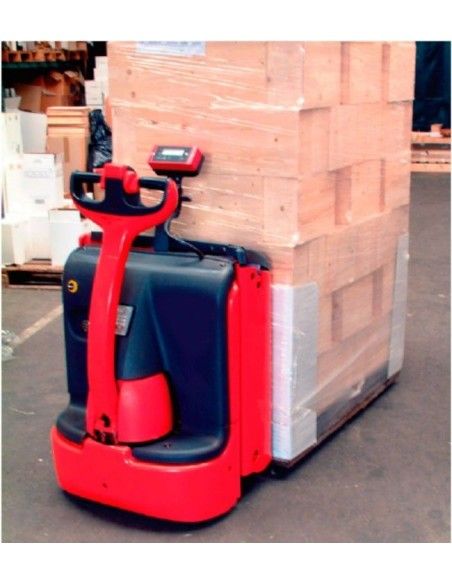

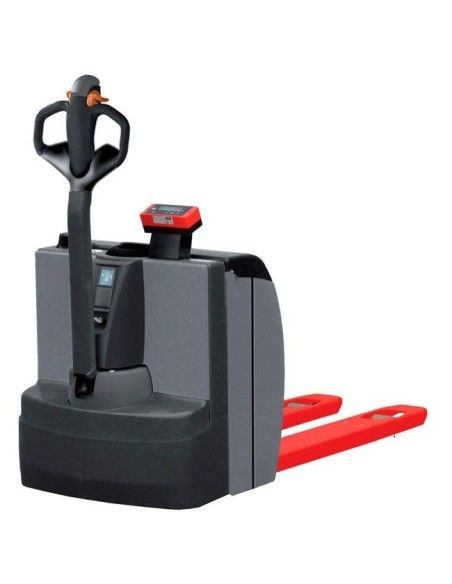

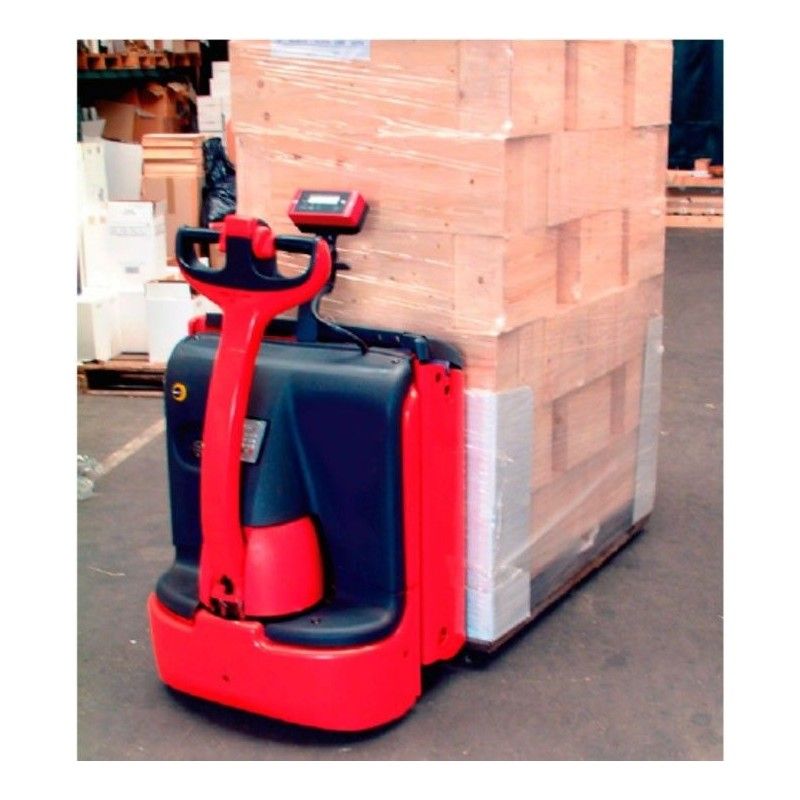

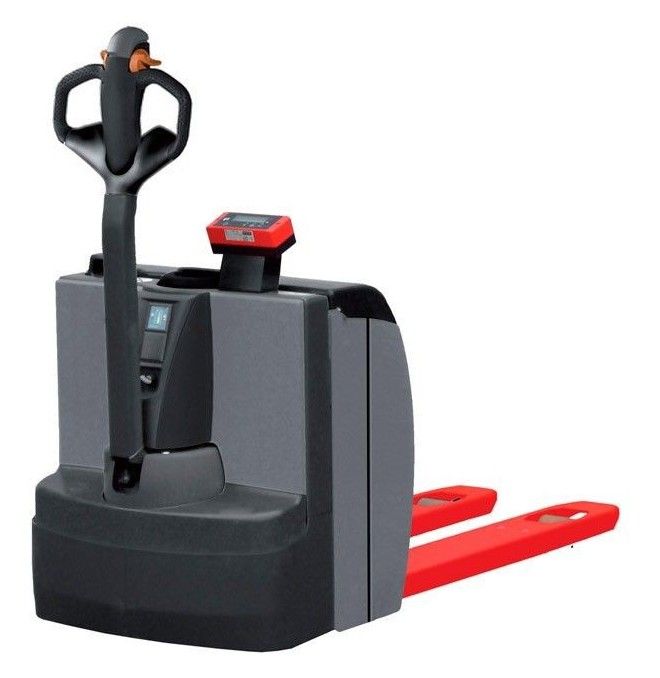

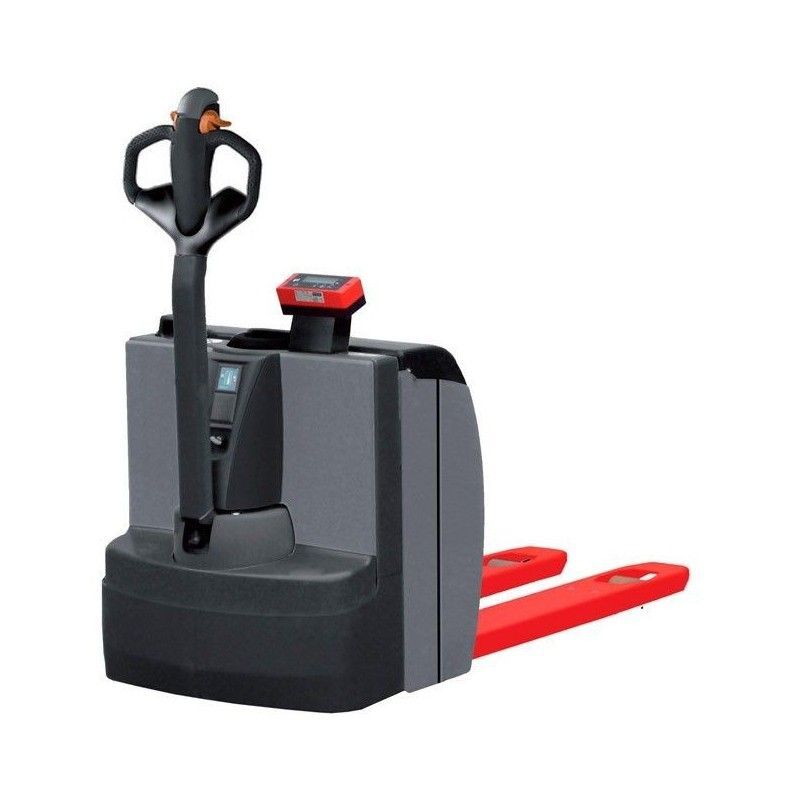

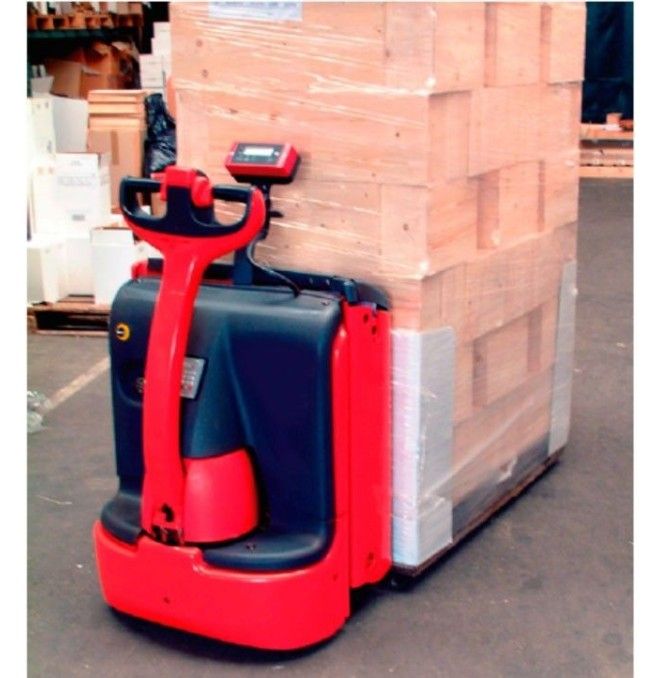

Weighing pallet truck Electric 1500kg
M101020027
1500kg fully electrical heavy spreader for weight check and error prevention in Order Picking. High precision industrial solution compatible with retrofit to optimize logistics processes and productivity in warehouses.
- Industrial load capacity: Supports 1500kg with 0.1% tolerance and high precision multi-language weighing system.
- Dual LCD indicator: Color screen of 20mm with backlight, zero correction and transmission via Bluetooth 4.0.
- Robustez and IP65 protection: Structure with four IP67 load cells and reinforced components for intensive use in industrial environments.
- Safety and traceability: Includes 12V thermal printer and compulsory CE certification according to European regulations for handling loads.
Electric transparent 1500kg capacity of capacity. Available for all trolleys, only 5mm is increased from the height of the fork. This weigher is perfect for checking weights and preventing "order picking" errors.
High quality, also for Retrofit.
Technical characteristics
- Load cells: 4x1000kg each
- Graduation: Multi range: 0-500 kg x 0.5 kg, 500- Q-max 1 kg
- Max. Tolerance: 0.1% DA Load raised
- Screen: Dual color LCD 20 mm with backlight
- Functions: zero correction, gross weight / liquid, total with sequential number,
- Internal clock for date and time, identification code entry (5 digits).
- Degree of protection: IP65 (for standard systems)
- Power supply: 12 V incl. Power converter to connect to the stacker battery.
- Data transmission: 3 ports, Bluetooth 4.0 Standard, optional RS232 port for printer and port for Bluetooth or WiFi.
- Mounting the support-RAM indicator

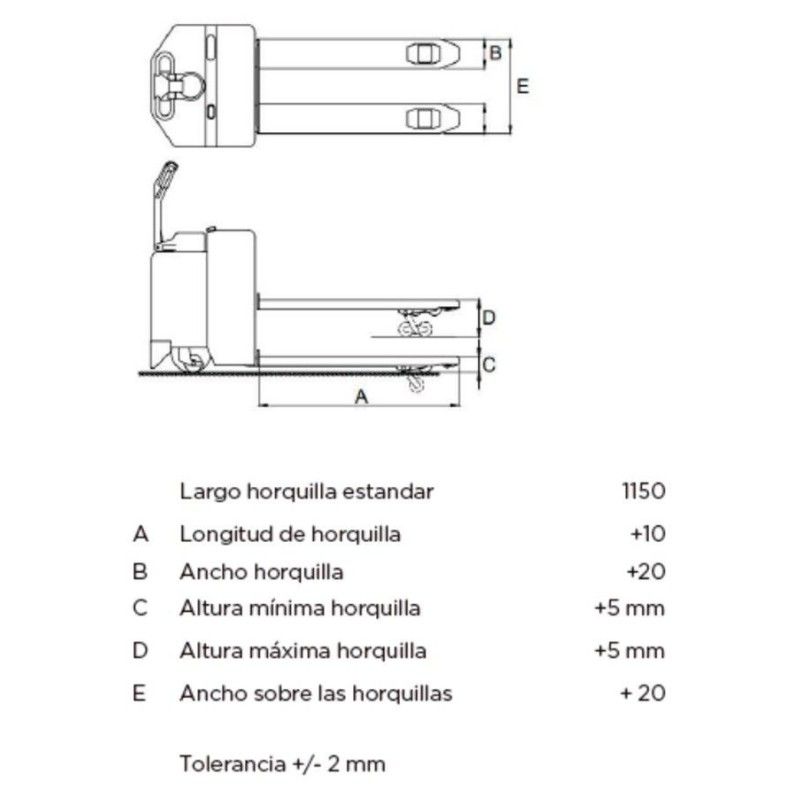

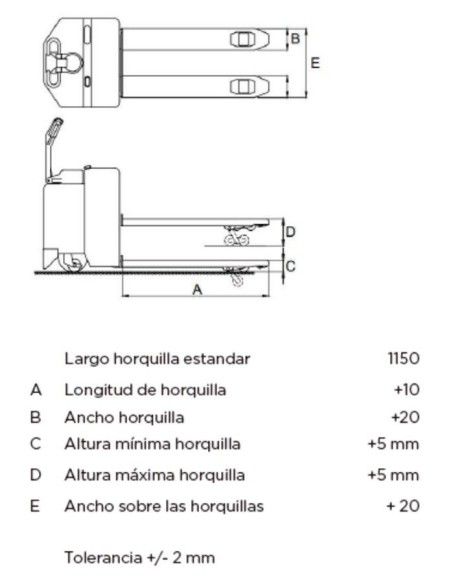

- Dimensions of the forks (after the balance modifications)
- Fork length 1.150 mm
- Width of the forks + 20 mm
- Width on forks + 20 mm
- Width of forks - 20 mm
- Reduced height + 5 mm
Optional
- Transfer of weighing to the terminal (optional)
- Transferring the information to the WMS or ERP system (optional)
Advantages
- Multiescala divisions 0,500 / 1kg up to 500 / Q-max.
- Tolerance Scale 0.1% of the load raised
- Protection IP67 load cells, IP65 indicator
- Power supply through the transparent battery
Balance capacity> 2000 kg max. 3000 kg
- For a stacker capacity> 2000 kg and up to max. 3000 kg
- The capacity of the stacker determines whether this option is necessary
- Includes 2 additional load cells of 1000 kg
- Changing the dimension of the forks:
- Height + 8 mm (instead of + 5 mm)
- Length of the forks + 30 mm (instead of + 20 mm)
- Length on the forks + 30 mm (instead of + 20 mm)
Thermal printer
- Thermal printer 12 V.
- Max. 24 characters per line.
- Width of paper roll of 58 mm, diameter 50 mm, length 18m.
- Printing with weight (code) and sequence number (date and time).
- The total weight is printed at the end of each cycle.
- This option is supplied with 2 additional paper rolls.
