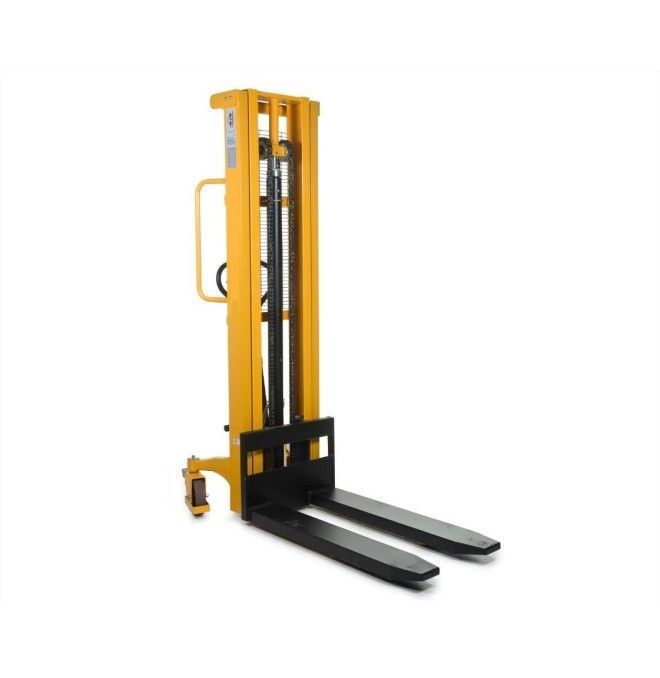

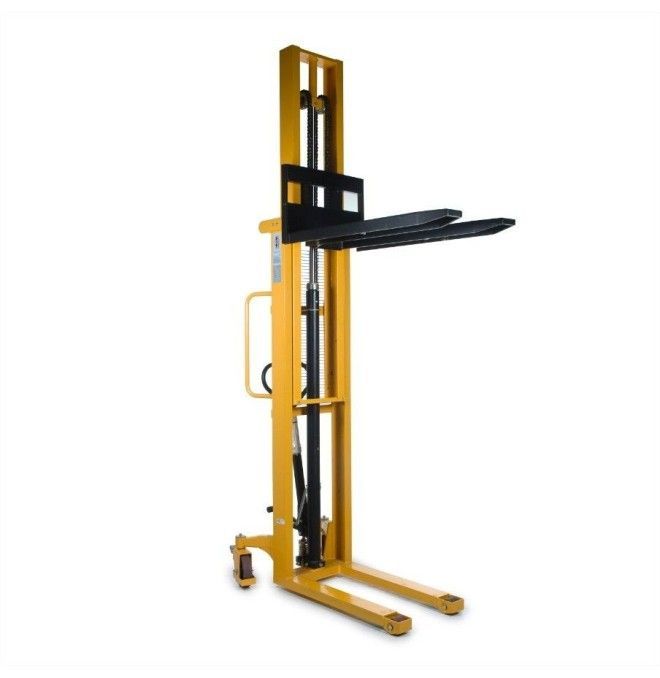

Manual stacker 1000kg to 3000mm
M202020020
€1,499.00
1.499,00 € (tax incl.)
Lifting stacker and manual translation. Lifting loads up to 1,000 Kg and 3,000 mm highn.bomba quick.
High-capacity stacker with controlled down system of loads and safety overload valve. Especially recommended for small / medium spaces. Equipped with safety grill and brake on the wheels.
Manual control stacker with a maximum load capacity of 1000kg, and its nails raise up to 3000mm, being its maximum height of 3540mm and its minimum height 2060mm.
The length of your forks is 1100mm and total length the stacker is 1668mm. Total stacker width 740mm. Equipped with 2 wheels in vulkollan forks, and the rudder is also of the same material. With double action hydraulic pump.
Own weight of 310kg. CE marking.
CHARACTERISTICS
- Load capacity: 1000kg
- Lift height: 3000mm
- Gravity Centre: 575mm
- Pump Type: Quick Pump
- Maximum height: 3540mm
- Total length: 1668mm
- Moretile pumping elevation: 40mm
- Total width: 740mm
- Total height: 2060mm
- Forks: 160x85x1100mm
- Width of forks: 550mm
- Width between forks: 230mm
- Turn radio: 1590mm
- Wheel material: vulkollan
- Weight: 310kg
- Fixed forks
- No down pedal.
- TYPE
- Manual
- Load capacity (kg)
- 1000
- Lifting height (mm)
- 3000
- Horquillas (mm)
- 1150x550
- Lifting system
- Manual
- Total length (mm)
- 1700
- Weight (kg)
- 310
- Total height (mm)
- 2060
- Width (mm)
- 740
- Description
- Manual
- Max. (mm)
- 3540
- Height Min. (mm)
- 2060
- Center of gravity (mm)
- 575
- Distance from Forks (mm)
- 230
- Elevation by pumping / spin
- 51mm
- Dimensions (LXAXH machine / rudder)
- 1.700 x 740 x 2.060
- Propeller system
- Manual
- Rolls
- Vulkollan
- Drag capacity (kg)
- 1000
- Material
- Other
- Regulations
- EC
