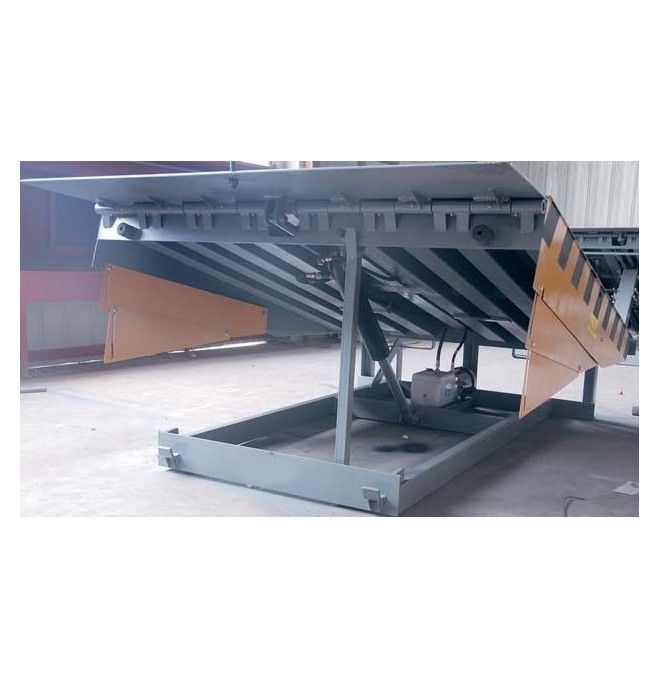

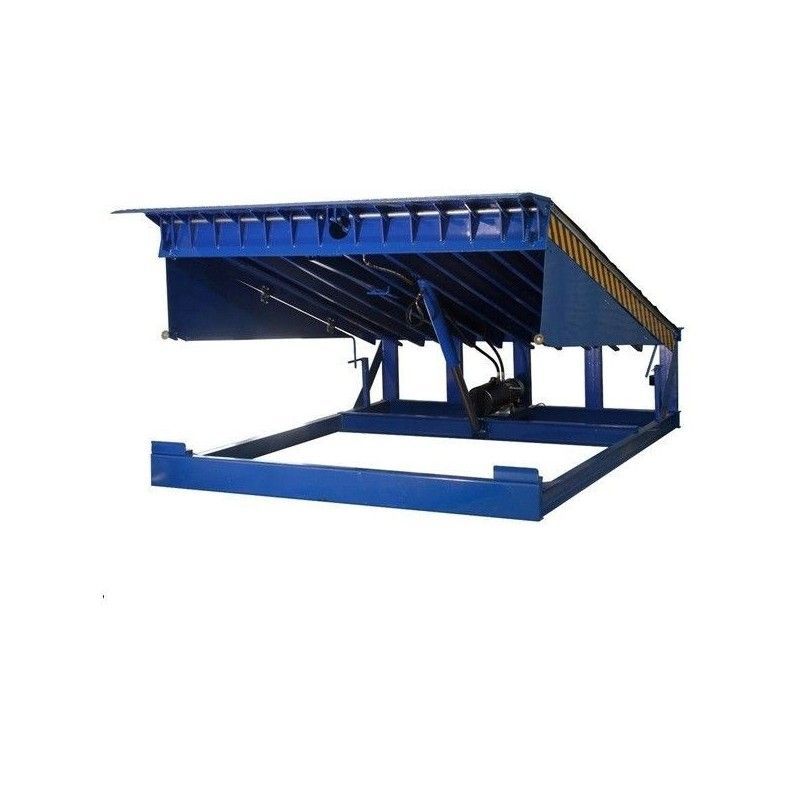

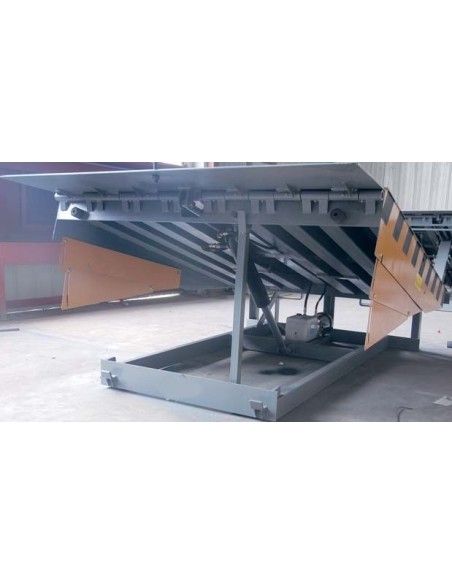

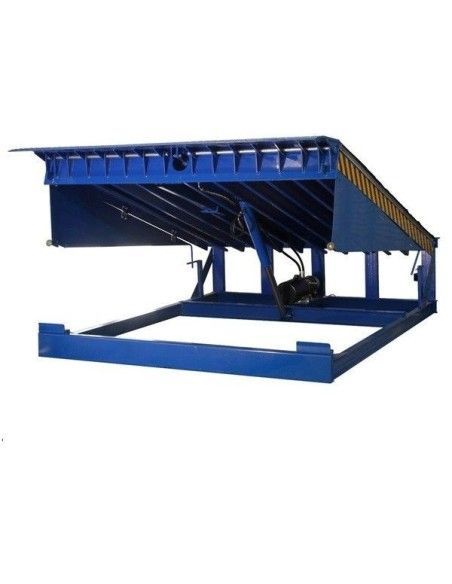

Ramp Pier 12t Hydraulic

This new ramp for spring with a load capacity of 12 tons and with hydraulic system, is the perfect solution to save the distances between the loading springs and the material that is discharged from the vehicles, as well as to preserve the existing height between the two.

As for mechanical platform levelers they have to perform the work with traction chain, lifting the platform and lifting the edge by pulling chains. The parachokes and the lip engraver are standard with each unit.

Thanks to its load capacity or resistance of up to 12 tons, it gives a great greater stability to be able to move heavy goods.

Its resistant structure up to 12 tons of load, is able to withstand dynamic loads, as well as its operation through its hydraulic system controlled by an electronic equipment, which ensures that the ramps for loading springs are more comfortable and easy to use, being the best solution for loading and unloading goods.

ESTABLISHMENT

Fully mechanical traction chain with one hand for your work

Lip reinforced with belle

Construction heavy service platform (6-8 beams)

Cover and edge of anti-slip bearing plate

Full-wide hinged tube and lip hinged pin

Positive clamping device

Allows to float up and down when in service

High strength adjustable lifting strap, direct extension spring

OPERATIVE CHARACTERISTICS

Available capacities: (from 2500kg – 3000kg – 3500kg – 4000kg and 4500kg)

Longitude of the lip of 16”, 18”, 20”

Parachoques

Full range finger protector

Width: from 1800 to 2000mm

Longitudes: from 2000 to 2500mm

*Standard and/or custom manufacturing.

CE Certificate
