Trilateral Implementation for Lateral Charge Forklift - FEM2 AND FEM3
M103040077
Deployment of lateral load forklift with trilateral head. Ideal for pallet handling in stacking systems applications in narrow corridors.
Designed for narrow corridors, it also has a system of fork transverse that allows to remove the pallets from the racking and Shelving keeping the wheelbarrow at an angle of 90 degrees regarding the load.

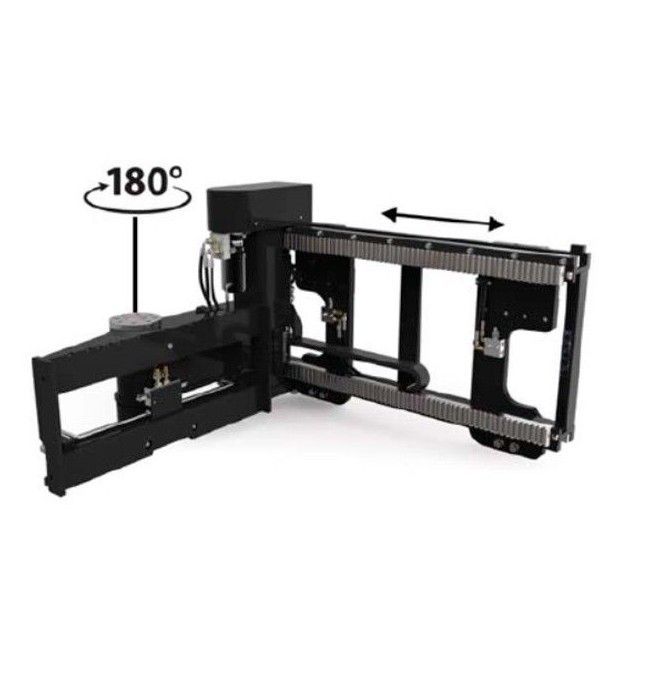

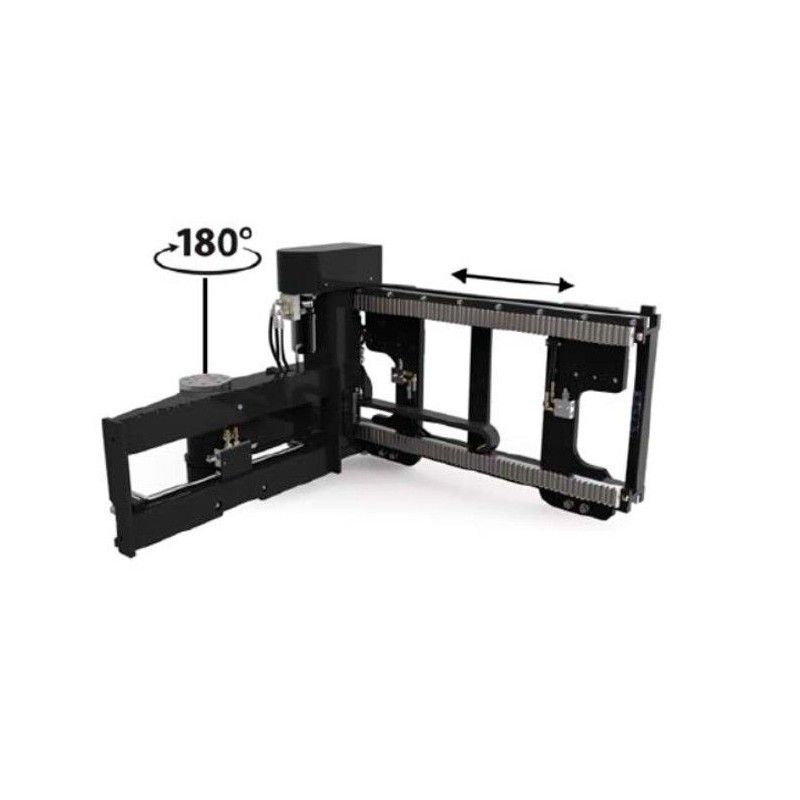

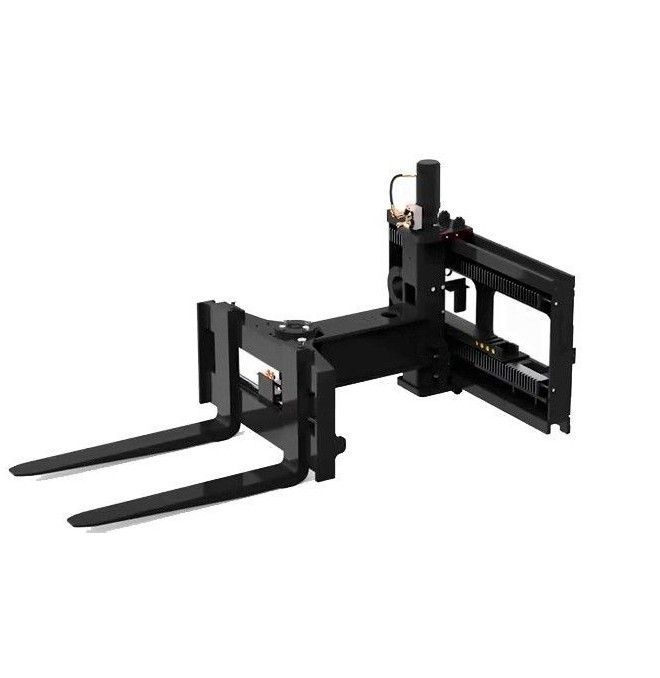

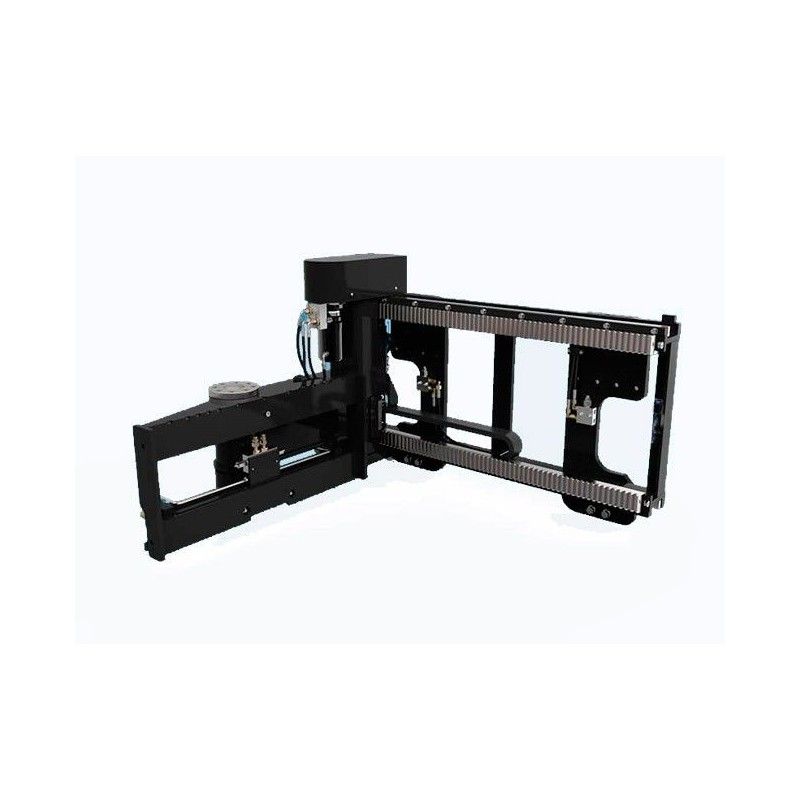

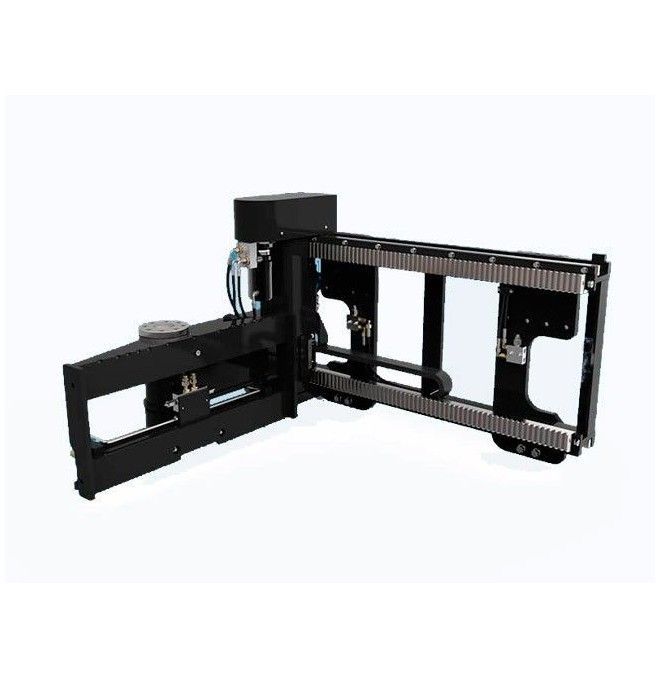

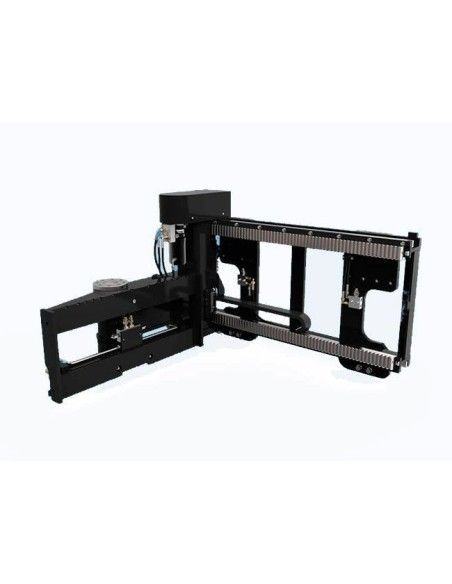

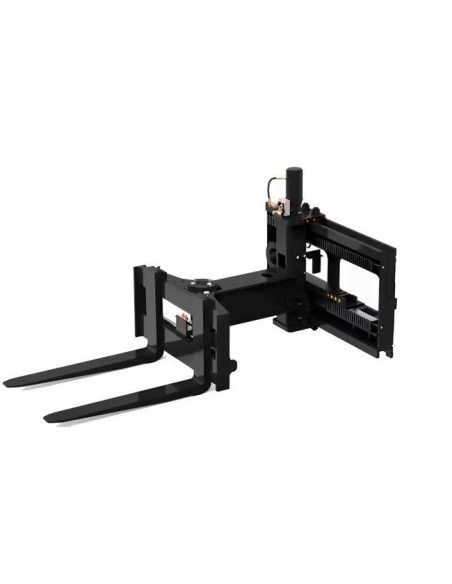

Trilateral attachment for lateral loading with trilateral head.
CHARACTERISTICS

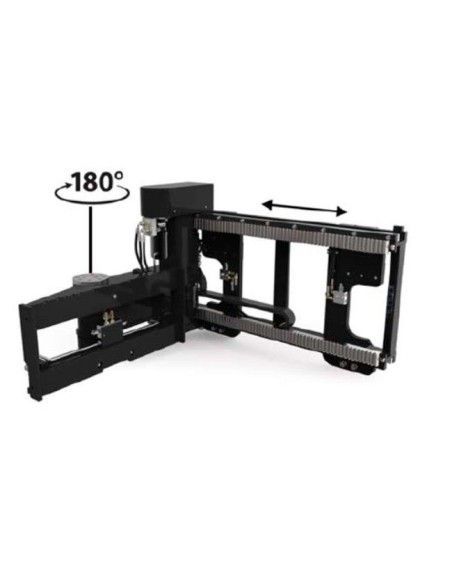

The turning function allows handling loads from the center, left or right of the wheelbarrow.
The cross-section head allows the forks to enter and collect loads from the center, the left or right of the wheelbarrow.
FEM2-FEM3 mounting (non-inclusive nozzles)
The motor brake keeps the load position during the wheelbarrow movements.
The eccentric roller pins regulate the coupling between pine and zippers to achieve a uniform movement.
Thermal treatment of zippers and pineapple to ensure reliability and a great duration.
Zipper Cylinder with damper at the end that reduces impact at the end of the twist cap.
Optimized design that allows fast and easy maintenance.

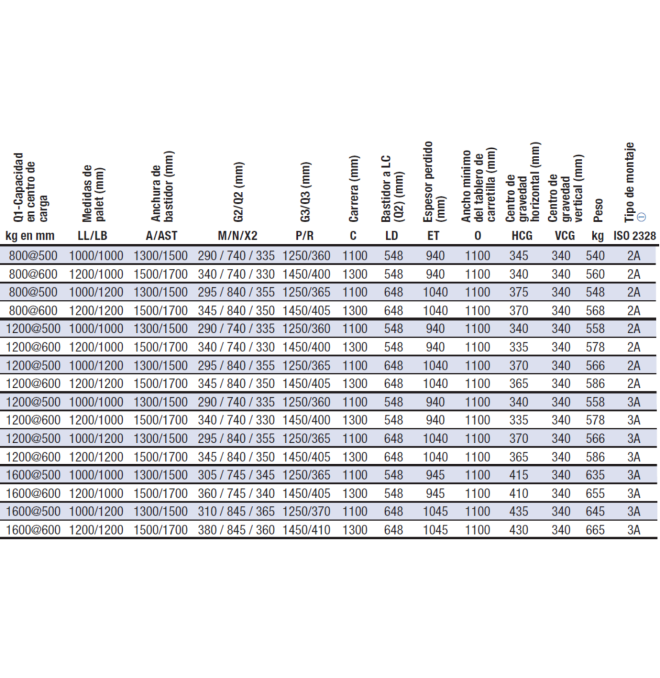

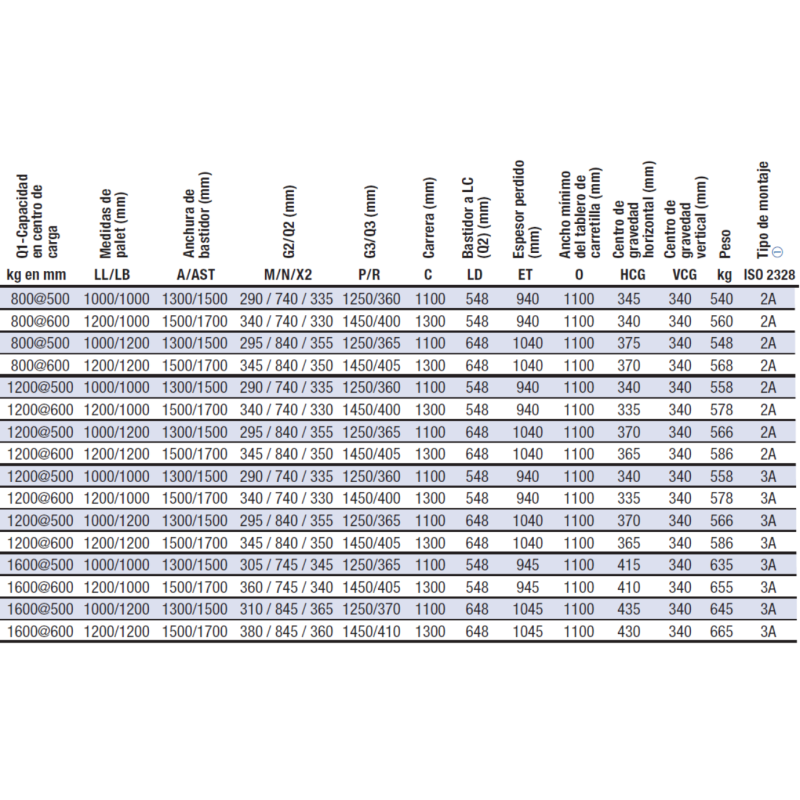

TECHNICAL CHARACTERISTICS
- Load capacity: 1200kg
- Loading center: 600mm
- Chassis width: 1500mm
- Chassis width 2: 900mm
- Side loading center: 740-1450mm
- Side race: 1300mm
- Minimum aisle width: 1700mm
- Charge: 1000x1200mm
- Forks mounting class: 2
- Hydraulic functions: 2
- Minimum board width: 1100mm
- Side gravity center: 340-400mm
- Anchor / displacement: FEM2-FEM3
- Load support: No load support
- Max pressure: 140 bar
- Caudal min: 12L/min
- Max. range: 12L/min
- Weight: 578kg
