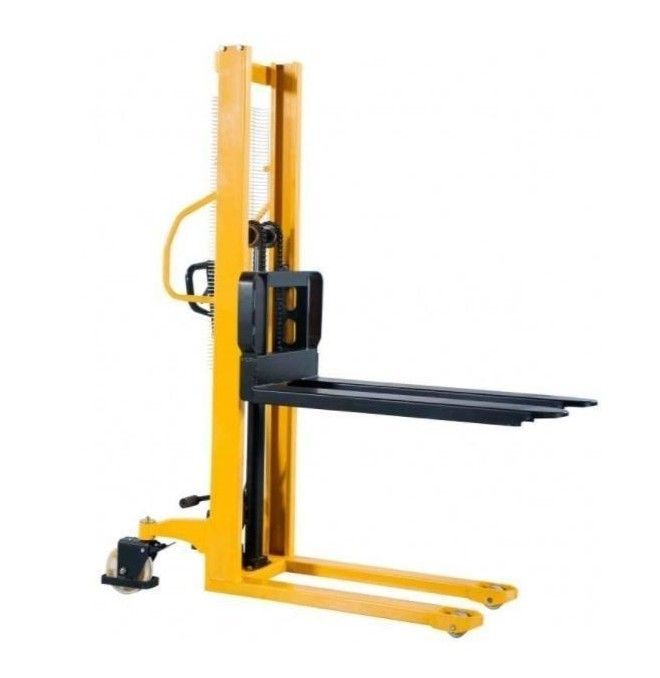

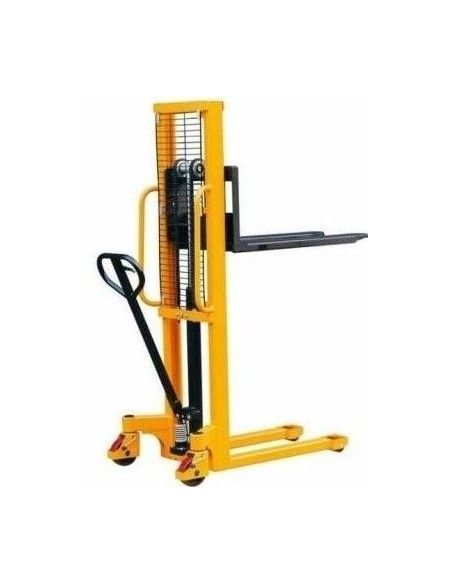

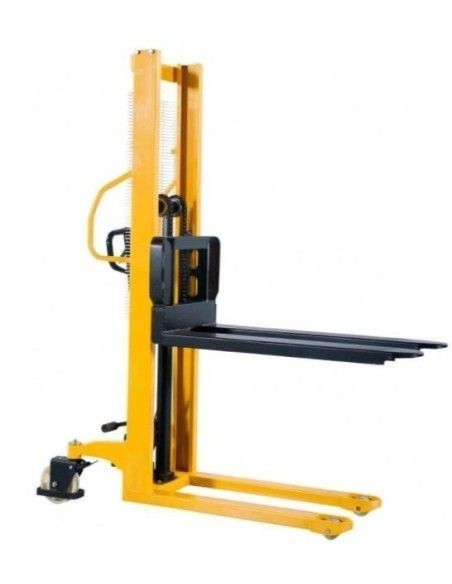

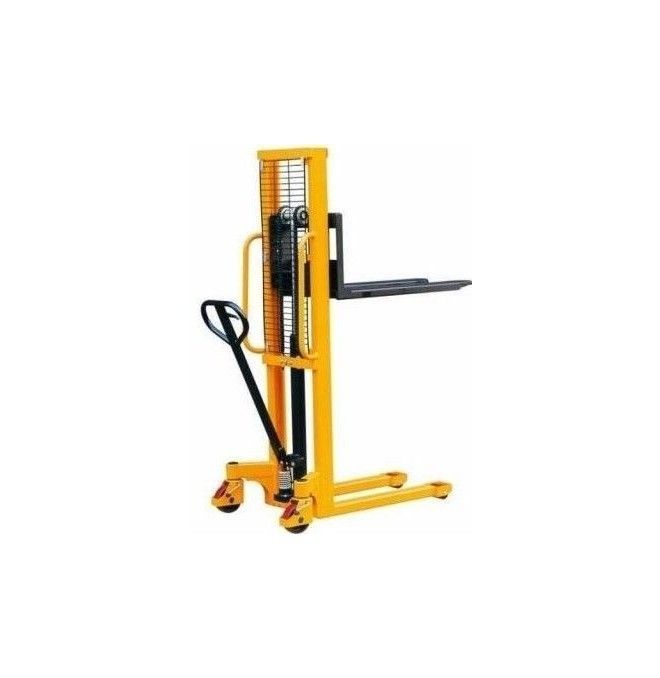

Manual stacker 1500kg to 2500mm
M102020004
€1,549.00
1.549,00 € (tax incl.)
Manual stacker with a load capacity of 1500kg and a lift up to 2500mm. Fork dimensions: 550x1150mm, manual translation. Normal elevation.
Easy the task of handling and lifting loads with this light stacker.
CE marking
Stacking machine of 1500kg capacity and 2500mm maximum height of elevation. It has rudder for descent and brake on a wheel. Lift by pedal or rudder.
CHARACTERSITC
- Charging capacity: 1500kg
- Distance to load center: 400mm
- Maximum elevation: 2500mm
- Fork measures: 550x1150mm
- Fork section (width x thickness): 145x60mm
- Lower height: 1835mm
- Total width: 760mm
- Total deployed: 3080mm
- Total length: 1600mm
- Height fork descent: 90mm
- Distance from the floor: 25mm
- Wheels: Polyurethane
- Rollers: Polyurethane
- Turn radio: 1200mm
- Charge speed with/without load: 0.010/0.011 m/s
- Color: Yellow
- Timon for descent
- Brake on 1 wheel
- Weight: 285kg
EC certificate
- TYPE
- Manual
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 2500
- Horquillas (mm)
- 1150x550
- Lifting system
- Manual
- Total length (mm)
- 1150
- Weight (kg)
- 285
- Width (mm)
- 760
- Color
- Yellow
- Description
- manual stacker 1500kg to 2500mm
- Measures Nails long x Width (mm)
- 550x1150
- Regulations
- EC
