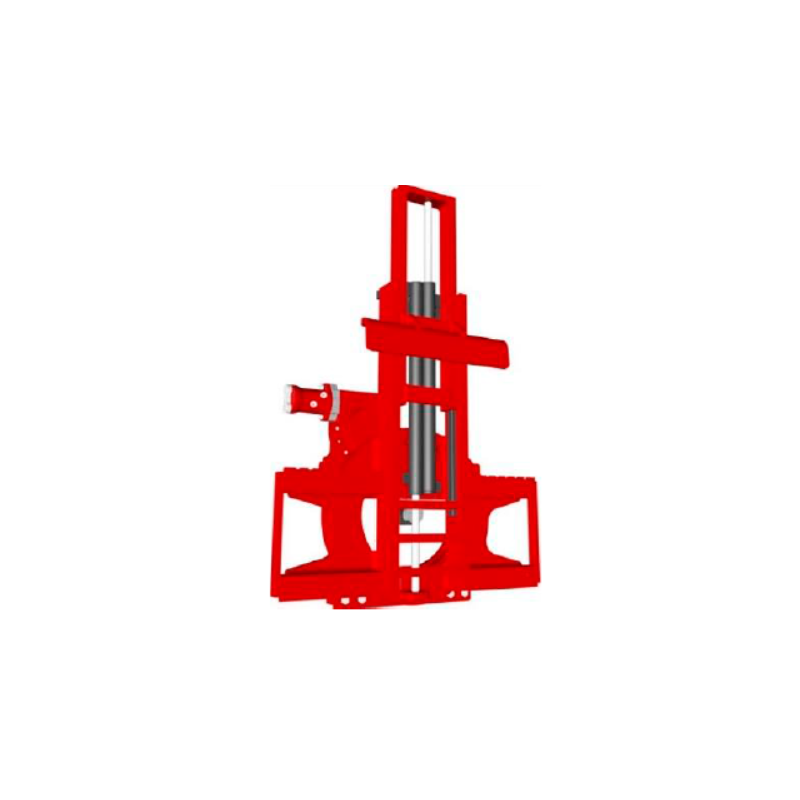

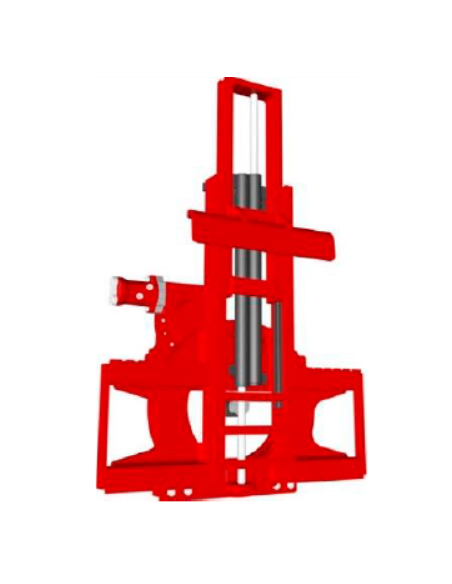

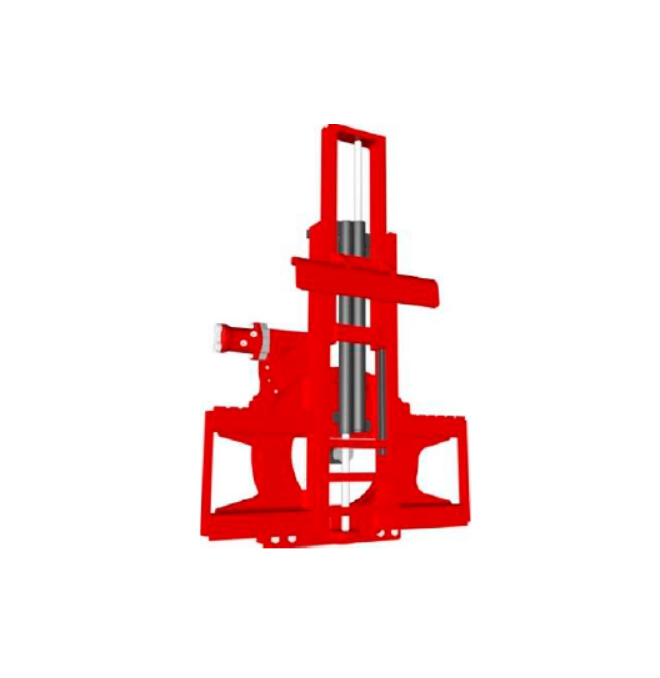

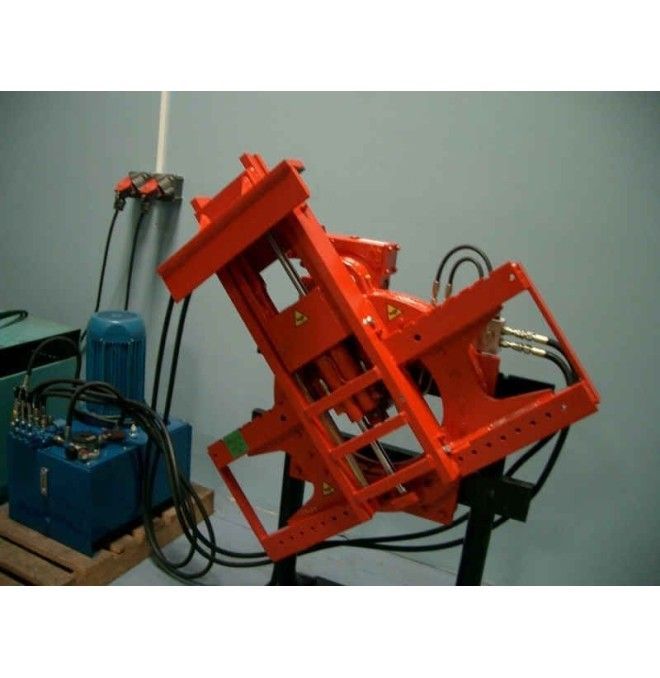

Flyer Palots 360o FEM2A
M103070109
Deployment for 360o sticks for forklift Trucks of FEM2A, with capacity of 2200kg.
Measures (board width A x height H): 1000x1300mm

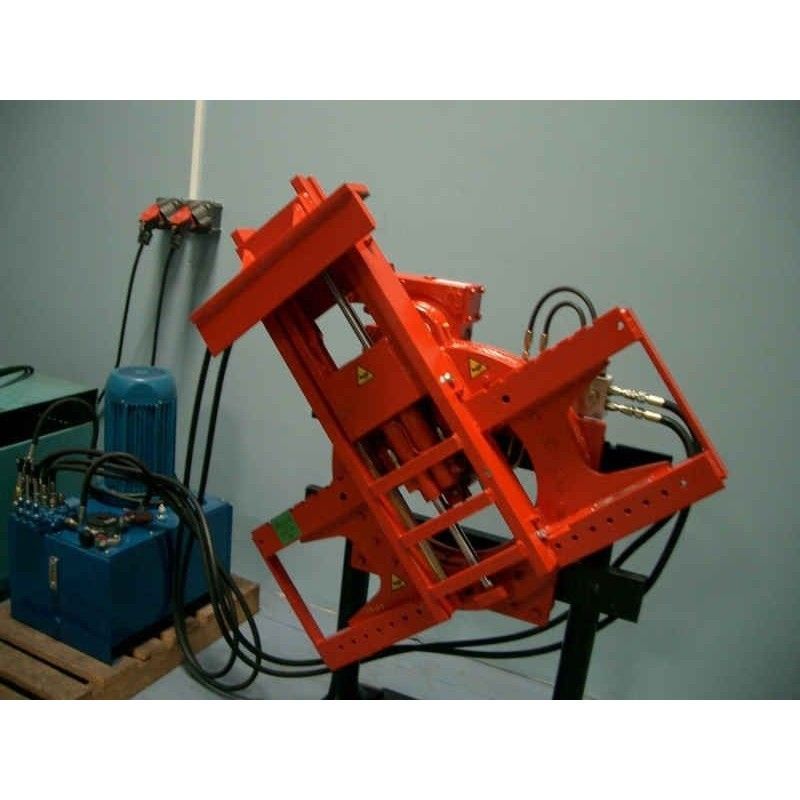

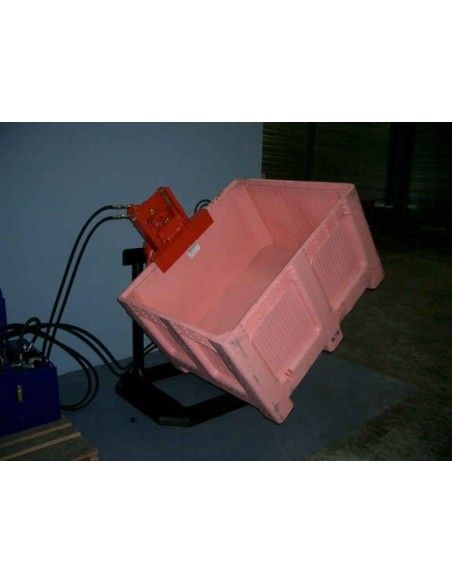

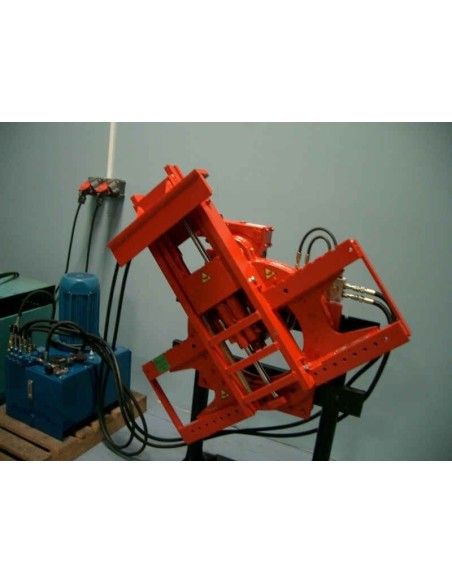

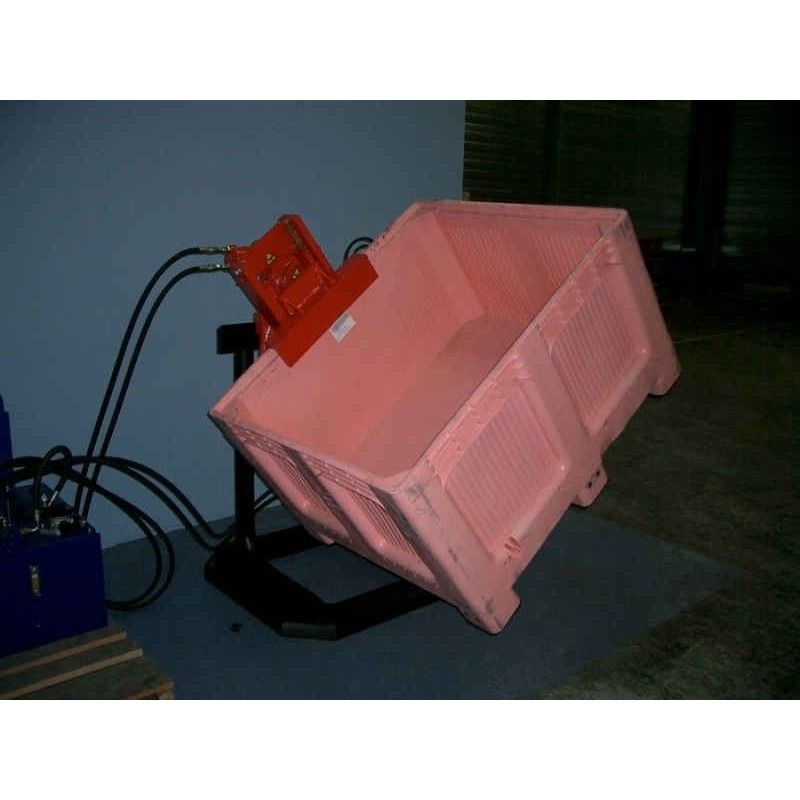

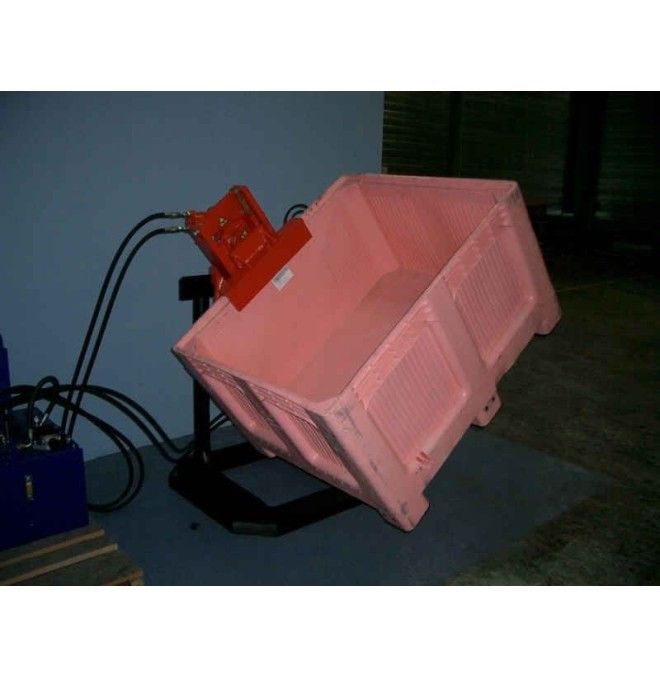

FEM2A torito sticker, with a 360o twist. Designed for easy dumping and emptying of open sticks, being well subject thanks to the top clamp and the forks. Two hydraulic sockets are required to carry out the first pressing and subsequent volume of the goods.
Board with rotation in left sense, capable of turning pins of minimum height 300mm and maximum 1000mm.
CHARACTERISTICS
- Load capacity: 2200kg
- FEM2 A
- Board width (A): 1000mm
- Height (H): 1300mm
- Height (min/max): 300-1000mm
- Largura de la placa (L): 55x100x500mm
- Thickness (S): 225mm
- Gravity center: 150mm
- Weight: 310kg
HIRAULICAL CHARACTERISTICS
- Hydraulic function required: 2
- Max. Working Pressure: 175bar
Option:
- Side displacement: not included
- Links: standard
- Attachment system: standard
- Load capacity (kg)
- FEM2A
- Weight (kg)
- 310
- Description
- Flyer
- Giro (o)
- 360
- Maximum capacity (kg)
- 2200
- Altura hasta conexiones
- 1300
- Width Front plate (mm)
- 1000
- Presión máxima (bar)
- 175
