Digital 2.4G

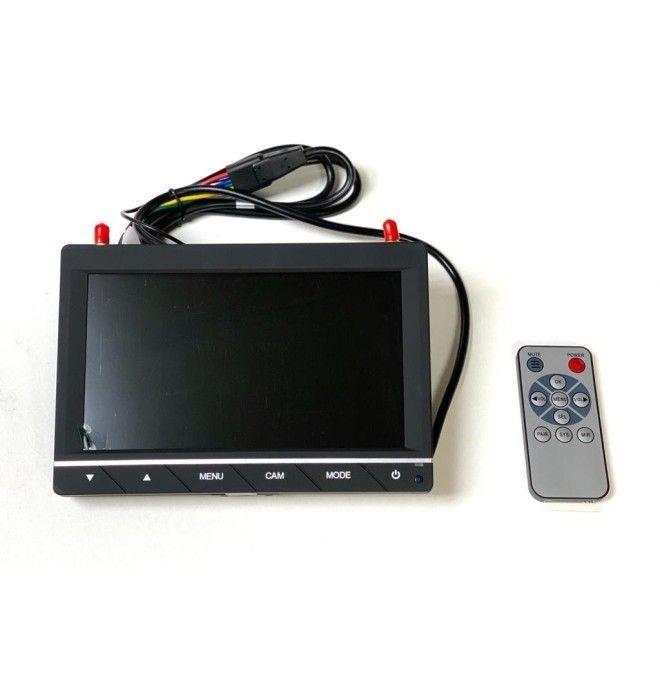

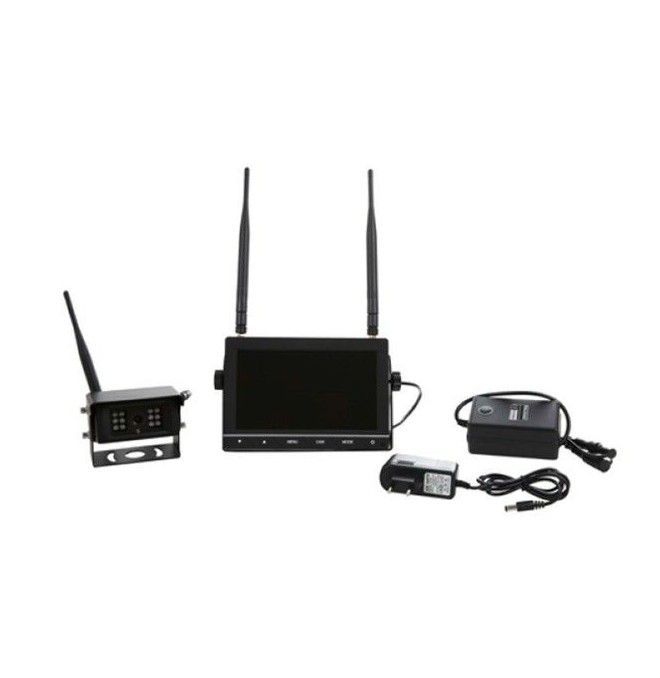

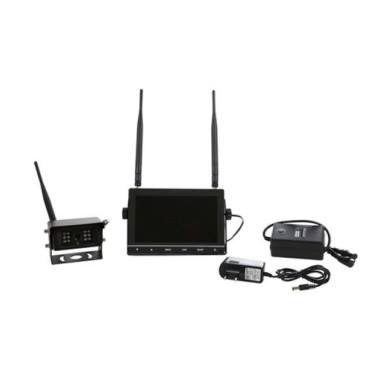

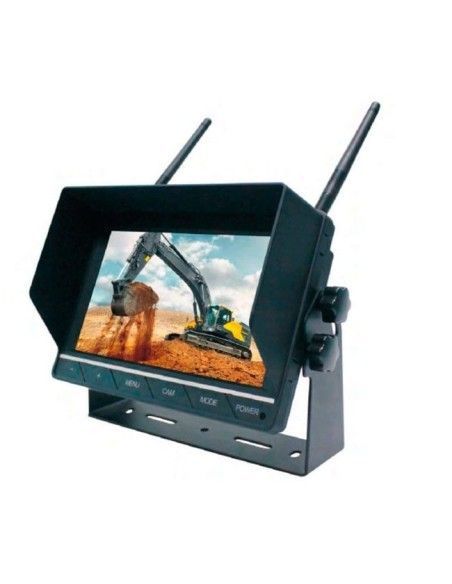

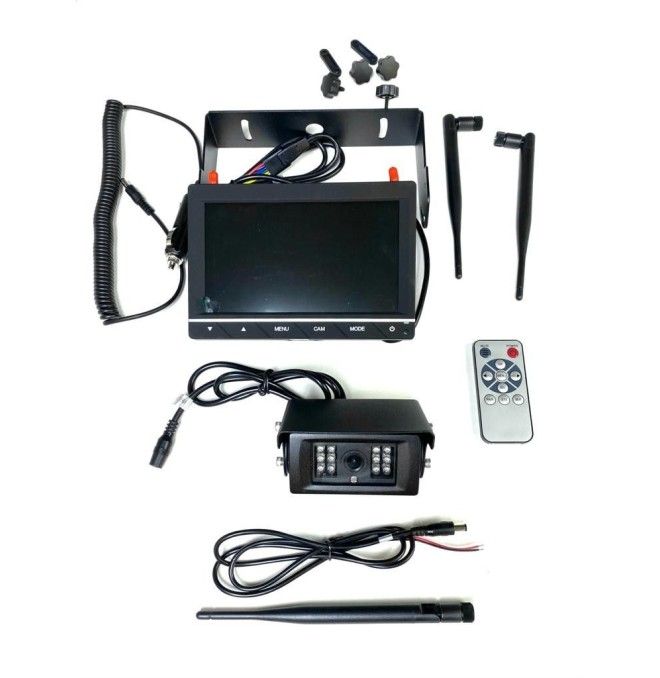

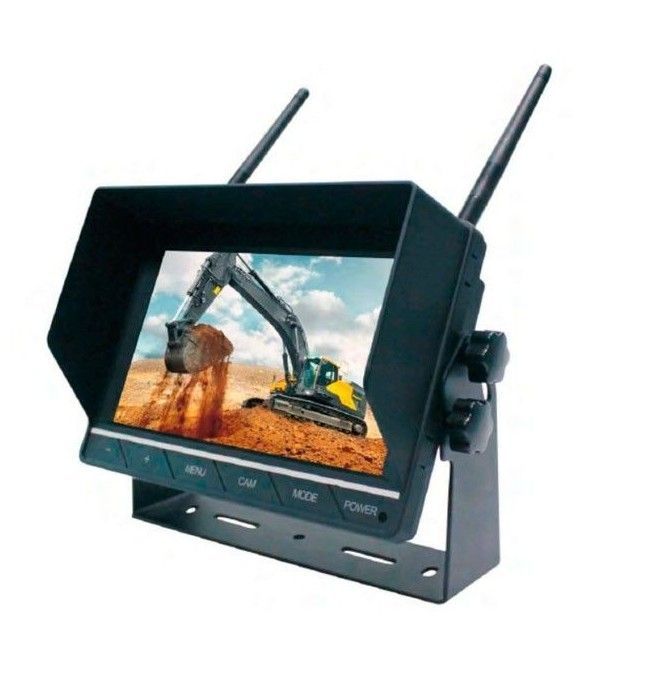

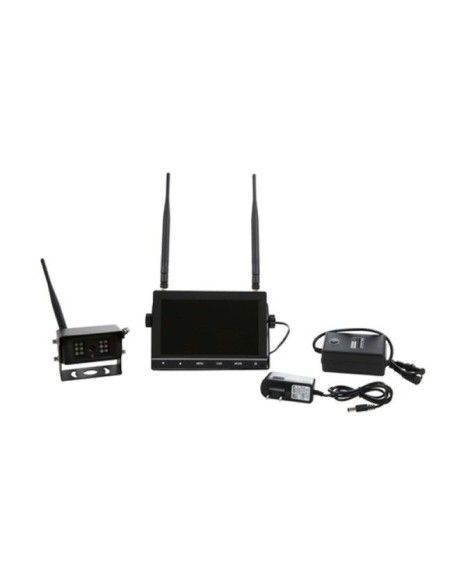

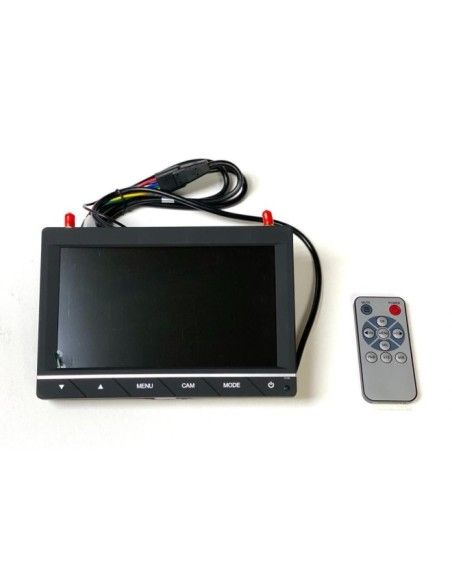

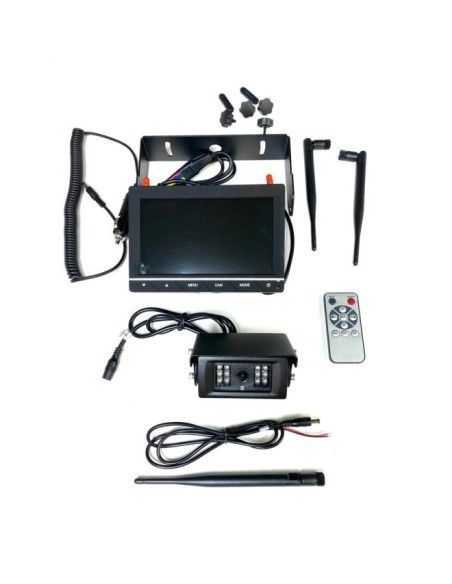

New digital wireless camera kit. 7-inch wireless LCD monitor 2.4G.

CHARACTERISTICS

• LCD monitor with wide angle view and high resolution display.
• Automatic scanning mode and unique display mode available

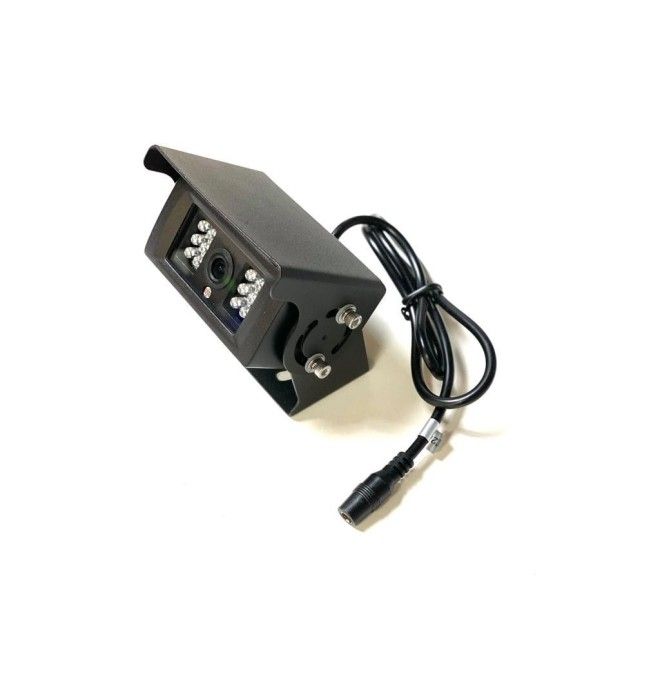

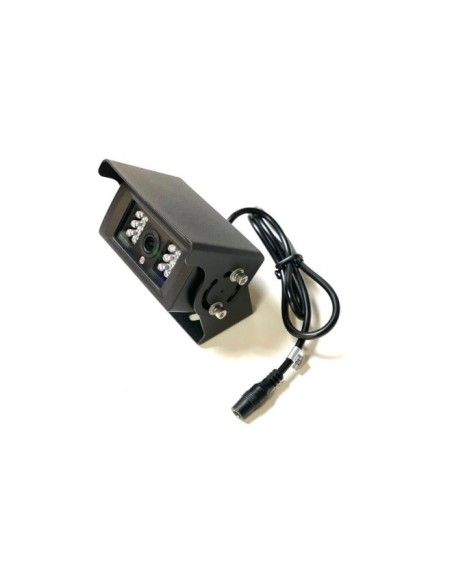

• 4 wireless camera inputs
• Multiple video formats: PAL / NTSC
• Wide voltage input: 10-32V
• Autophone mode
• Speaker

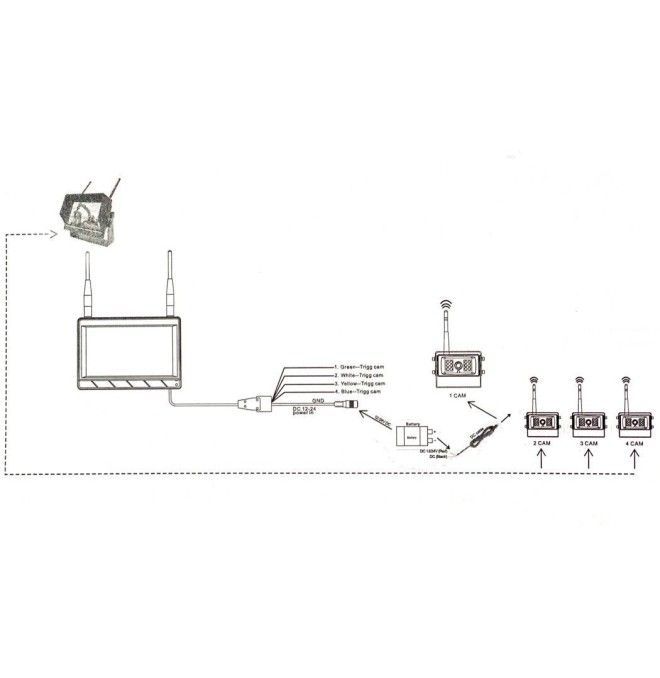

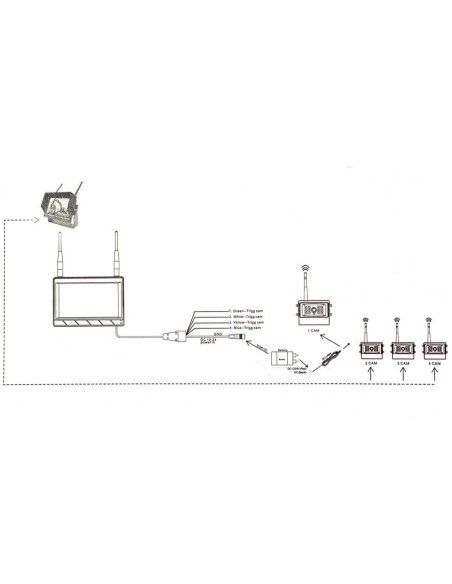

• Automatic change to the work channel when triggering the trigger

TECHNICAL CHARACTERISTICS

• LCD size: 7-inch
• The resolution: 800x3 (RGB)x480
• Contrast: 500:1
• Brillo: 400CD/M2
• Angular: U: 50/D:70, R/L: 70
• Point tone: 0.0642(W)x0.1790(H)
• Aspect ratio: 16:9
• Canal: 4channels
• Sensitivity: -89 dBm
• Decomprehension form: MPEG4
• Transmission output power: 17dBm
• Modulation: 2.4G FSK/GFSK
• Delay time: 120ms
• Transmission distance: 30-120M
• MICRO SD/Tard TF: Max. 128
• System format: PAL/NTSC
• Power supply: DC 10-32V
• Consumption: Max. 6W
• Speakers: 1.5W/8Ω
• Temperature: -20+70oC, RH 90%
• Storage temperature: -30+80oC, RH 90%
