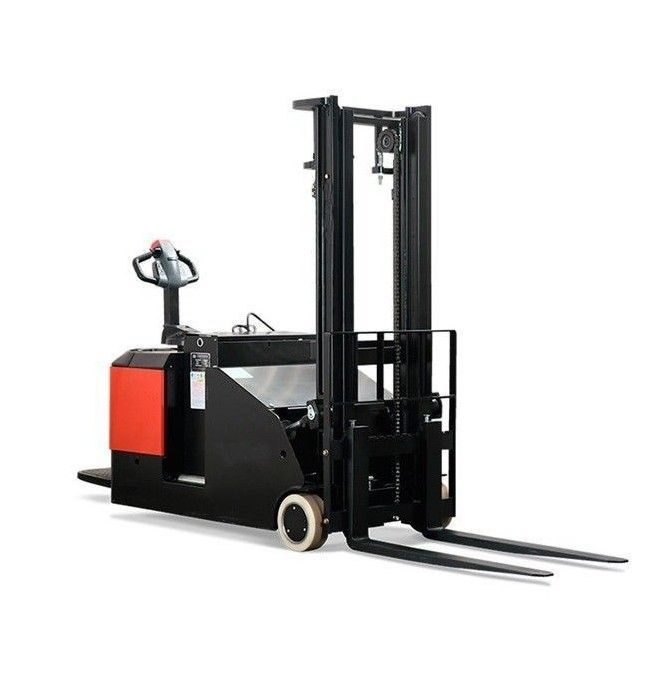

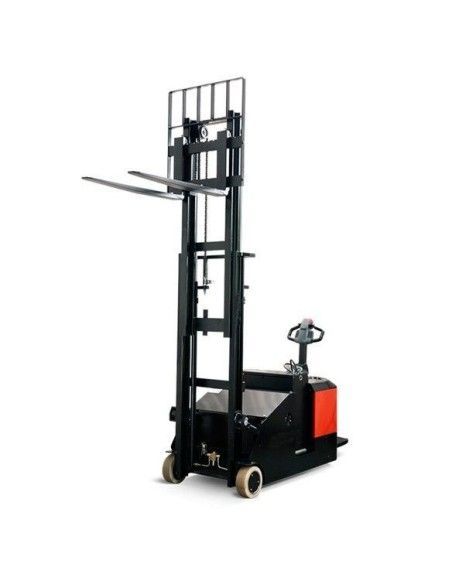

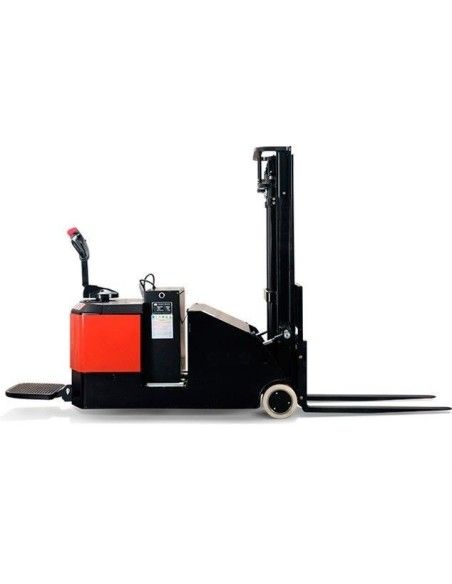

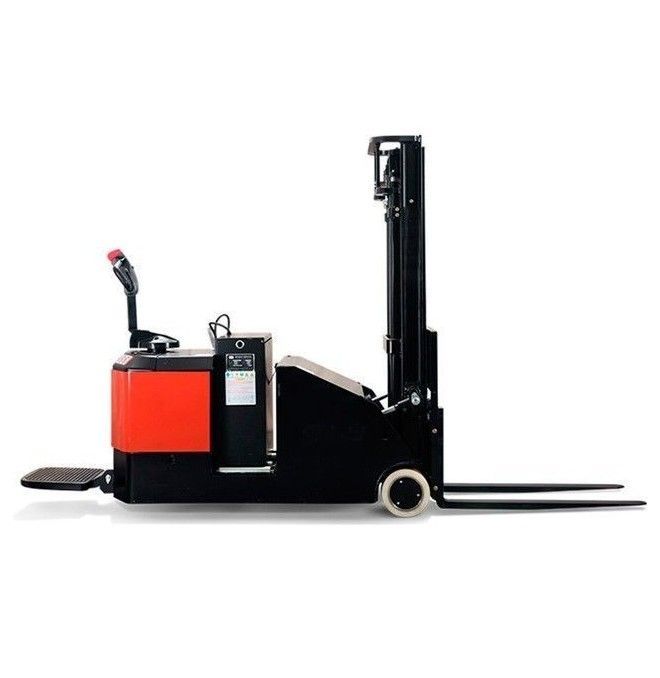

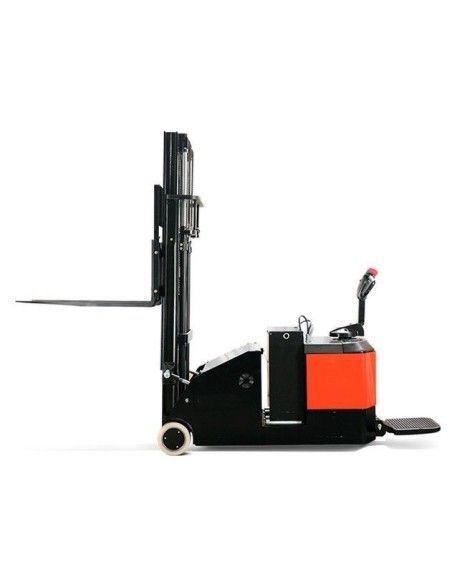

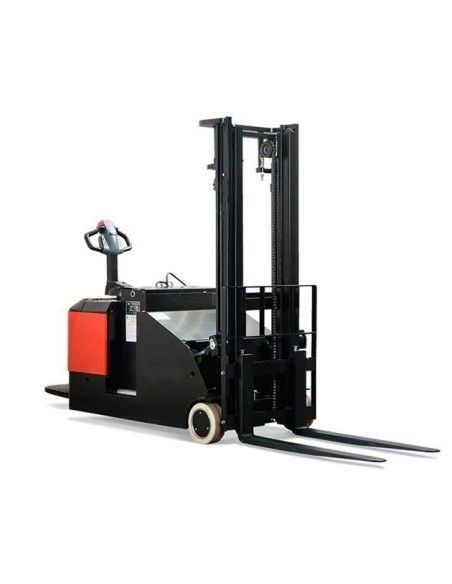

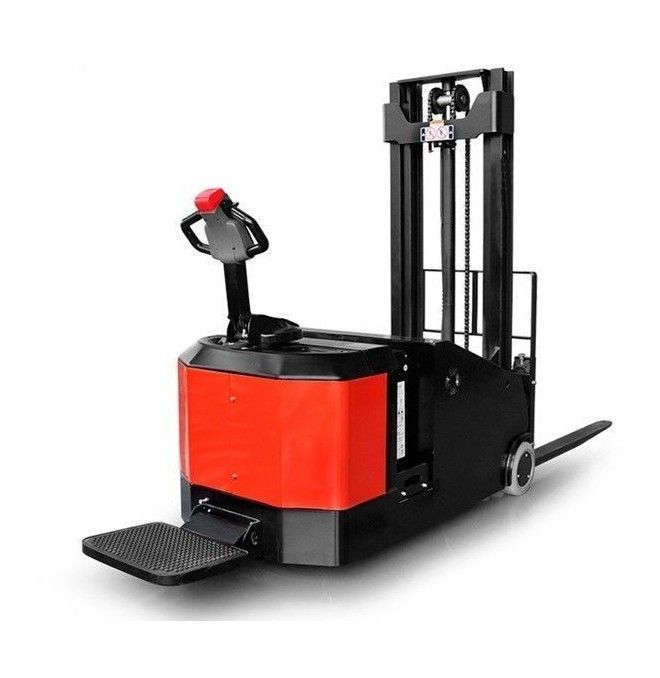

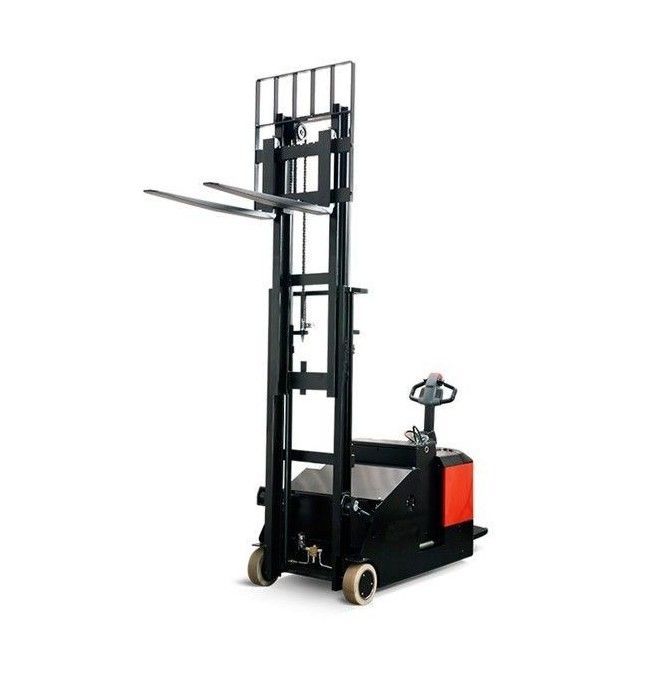

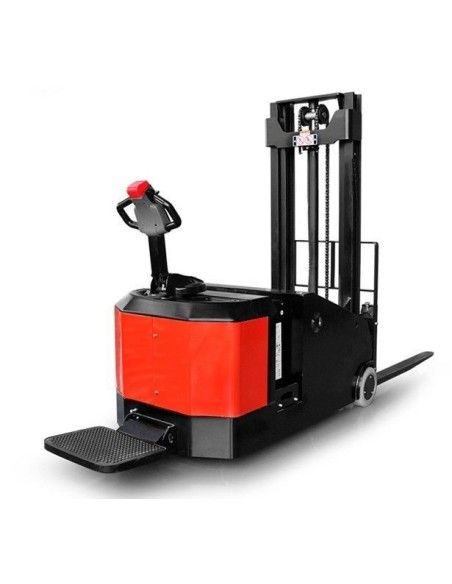

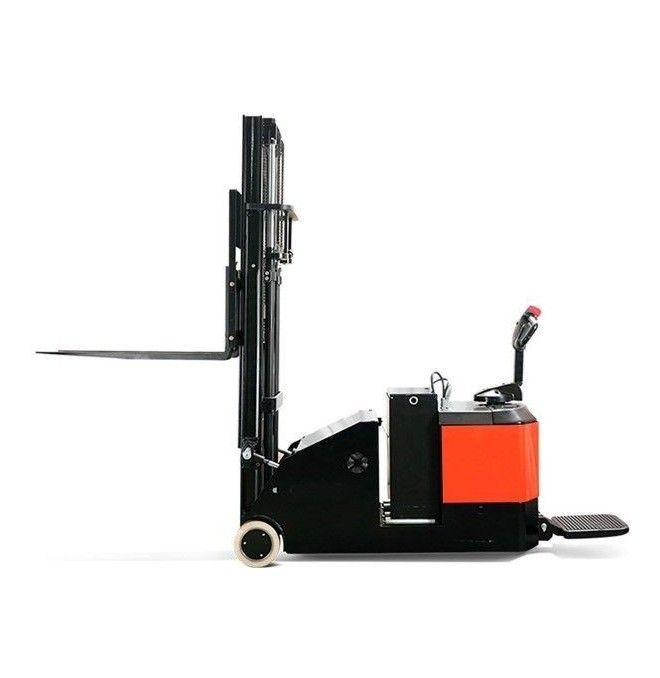

Counterbalanced stacker 1200kg to 3570mm

Counterbalanced stacker electric, with load capacity of 1200kg and maximum elevation up to 3570mm. Suitable for load movement in warehouses. Thanks to its great ease of use, it facilitates loading and unloading tasks providing great efficiency.

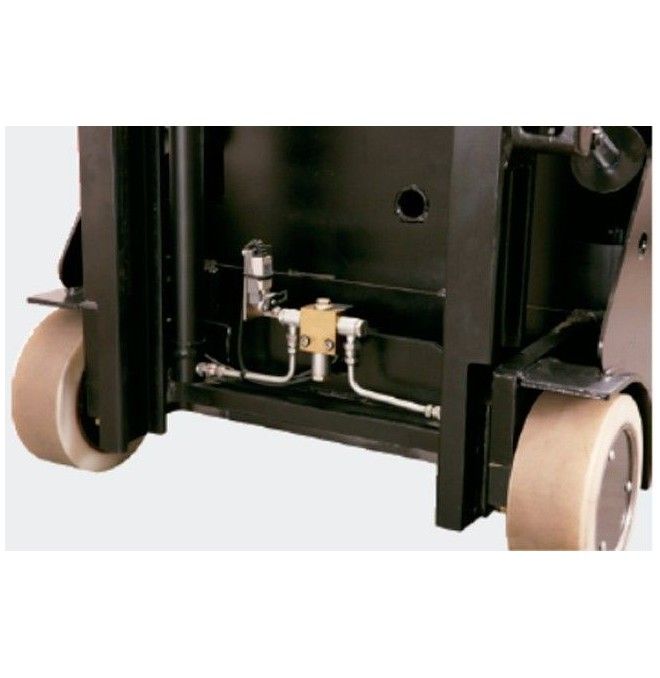

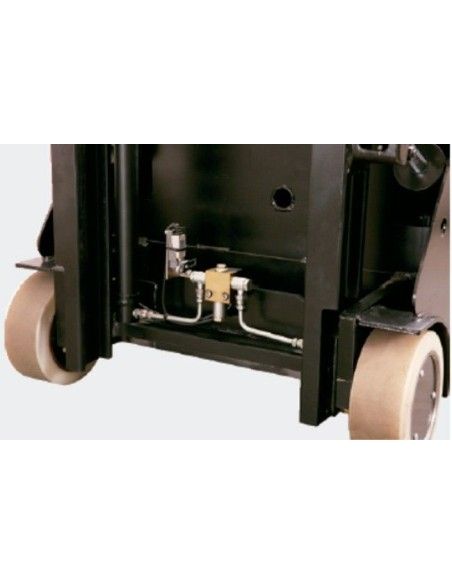

Its hydraulic system is designed to prevent the mast from dropping abruptly when the hydraulic cylinder can fail. The emergency stop button offers great security to the operator in emergency situations.

The automatic slow mode is activated when the forks reach their maximum height.

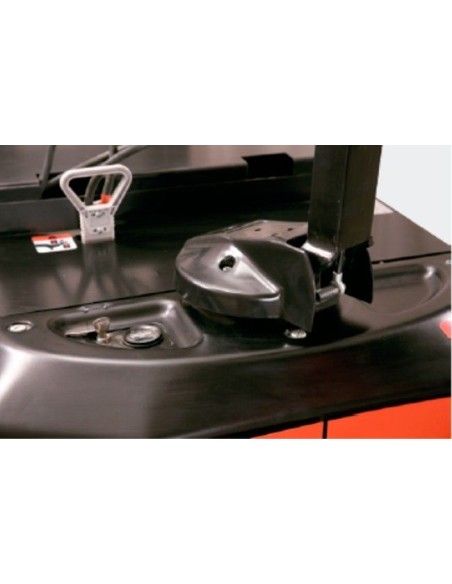

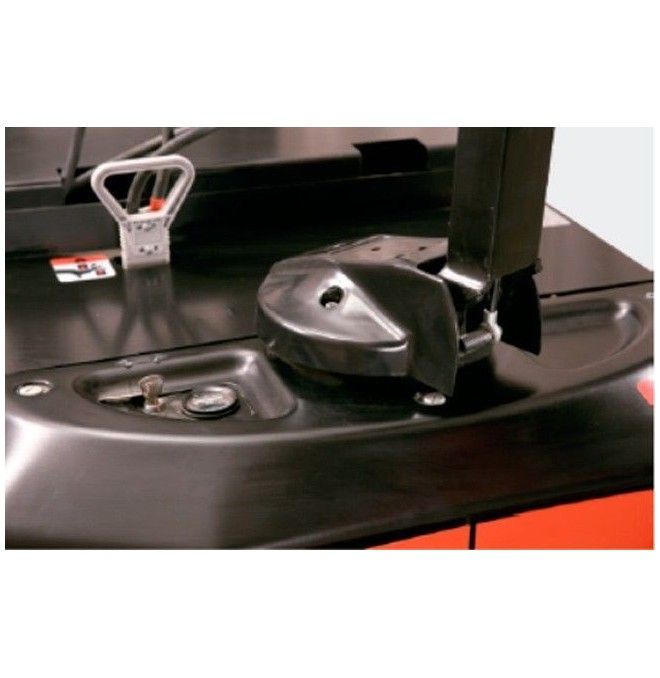

With its ergonomic command, the operator at its disposal all the controls of the stacker, giving it a simple and intuitive handling of the stacker.

Its chassis is of great durability, and quality, giving the machine more useful life.

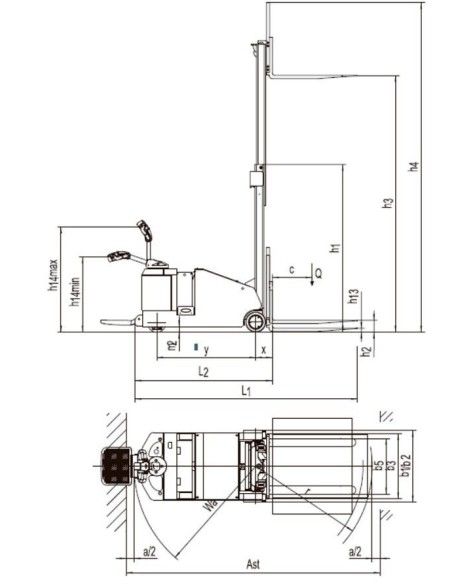

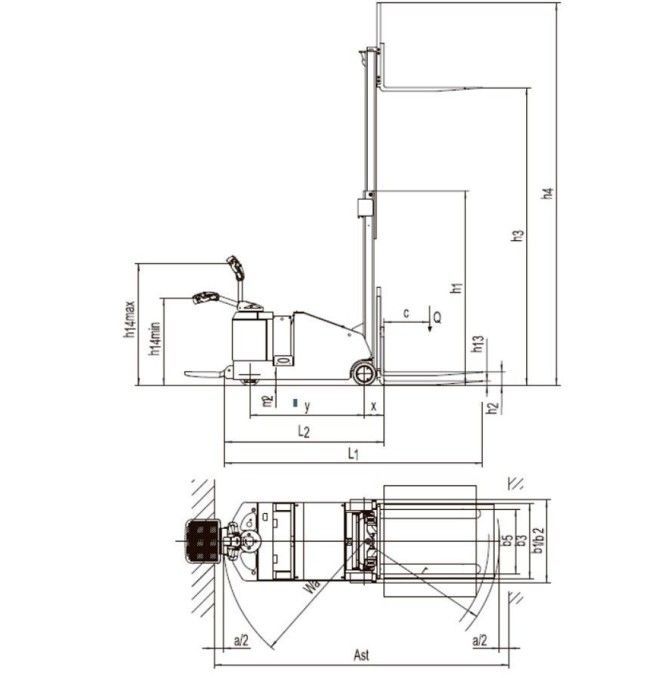

CHARACTERISTICS

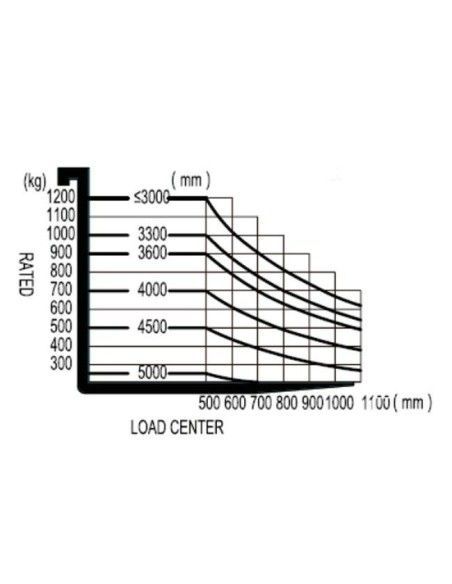

• (Q) Charging capacity: 1200kg
• (c) Charging center: 500mm
• (y) Distance between axles: 1244mm
• Type of motor wheel: Polyurethane
• Type of load wheel: Polyurethane

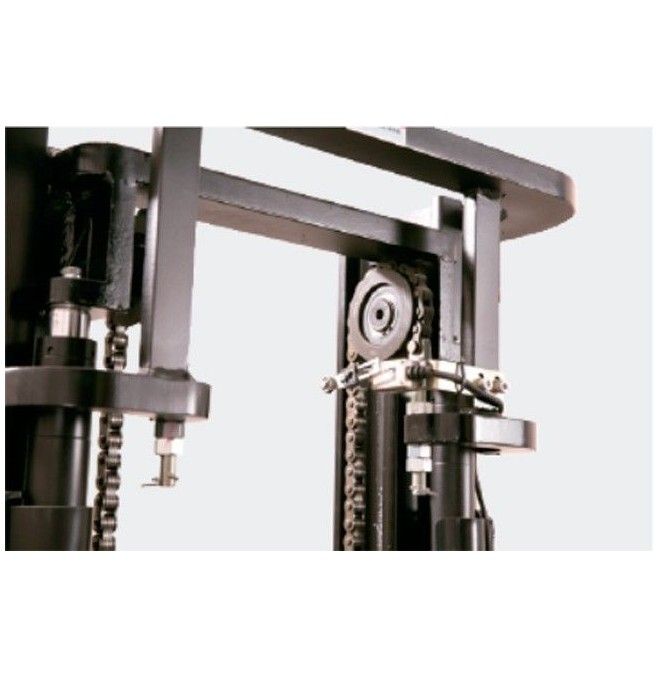

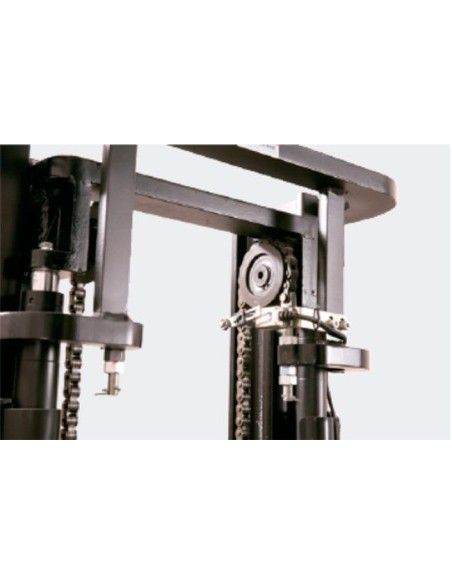

• Mastil: Duplex
• (h1) Lowest height down: 2260mm
• (h3) Lift height: 3570mm
• (h4) Extended mast: 4485mm
• (h13) Reduced height: 60mm
• (l1) Total length: 2835mm
• (l2) Longitude to the face of the forks: 1738mm
• (b2) Total width: 900mm
• (s/e/l) Dimensions of forks: 40x100x1070mm
• (b3) Width of the fork: 800mm
• (b5) Distance between forks: 200-760mm
• (m1) Distance to the ground, charged, under the mast: 78mm
• (m2) Distance to the floor, center of distance between axles: 70mm
• (Wa) Turn radio: 1535mm
• Charge/Download speed: 5.5/6.0Km/h
• Lifting speed (with charge/no charge): 0.127/0.23m/s
• Decreasing speed (loaded/downloaded): 0.26/0.2m/s
• Max. Earring (loaded/downloaded): 5.0/8.0%
• Type of address: electric
• Traction motor: 1.5kW
• Lifting motor: 2.2kW
• Battery: 24V/210Ah
• Battery weight: 190kg
• Type of transmission unit: AC
• Weight (with battery): 1860kg
