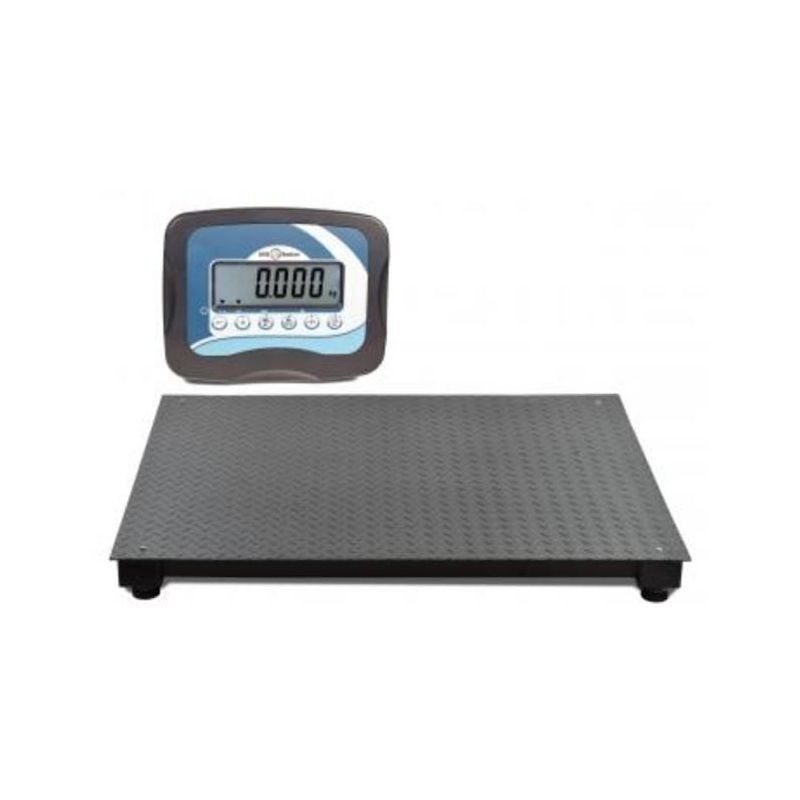

Industrial scale with Visor 3000kg

High capacity industrial scale

Bascula with 4 nickel steel loading cells, IP66, on floor installation. Indicated for warehouses, factories, workshops.

It includes a viewfinder.

Detailed specifications of the viewer

• Platform with structure in painted tubular steel and top sheet in painted teared steel and welded to structure.
• Enameled in black.
• 4 nickel steel loading cells, IP66.
• ABS case, IP66 protection.
• ABS case, IP66 protection.
• 4 feet adjustable in height (10 mm).
• Installation on the ground.
• Structure in steel and top lacquered sheet of 4,5 mm thick.
• Exit 4 m cable included.
• Indicator in ABS, model BR15.
• Retrolit LCD display with 6 digits of 30 mm.
• Retrolumination of the display with three modes: automatic, activated and deactivated.
• IP54 protection.
• Waterproof keyboard with 5 function keys and switching keys.
• Functional keys: Selection of heavy drive, zero, jar, accumulation and manual transmission of data to PC or printer.
• Separate buttons to turn on and off.
• 120-hour rechargeable internal battery.
• Operating temperature: -10oC +40oC.
• Serial range (other options under budget: multi-range/multi-interval).
• Network power with AC/DC 240VAC 50Hz adapter.
• Unit 1 to choose between off, kg, t and g; Unit 2 to choose between off, lb, lboz; Unit 3 to choose between off, Taiwan Jin, CA or VISS.
• Exit RS232. Data shipment with PC format and printer.
• Auto disconnection automatically (with desired time settings of 1 to 99 minutes).

• CE certification.

Detailed characteristics of the scale

• Maximum load capacity of 3000kg.
• Platform with structure in painted tubular steel and top sheet in painted teared steel and welded to structure.
• 4 nickel steel loading cells, IP66.
• ABS case, IP66 protection.
• 4 feet adjustable in height (10 mm).
• Indicator in ABS, model B15.
• Display LCD retro illuminated with 6 digits of 30mm.
• Retrolumination of the display with three modes: automatic, activated and deactivated.
• IP54 protection.
• Waterproof keyboard with 5 function keys and switching keys.
• Functional keys: Selection of heavy drive, zero, jar, accumulation and manual transmission of data to PC or printer. Separate buttons to turn on and off.
• 120-hour rechargeable internal battery.
• Operating temperature: -10oC +40oC.
• Unit range / Multi range / Multi interval.
• Network power with AC/DC 240Vac 50Hz adapter.
• Exit RS232. Data shipment with PC format and printer.
• Auto disconnection automatically (with desired time settings of 1 to 99 minutes).
• It's black.

*Consult us for more product information weighing.

*See drop-down for different measures.
