Palet FEM3A Flying Pinza
IR00000006

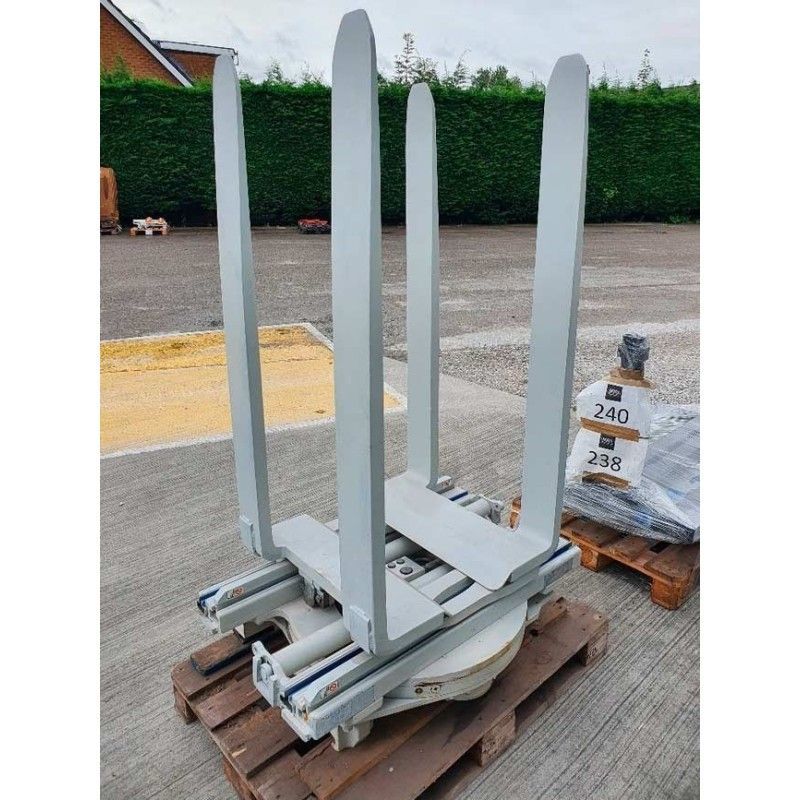

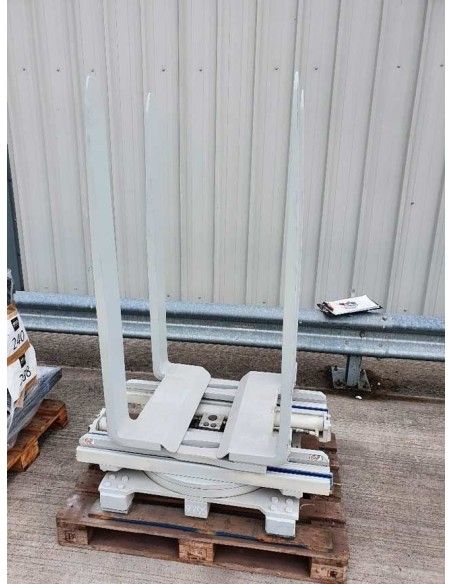

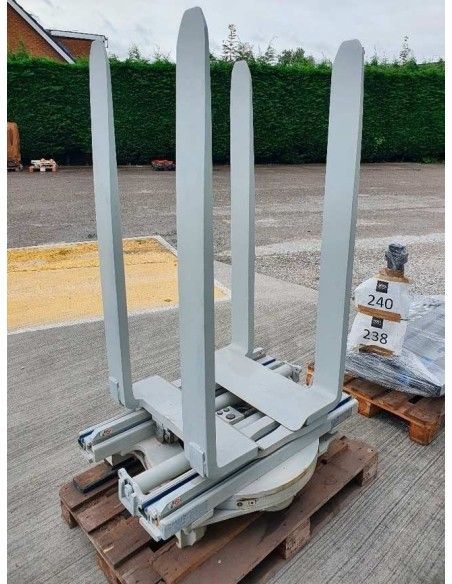

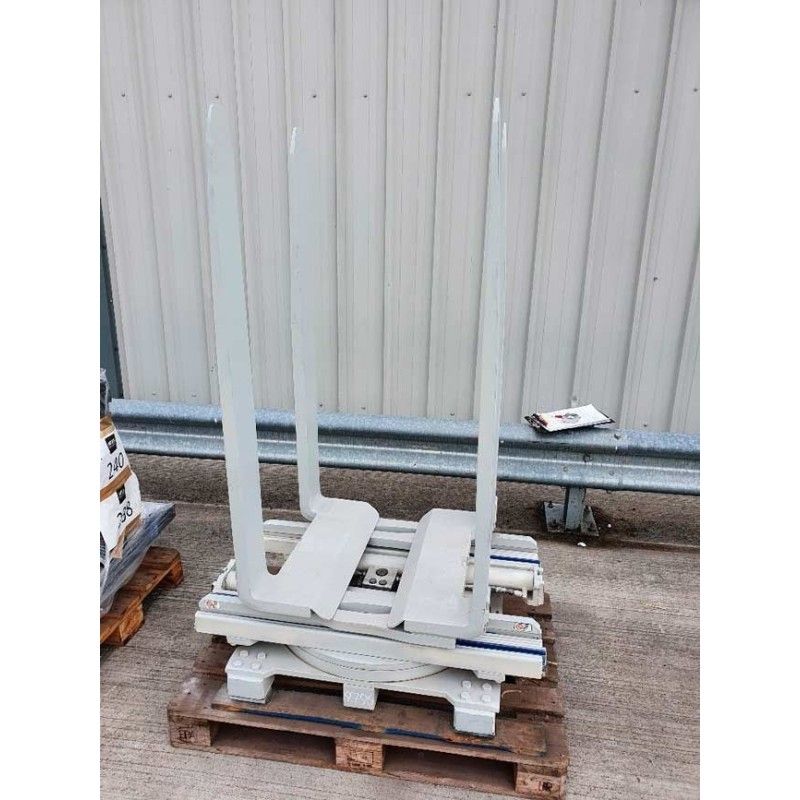

Reconditioned Attachment, FEM3A pallet flying clamp, 1800kg load capacity, opening range 590-1800mm.
Also available in FEM2A and in new or refurbished.
Double rotary clamps with 360o twist. Available in new and refurbished for FEM2 and FEM3. Ideal for the cheese industry, to flip pallets, etc,,
Ask us for a budget.
CHARACTERISTICS
- Load capacity: 1800kg
- Charging center: 500mm
- Type of assembly: FEM3A
- Minimal width of the wheelbarrow: 800mm
- Minimum opening range: 590mm
- Maximum opening range: 1800mm
- Weight: 657kg
- Gravity center: 321mm
- Thickness: 323mm
- No hydraulics required: 2
- Frame width: 1050mm
- Length of the fork: 1300mm
- Width of the fork: 125mm
- Thickness of the fork: 40mm
- Distance between upper and lower forks: 650mm
- Maximum oil pressure: 160 bar
- Average oil flow: 30 l/min
- Brand: CASCADE
VIDEO OF FUNCTIONING
New
Interested in product
Tell us your interest in this product and we will contact you for more details.
