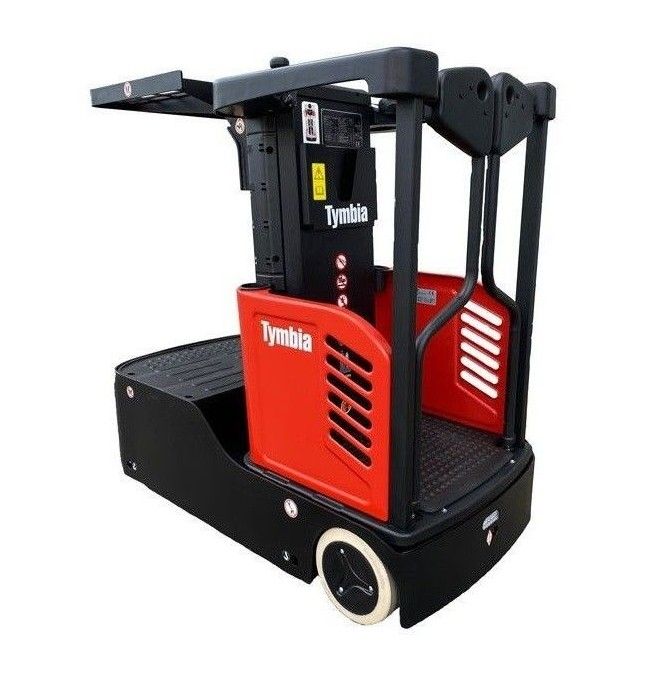

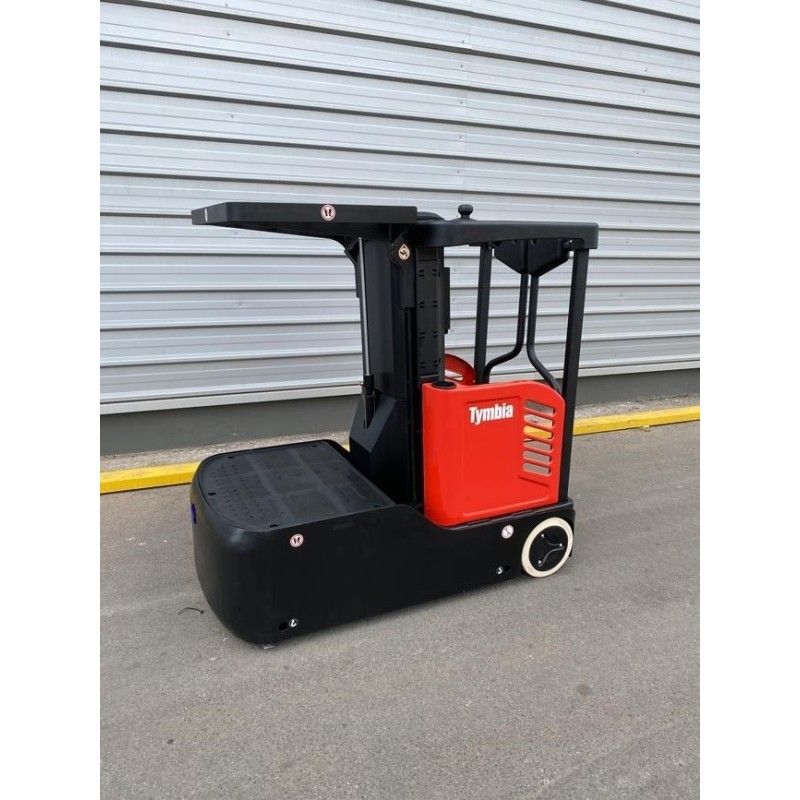

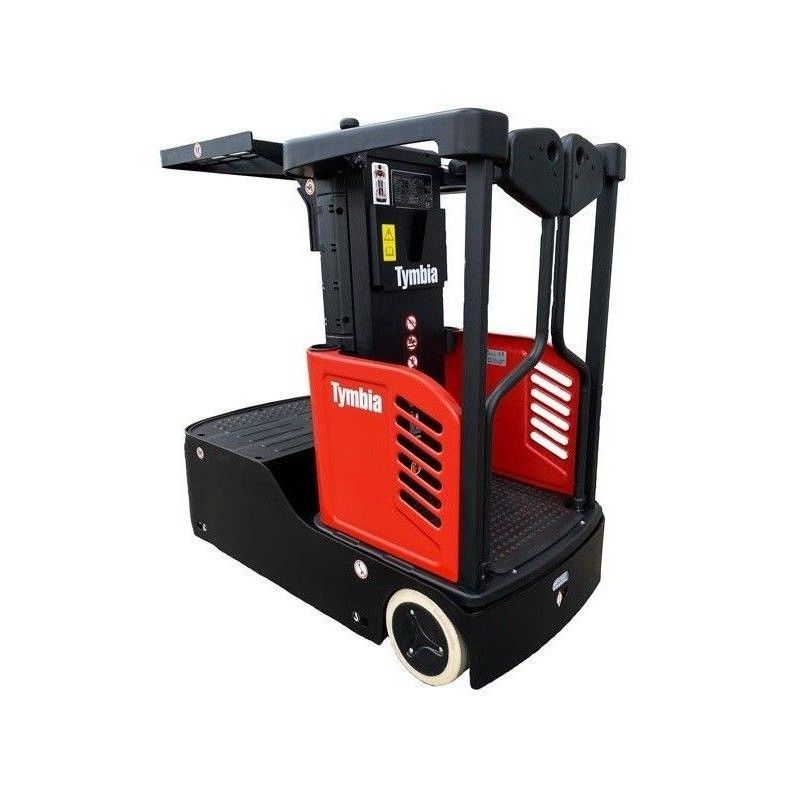

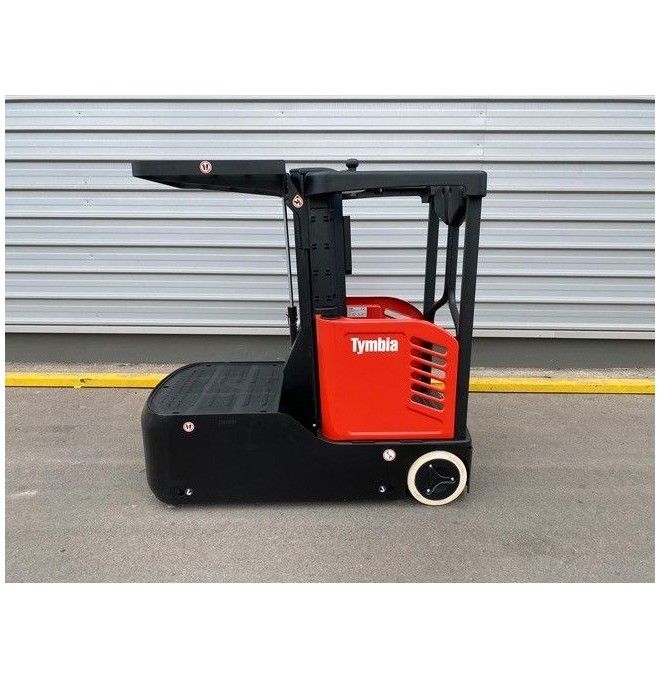

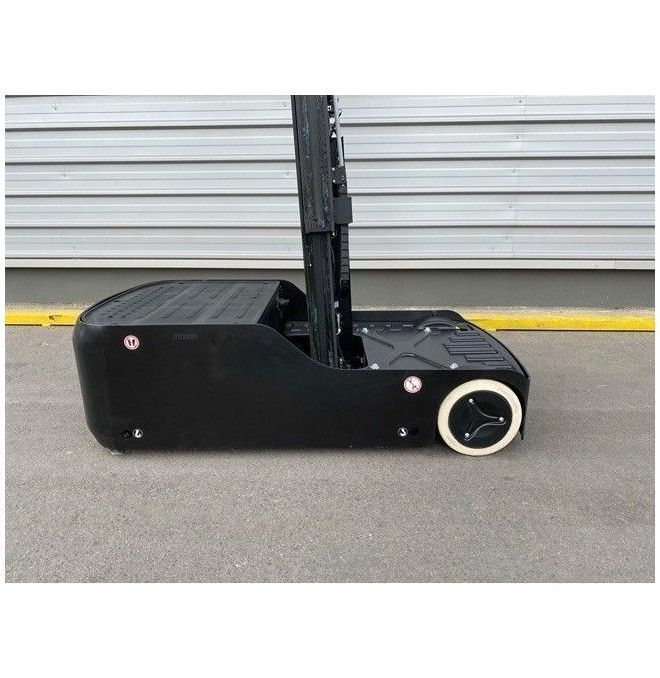

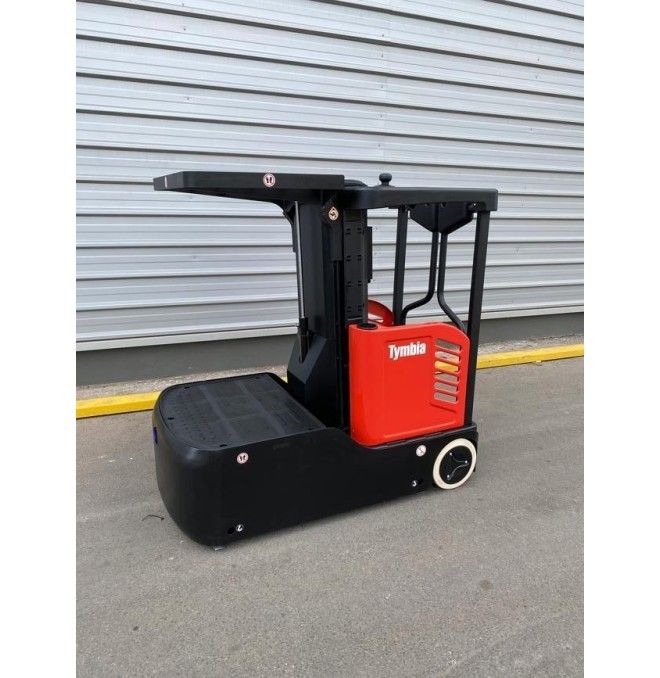

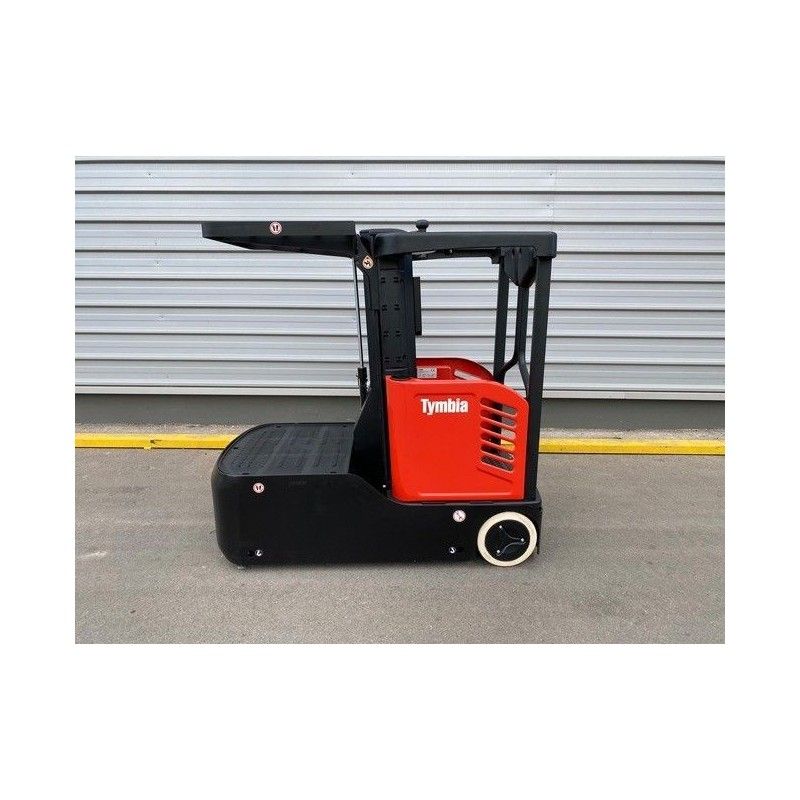

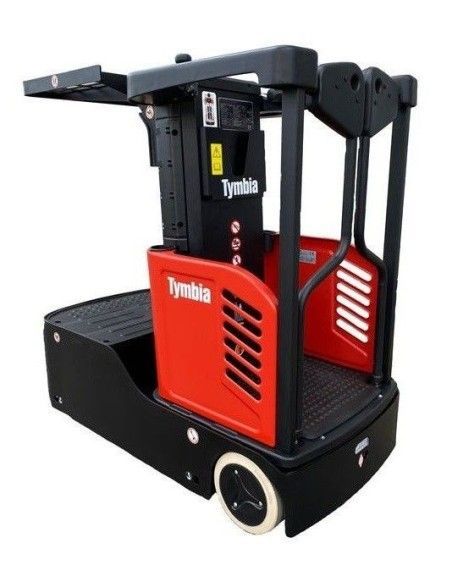

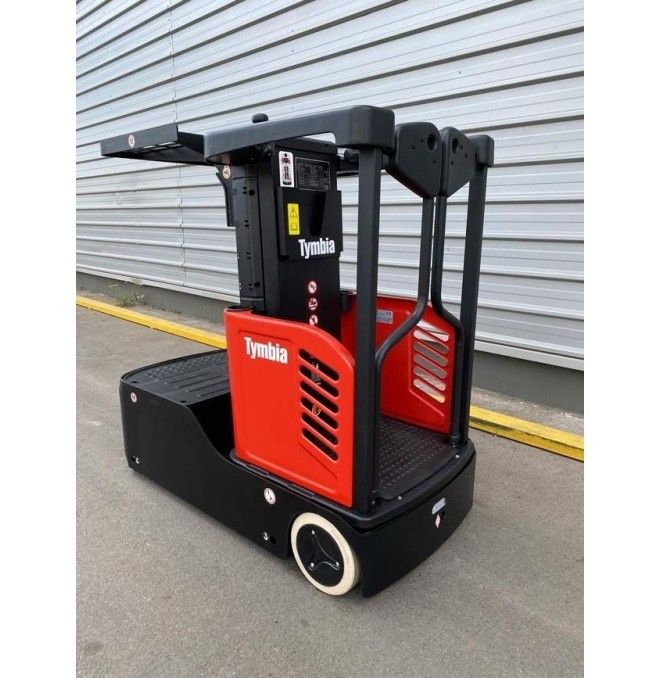

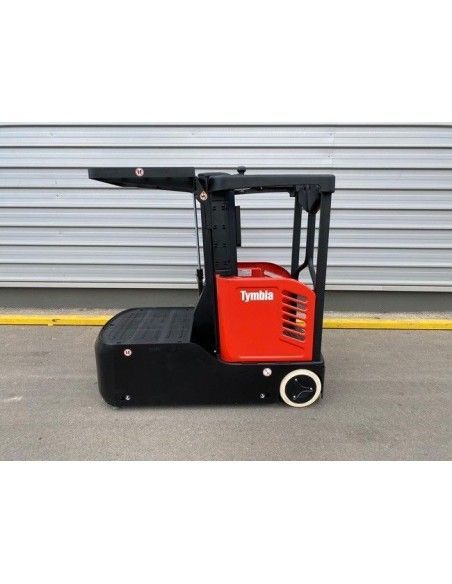

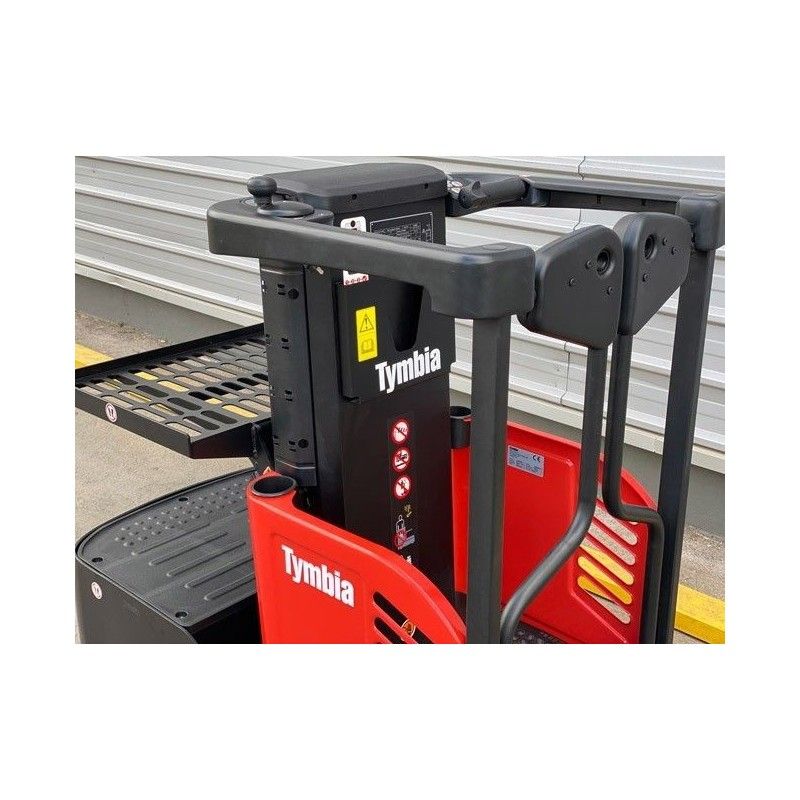

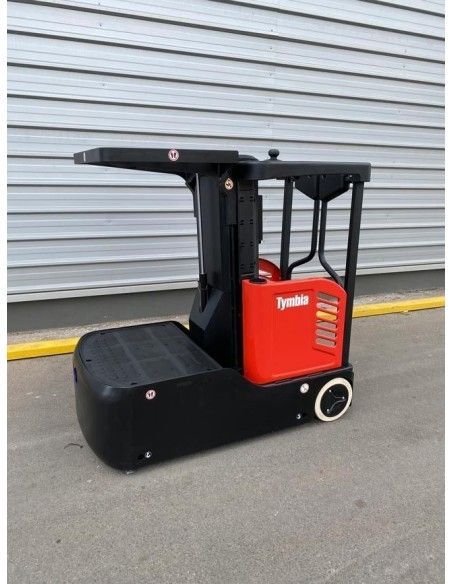

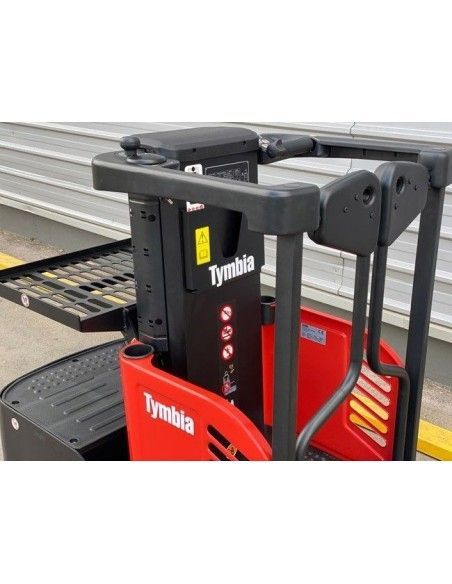

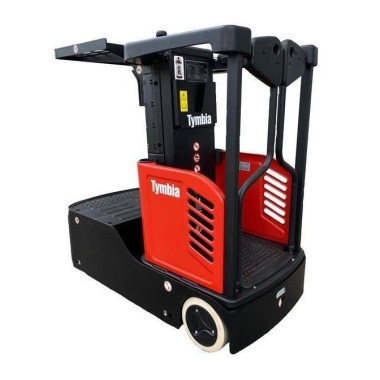

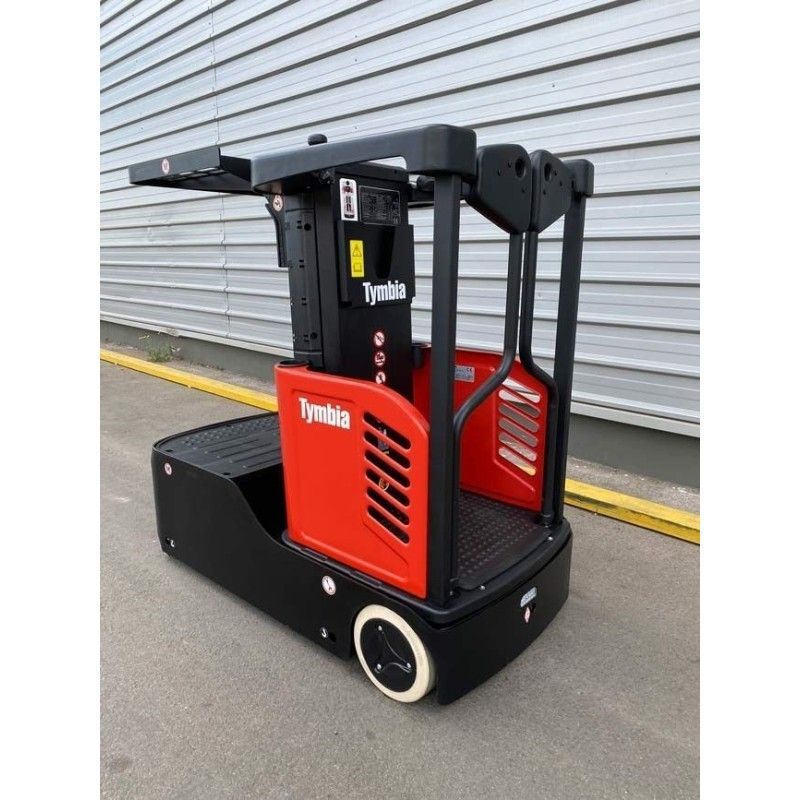

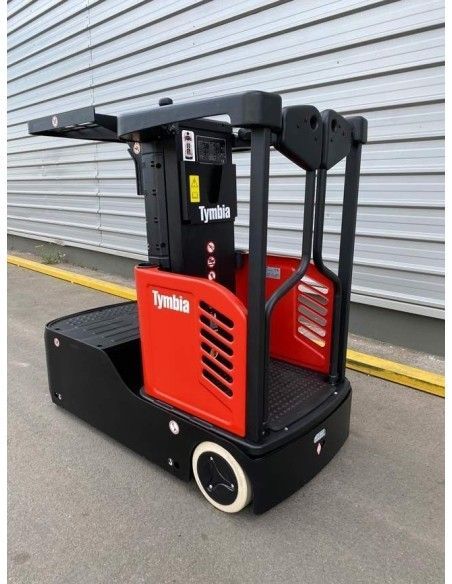

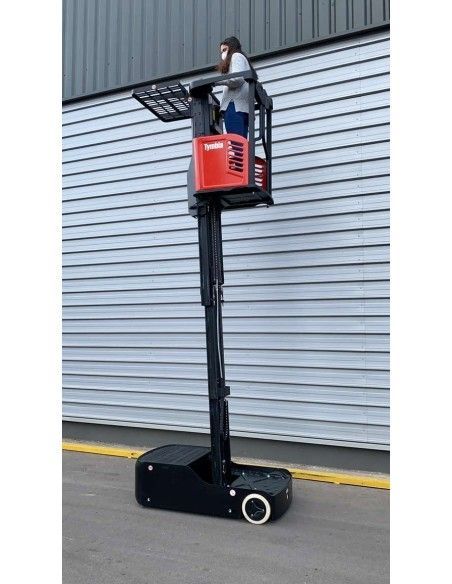

Order Pickers Electrical 130kg - 3060mm

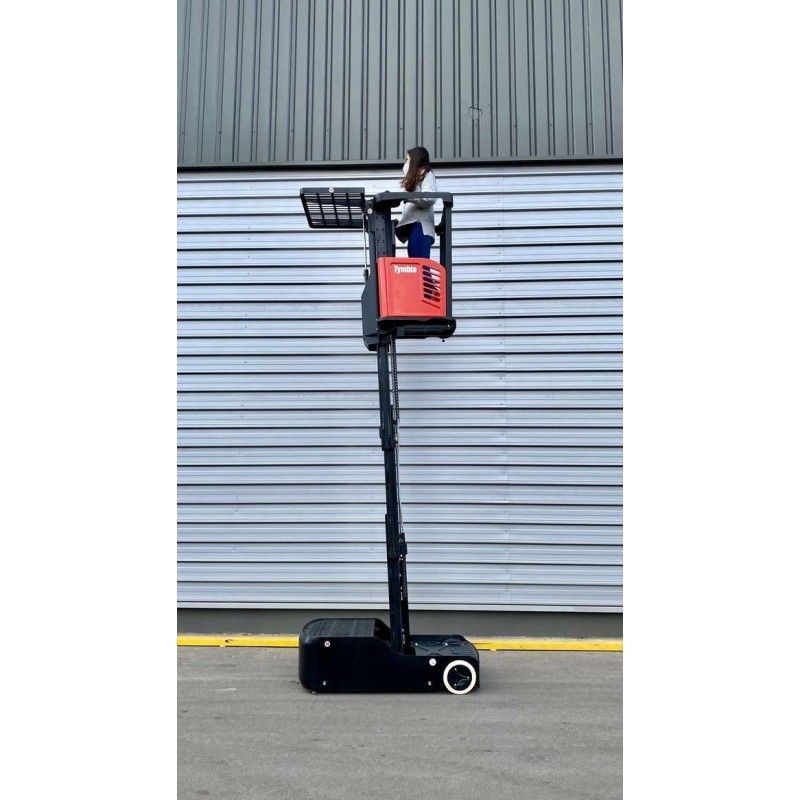

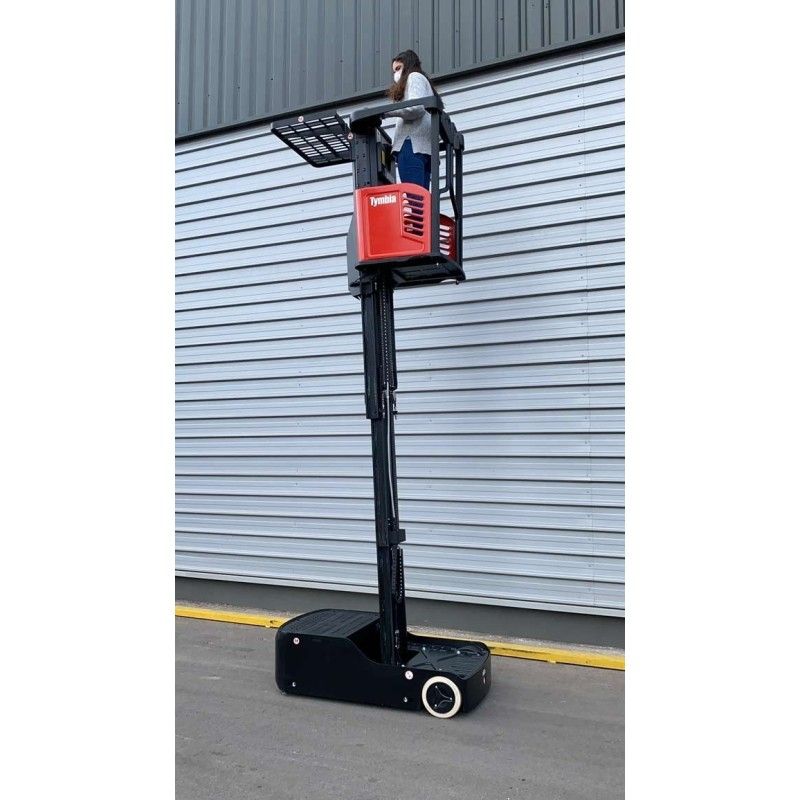

Compact picking electrical platform with a width of only 700mm, to be used even in narrow corridors, with a maximum lifting height of 3M.

Vehicle with support for picking tasks, very FICIL to use due to its ergonomic design with a smooth operation and acceleration, equipped with a very stable mast, it is the ideal solution for the preparation of small volume orders and for the retail environment. Ideal to support the driver, thanks to order Pickers The effort is reduced and safety and efficiency at work are increased.

Suitable for multiple uses and environments: Maintenance of installations, Movement of materials, merchandise in racking and Shelving, ...

Order Pickers Specially designed for indoor use, outdoor operation is allowed with a fully lowered platform.

Electric vehicle suitable for traveling in clean, dry and prepared terrain (concrete, asphalt). With the ability to overcome earrings of up to 5% tilt, with the platform down.

The order Pickers Tymbia allows the following operations, among others:

• Collection of goods.
• Rise and downstream of products from areas that can not be accessed comfortably without a ladder.

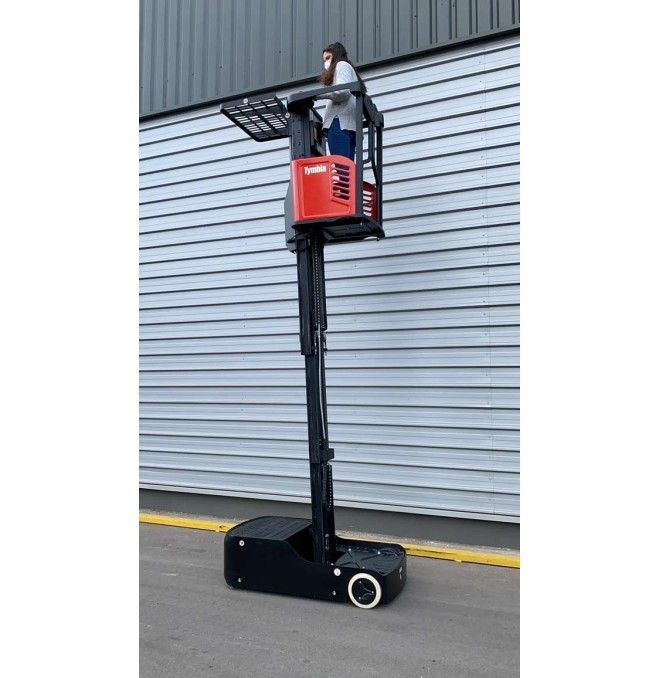

• Transfer and elevation of the operator safely, conveniently and fast, can be moved and climbed / down simultaneously.
• Transport of small items on the tray.
• Suitable for maintenance work such as: Change lights, hang banners, make inspections and small repairs.
• All tools and materials can be kept in the load tray, which is movable to facilitate the work and comfort of the operator.

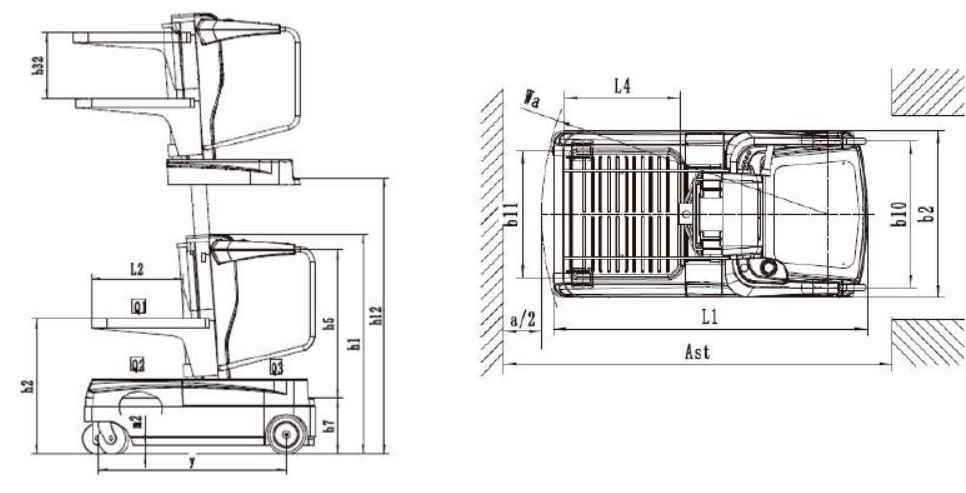

Technical characteristics

• Front platform capacity Q1 (kg) 90
• Rear platform capacity Q2 (kg) 110
• Platform capacity Q3 (kg) 130
• Axes distance and (mm) 1225
• Own weight (including battery) kg 680

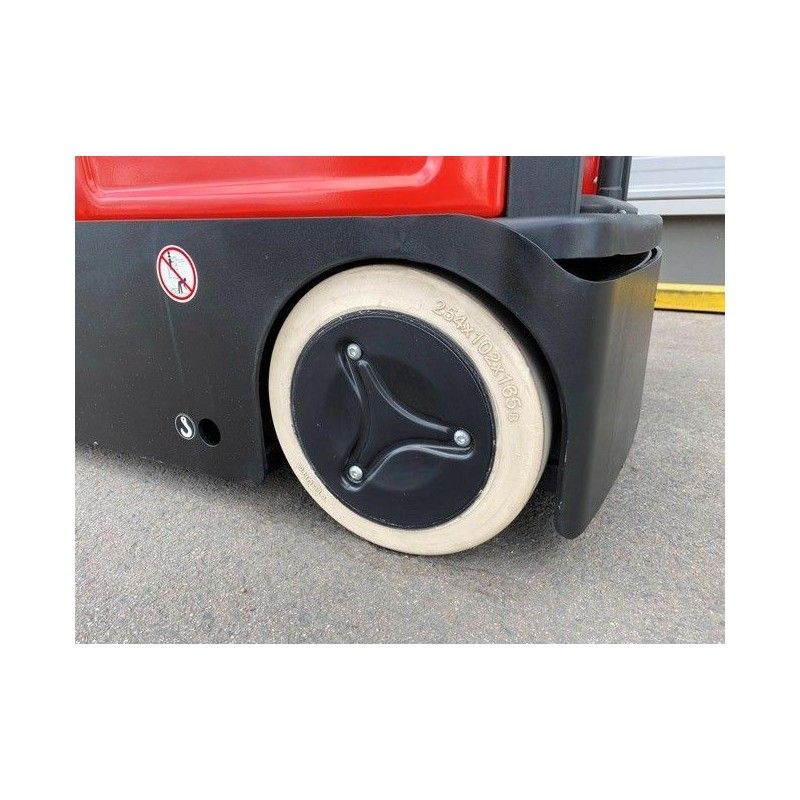

• Type of PU / PU wheels

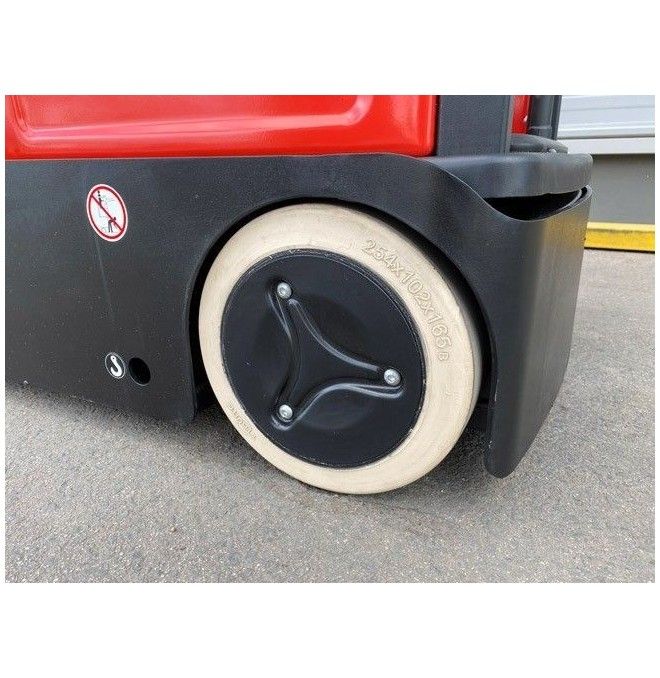

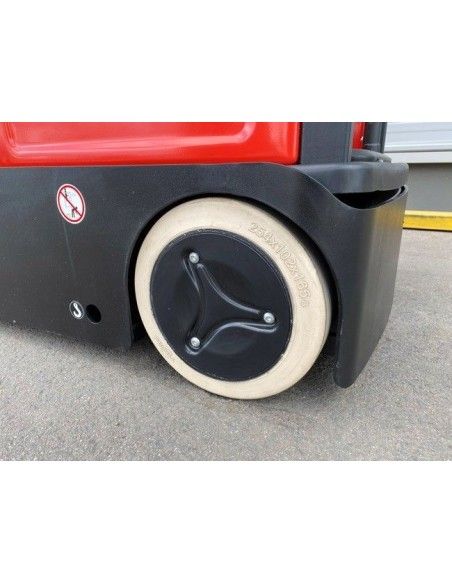

• Size Wheel Traction 6250x80
• Front wheel size 6200x50
• No. wheel, operator side / load side (x = wheel traction) 2x + 2
• Width front way, conductor side B10 (mm) 700
• Width rear, side load B11 (mm) 610
• Retrieved H1 (mm) 1410
• Seat height / base height H7 (mm) 360
• Rudder height in use position, min / max H14 (mm) 750/1170

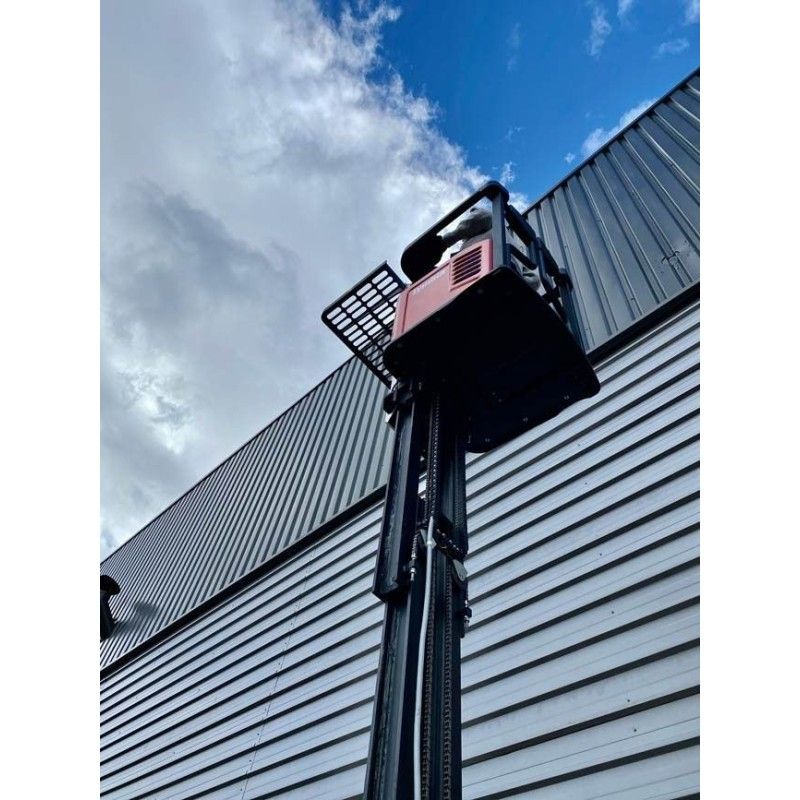

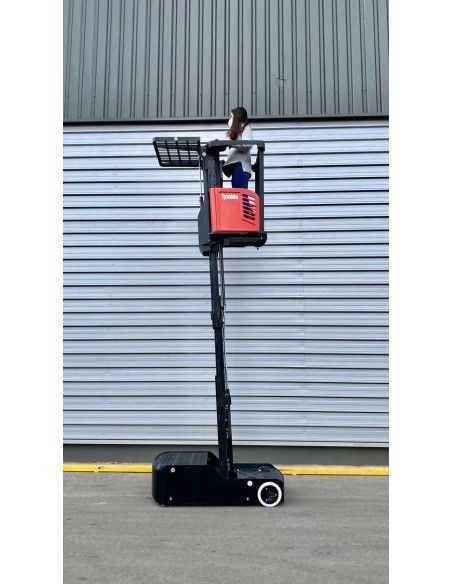

• Maximum lifting of the H12 platform (mm) 3060
• Lifting loading platform H32 (mm) 500
• Height of the forks lowered H13 (mm) 80
• Total long L1 (mm) 1505
• Total width B2 (mm) 800
• Distance to the ground, in the middle of the distance between axles m2 (mm) 60
• Load platform dimension L2 (mm) 600x800
• Initial height loading platform H2 (mm) 890

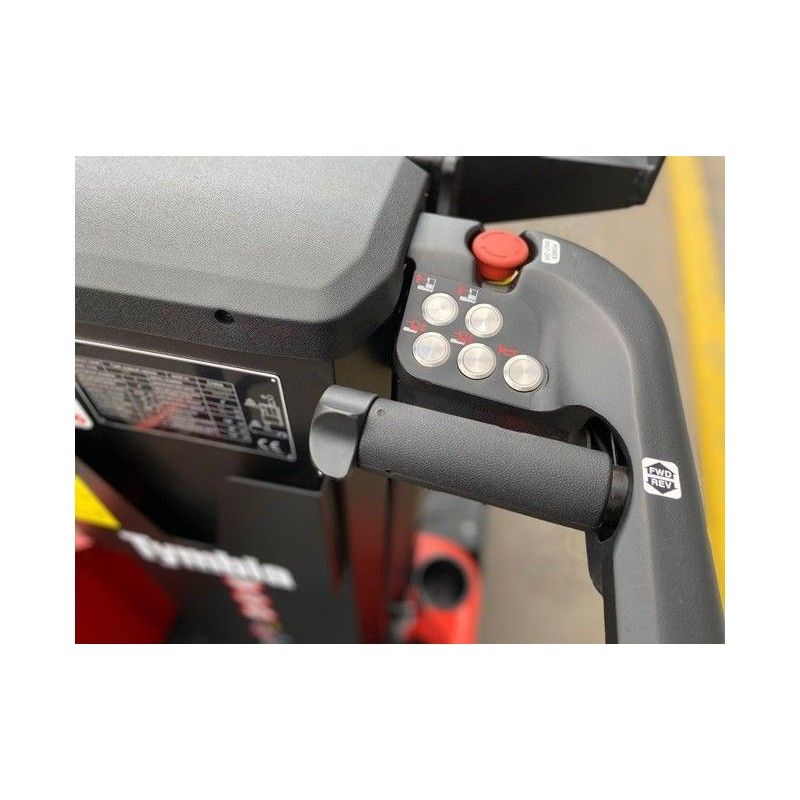

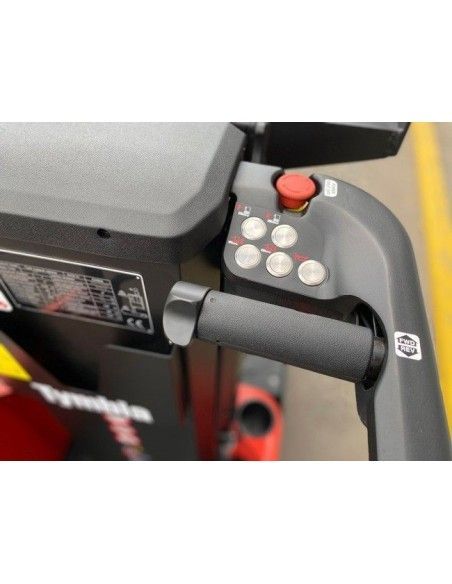

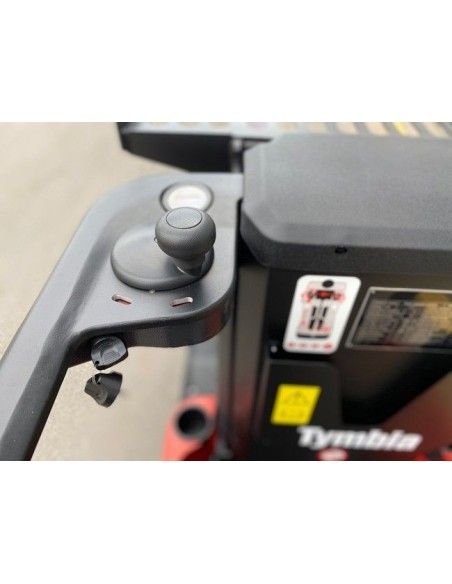

• Height Control control H5 (mm) 960
• WA Radio WA (mm) 1500
• Translation speed, with load / without load KM / H 4 / 4.5
• Lifting speed, with load / without load m / s 0.02 / 0.03
• Drop speed, with load / without load M / S 02/02
• Maximum gradability, with load / without load S2 5 min. % 5/8
• Motor Traction S2 60 min. kw 0,2
• Elevation engine at S3 15% KW 2.3
• Battery voltage / nominal capacity (5h) 24V / 85Ah
• Gel battery. (Also available with lithium battery. See)
• The color may vary, according to availability.
• It has CE certificate.
