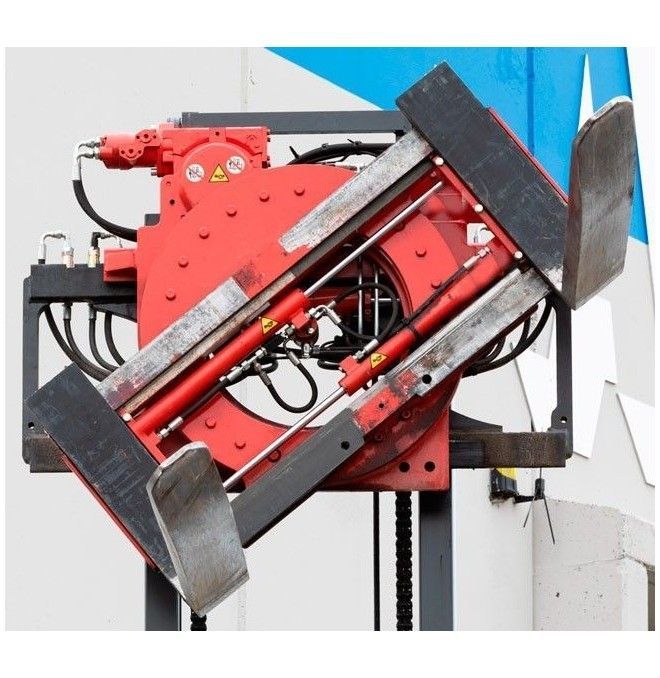

FEM2 360o Fork Power
M103070000

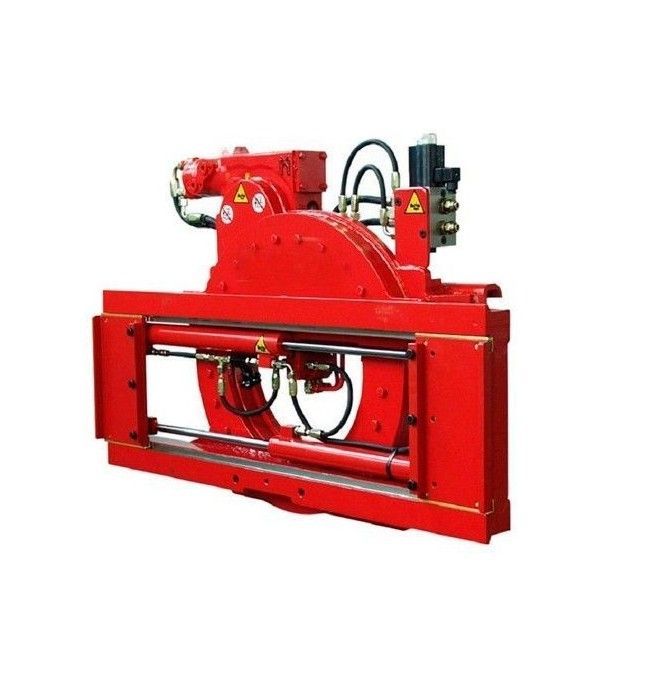

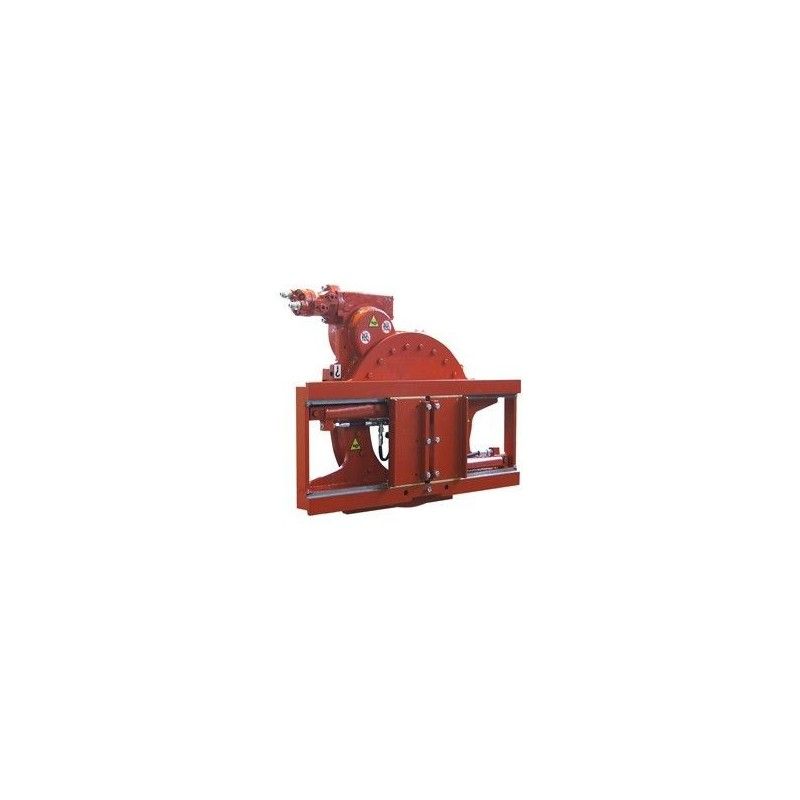

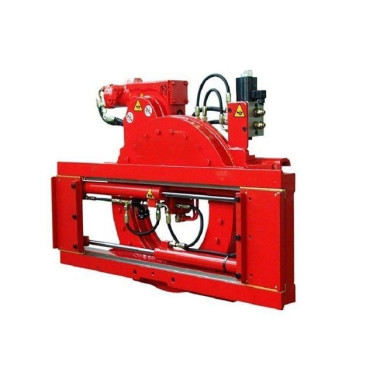

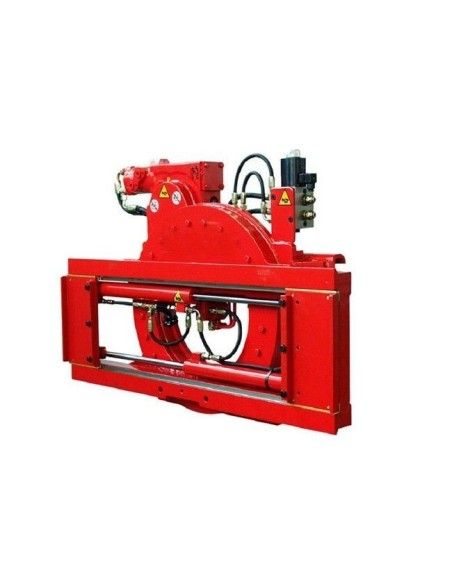

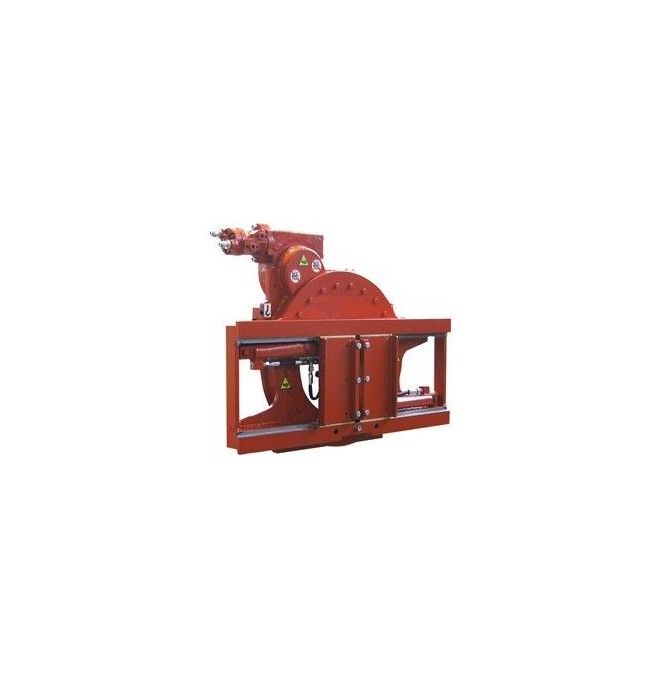

Rotator attachment with fork positioner forklift Trucks fEM2 and 360o turn.
It does not include lateral displacement. Links and hook system, standard.
Rotating board for all types of equipment forklift Trucks.

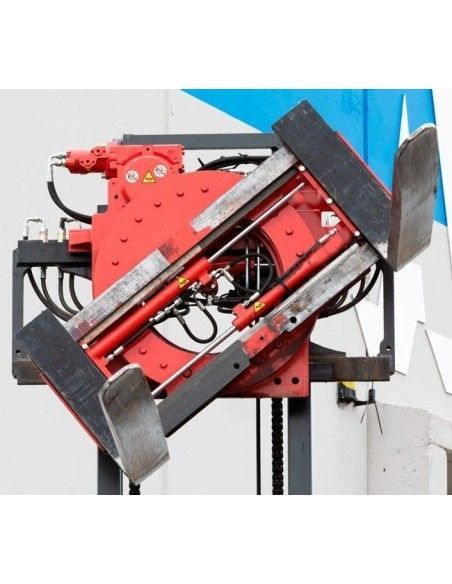

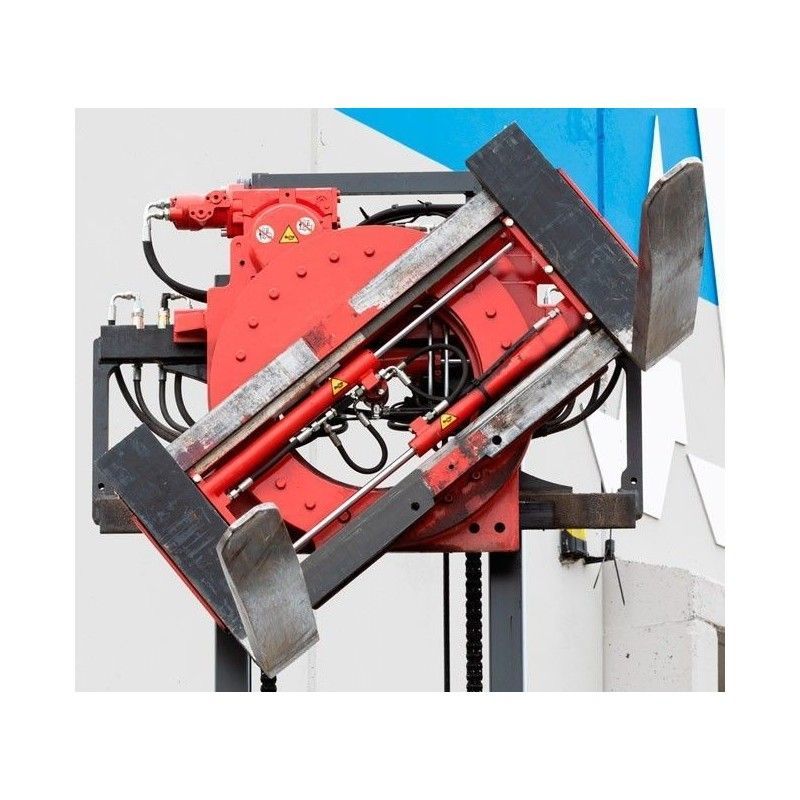

This 360o fork positioner is the ideal complement for turning and turning pallets. Manufactured with the best materials to offer optimal resistance and many hours of life. The rotator does not include lateral displacement.
CHARACTERISTICS

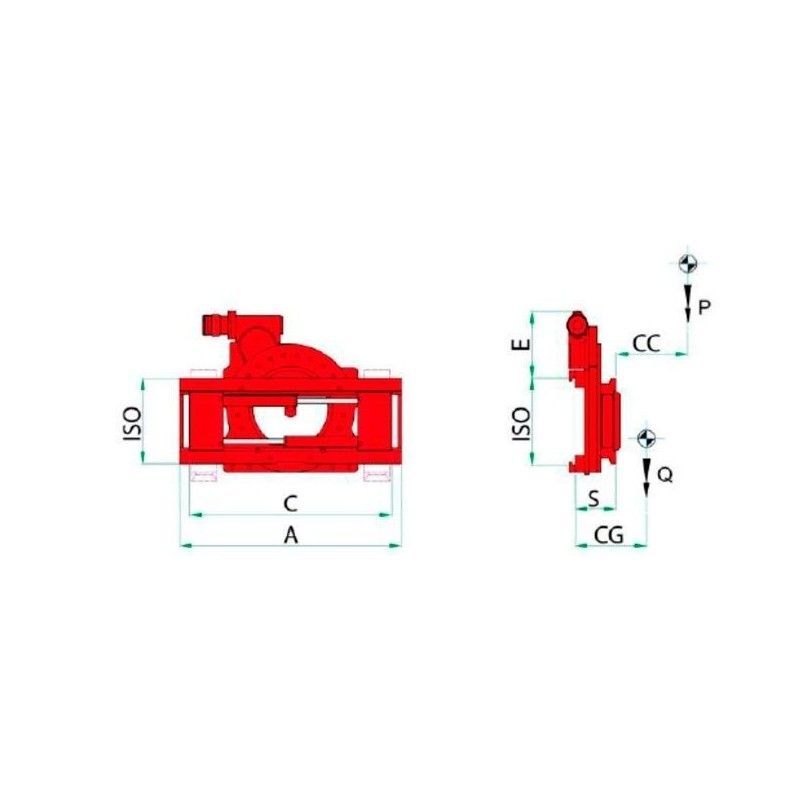

- Load capacity: 2200kg
- (CC) Opening (min-max): 320mm – 1100mm
- (A) Board width: 1100mm
- (E) Height: 329mm
- (S) Grosor: 187mm
- (CG) Gravity Centre: 128mm
- (Q) Weight: 263Kg
- Hydraulic function required: 2
- Max. working pressure: 175 bar
- Min/max oil capacity: 10/60 l./min
- Load capacity (kg)
- FEM2
- Weight (kg)
- 263
- Description
- Flyer
- Max. (mm)
- 329
- Giro (o)
- 360
- Maximum capacity (kg)
- 2200
- Presión máxima (bar)
- 175
- Regulations
- EC
