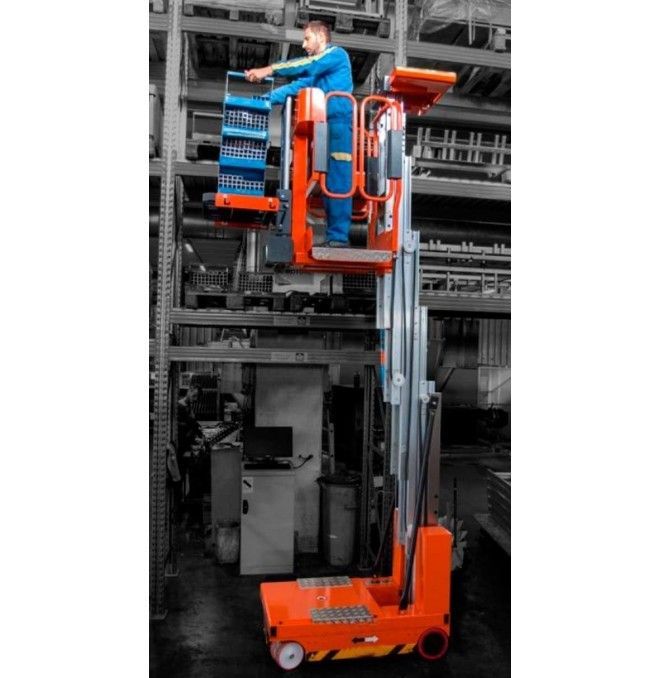

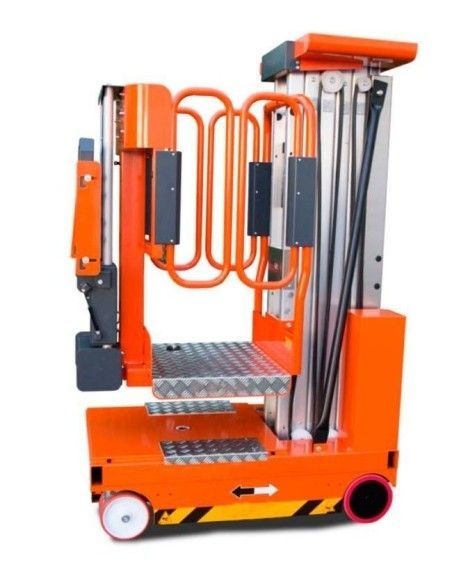

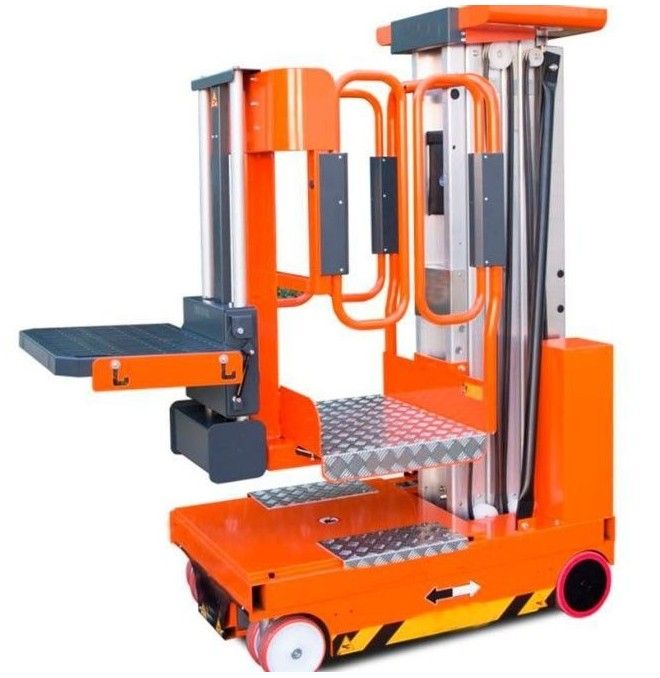

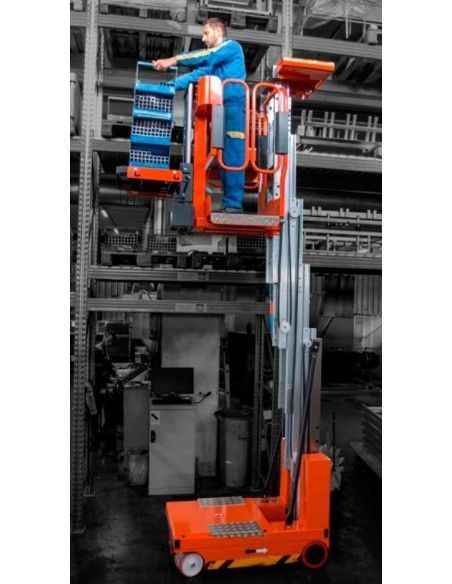

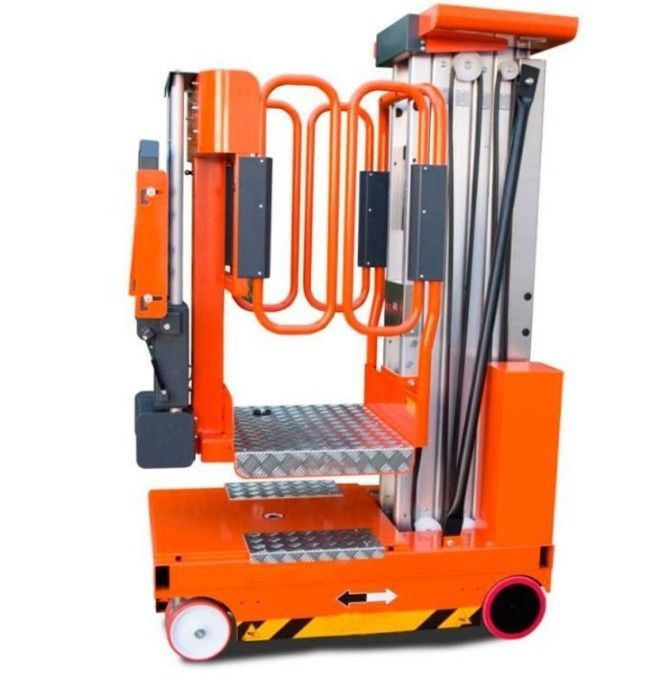

Lifting platform for Picking 200kg to 5.78m Elevation

Lifting platform to be able to perform picking in the warehouses, fully composed of aluminum, which combines a weight of 330 kg and a load of 200 kg, with a lifting height of 3.1 meters and a working height of 5.1 meters.

Agile and light, it is perfect to move in small spaces and store halls. Little space required and maximum productivity. Compact and light.

Moretiles and aluminum basket.

Thanks to the accessibility of the electric picking plane and its extremely ergonomic work station, the product loading activities are developed easily and comfortably.

It is advisable to have a temperature for the operation of –15o to 40o.

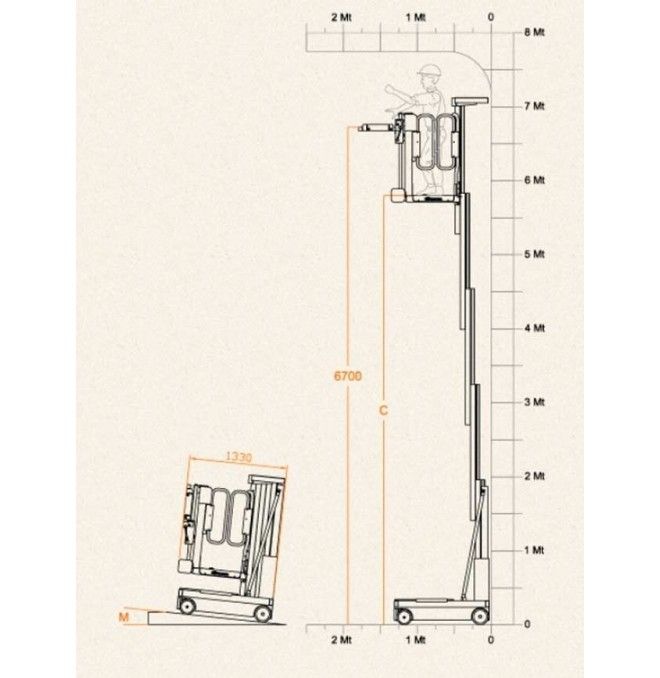

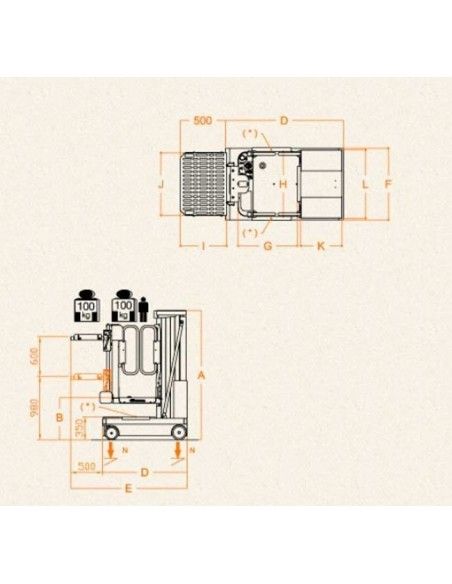

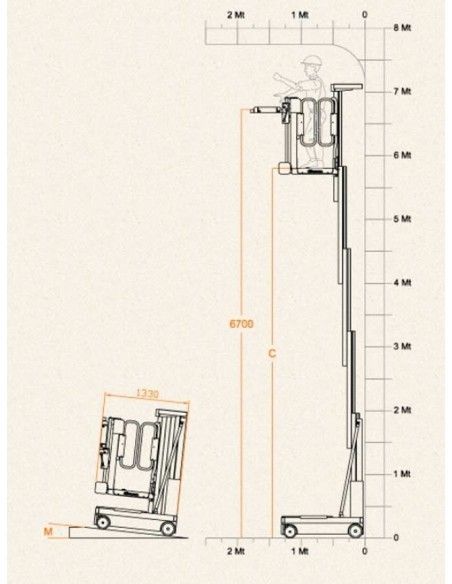

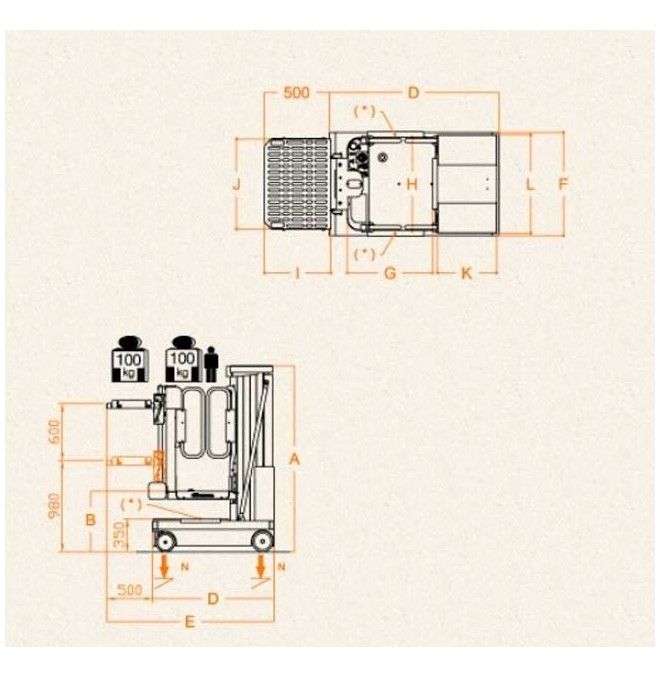

TECHNICAL CHARACTERISTICS

• Charging capacity: 200kg
• Maximum working height: 7,78m
• No. of persons: 1
• Use: interior/exterior
• Height with closed machine: 1980mm
• Height min surface basket: 650mm
• Max. surface height basket: 5780mm
• Total dimensions of the base: 1280x1720x780mm
• Dimensions of the basket: 640x710mm
• Machine weight: 860kg
• Dimensions of motor wheels: 220x65mm
• Dimensions of rotating wheels: 200x50mm

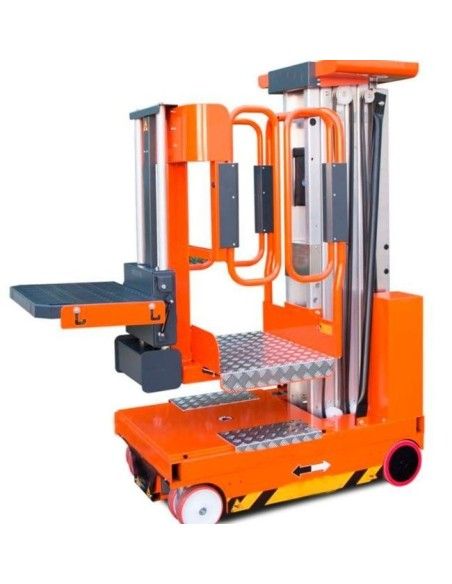

PICKING PLANE

• Regulation: electrical
• Race: 660mm
• Min height of soil: 1030mm
• Max. floor height: 6830mm
• Size: 500x680mm
• Capacity:  other

CHARACTERISTICS

• Power supply: electric
• Batteries: 2Pb acid 12V 50/60HZ
• Battery charger: 110V-230V 50/60HZ
• Inclination that can be overcome: 15%
• Inclination that can be exceeded in quote: 2.5%
• Internal road radio: 0
• External turning radius: 1095mm
• Max. (up-down): 0.15 m/s
• Max transfer speed (in terra – in quote): 1-0.22 m/s
• Max pressure. for wheel with full load: 3.7kN
• Working cycles (with battery charged) **: Ca. 130

**Possibility of offering the Renting option: approximate estimate of 369.83€ to 60 months.
