Lifting platform Manual 200kg to 4.08m Elevation

Lifting platform manual made of aluminum, with a capacity of 200kg and a height of elevation up to 4.08m.

Safe, fast and economic security scaffolding traditional. In addition, it is usable without stabilizers up to a working height of 3.9 m.

Easy handling, thanks to its small weight can move quickly (maximum thrust force: 5 kg).

Adaptable to all situations, the machine can be leveled manually with the use of stabilizers.

Temperature for the operation of – 15 to 40o

TECHNICAL CHARACTERISTICS

• Charging capacity: 200kg
• Maximum working height: 6,1m
• No. of persons: 1
• Use: interior
• Height with closed machine: 1700mm
• Min height surface basket: 400mm

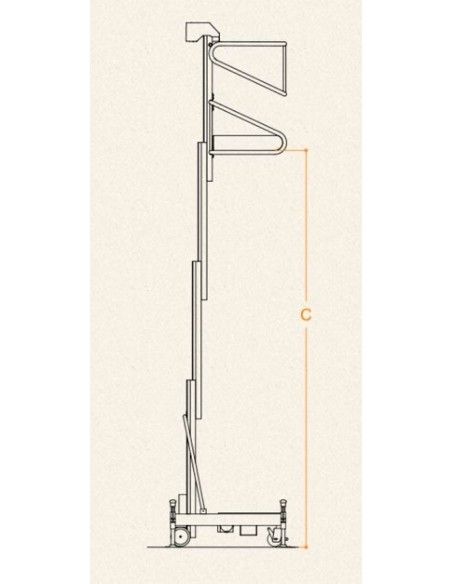

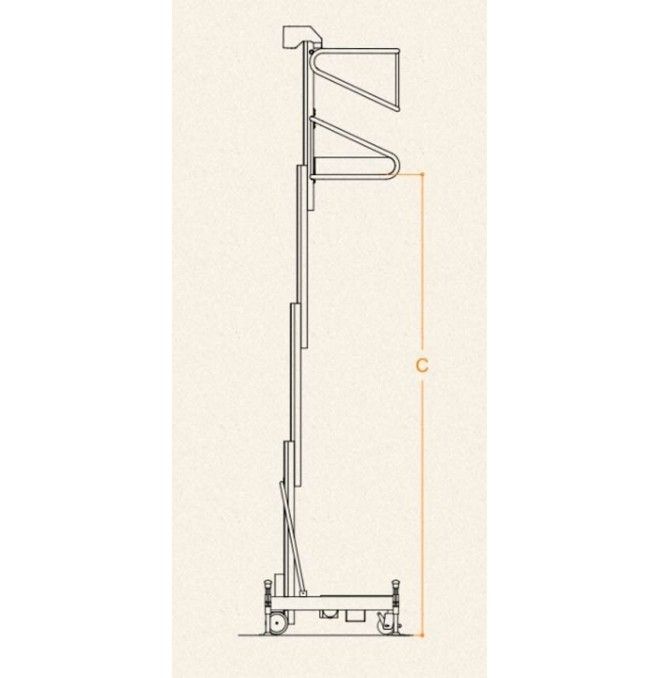

• Max height. surface basket: 4085mm

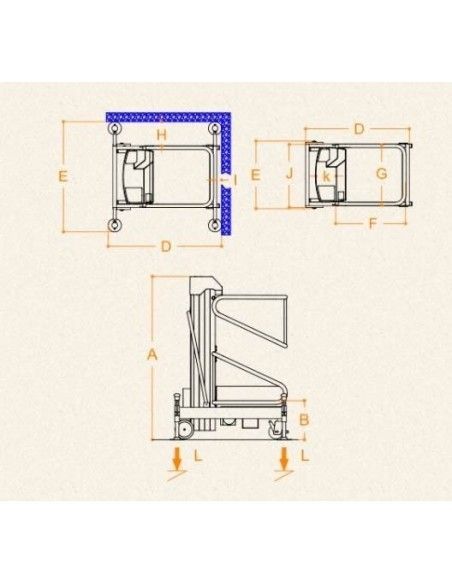

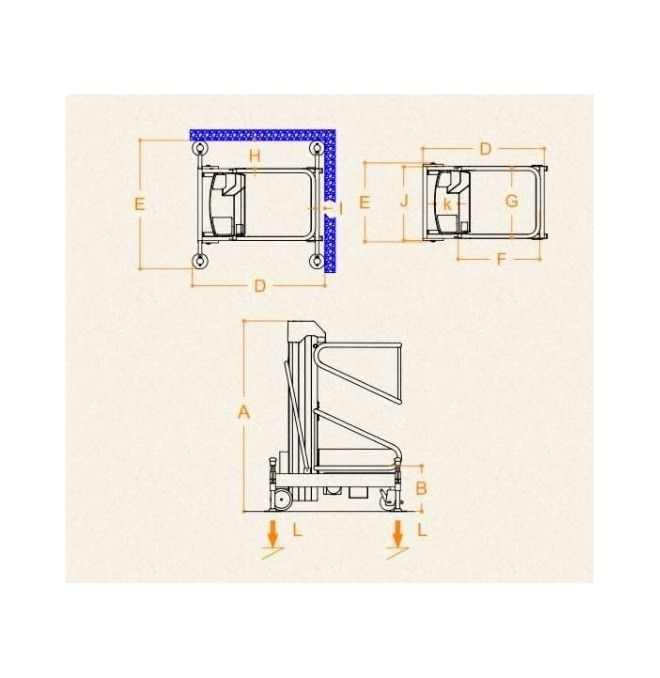

• Total dimensions of the base: 1297x1252mm
• Dimensions of the basket: 680x700mm
• Distance. of the basket: 275x30mm
• Fixed surface dimensions: 620x230mm
• Fixed surface capacity: 20kg
• Machine weight: 237kg
• Dimensions of fixed wheels: 200x50mm
• Dimensions of rotating wheels: 150x45
• Batteries: 2AGM-12V 45Ah
• Battery charger: 110V-230V 50/60HZ
• Maximum climbing speed: 0.16 m/s
• Max. low speed: 0.21 m/s
• Max pressure. for wheel with full load: 2.0Kn
• Output pressure to full load: 1,53Kn
• Cycles of work (loaded battery): Ca.200

**Possibility of offering the Renting option: approximate estimate of 169.16€ to 60 months.
