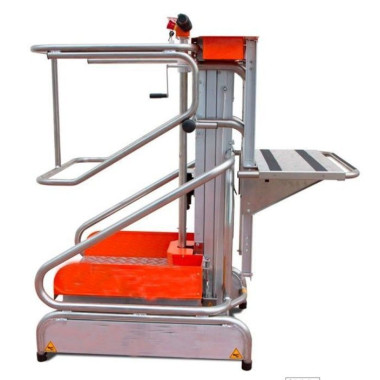

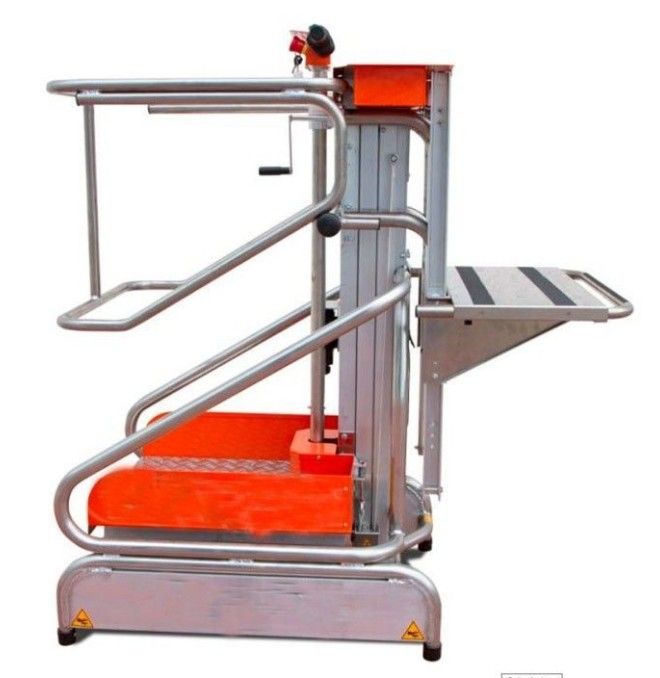

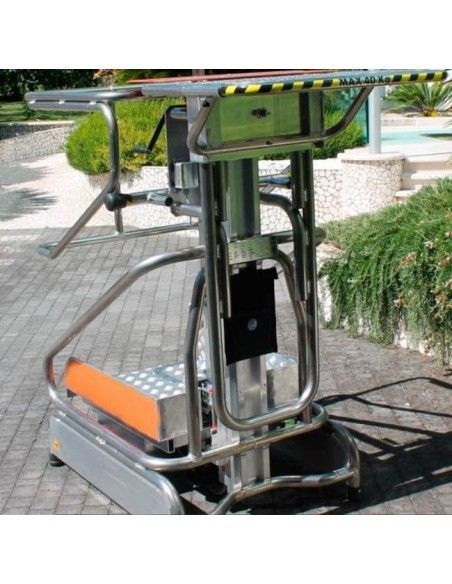

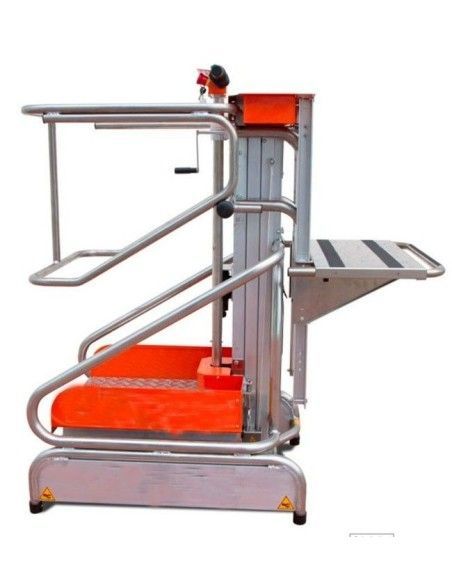

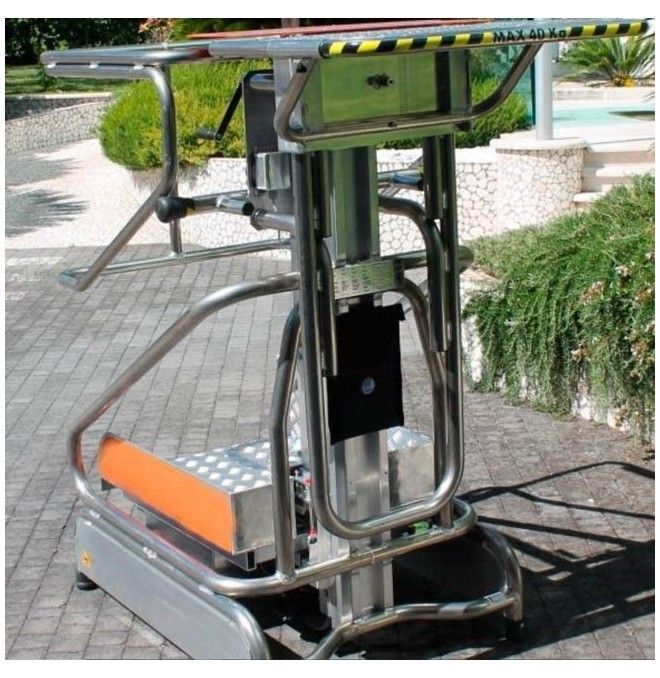

Lifting platform 150kg to 1.93m Elevation

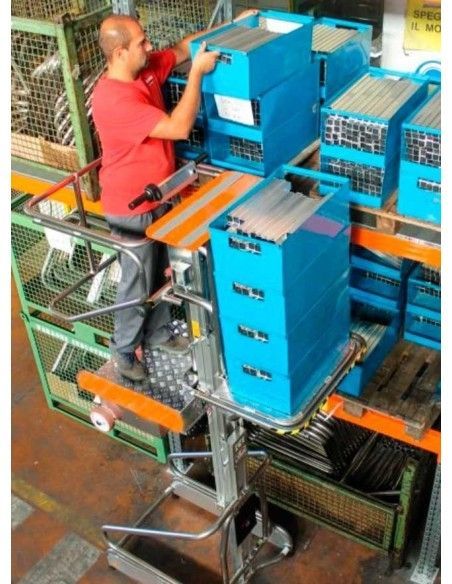

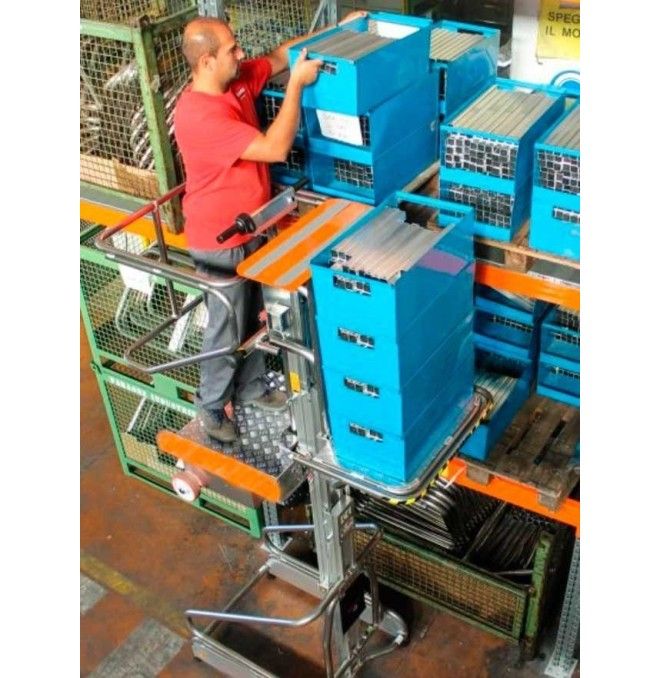

Platform/forklift semoviente air, to be able to perform picking in the warehouses, fully composed of aluminum, which combines a weight of 200kg and a charge of 150kg, with automatic elevation with 24V battery and a working height of 4 meters.

This new product, made of aluminum, is more spacious, manageable and ergonomic.

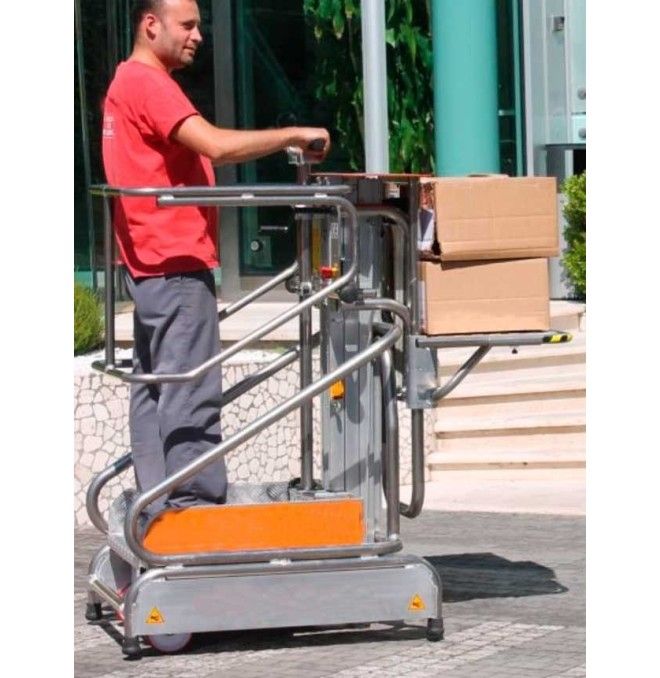

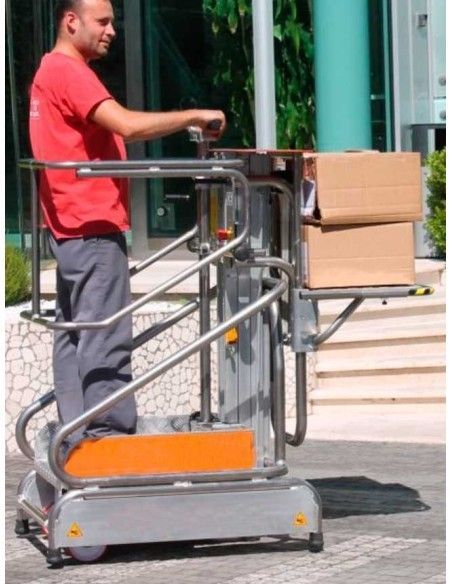

The lifting platform has a manual remote control that allows you to adjust the height of the lifting platform, and even load, from inside the basket. Thanks to its wide lifting platform extendable to 66x92cm.

Semoviente en tierra, con timón de control más Compact para facilitar las actividades de picking.

Temperature for the operation of –15 to 40o.

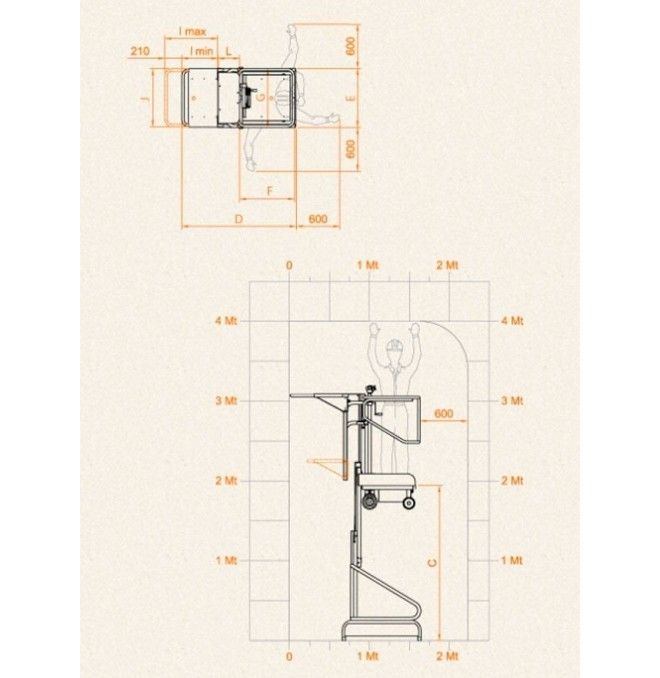

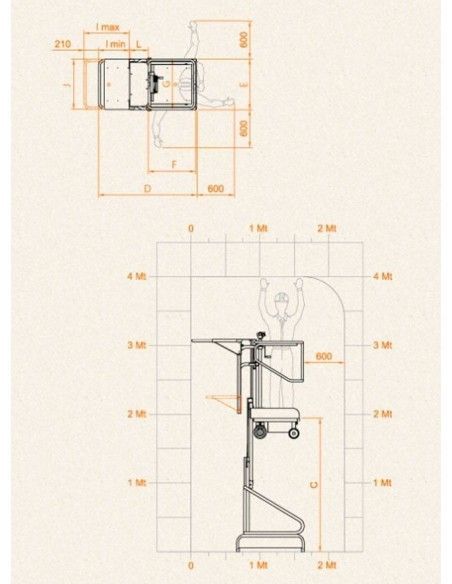

TECHNICAL CHARACTERISTICS

• Load capacity: 150kg
• Maximum working height: 4m
• No. of persons: 1
• Use: interior/exterior
• Height with closed machine: 1550mm
• Min height surface basket: 300mm
• Maximum height basket: 1930mm
• Total dimensions of the base: 740x1435mm
• Dimensions of the basket: 680x740mm
• Machine weight: 200kg
• Fixed surface dimensions: 280x740mm
• Dimensions of motor wheels: 300x76mm
• Dimensions of rotating wheels: 150x40mm

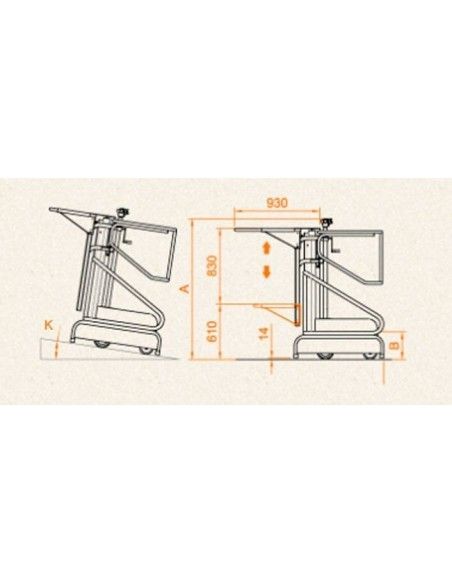

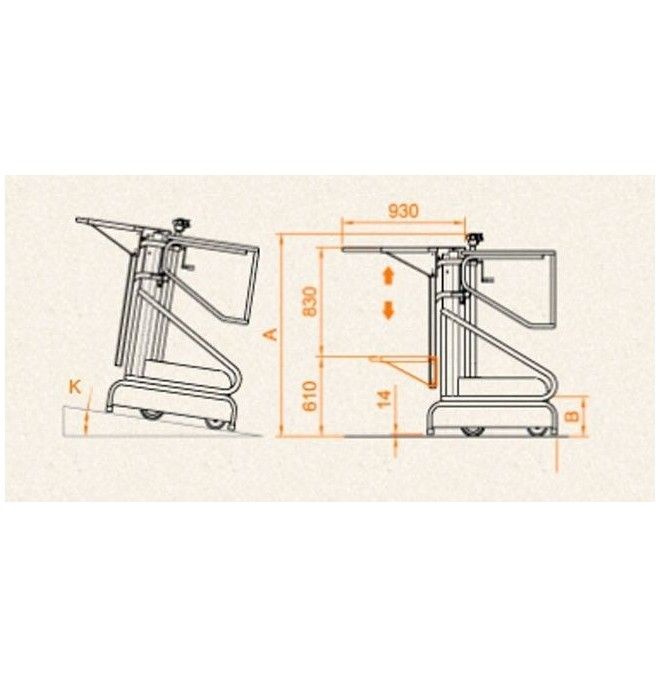

PICKING PLANE

• Regulation: manual
• Race: 830mm
• Min height of the floor: 610mm
• Max. floor height: 3100mm
• Dimensions: 450 (660) x725mm
• Capacity:  40kg

CHARACTERISTICS

• Power supply: electric
• Batteries: 2AGM/12V/45Ah
• Battery charger: 110V-230V 50/60HZ
• Inclination that can be exceeded in quote: 15%
• Internal road radio: 0
• External turning radius: 1400mm
• Max. (up-down): 0.08-0.10 m/s
• Max transfer speed: 1.3m/s
• Working cycles (with battery charged) **: Ca. 100

**Possibility of offering the Renting option: approximate estimate of 139.09€ to 60 months.
