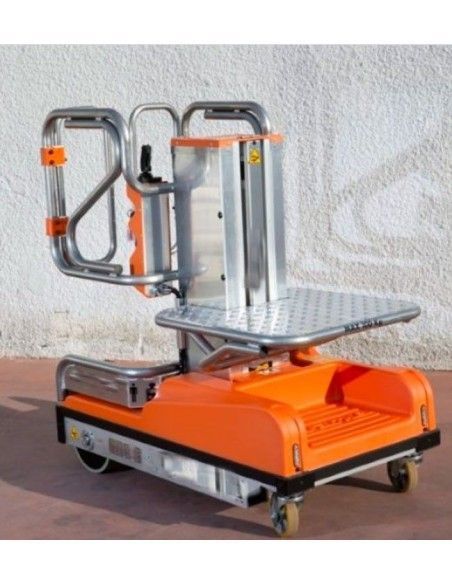

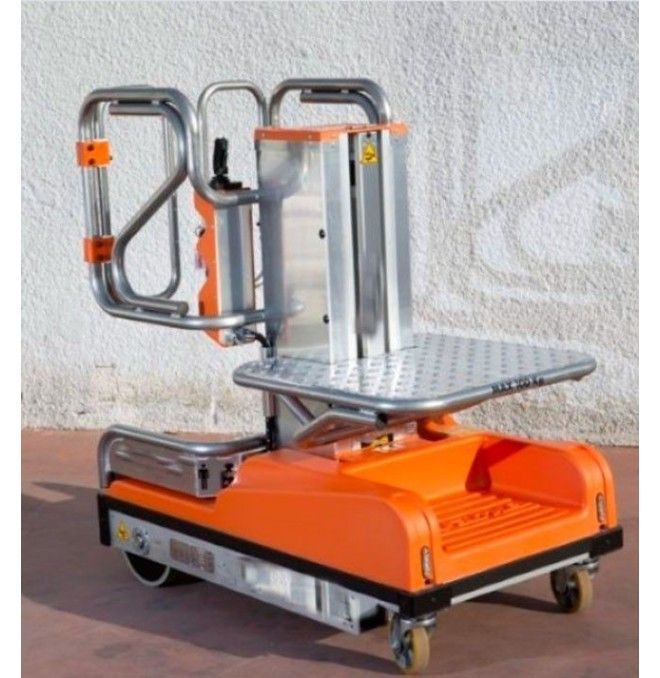

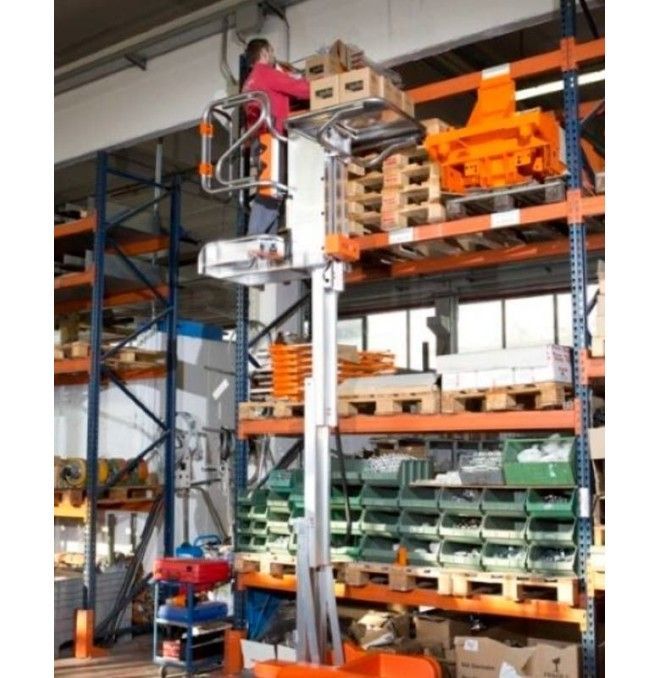

Lifting platform for Picking 200kg to 3m

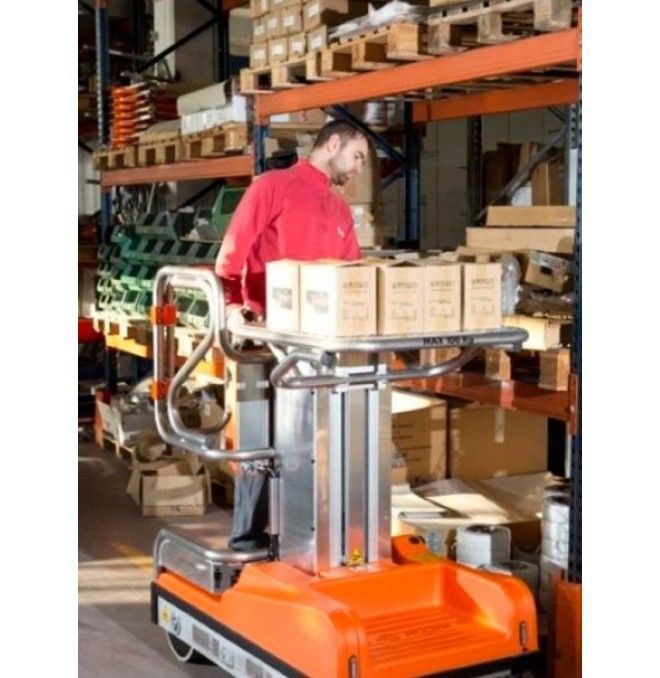

Lifting platform to be able to perform picking (recover orders) in the warehouses, fully composed of aluminum, which combines a weight of 330 kg and a load of 200 kg, with a lifting height of 3 meters and a working height of 5.1 meters.

Thanks to its compact size (77x143 cm) and a large and robust electric picking plane (640 mm) will increase the productivity of your company.

Agile and light, it is perfect to move in small spaces and store halls.

Little required space and maximum productivity.

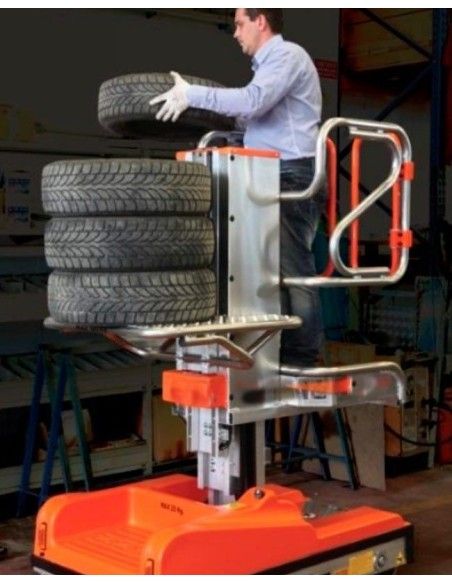

Composed of a monohand that lets the operator work with a free hand so that he can easily perform other tasks in height.

It is very easy to handle, fast moving level: 5 km/h maximum speed. Zero-turn radio.

It is advisable to have a temperature for the operation of –15o to 40o.

TECHNICAL CHARACTERISTICS

• Charging capacity: 200kg
• Maximum working height: 5,10m
• No. of persons: 1
• Use: interior/exterior

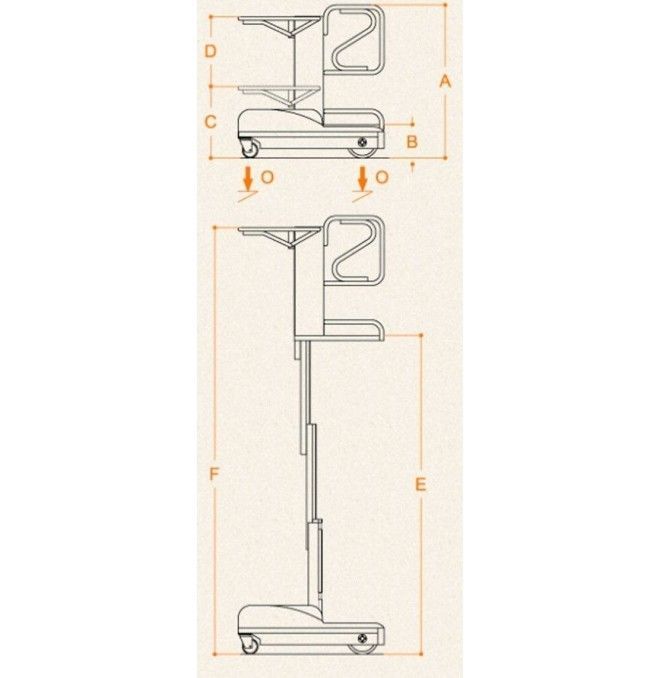

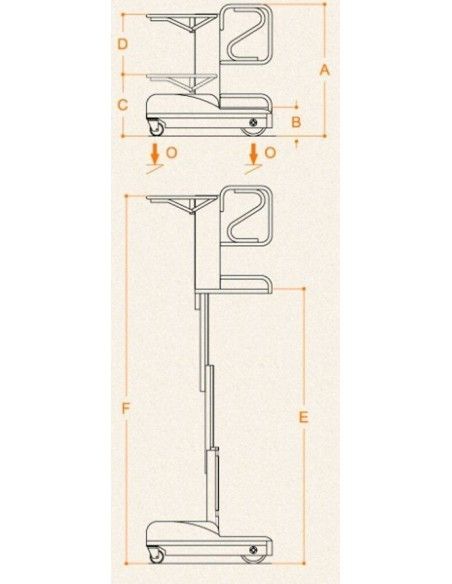

• Height with closed machine: 1430mm
• Height min surface basket: 325mm
• Max height. surface basket: 3000mm
• Total dimensions of the base: 780x1420mm
• Dimensions of the basket: 570x690mm
• Machine weight: 330kg
• Dimensions of motor wheels: 300x76mm
• Dimensions of rotating wheels: 150x40mm

PICKING PLANE

• Regulation: electrical
• Race: 640mm
• Min height of floor: 690mm
• Max. floor height: 4010mm
• Size: 780x760mm
• Capacity: other

CHARACTERISTICS

• Power supply: electric
• Batteries: 2AGM/12V/85Ah
• Battery charger: 110V-230V 50/60HZ
• Inclination that can be exceeded in quote: 5%
• Internal road radio: 0
• External turning radius: 1380mm
• Max. (up-down): 0.15 m/s
• Max transfer speed (in terra – in quote): 1.25-0.42 m/s
• Max pressure. for wheel with full load: 1.90kN
• Working cycles (with battery charged) **: Ca. 100

**Possibility of offering the Renting option: approximate estimate of €259,69 to 60 months.
