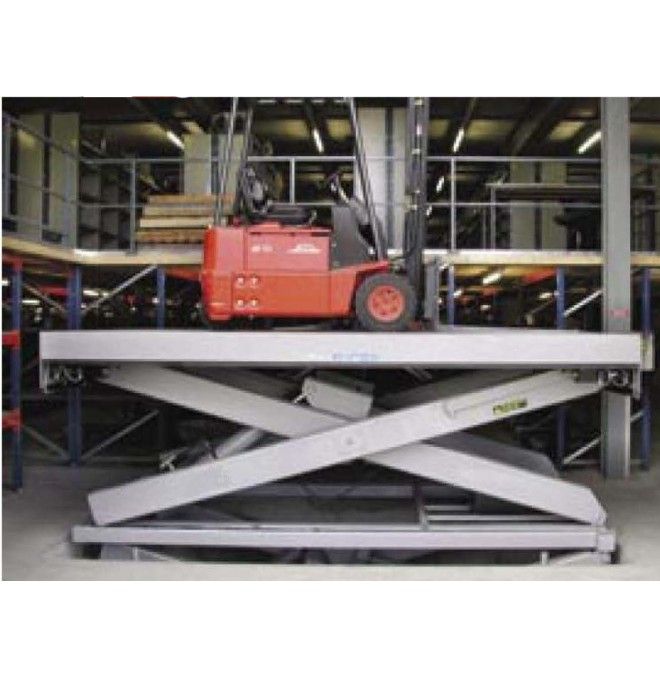

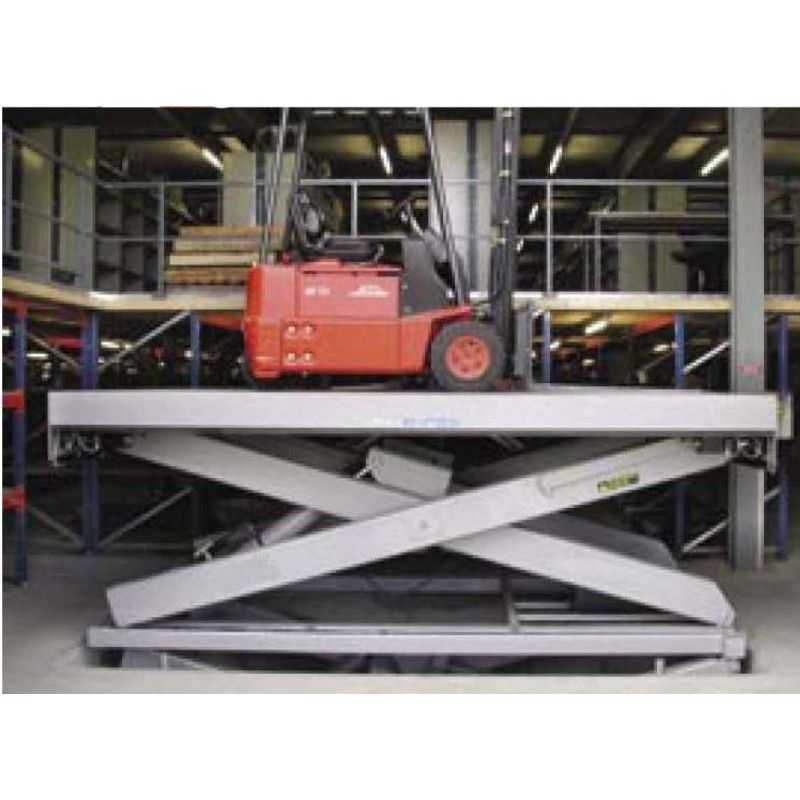

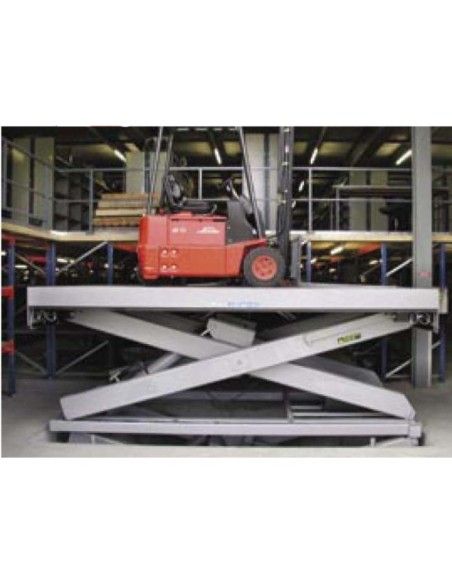

Electric lifting table 4000kg (2500x2000mm) + 400mm. Solapa (for loading spring)
M103090090
€7,490.00
7.490,00 € (tax incl.)
Electric lifting table with a load capacity up to 4000kg, for loading dock ( 400mm scales). Con adjustable height, in order to achieve a comfortable and stable position of work in all situations both in mounting positions, in checkpoints and in palletization or output of machines.
CE marking.

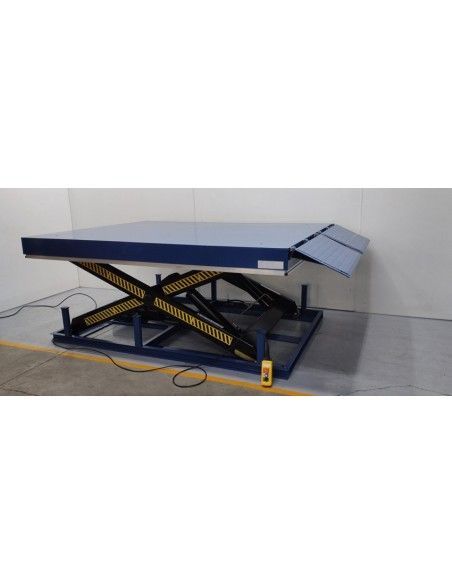

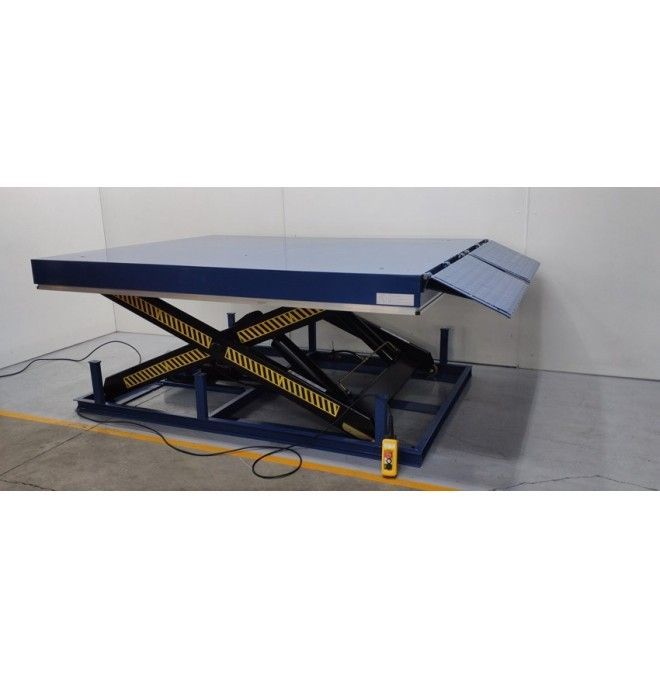

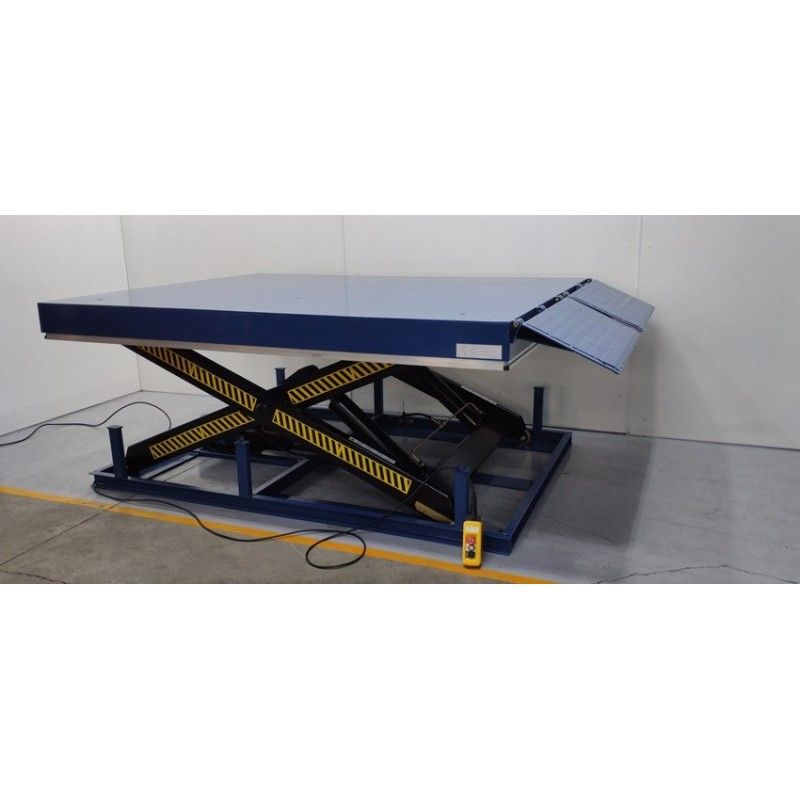

Electric lifting table of scissors, with load capacity up to 4,000kg being its dimensions 2500 x 2000 mm + 400mm flap. Ideal for loading springs, mounting positions, in checkpoints, palletization post, machine output, etc.

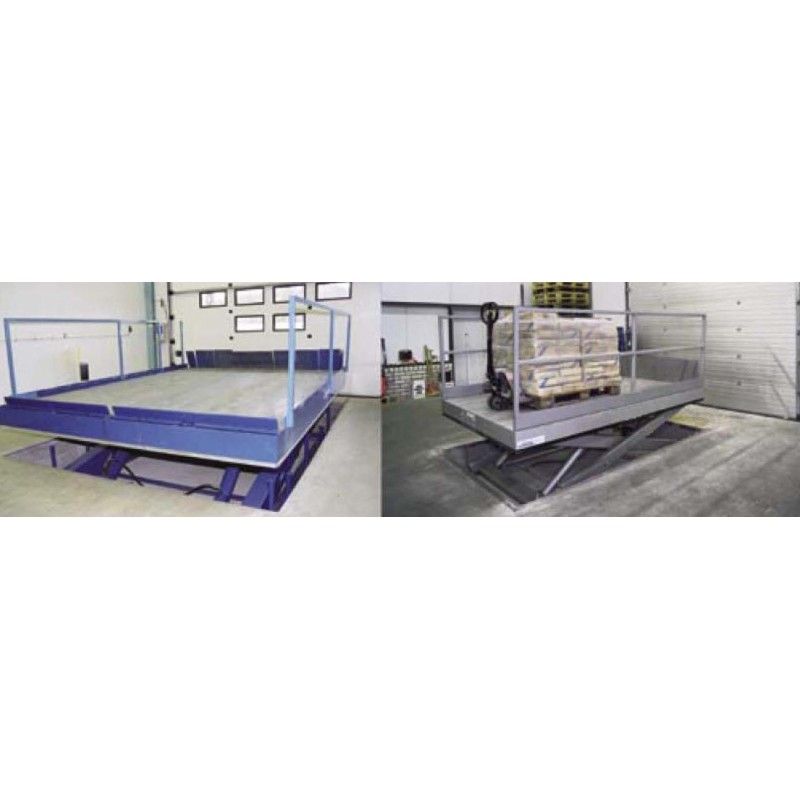

The entire width of the base facilitates the transfer of the loading dock to the table. It is controlled by an emergency booth and a safety rack to stop the descent in case of an obstacle. Soft movements.
Thanks to its rectangular steel structure ensures the stability and resistance of the table. Incorporate a safety bar. Engine with IP54 protection. Adjustable valve. Dismountable. Stabilizing rollers. 380V feeding voltage.
TECHNICAL CHARACTERISTICS

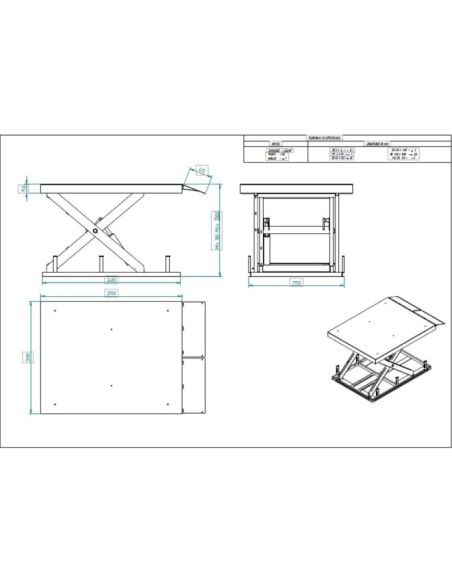

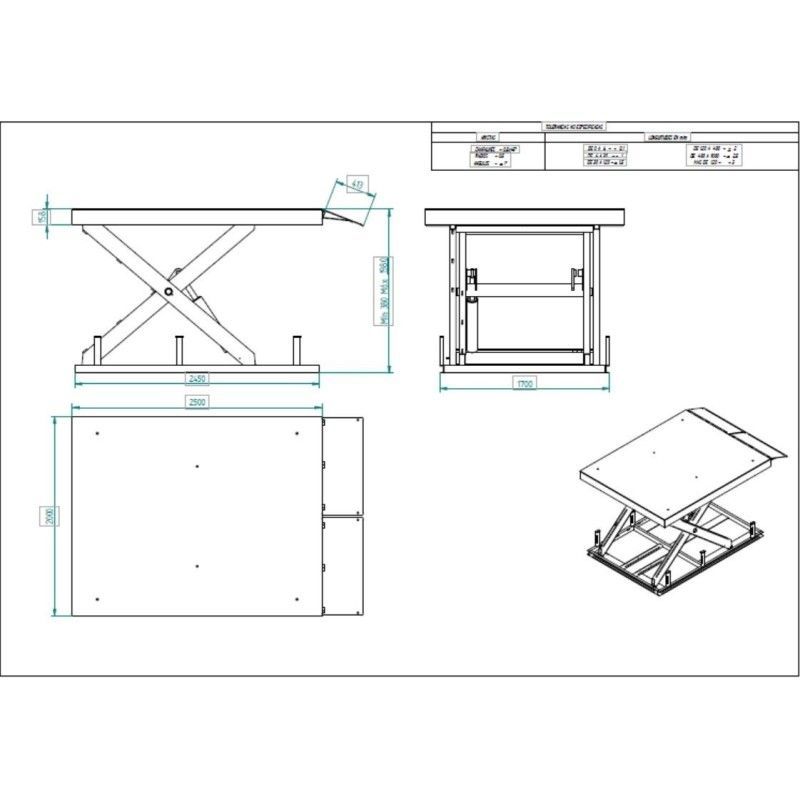

| Dimensions mm base (largo x width) | 2500 x 2000 mm. + 400mm. |
| Maximum height | 1980 mm. |
| Folded height | 380 mm. |
| Lifting time | 35 sec. |
| Motor KW | 2,2 |
| Capacity | 4,000 kg. |
| Kg weight | 860 |
CE marking.
Custom manufacturing, consult us.
- Load capacity (kg)
- 4000
- Lifting height (mm)
- 1980
- Dimensions of the long X width platform (mm)
- 2500x2000
- Weight (kg)
- 860
- Folded height (mm)
- 380
- Lifting time (sec)
- 35
- Motor (KW)
- 2,2
