Camera for Light Bulk
M103080007
€1,289.00
1.289,00 € (tax incl.)
Wireless camera to increase security by working with forklift Trucks.

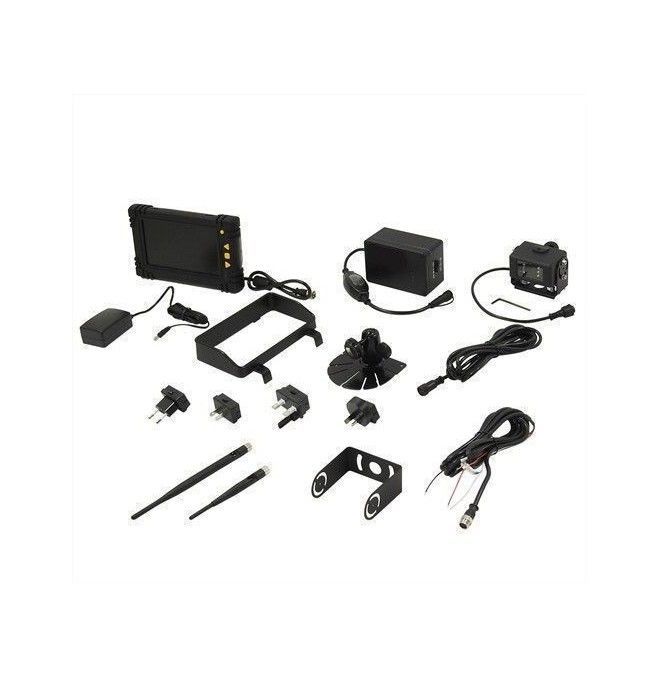

Viewer with possibility to visualize up to 4 cameras simultaneously and is connected to the power of the wheelbarrow. The camera comes with battery and charger.

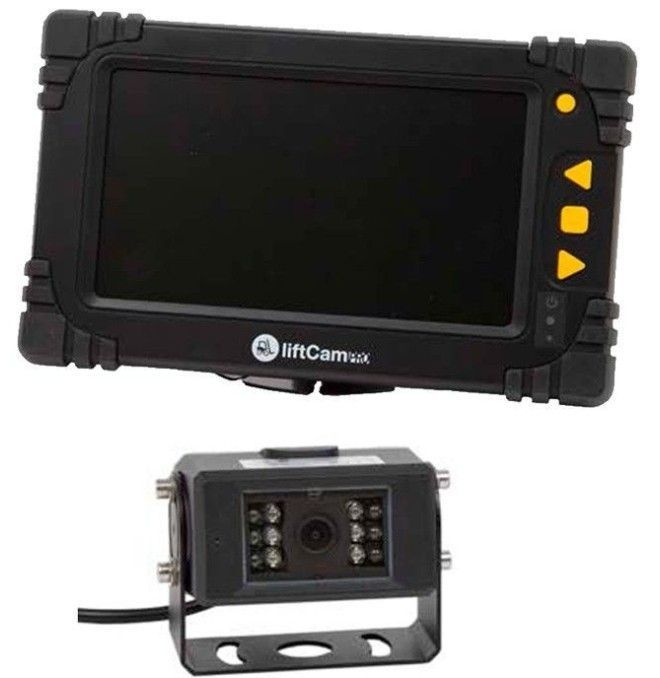

Wireless Camera for forklift

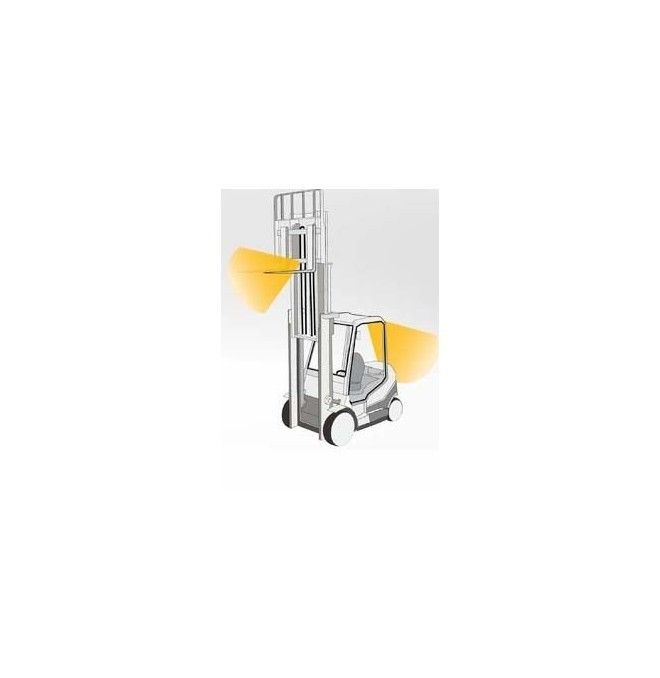

The security camera Tymbia facilitates the handling of the goods in height, decreasing the damage both in the goods itself and in the racking and Shelving. Greater control in backward movements with its wheelbarrow thanks to the camera and its reversible function avoiding collisions and considerably increasing security.
With this camera you will have a wireless surveillance system specifically designed for forklift Trucks.The camera transmits the image to the monitor using the antenna, can receive the power from the 12 V battery or from the 12-24 V CC electric system.
As for the monitor, it receives the power directly from the electric system of the vehicle or through the power output/toma for 12 V cigarettes.

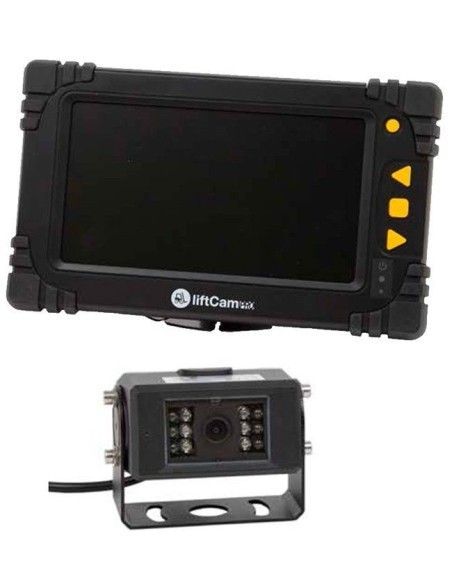

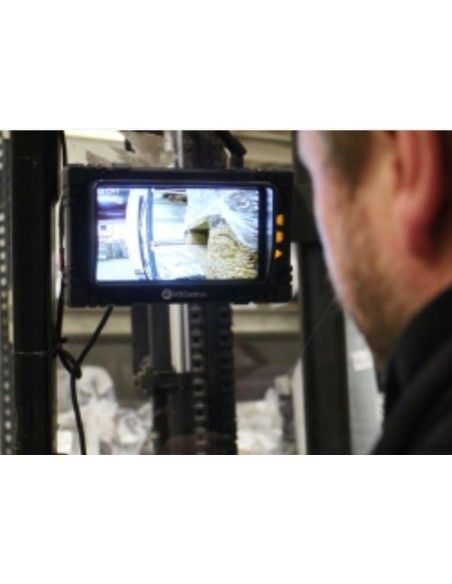

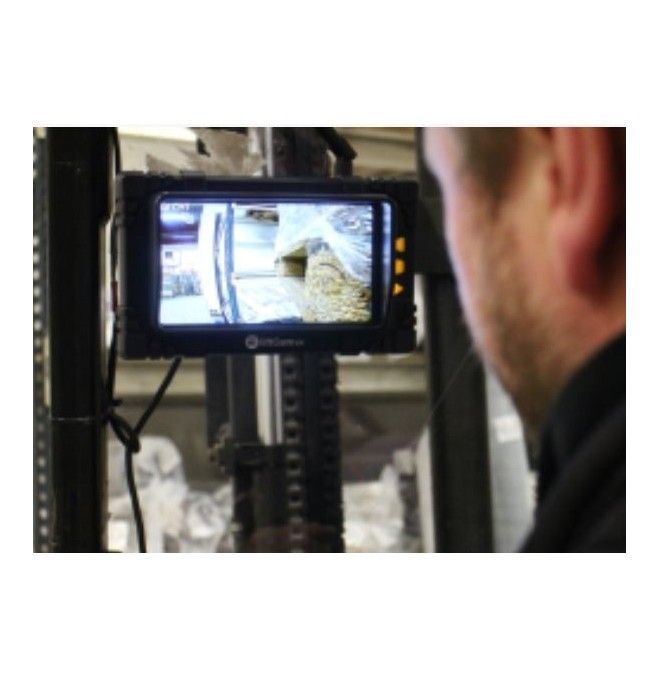

The viewer has the possibility to visualize up to 4 cameras simultaneously
You can also upload videos if you enter a micro SD card on the monitor. Possibility connect up to 4 cameras to the monitor.
In addition, the camera is waterproof, it is class IP69K, can be placed outdoors exposed to the weather and even cleaned with pressure water.

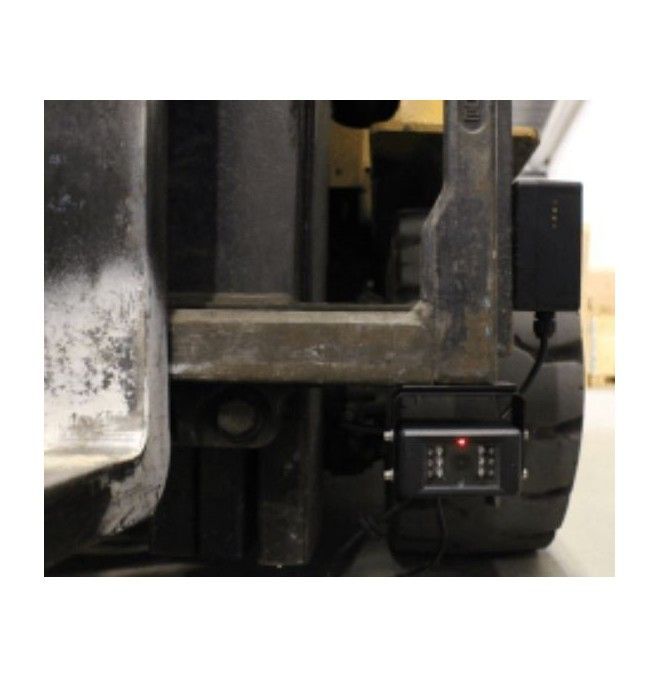

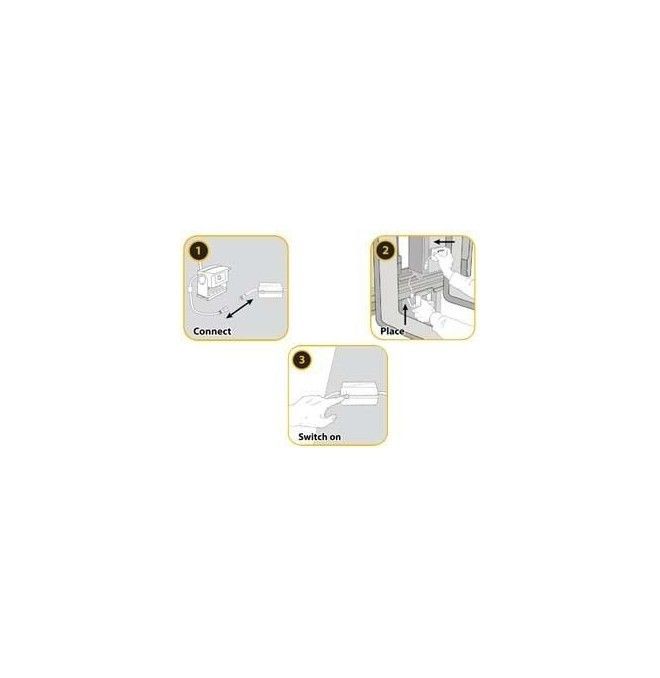

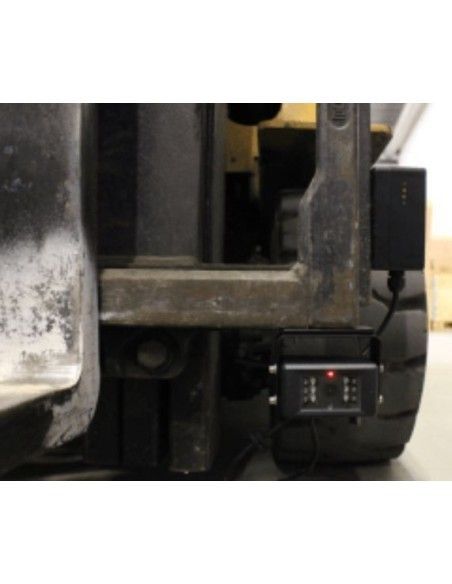

Very easy to install, thanks to its powerful magnets. Increase safety in your workplace significantly.

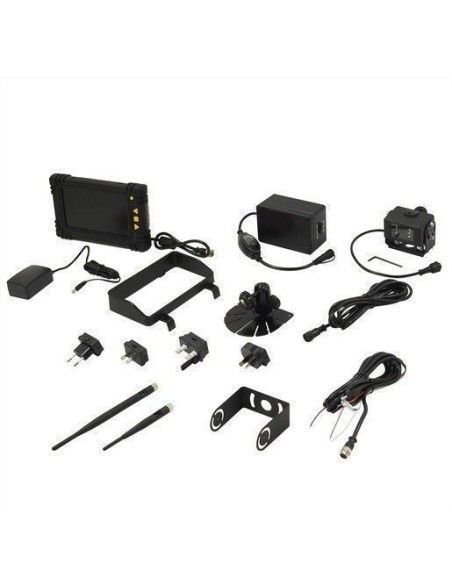

OPERATIVE ACCESSORIES
Additional camera (See file right here)
Additional battery 30-35 hours (See file right here)
CHARACTERISTICS
Monitoring
| LCD size | 7′′ |
| Resolution | 800 x 3 (RGB) x 480 |
| Contrast | 500:1 |
| Shine | 400 cd/m2 |
| Angle of vision | U: 50 / D: 70, R/L: 70 |
| Point size | 0.0642(W) x 0.1790(H) |
| Aspect ratio | 16:9 |
| Canal | 4 channels |
| Operating frequency | 2400 - 2483.5 MHz |
| Sensibility of reception | -89 dBm |
| Decompression form | MPEG4 |
| Modulation | 2.4G FSK/GFSK |
| Time of delay | 120ms |
| Antenna | 5 dBi |
| SD card | Max 128 GB micro SD |
| System format | PAL / NTSC |
| Food supply | DC 10-32V |
| Feed consumption | Max. 6W |
| Speaker | 1.5W/8Ω |
| Operating temperature | -20~+70oC,RH90% |
| Storage temperature | -30~+80oC,RH90% |
| IP rating | IP30 |
Camera
| Camera angle | 120° |
| Cable length | 3 meters |
| Functionality of IR | I did |
| Food supply | DC 8-32V |
| Feed consumption | Max 250 mA @ 12V / Max 140 mA @ 24V |
| Operating frequency | 2400 - 2483.5 MHz |
| Antenna | 3 dBi |
| Transmission distance | 120 meters |
| Energy emission | 17 dBm |
| Operating temperature | -20~+70oC,RH90% |
| Storage temperature | -30~+80oC,RH90% |
| IP Classification | IP69K |
