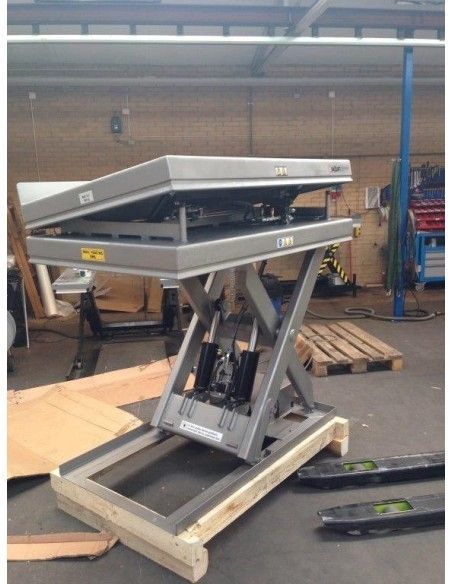

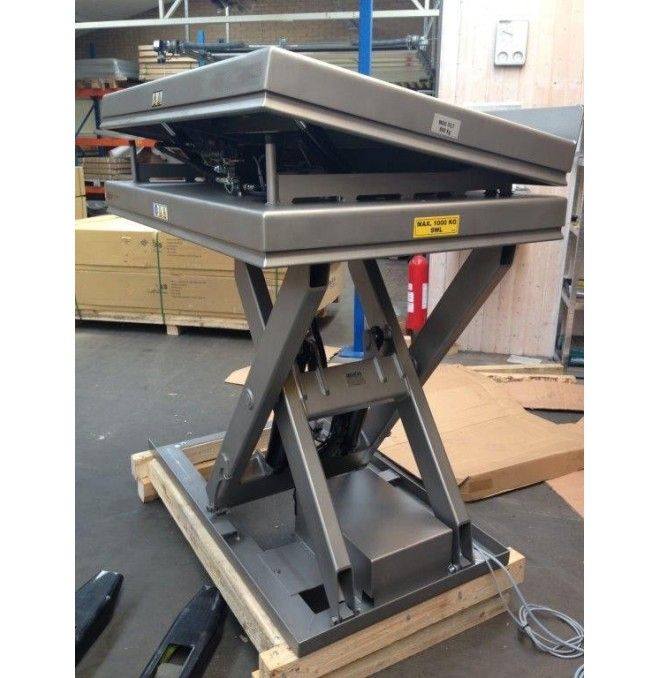

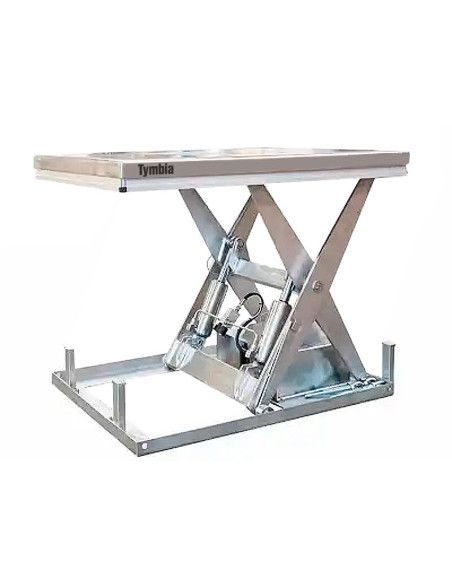

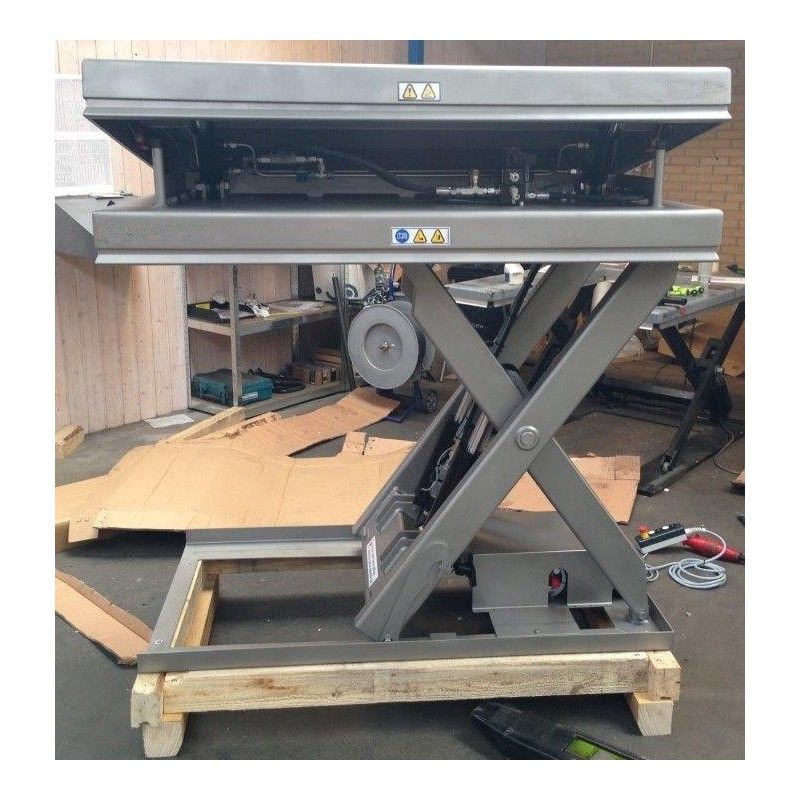

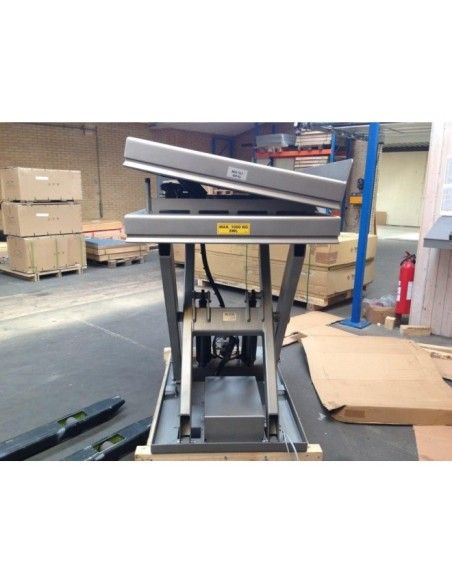

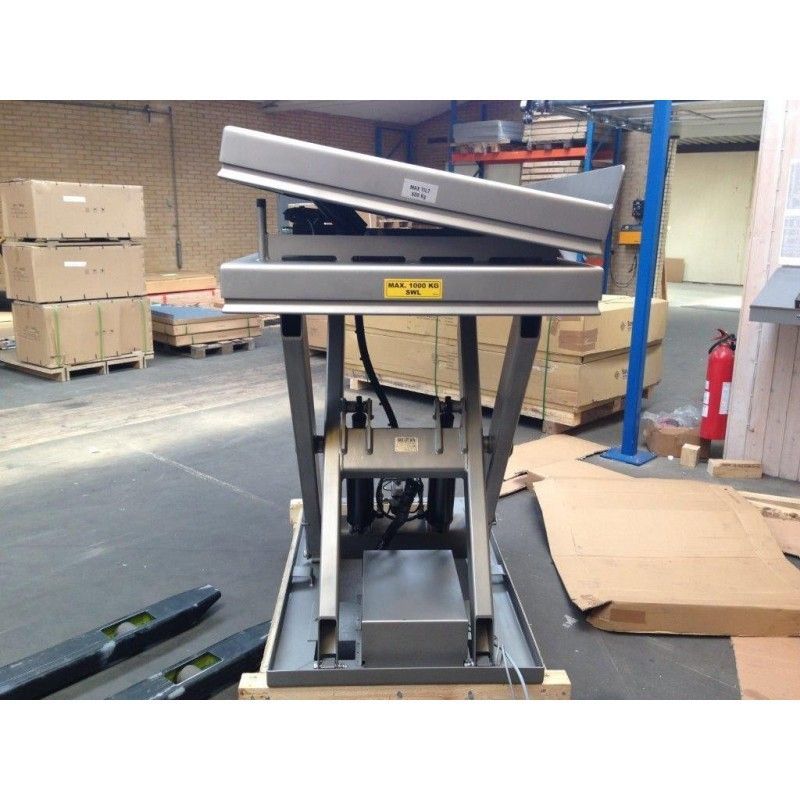

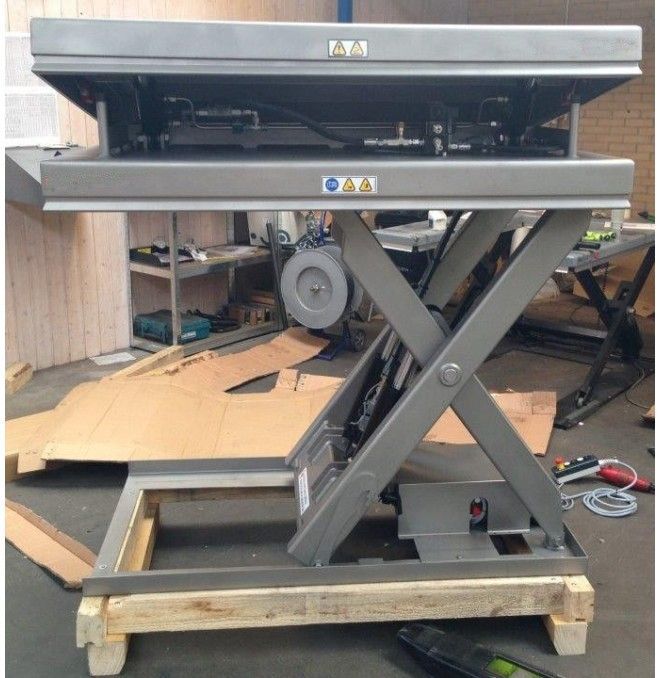

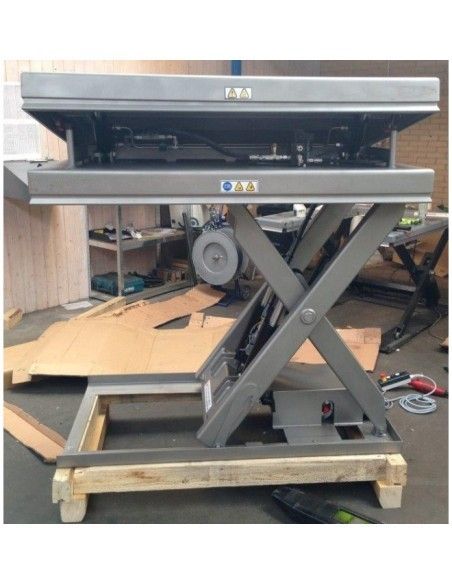

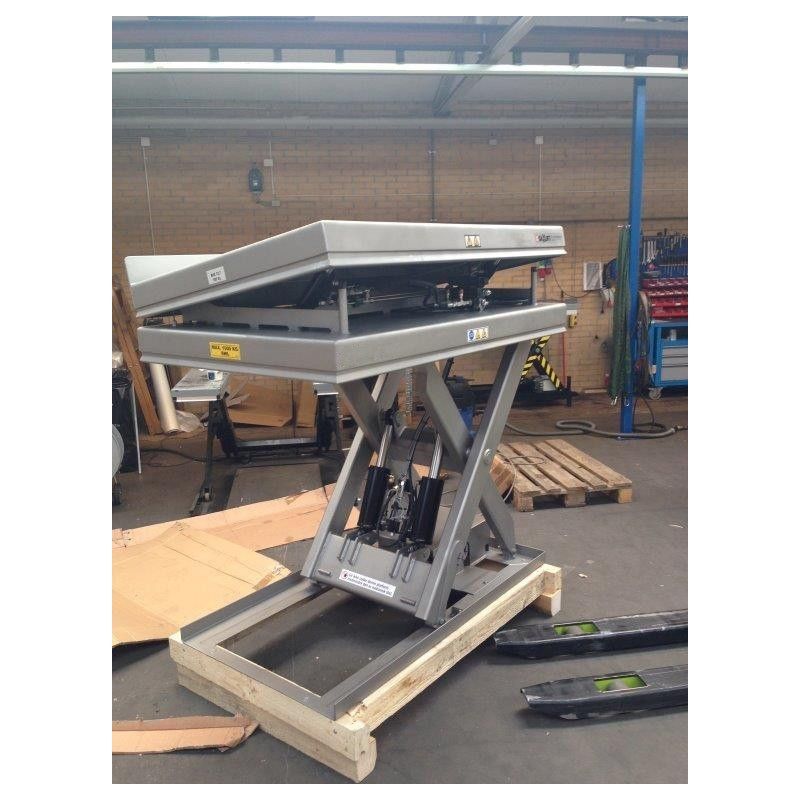

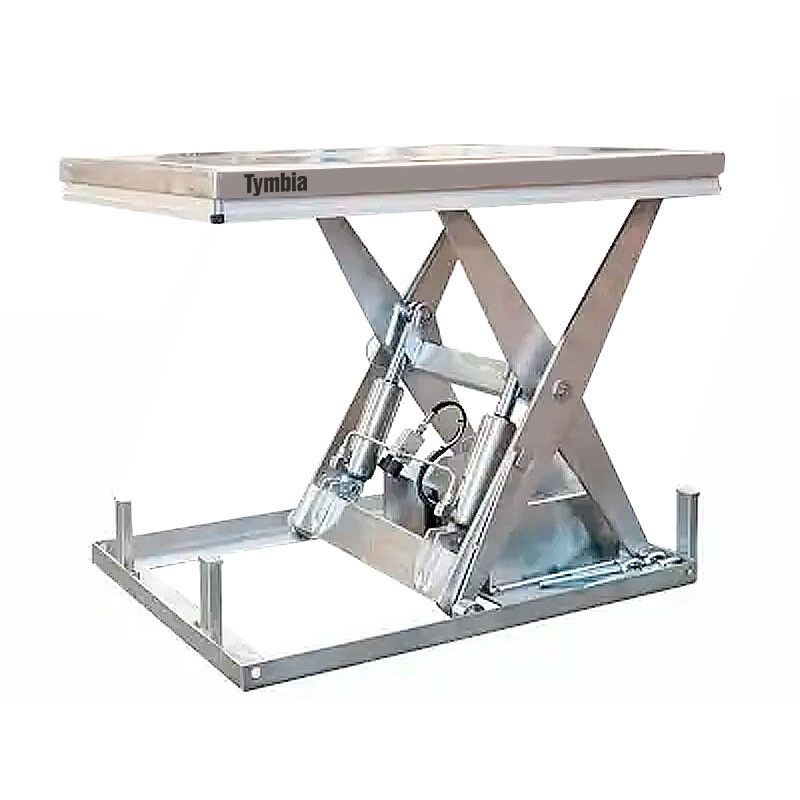

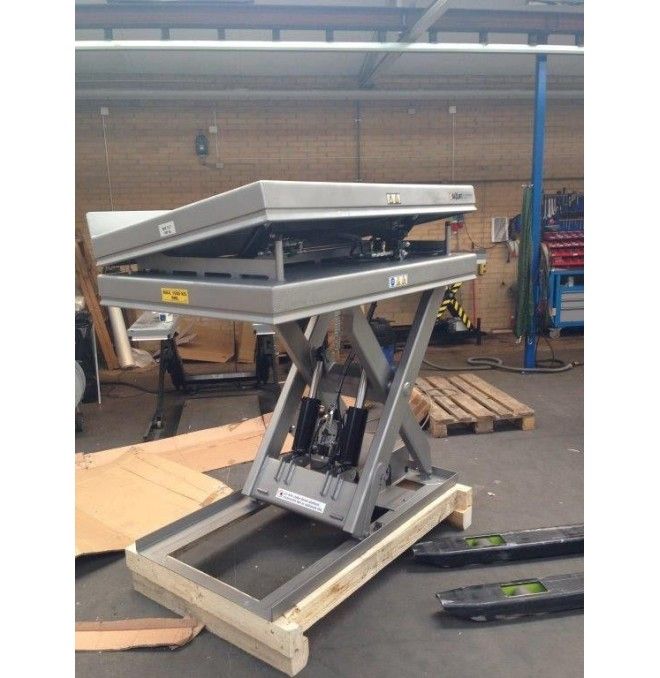

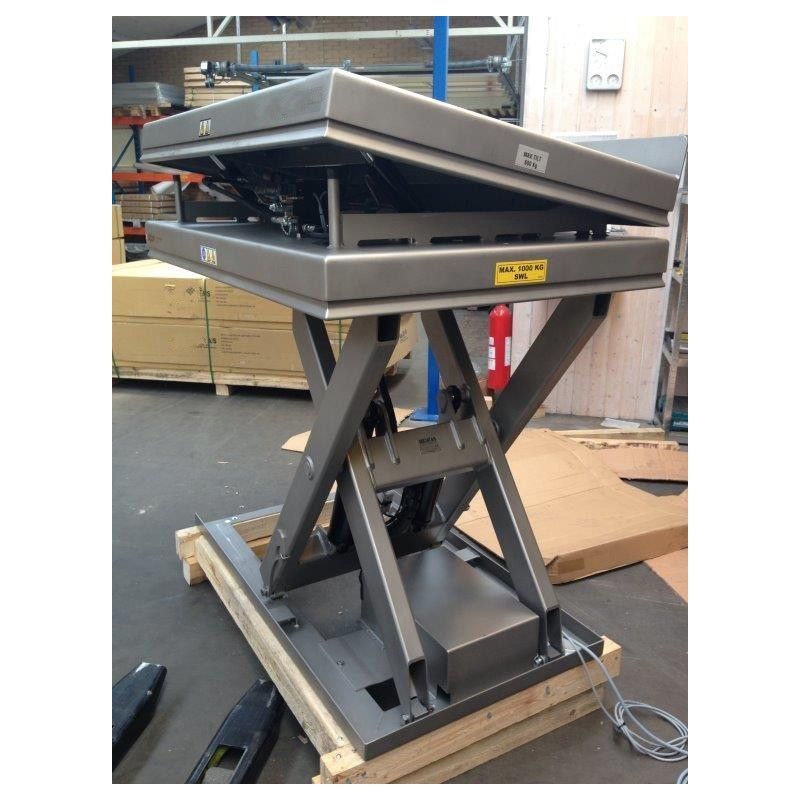

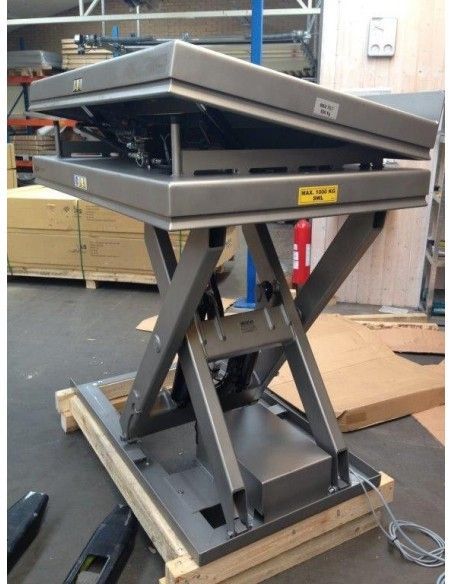

Electric lifting table INOX 1000kg to 1040mm from 1300x1000mm
A301030024
Electric lifting table INOX fully, with a load capacity of up to 1000kg and a lifting height up to 1050mm. The dimensions of the platform are 1300x1000mm.
The platform, the scissors mechanism and the cylinders are made of stainless steel AISI 304 of great resistance.
The height is regulated by control control, ensuring greater comfort and safety.
It is ideal for a wide variety of purposes, such as labor banks or freight transport.
CE marking
Lifting platform stainless steel electric fully, with a maximum load of 1000kg and elevation up to 1050mm
The height is regulated by control control, ensuring greater comfort and safety. Soft elevation and descent. Very resistant, easy to handle and use.
CHARACTERISTICS
- Charge distrib. unif: 1000kg
- Tour: 820mm
- Height min: 230mm
- Max height: 1050mm
- Length: 1300mm
- Width: 1000mm
- Tension: 3x400-50Hz-16A
- External motor: (no stainless steel 304)
- Made of stainless steel AISI 304, except cylinders and engine, which is external.
TECHNICAL DETAILS
- The table has CE male plug.
- Three-phase electric voltage, 400V, 50 Hz, 13A.
- IP54 classification.
- Lock valve in case of hose breakage: Ensures that the table drops in a controlled manner if a leak or breakage occurs in the hydraulic system.
- Control unit and electrical components: They are designed thinking about the safety of the user and a long service life of the equipment.
- Safety bar under the platform: It disrupts the descent if it detects any obstacles below.
- Pressure relief valve: Protects both the hydraulic system and the engine against potential overloads.
- Safe maintenance functions: They facilitate interventions without putting technical staff at risk.
- Manual Remote Control: Allows to control the up, down and stop the system in case of emergency.
- It is supplied with Declaration of EC conformity.
- Load capacity (kg)
- 1000
- Lifting height (mm)
- 1050
- Height Min. (mm)
- 180
- Regulations
- EC
