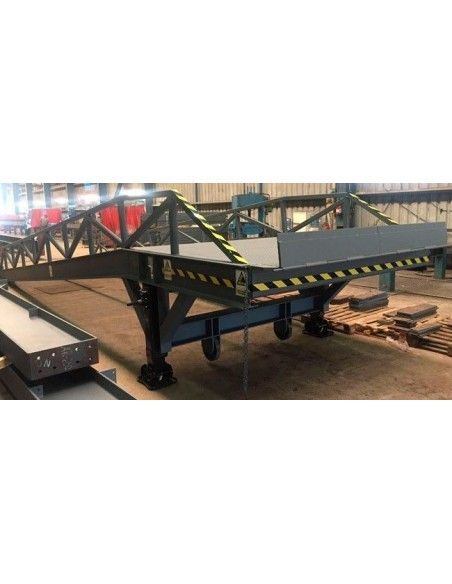

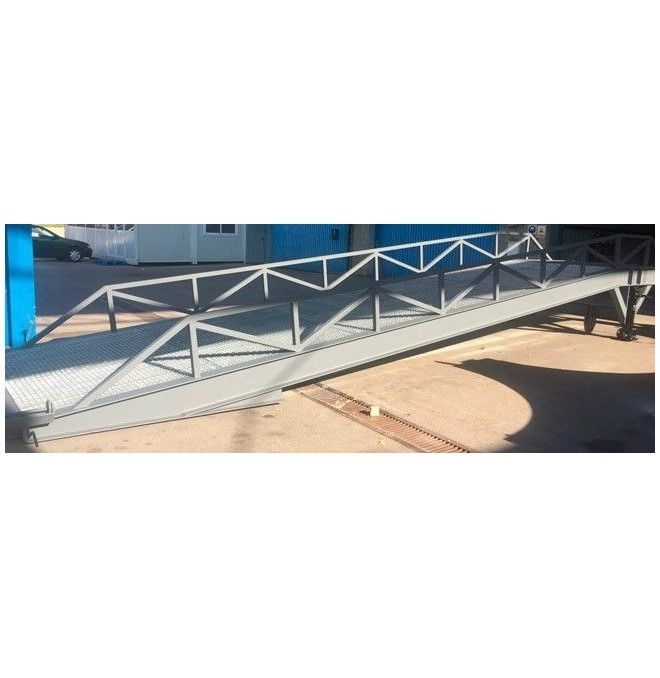

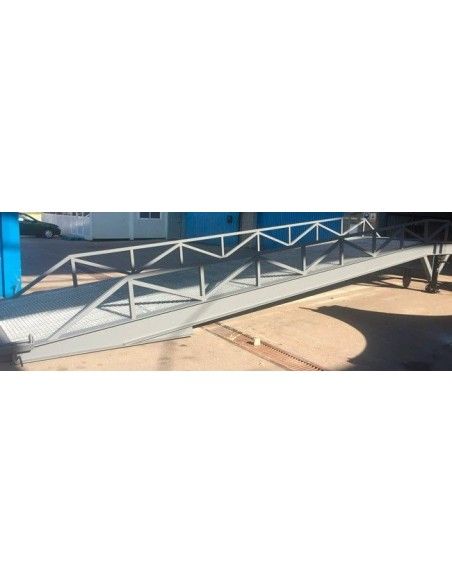

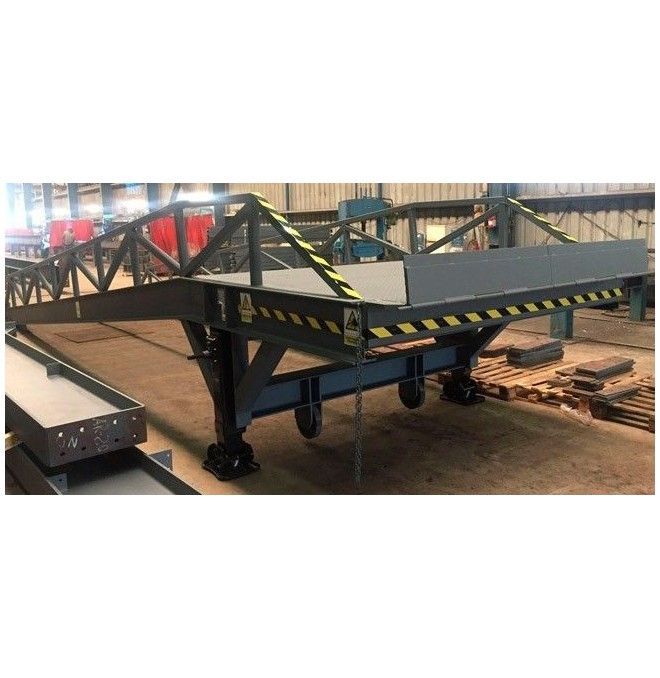

Loading ramp 10m and 12ton

Loading ramp for trucks, 10 meters long and up to a maximum of 12 tons. Robust and resistant manufacturing. It has a width of 2.2 meters and is adjustable in height by crank (from 1.1m to 1.45m). Includes lateral safety rail and grey paint in structure and pavement.

It is an effective solution when there is no high loading dock, to be able to download the trucks.

Includes 2 central support wheels, facilitating transport with forklift. Manual or automatic lifting system.

Made of IPE beams and steel sheet pavement in the flat area and in the ramp of start, being of tramex anti-slip the zone ramp, ideal for outdoor loading and downloading.

These ramps are manufactured according to all safety standards and directives and have MARCADO CE, which will be sent with the ramp.

The standard price includes:

• The lifting mechanism of the loading platform with handle.
• Grey paint layer in the structure and pavement.
• Anti-slip tramex in the entirety of ramp up and down on the lower and upper platform.
• Barandilla-board on both sides along the ramp.
• Platform mounted and truck loading
• Central wheels and rotating mechanism to transport the platform with wheelbarrow.

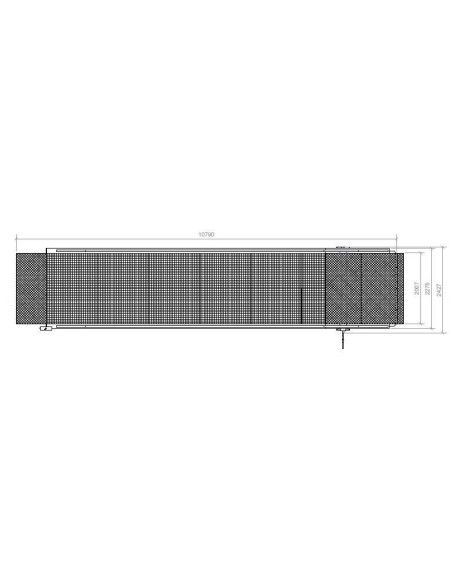

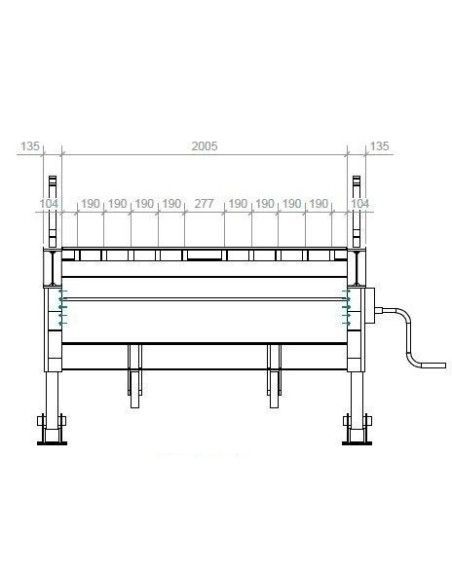

MEDIDA PLATAFORM

I'M GOING TO SHOW YOU

*Consult us for any doubt you have.

THE PORTS WILL ALWAYS BE CONVENIENT ACCORDING TO DESTINY
