Pack System weighing with LCD display Forklift

System of weighing integrated fork holder plates in forklift Trucks. Maximum load capacity 2.500kg.

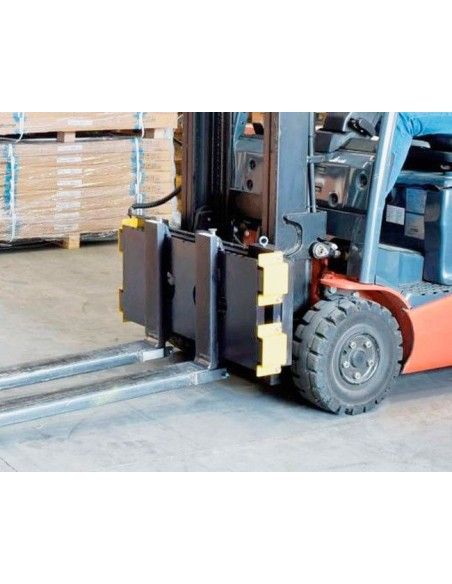

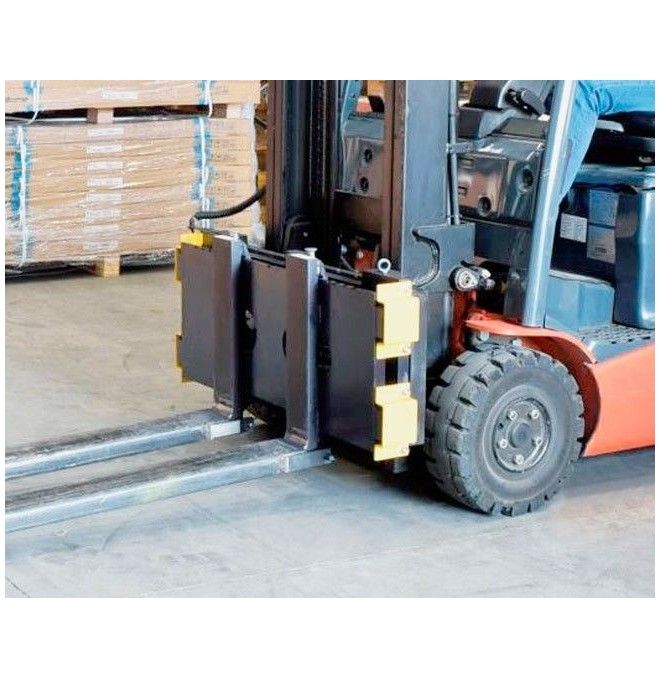

The pack includes a plate that is easily placed on the fork holder board and an LCD viewer that is placed in the cabin.

(Available also separately) weighing  right here and Visor LCD right here.

SYSTEM FEATURES Weighing

Scale mobile Weighing for forklift Trucks. Maximum load capacity 2.500kg.

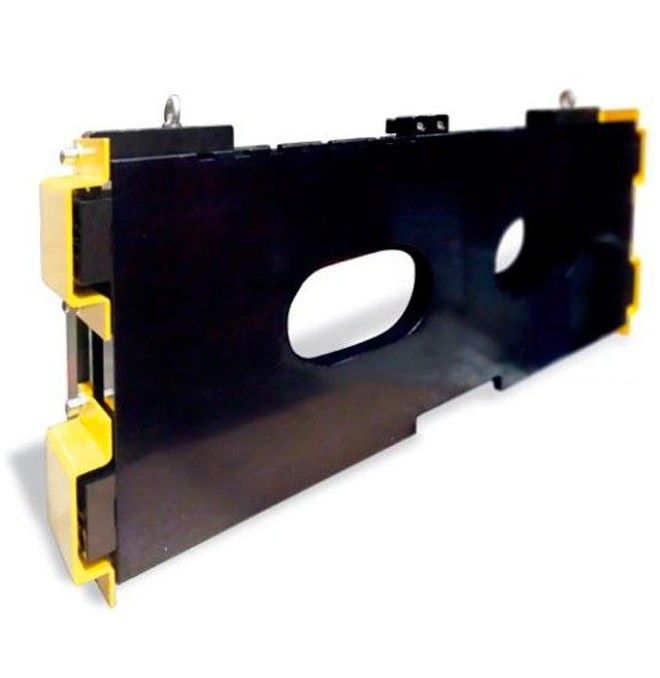

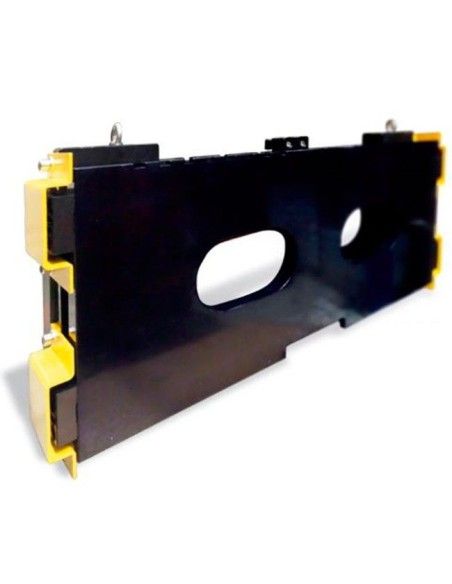

Consists on a plate that is easily placed on the fork holders Fragmentation of the scale according to standards DIN15173 - FEM class II.

Also available in verified version, contact us.

Its installation is simple and fast and allows weighing the load while manipulating with forklift.

CHARACTERISTICS

• Load capacity: 2.500kg.
• Dimensions (net/balanced): 984 x 461 x 140mm/1200 x 800 x 300mm .
• Weight (net/balanced): 180/200kg.
• 2 IP68 load cells
• Stainless steel load cells 2mV/V.
• Hermetic box.
• Precision: 1kg.
• Easy and fast assembly.

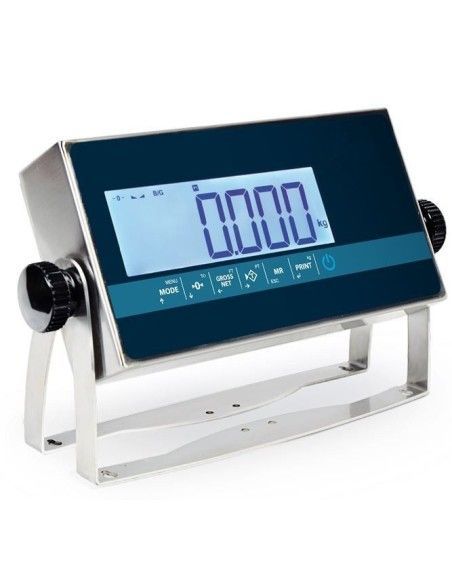

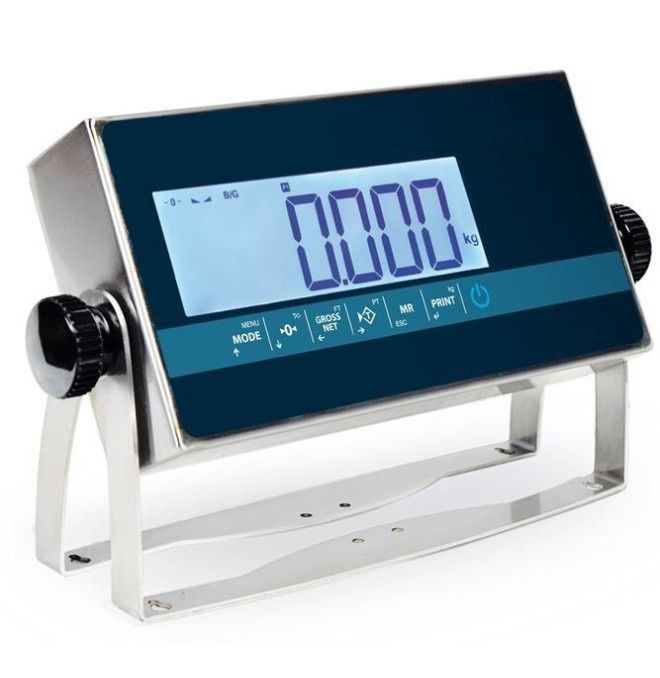

CHARACTERISTICS OF THE VISOR LCD

Advanced viewer on LCD display indicator weighing. Compatible with scale weighing for forklift Trucks reference M103110053.

CHARACTERISTICS

• Viewer housing in stainless steel or ABS
• Protection IP54, IP65 O IP68
• Backlit LCD display with 40mm digits
• Includes tilting wall mount
• Network supply 230VAC
• Includes 2 RS232 series outputs
• Monorango, Multirange or Multi Intervention
• Units: Kg
• Homologation to 6000 ITL divisions Class III and IV
• CE certification

FUNTIONS

• Weight accumulation: automatic/manual
• Totalization by screen
• Gross/net
• Tara and pretara manual
• Replacement of zero
• Function counts parts
• Checkweighing and target weight establishment
• Function 1/10 of the verification division. Visualization for a few seconds.

TECHNICAL FUNTIONS

• Return to menu / Mode, Zero / Destar, Brutus / Neto, Tara, Heavy Totalization / Escape, Switch on/Out, Print / Manual Weight Shipping / Units.

*Available more visers.

*Available in verified version.

Contact us for more information.
