1500kg semi-semi-heavy transparent - high precision

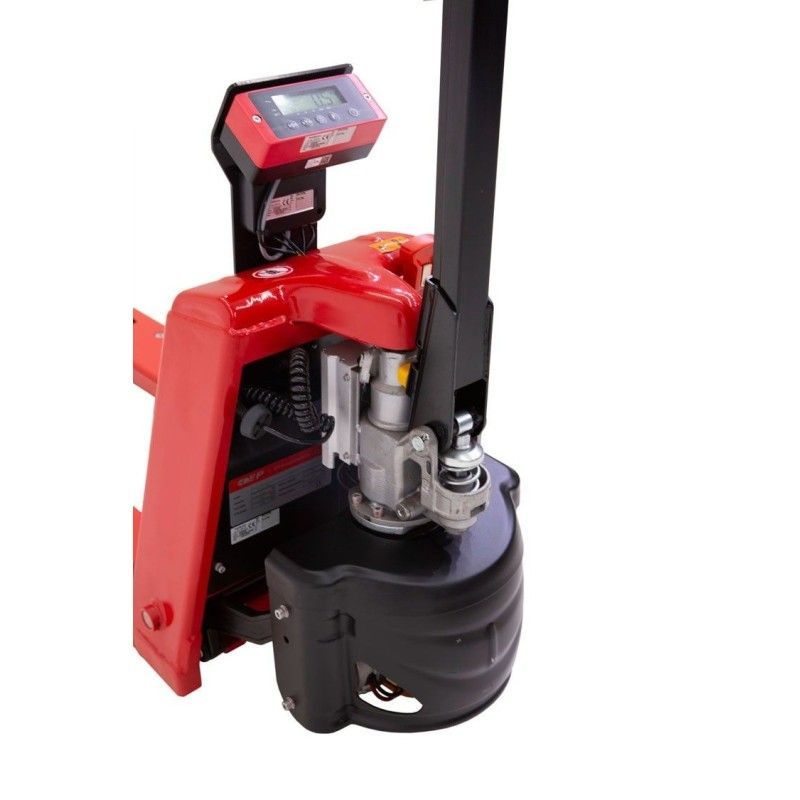

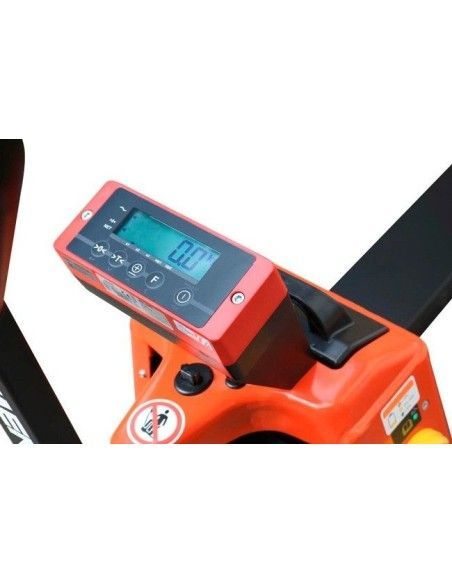

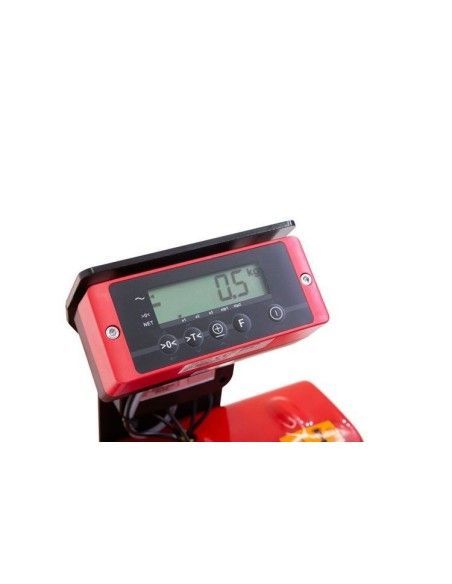

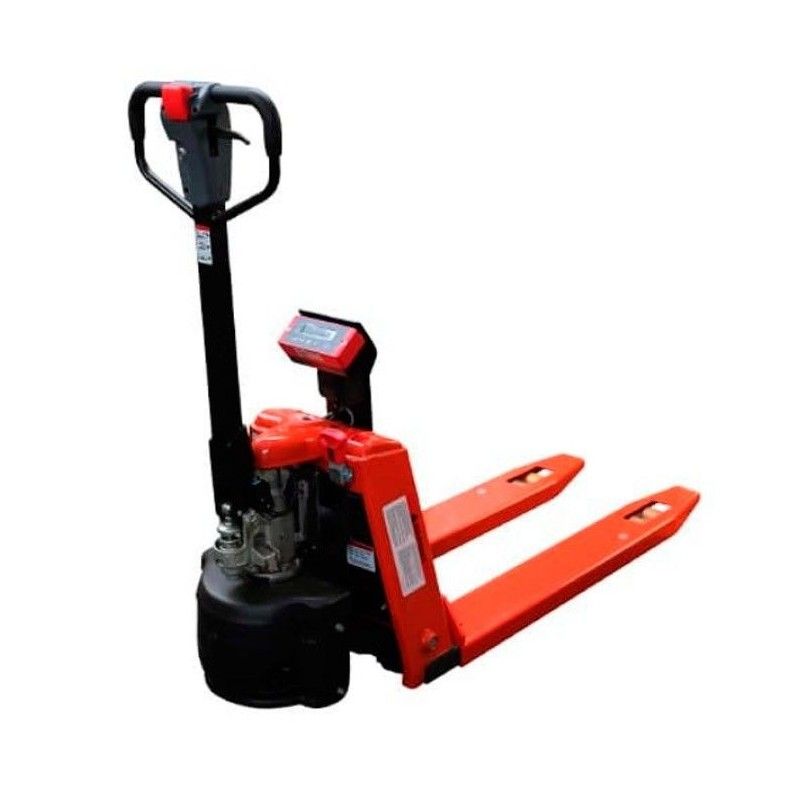

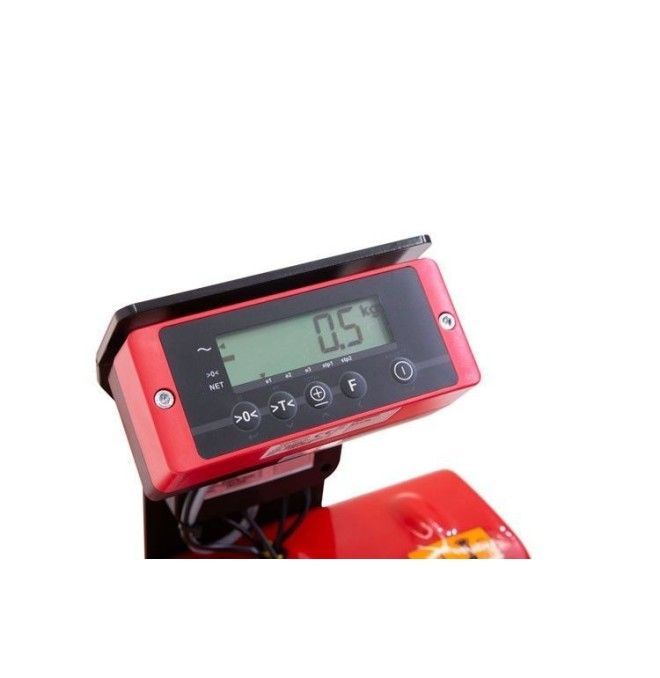

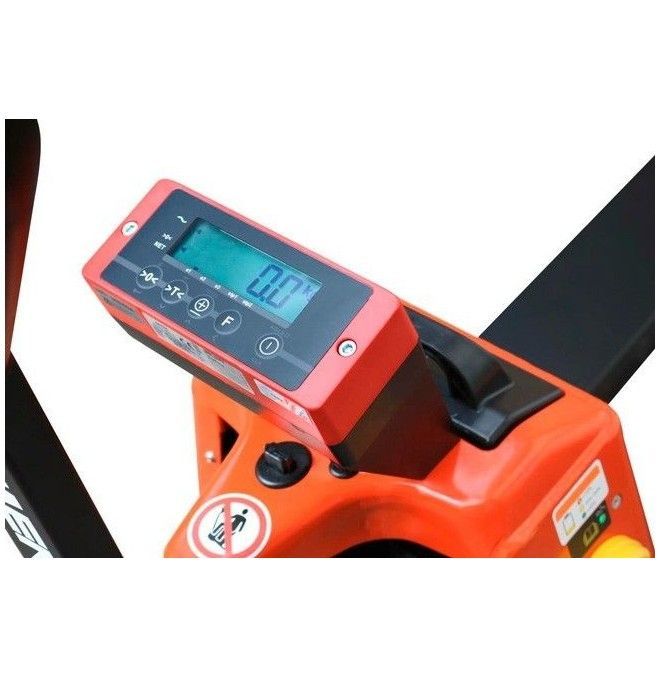

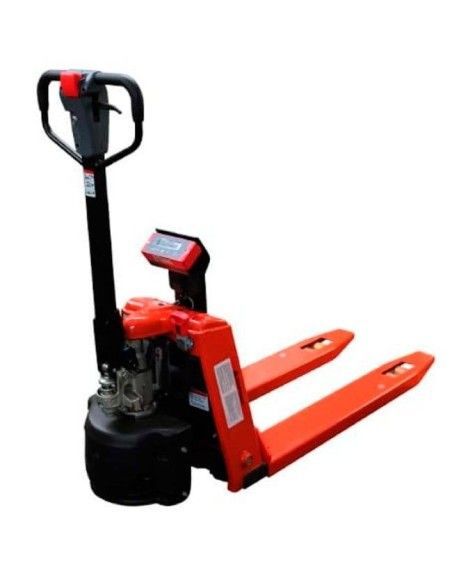

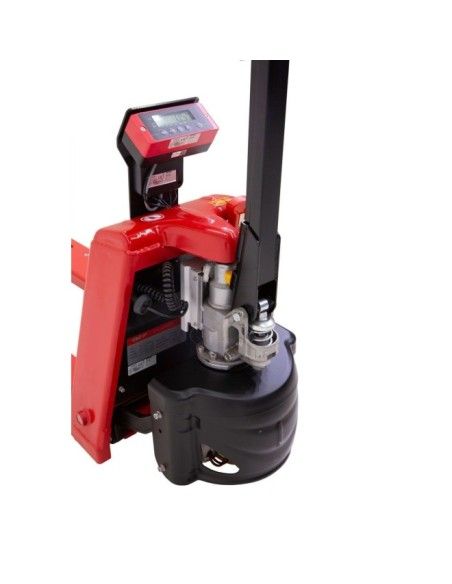

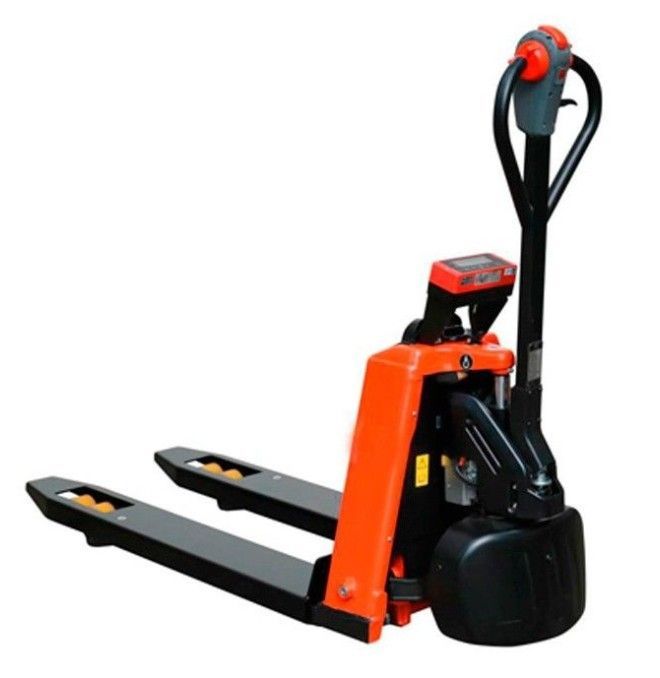

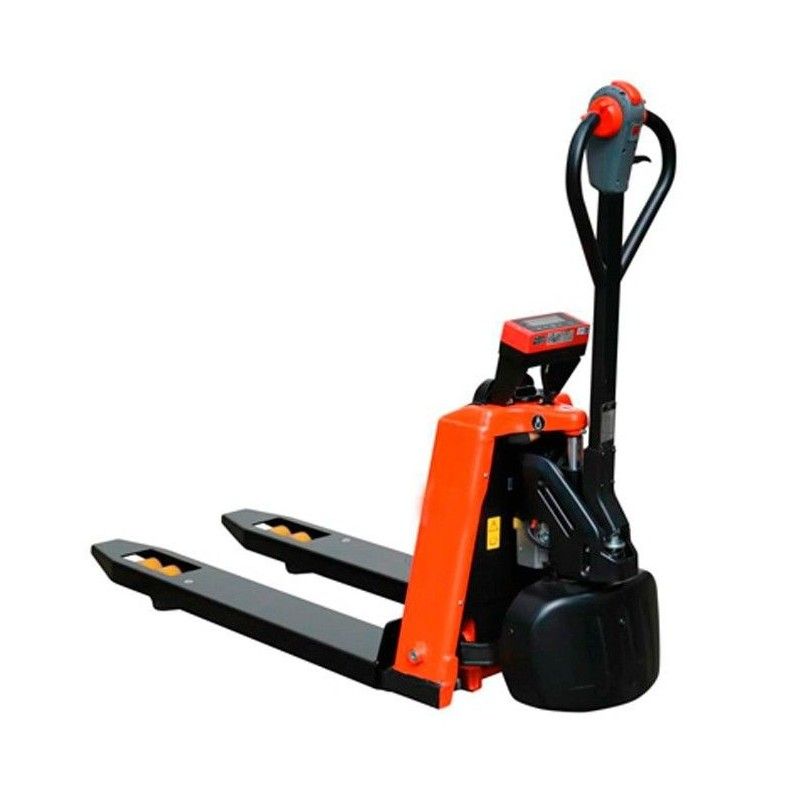

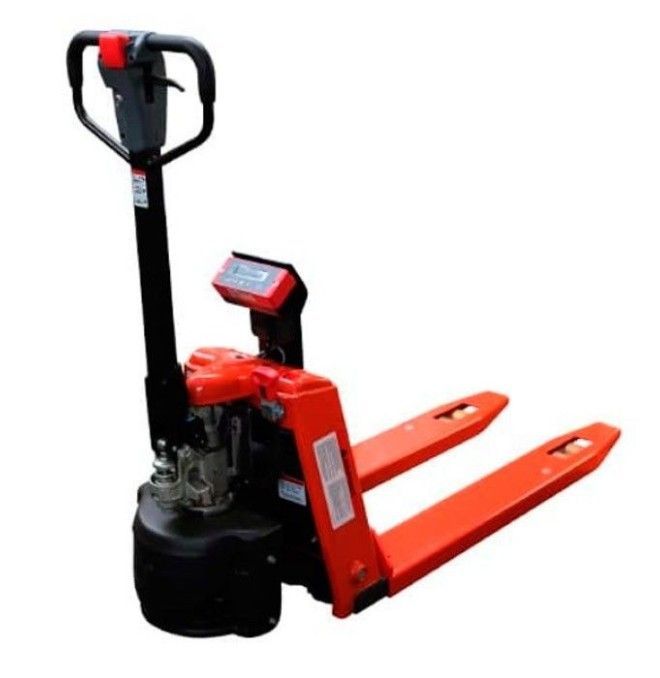

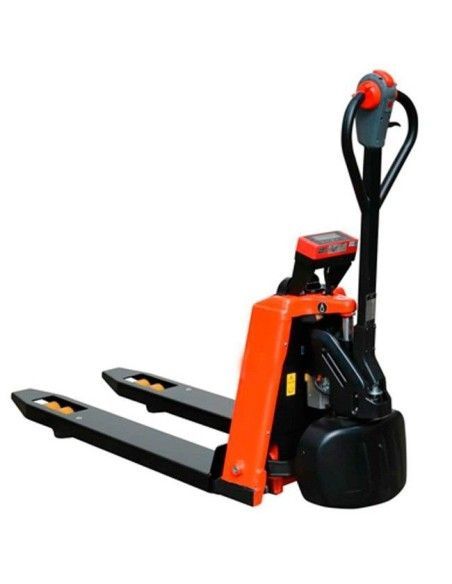

Weighing pallet truck semi-electric, with 6V thermal printer. With load capacity up to 1500kg. It has a backlit LCD display to visualize the weight. Electrical elevation and manual descent.

This new model can easily move loads up to over 750kg. High precision.

Battery autonomy for at least 1 to 2 hours on continuous driving, depending on the working and environmental conditions. It is automatically switched off after 3 minutes of non-use.

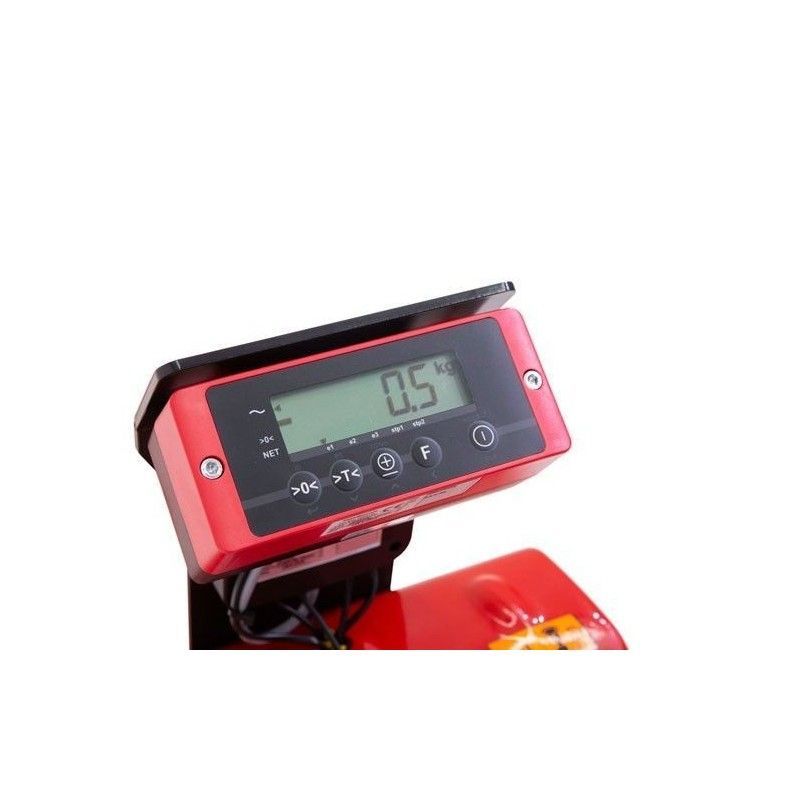

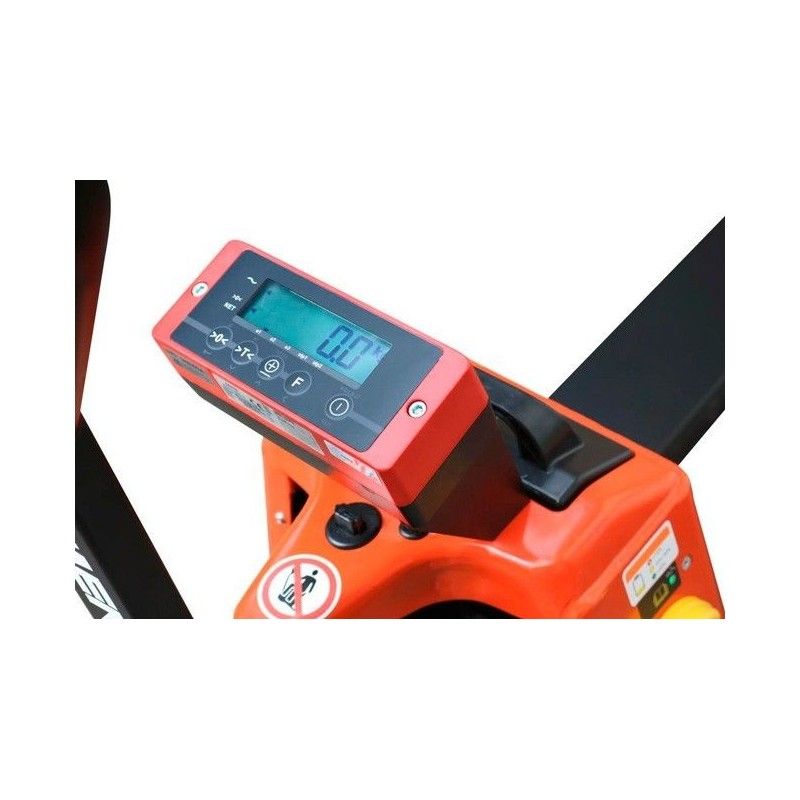

FUNTIONS Indicator

• Automatic and manual steel correction
• Indicates gross/net weight
• Automatic Tara by pusher
• Entrance of the tara by function of the cursor
• Indicates the sequence number and error messages on the screen
• Power source for the printer on and off by the indicator
• Automatic disconnect function, defined by setting parameters
• Indicator low battery
• Screen 1800mm LCD
• Protection Degree: IP65 (for standard systems)

CHARACTERISTICS

• Carrying capacity: 1500kg

• FractionThe following: 0kg-500kg= 0.5kg/500-1500kg

• Graduation: 1kg - plastic (ABS)

• Distance to the ground: 35mm

• Maximum height: 1240mm

• Lift height max.: 200mm

• Elevation height min.: 90mm

• Total height of the pallet truckThe following: 490mm

• Total central height of the screen: 765mm


• Width of forks: 170mm

• Width on forks: 550mm

• Length of the fork: 1150mm

• Total length of the pallet truckThe following: 1560mm

• Batteries: 24V/30Ah

• Traction motor: 0,65kW

• Lifting motor: 0,70kW

• Wheel material: Polyurethane

• Traction wheel material: Polyurethane

• Lift pump material: galvanized steel.

• Address wheel: 210x70mm

• Loading wheels: 80x60mm (74 x x88)

• Weight: 145kg

IMPRESORA TÉRMICA, 6V:

Only in combination with rechargeable AA batteries included. Max. 24 characters per line
Paper roll length 58 mm, diameter 32mm.
Printing with weight and sequence number.
The total weight is printed at the end of each cycle.
To save battery power, the printer is only connected during a printing command.
This option is supplied with 2 additional paper rolls.
