ATEX Flyer Stacker for Bidoms
M101070017
MAD51,929.85
51.929,85 € (tax incl.)

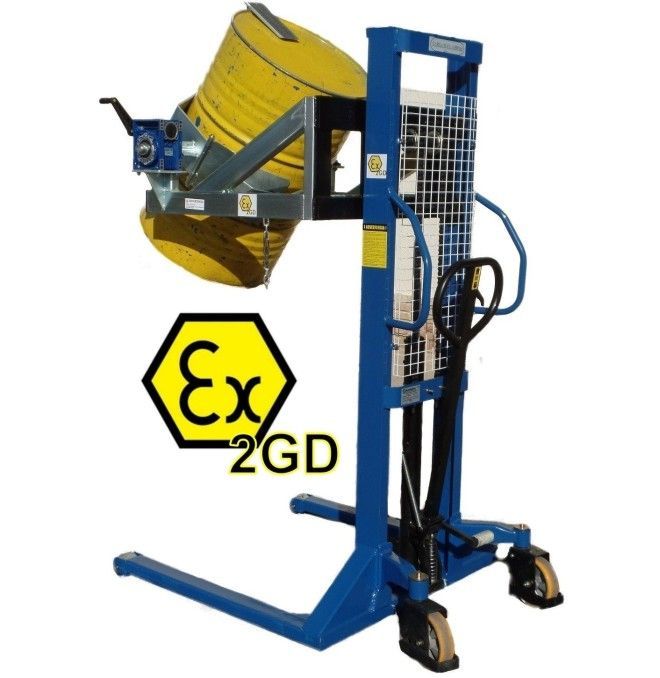

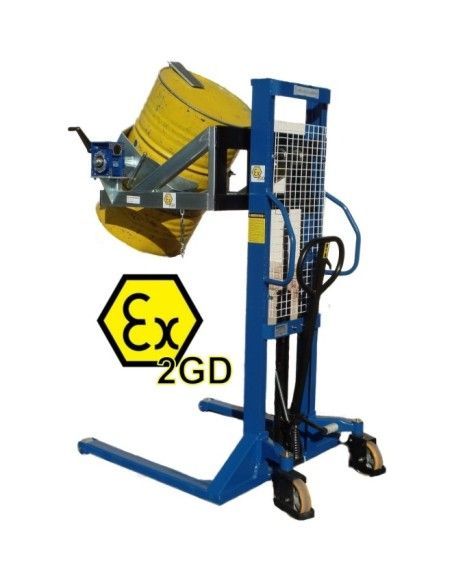

Manual rotator stacker for drums up to 500kg. Lift height of 1600mm. Special for areas with corrosive or explosive environments.
Manual rotator stacker for drums up to 500kg. Lift height of 1600mm. Special for areas with corrosive or explosive environments.
It has a pedal by pumping to raise the drum and it can turn to go ahead or back through a crank next to the drum.
It has safety grill and support legs for greater stability.
CHARACTERISTICS
|
|
Unit |
10285-ATEX |
|
Capeace |
Kg |
500 |
|
Central freight |
mm |
600 |
|
Height elevaciorn |
mm |
1600 |
|
Height mheynima |
mm |
85 |
|
Longityou horrwhatilla |
mm |
- |
|
Wicho hormax keels. |
mm |
- |
|
Velocy theevation |
mm/impulso |
▪16 |
|
Velocy descenso |
|
Controrlable |
|
Measures: Length |
mm |
1600 |
|
Anchor outside/interior |
mm |
1060/900 |
|
Height |
mm |
1990 |
|
Wheels: Antennas |
mm |
75 |
|
Traseras |
mm |
180 |
|
Distancminimum ground X/2010 |
mm |
25 |
|
Radio de giror maximum R |
mm |
1590 |
|
Pthat of the conjuslow |
Kg |
210 |
- TYPE
- Manual
- Load capacity (kg)
- 500
- Lifting height (mm)
- 1600
- Lifting system
- Manual
- Description
- Flying stacker
- Discharge height (mm)
- 1600
