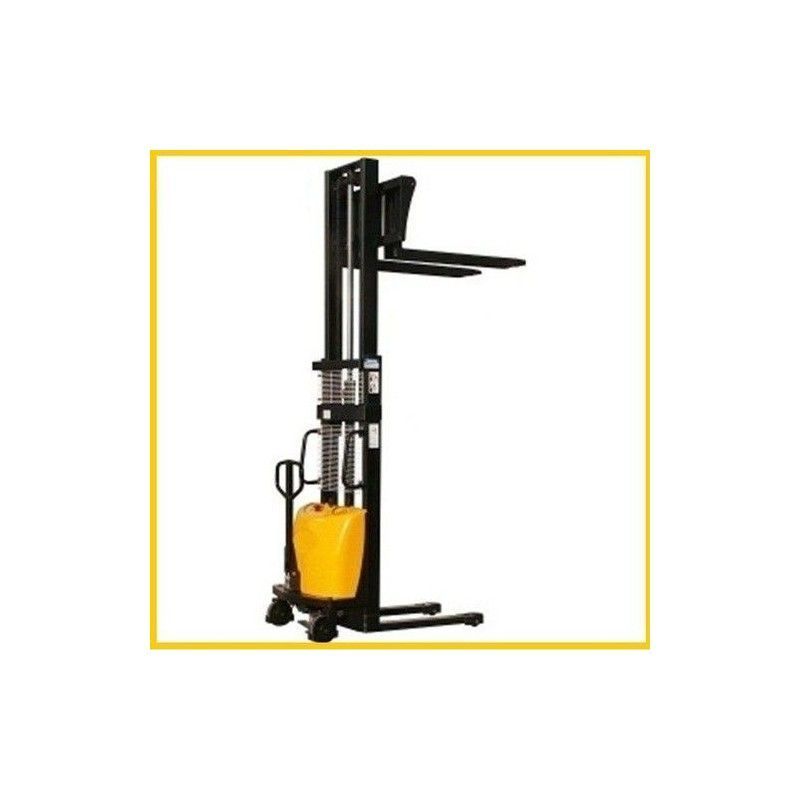

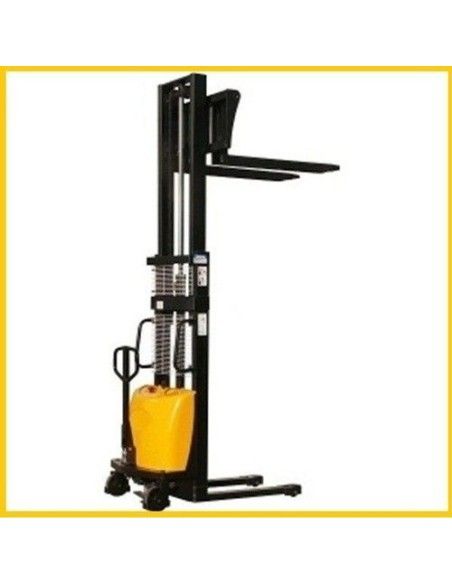

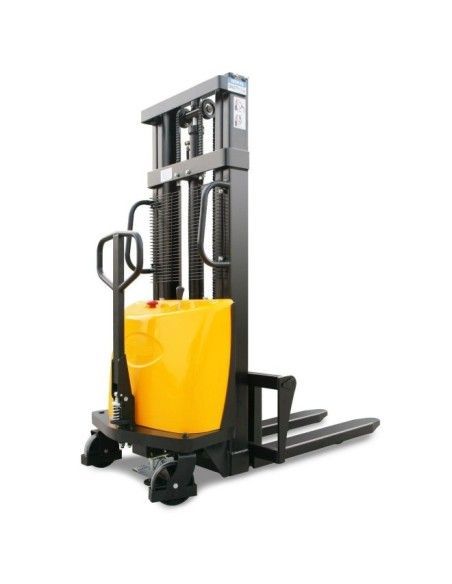

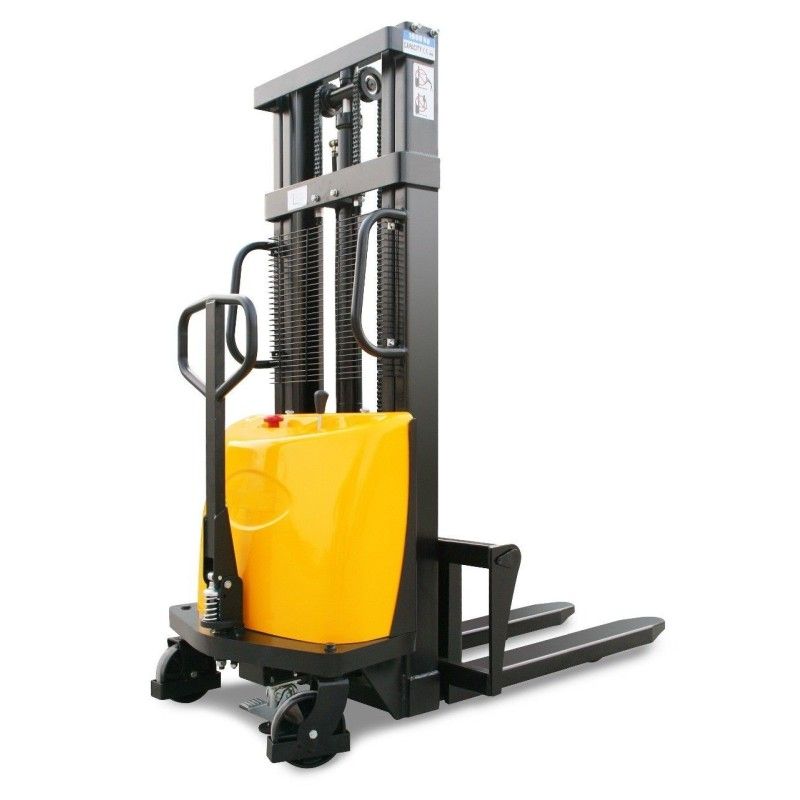

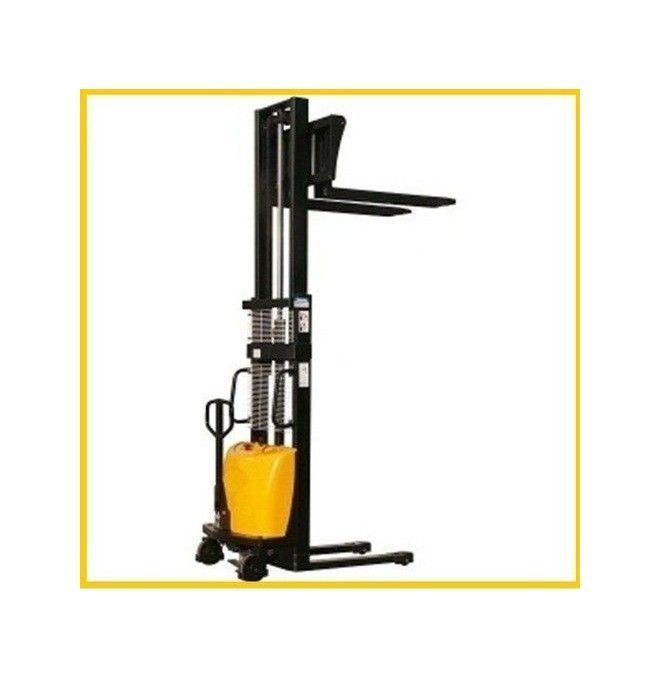

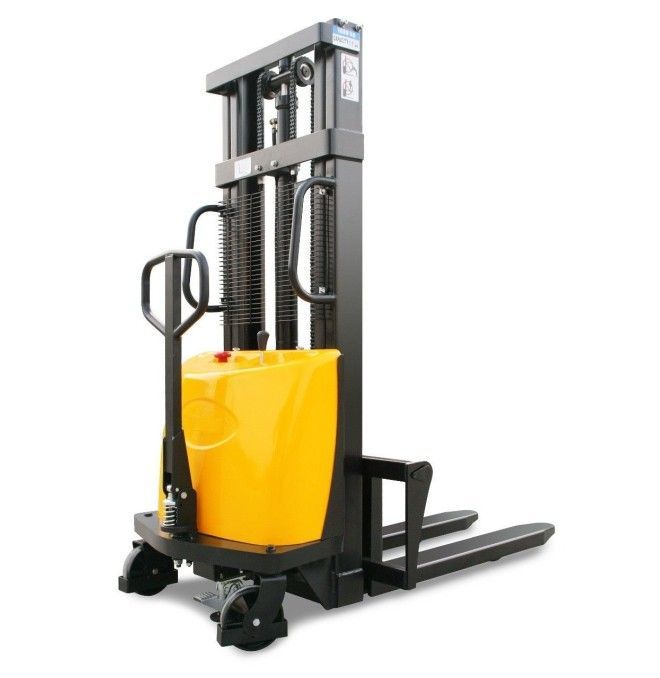

Semi Electric stacker 1500kg to 3500mm
M102010012
Semi-electric stacker 1500kg to 3.5 meters high.
With manual transfer and electrical lifting.
Semi-electric stacker 1500kg to 3.5 meters. Ideal for handling loads in warehouses. It has a very simple and intuitive handling, also facilitates loading and un fatigued products downloads for the operator.
With manual transfer and electrical lifting.
CHARACTERISTICS
| CARGA CAPACITY | 1500kg |
| PESO PROPIO (including battery) | 380kg |
| RUEDA TYPE | PU |
| MEDIDA RUEDA (mm) | 180X50 mm |
| MEDIDA RODILLO (mm) | 80x70 mm |
| ALTURA HORQUILLAS BAJADA (mm) | 90 |
| TOTAL LONGITUD (mm) | 1735 |
| TOTAL (mm) | 800 |
| LARGO HORQUILLAS (mm) | 1150 |
| TOTAL HORKS (mm) | 550 |
| PROVISIONS TO THE SUELO, IN ADDING EJES (mm) | 26 |
| ANCHO PASILLO, 800X12, PALÉ A LO LARGO (mm) | 1755 |
| RADIO MIN. GIRO (mm) | 1415 |
| ELEVATION VELOCITY, WITH CARGA/SIN CARGA (m/s) | 135/150 |
| SERVICE FRENE | Manual |
| MOTOR ELEVATION S3 15% (kW) | 1.6 |
| VOLTAGE OF NOMINAL BATERIA/CAPACITY (V/Ah) | 12/110 |
| ELEVATION (mm) | 3500 |
| PESO (kg) | 460 |
| CARGA CENTRE (mm) | 500 |
- TYPE
- Semi-electric
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 3500
- Lifting system
- Electric
- Total length (mm)
- 1735
- Weight (kg)
- 460
- Total height (mm)
- -
- Width (mm)
- 800
- Description
- stacking
- Dimensions (LXAXH machine / rudder)
- -
- Drums
- 24V/74Ah
New
