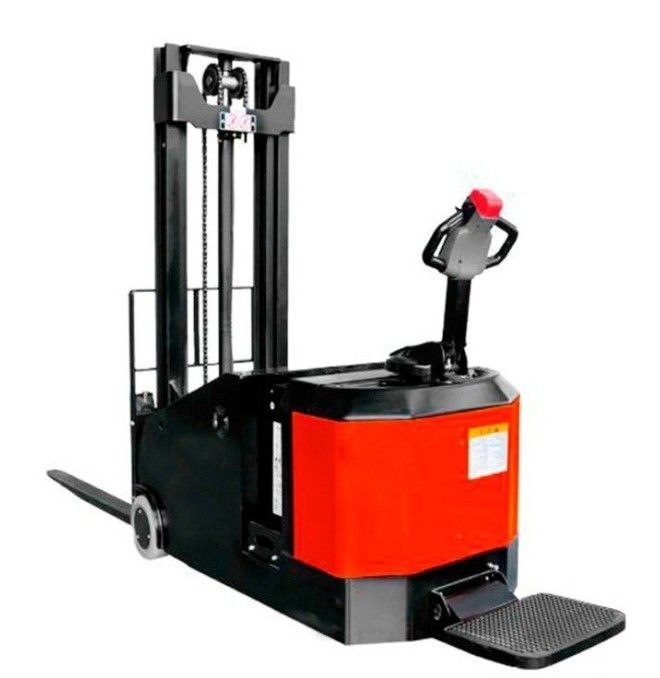

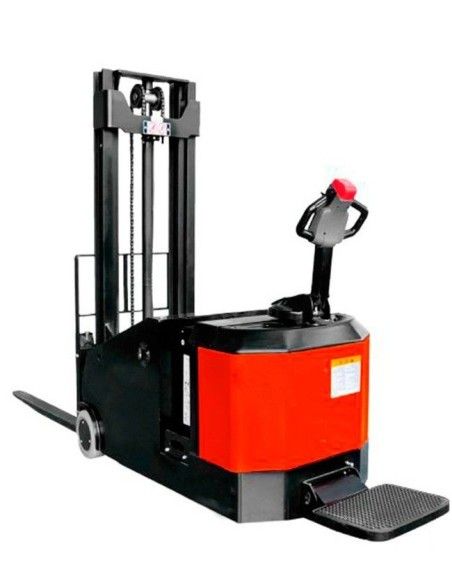

Counterbalanced stacker 1500kg to 4500mm
M102030004
Electric stacker accompanying driver counterbalanced of electric traslation and elevation with load capacity up to 1,500kg and elevation with triplex mast to 4500mm. Easy maneuverability thanks to its electric direction and controls in the handle
Counterbalanced stacker suitable for load movement in warehouses. Thanks to its great ease of use, it facilitates loading and unloading tasks providing great efficiency.
Its hydraulic system is designed to prevent the mast from dropping abruptly when the hydraulic cylinder can fail. The emergency stop button offers great security to the operator in emergency situations.
The automatic slow mode is activated when the forks reach their maximum height.
The anti-derrape rear brake provides extra safety by preventing the truck from losing control in wet or slippery soil situations.
With its ergonomic command, the operator at its disposal all the controls of the stacker, giving it a simple and intuitive handling of the stacker.
Its chassis is of great durability, and quality, giving the machine more useful life.
CHARACTERISTICS
| CARGA CAPACITY | 1500KG |
| ALTURA OF ELEVATION | 4500MM |
| OPERADOR | ACOMPAÑA |
| CARGA CENTRE | 600MM |
| PESO (INC BATERIA) | 2420KG |
| RUEDAS | POLIURETANO |
| ALTURA (MÁSTIL PLEGADO) | 2022MM |
| ALTURA (MÁSTIL EXTENDED) | 5415MM |
| MÁXIMA ALTURA | 4500MM |
| ALTURA MÍNIMA | 60MM |
| TOTAL LARGO | 2985MM |
| TOTAL | 850/900 |
| HORCH DIMENSIONS | 40X100X1070MM |
| ANCHO HORQUILLAS TOTAL | 800MM |
| VELOCITY (c.c/s.c) | 4.65 km/h |
| FRENCH | ELECTROMAGNÉTICS |
| RADIO DE GIRO | 1715MM |
| BATTERIES | 24V/280 AH |
| DIRECTION | ELECTRONIC |
| RUSSIAN | 74 (A) |
| COMPLEMENTS | PLATFORM FOR THE OPERAR |
- TYPE
- Electric
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 4500
- Battery
- Lead-acid
- Mast type
- Triplex
- Lifting system
- Electric
- Total length (mm)
- 2985
- Weight (kg)
- 2420
- Total height (mm)
- 4500
- Width (mm)
- 800
- Description
- Contrapesado
- Mast height (mm)
- 1796
- Drums
- 24/270
- Lifting motor (KW)
- 2.2
- Speed (km / h)
- 5,5/6,0
- Regulations
- EC
