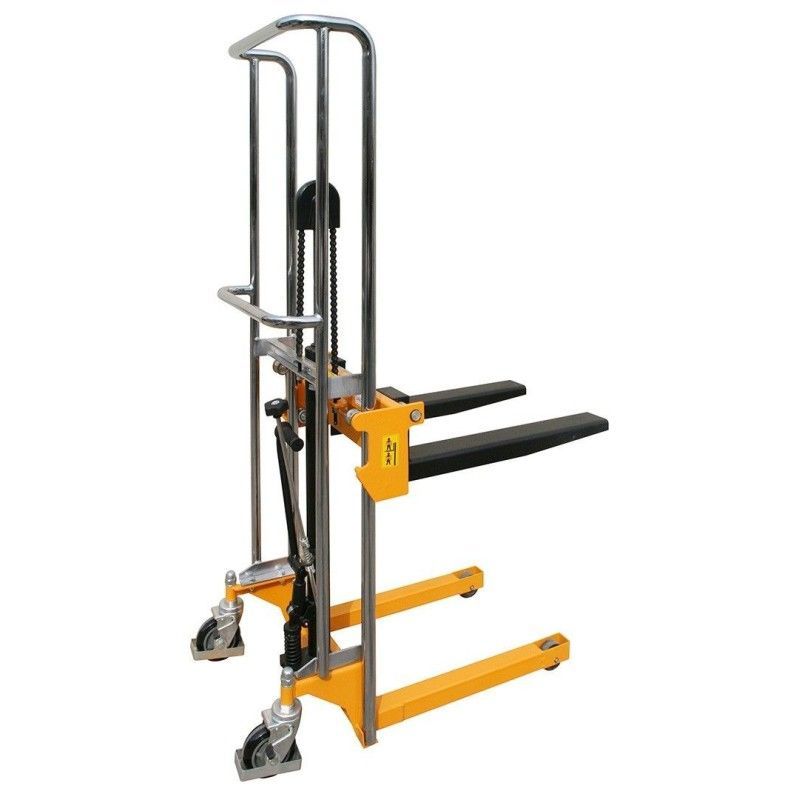

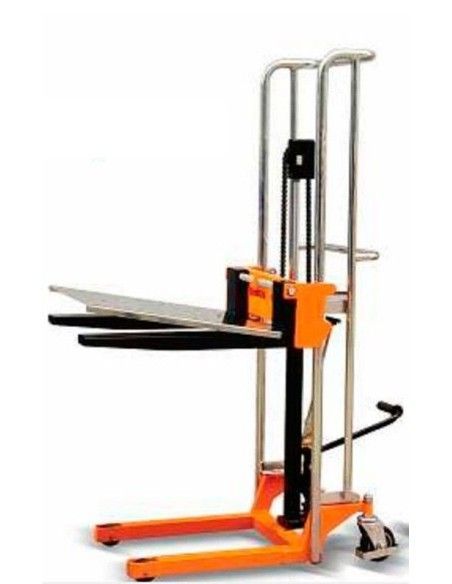

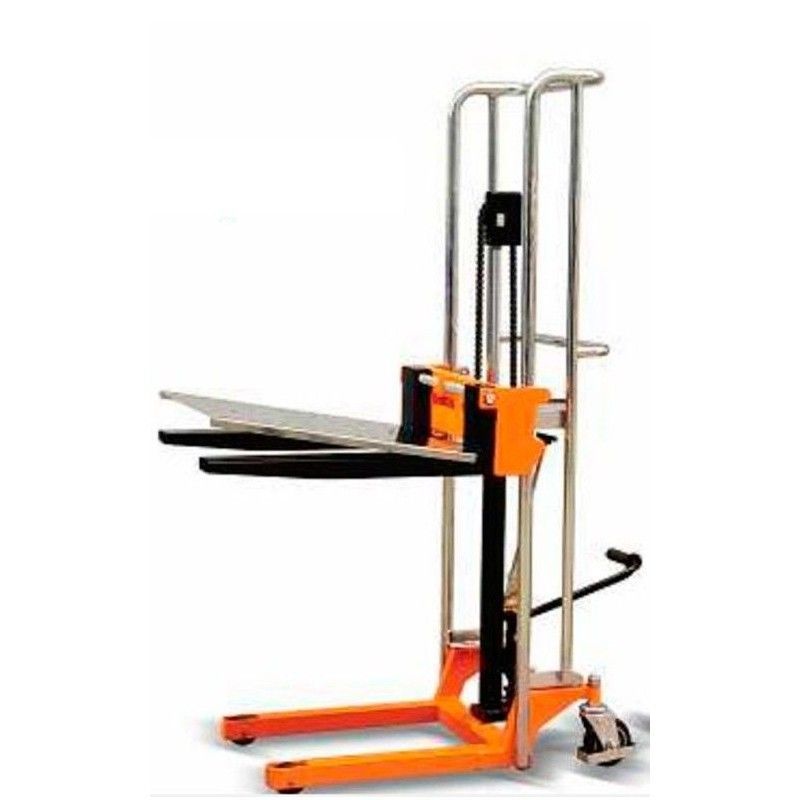

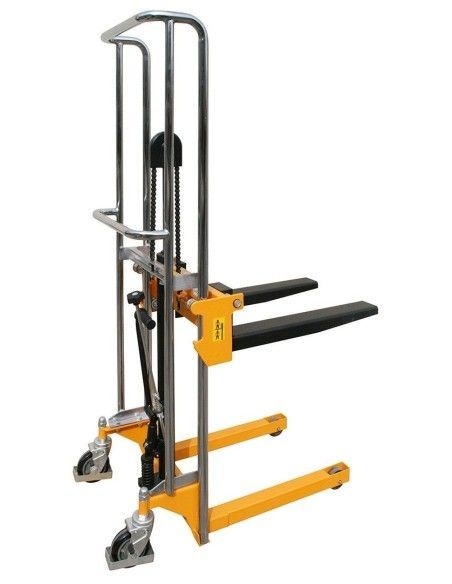

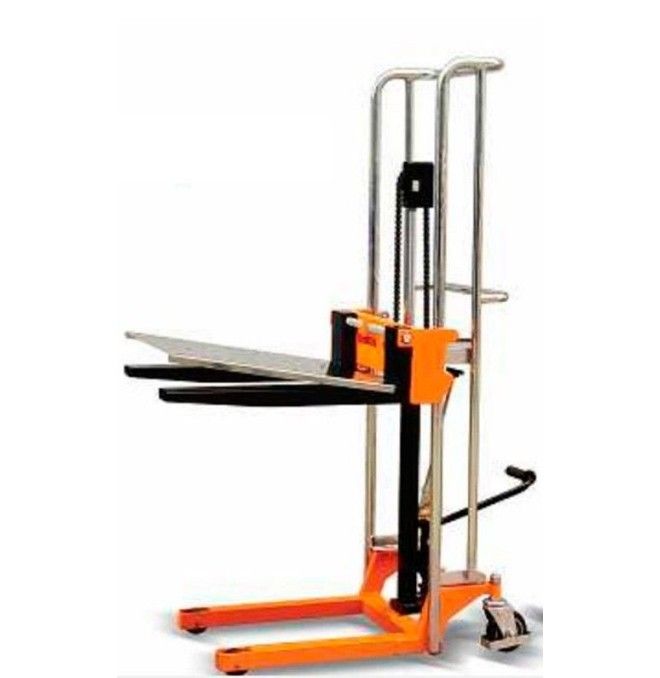

Manual stacker 400kg (movable and removable nozzles)
M102020007
€659.00
659,00 € (tax incl.)
Manual translating and lifting stacker, 400kg load and lift capacity up to 1200mm. It has positionable nails and even removable to adapt other attachments (coils, for example)
Small size stacker and very easy to maneuver. Ideal for handling small loads up to 400kg. It has removable and positionable nails. Great agility and durability thanks to its lightweight but resistant materials.
To be able to get him out fork we have to get a war and axis where the forks go. Thus we can attach any other attachment to the stacker, for example, a spur for rolls or coils.
CHARACTERISTICS
- Charging capacity: 400kg
- Includes tray on the forks to act as a work table.
- Lift height: 1200mm
- Minimum elevation: 85mm
- Long forks: 650 mm
- Width of fixed forks: 550mm
- Adjustable forks width: 235-500mm
- Measures (long x high x width): 1060x1410x590mm
- Weight: 81kg
- TYPE
- Manual
- Load capacity (kg)
- 400
- Lifting height (mm)
- 1200
- Horquillas (mm)
- Adjustable
- Lifting system
- Manual
- Total length (mm)
- 1060
- Weight (kg)
- 81
- Total height (mm)
- 1410
- Width (mm)
- 590
- Description
- Manual
- Measures Nails long x Width (mm)
- 650 x 550
- Elevation Nails (mm)
- 1200
- Elevation by pumping / spin
- -
- Dimensions (LXAXH machine / rudder)
- 1.040 x 600 x 1.075
- Propeller system
- Manual
- Regulations
- EC
New
8427982105608
