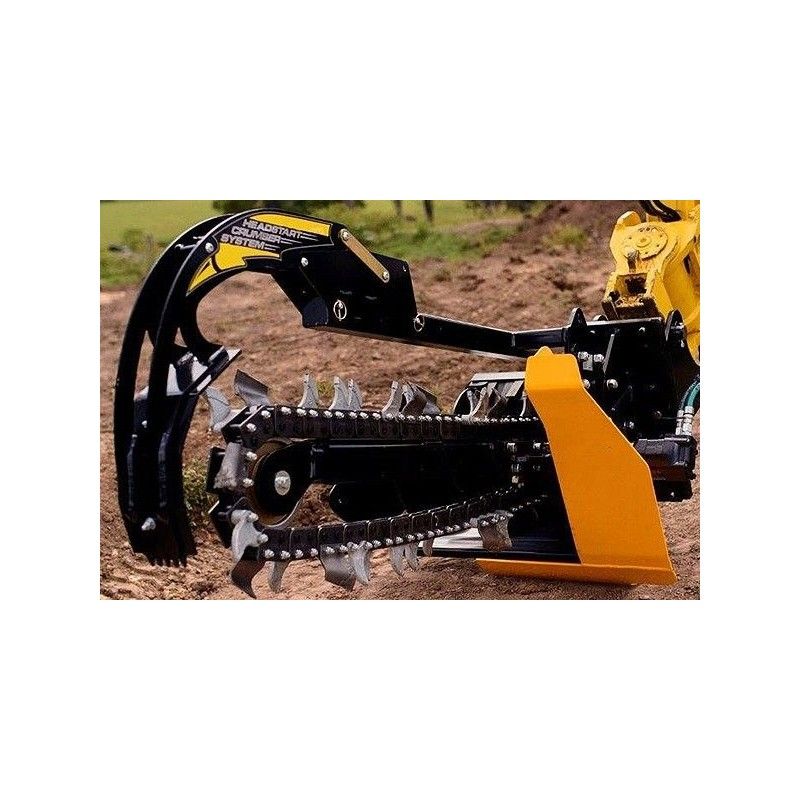

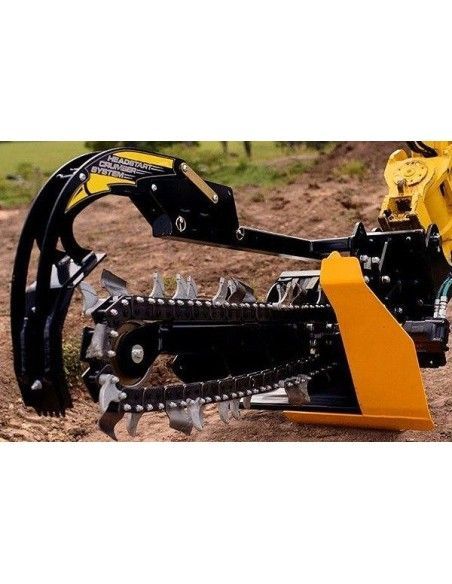

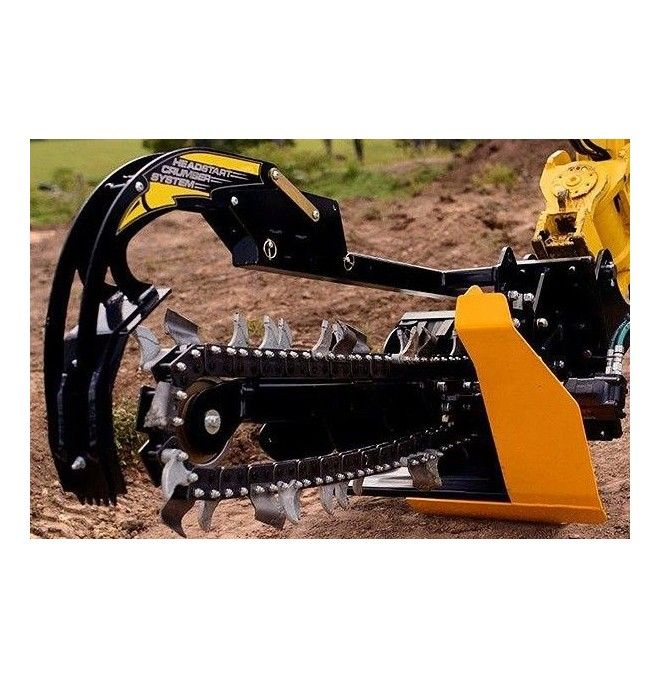

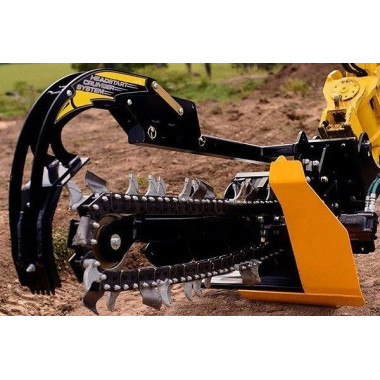

Trencher r chain
C205100003
Trenchers high performance with different types of chain, for opening trenches in all types of plant, mixed and compact soils, even very hard or with roots.
CHARACTERISTICS:
•For machines with a flow rate of 49 to 83 litres per minute.
•Transmission by hydraulic motor and planetary reducer to chain.
• Side transfer with mechanical adjustment.
• A scattered sinfin.
•Clears with recess by spring.
• Hydraulic connections for Minicharger. P+T.
• Minicharger universal hook.
•3 chain types available.
| MODEL | ZC-090R | ZC-120R | ZC-15RH |
|---|---|---|---|
| MÁXIMA (mm) | 900 | 1200 | 1500 |
| ANCHOS DISPONIBLES (cm) | 15/20/25/30 | 15/20/25/30 | 15/20/25/30 |
| DACEN STEP (inches) | 2" | 2" | 2" |
| (#) | 1 | 1 | 1 |
| RECOMMENDED CAUDAL (lpm) | 57 ~ 114 | 57 ~ 114 | 107 ~ 168 |
| MÁXIMA (bar) | 242 | 242 | 242 |
| PESO (kg) | 395 | 410 | 465 |
- Description
- Chain trencher
