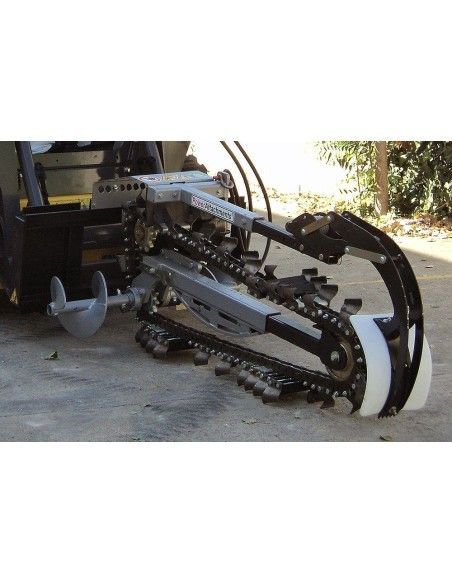

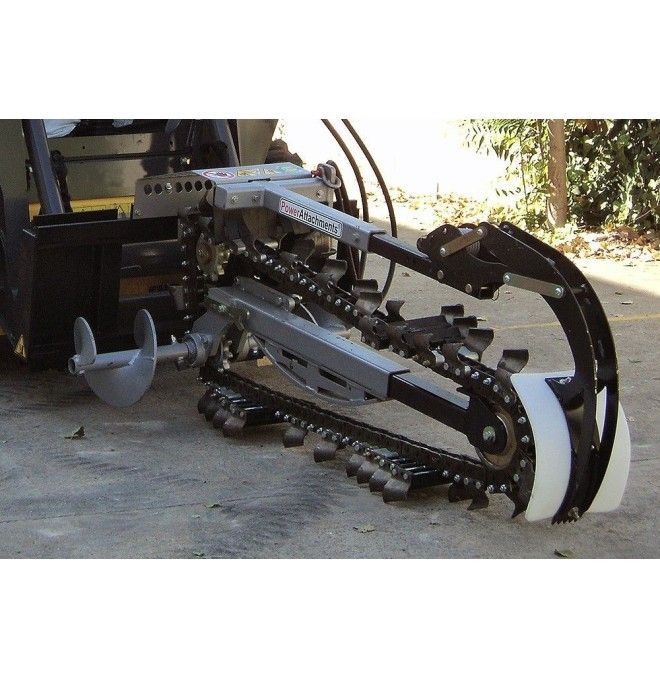

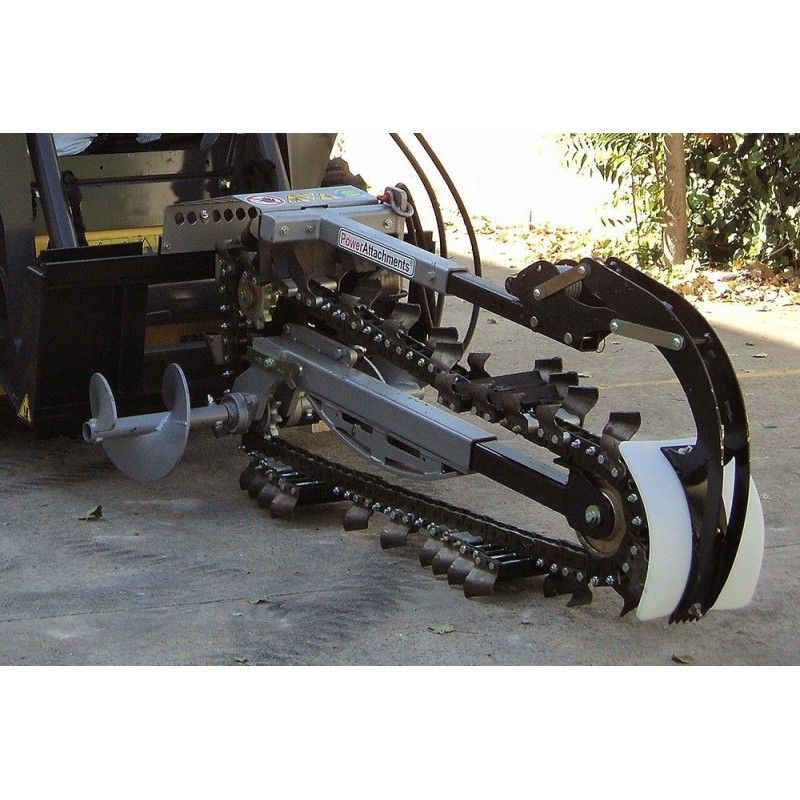

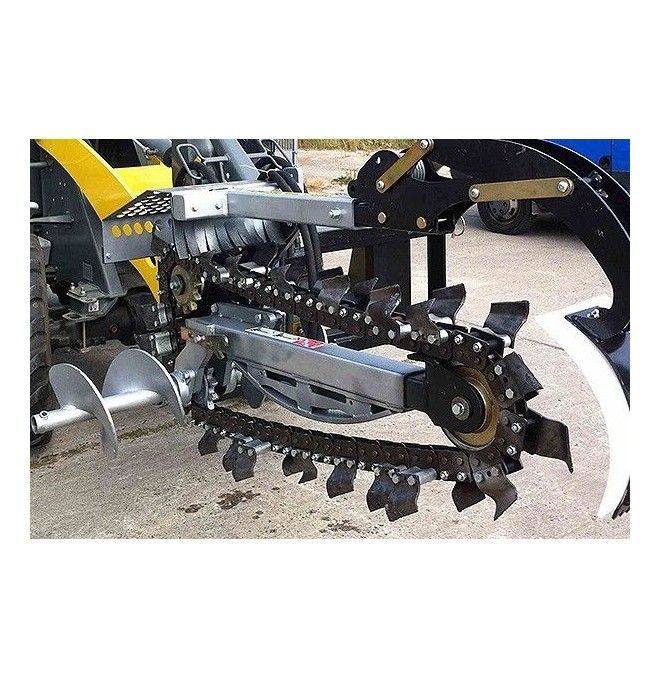

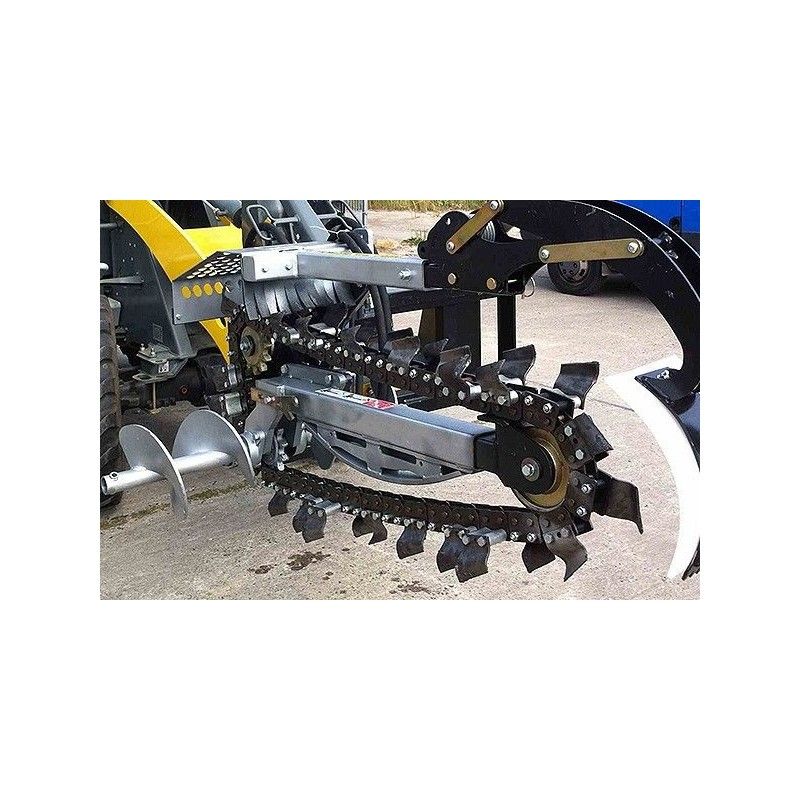

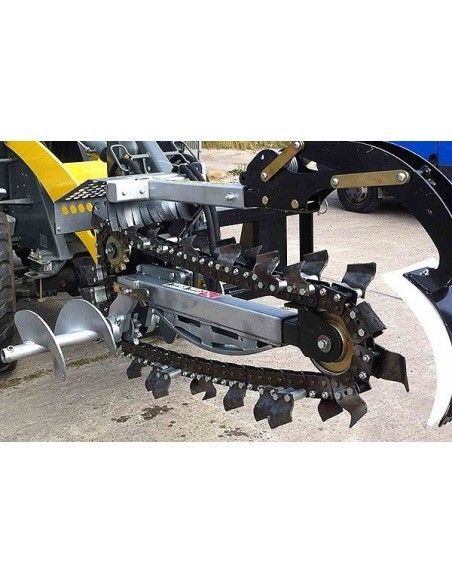

Trencher h chain
C205100002
Trenchers high performance with different types of chain, for opening trenches in all types of plant, mixed and compact soils, even very hard or with roots.
CHARACTERISTICS:
•For machines with a flow rate of 61 to 114 litres per minute.
•Transmission by hydraulic motor and planetary reducer to chain.
• Side transfer with mechanical adjustment.
•Two scattered synfines.
•Clears with recess by spring.
• Hydraulic connections for Minicharger. P+T.
• Minicharger universal hook.
•3 chain types available.
2 different options:
| MODEL | ZC-090H | ZC-120H |
|---|---|---|
| MÁXIMA (mm) | 900 | 1200 |
| ANCHOS DISPONIBLES (cm) | 10/15/20/25/30 | 10/15/20/25/30 |
| DACEN STEP (inches) | 1.5/8" | 1.5/8" |
| (#) | 2 | 2 |
| RECOMMENDED CAUDAL (lpm) | 49 ~ 83 | 49 ~ 83 |
| MÁXIMA (bar) | 242 | 242 |
| PESO (kg) | 315 | 340 |
