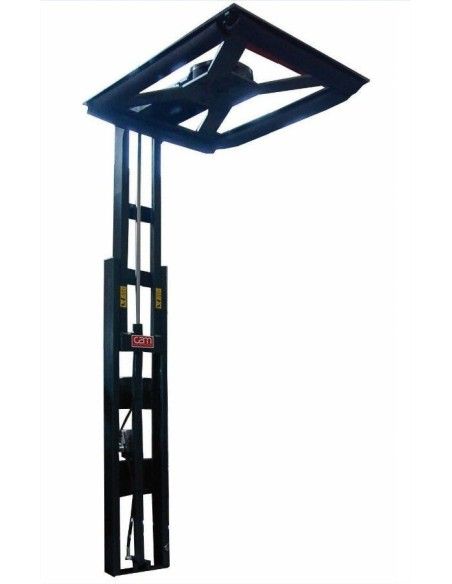

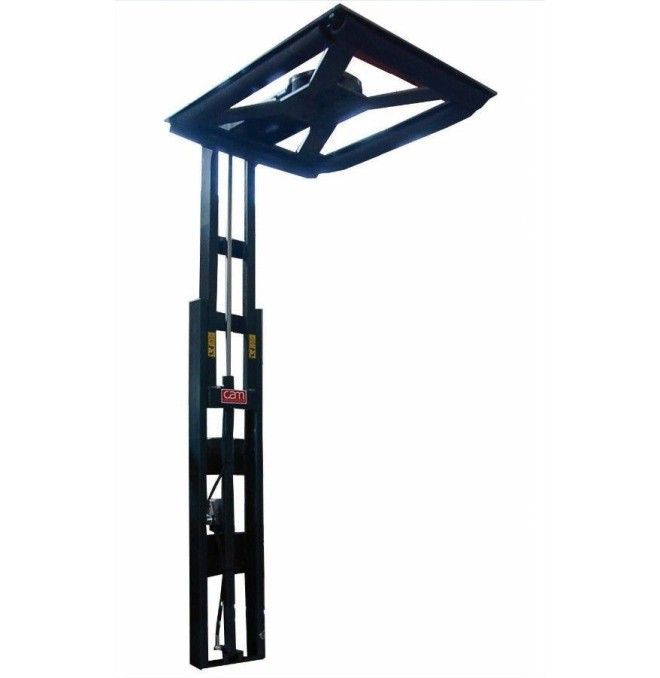

Charge stabilizer for forklift
M103070094
€4,750.00
4.750,00 € (tax incl.)
Load stabilizers allow you to drop your load beyond the usual reach.With a charger you can handle unstable loads safely and efficiently.
US
I implement for the transport of unstable loads, such as soft drinks, malted drinks, bottled water and empty containers.
Load stabilizers allow more efficient operation speed and handling procedures when fixing the palletized load. They are particularly useful in outdoor operations and in facilities with uneven floors.
Measurements board 900*900 mm
Horizontal/ vertical gravity center 290/787 mm
DEMOSTRATIVE VIDEO

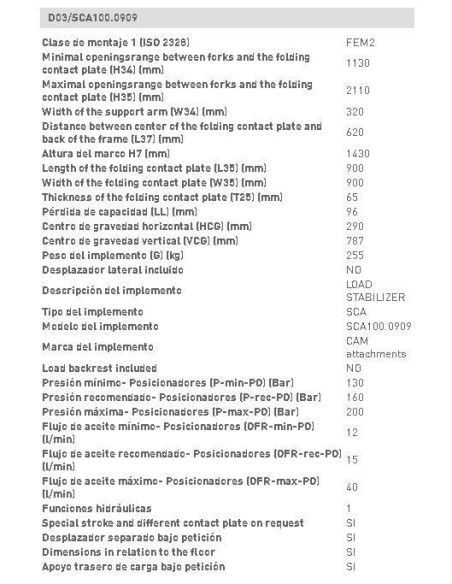

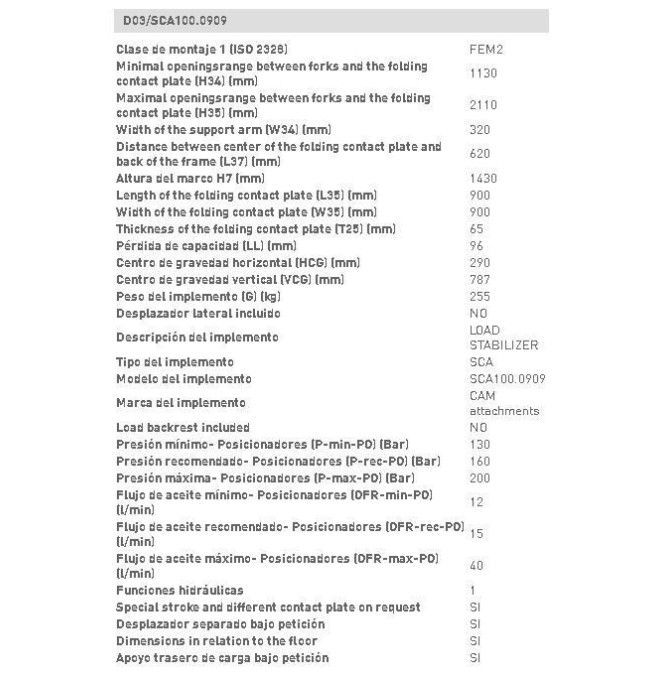

TECHNICAL CHARACTERISTICS
|
Assembly class 1 (ISO 2328) |
FEM2 |
|
Minimum aperture range between forks and platform (H34) (mm) |
1130 |
|
Maximum aperture range between forks and platform (H35) (mm) |
2110 |
|
Width support arm (W34) (mm) |
320 |
|
Distance between the center of the platform and the back paste of the board(L37) (mm) |
620 |
|
H7 frame height (mm) |
1430 |
|
Platform length (L35) (mm) |
900 |
|
Wide platform (W35) (mm) |
900 |
|
Platform thickness (T25) (mm) |
65 |
|
Loss of capacity (LL) (mm) |
96 |
|
Horizontal gravity center (HCG) (mm) |
290 |
|
Vertical gravity center (VCG) (mm) |
787 |
|
Implementing weight (G) (kg) |
255 |
|
Side slider included |
NO |
|
Description of attachment |
STABILIZER CARGA |
|
Load support included |
NO |
|
Minimum Pressure- Positioners (P-min-PO) (Bar) |
130 |
|
Recommended Pressure- Positioners (P-rec-PO) (Bar) |
160 |
|
Maximum Pressure- Positioners (P-max-PO) (Bar) |
200 |
|
Minimal Oil Flow-Positionators (OFR-min-PO) (l/min) |
12 |
|
Recommended oil flow- Positioners (OFR-rec-PO) (l/min) |
15 |
|
Max Oil Flow-Positionators (OFR-max-PO) (l/min) |
40 |
|
Hydraulic functions |
1 |
|
Special costume and different contact plate on request |
YES |
|
Separate displacer on request |
YES |
|
Dimensions in relation to the ground |
YES |
|
Rear charge support on request |
YES |
Available in different measures. Consult us
- Load capacity (kg)
- -
- Weight (kg)
- 255
- Description
- Load stabilizer for lift truck
- Dimensions (mm)
- -
