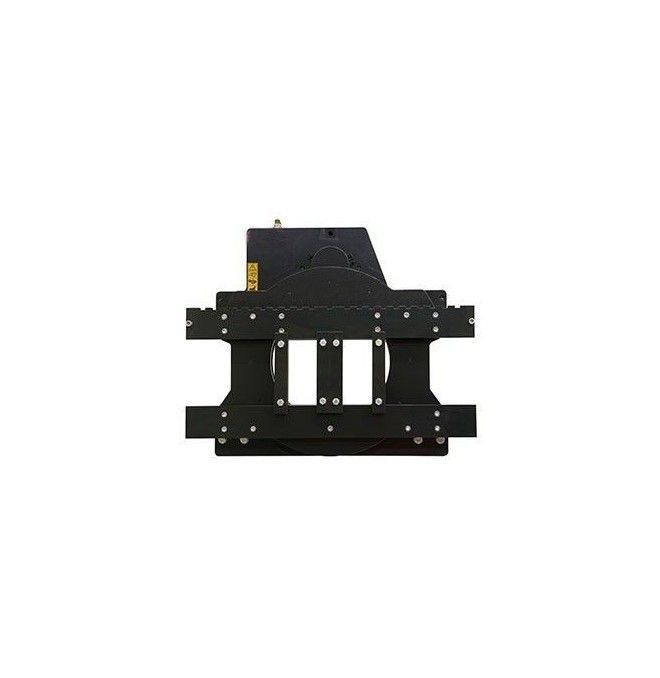

Rotator with 360º lateral displacement for forklift
M103070089
360° Rotator with side scroller forklift 2200kg load capacity.
Rotators allow you to rotate the loads on the forks safely and efficiently.
Rotators are generally used in industries such as agriculture, construction, food and drinks. This tool is ideal for different types of machines.
BENEFITS
By using this implement, it will improve productivity and greatly limit the downtime during the discharge of goods.
CHARACTERISTICS
-FEM2 mounting class
-Charge capacity 2200 Kg
-Includes side scroller
-500 mm loading center
-Maximum fixed frame width 1090 mm
- Opening range on forks 210-895 mm
-Horizontal gravity center 90 mm
-Vertical gravity center 288 mm
-360o rotation angle
-Recommended oil filter (l/min): 25
DEMOSTRATIVE VIDEO

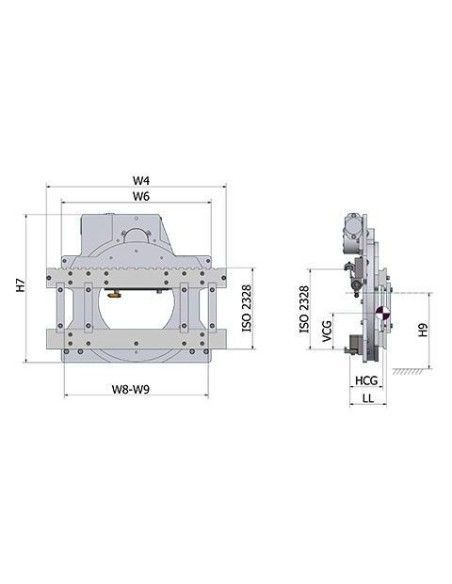

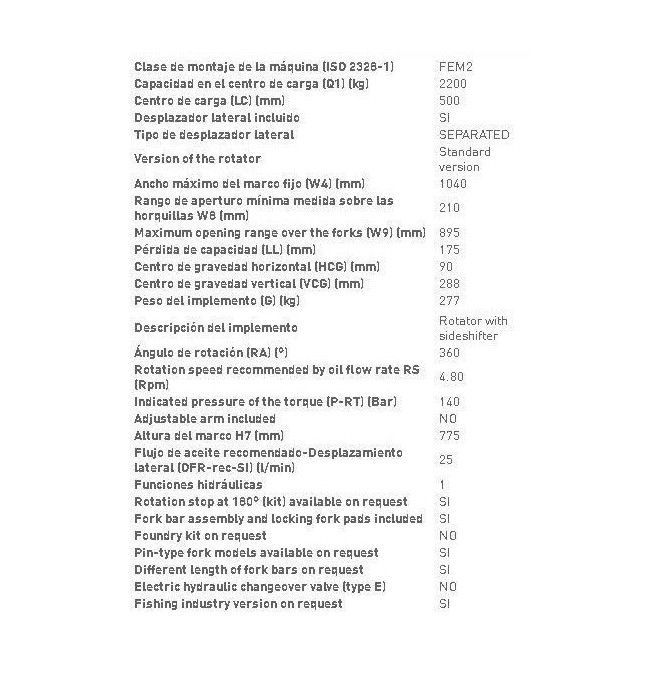

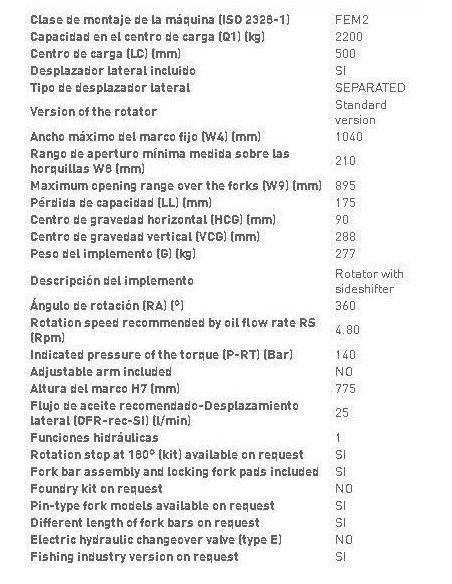

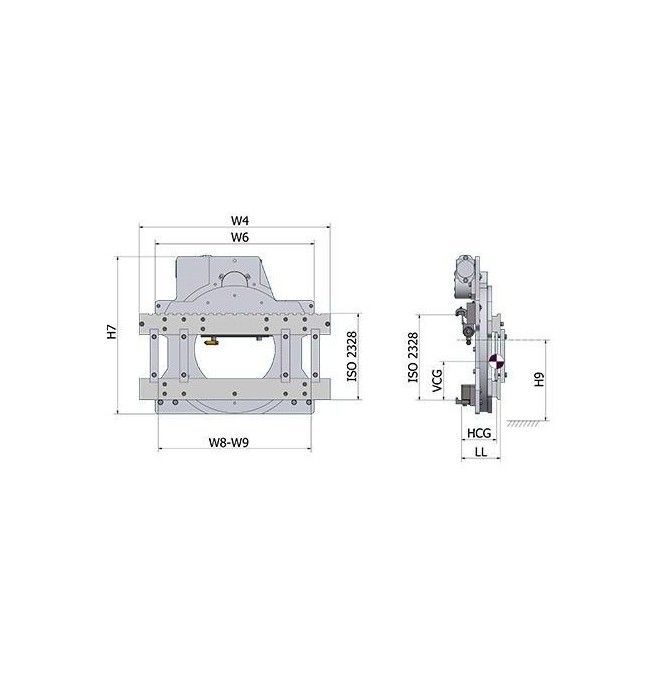

CHARACTERISTICS TECHNICALS
|
Machine assembly class (ISO 2328-1) |
FEM2 |
|
Capacity in loading center (Q1) (kg) |
2200 |
|
Charging center (LC) (mm) |
500 |
|
Side slider included |
YES |
|
Type of lateral scroller |
SEPARATED |
|
Rotator version |
Standard version |
|
Maximum fixed frame width (W4) (mm) |
1040 |
|
Minimal opening range measured on W8 forks (mm) |
210 |
|
Maximum fork opening range (W9) (mm) |
895 |
|
Loss of capacity (LL) (mm) |
175 |
|
Horizontal gravity center (HCG) (mm) |
90 |
|
Vertical gravity center (VCG) (mm) |
288 |
|
Implementing weight (G) (kg) |
277 |
|
Description of attachment |
Rotator with side scroller |
|
Rotation angle (RA) (°) |
360 |
|
Rotation speed recommended according to RS (Rpm) flow |
4.80 |
|
Pressure indicated for torsion (P-RT) (Bar) |
140 |
|
Adjustable arm |
NO |
|
H7 frame height (mm) |
775 |
|
Recommended oil flow - Side removal (OFR-rec-SI) (l/min) |
25 |
|
Hydraulic functions |
1 |
|
Rotaciçon stops at 180° (kit) Available on demand |
YES |
|
Bar Set fork and locking pad included |
YES |
|
Casting kit on request |
NO |
|
Pin forks on request |
YES |
|
Long different forks on request |
YES |
|
Hydro-electric valve (type E) |
NO |
|
Version for fishing ind on request |
YES |
Also available for different load capacities. Consult us
- Load capacity (kg)
- -
- Weight (kg)
- 277
- Description
- Rotador con brazo lateral
- Dimensions (mm)
- -
