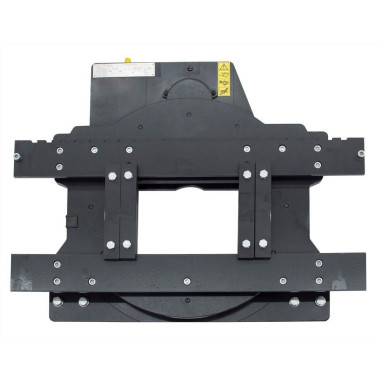

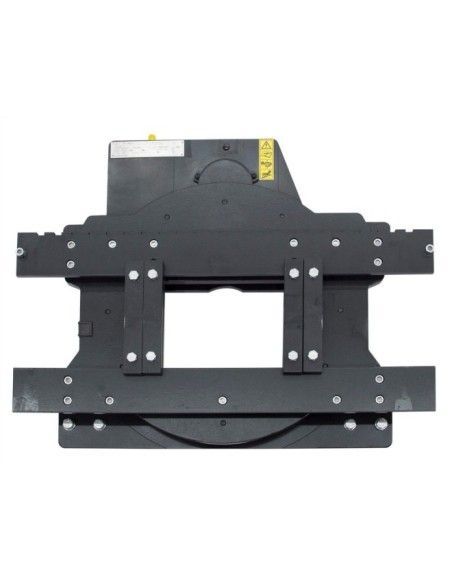

360° Rotator forklift
M103070082
360° Rotator forklift. 2200kg load capacity.
Rotators allow you to rotate the loads on the forks safely and efficiently.
Rotators are generally used in industries such as agriculture, construction, food and drinks. This tool is ideal for different types of machines.
BENEFITS
By using this implement, it will improve productivity and greatly limit the downtime during the discharge of goods.
CHARACTERISTICS
-FEM2 mounting class
-Charge capacity 2200 Kg
-500 mm loading center
-Maximum fixed frame width 1040 mm
-Maximum opening range of 960 mm forks
-Horizontal gravity center 80 mm
-Vertical gravity center 286 mm
-Hydraulic funeral
-360o rotation angle
DEMOSTRATIVE VIDEO

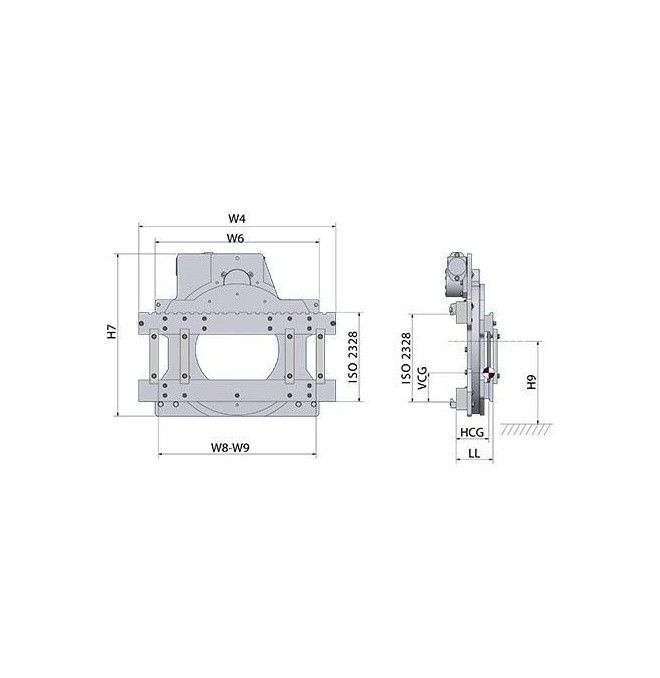

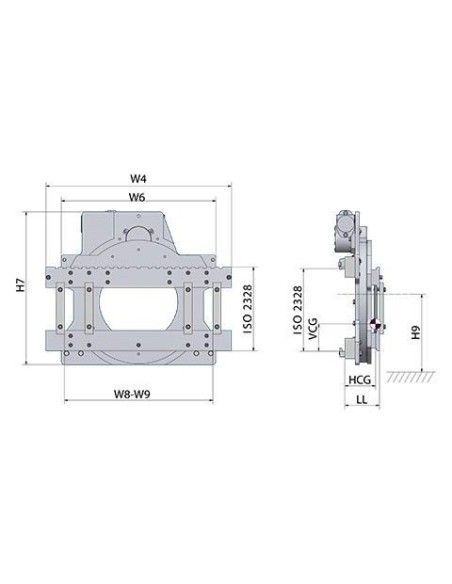

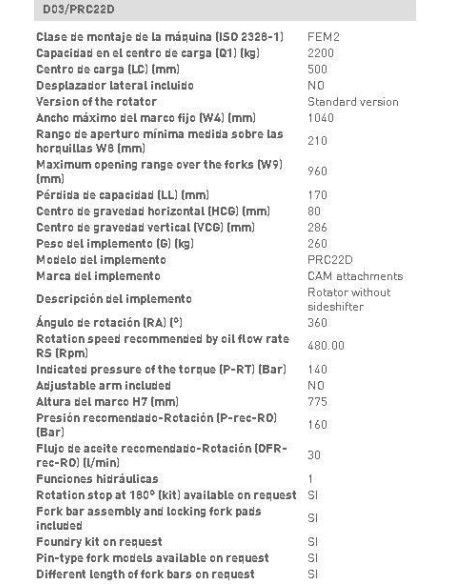

TECHNICAL CHARACTERISTICS
|
Machine assembly class (ISO 2328-1) |
FEM2 |
|
Capacity in loading center (Q1) (kg) |
2200 |
|
Charging center (LC) (mm) |
500 |
|
Side slider included |
NO |
|
Rotator Version |
Standard version |
|
Maximum fixed frame width (W4) (mm) |
1040 |
|
Minimal opening range measured on W8 forks (mm) |
210 |
|
Maximum fork opening range (W9) (mm) |
960 |
|
Loss of capacity (LL) (mm) |
170 |
|
Horizontal gravity center (HCG) (mm) |
80 |
|
Vertical gravity center (VCG) (mm) |
286 |
|
Implementing weight (G) (kg) |
260 |
|
Description of attachment |
Rotator without lateral scroller |
|
Rotation angle (RA) (°) |
360 |
|
Recommended rotation speed according to oil flow (Rpm) |
480.00 |
|
Pressure indicated for torsion (P-RT) (Bar) |
140 |
|
Adjustable arm |
NO |
|
H7 frame height (mm) |
775 |
|
Recommended Pressure-Rotation (P-rec-RO) (Bar) |
160 |
|
Recommended oil flow-Rotation (OFR-rec-RO) (l/min) |
30 |
|
Hydraulic functions |
1 |
|
Rotation stops at 180° (kit) |
YES |
|
Locking fork bar set and pads included |
YES |
|
Casting kit on request |
YES |
|
Pin-type fork models on request |
YES |
|
Long different forks on request |
YES |
Also available for different load capacities. Consult us
- Load capacity (kg)
- -
- Weight (kg)
- 360
- Description
- Rotator with lateral arm
- Dimensions (mm)
- -
