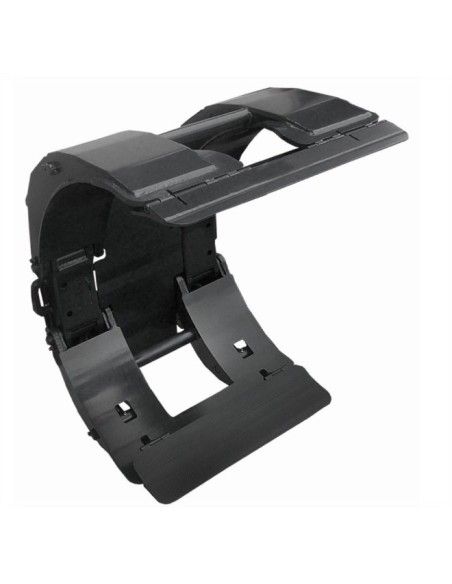

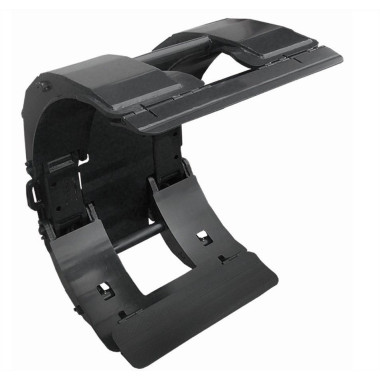

Paper roll clamp forklift
M103070075
Paper coil clips for forklift of 1300kg load capacity and a diameter range of paper roll from 250 to 1100 mm.
Paper coil clips allow you to work with paper coils, regardless of diameter, weight or type of paper.
Paper coil clips are usually used in the paper handling industry.
By using this tool, you will increase your productivity during paper coil handling.
BENEFITS
By using this tool, you will increase your productivity during paper coil handling.
CHARACTERISTICS
-Charging capacity 1300 Kg
- Diameter range of paper rolls 250-1100 mm
-550 mm loading center
-FEM2A mounting class
-Positionable short arm
-Maximum fixed frame width 690 mm
-360o rotation angle
-407 mm suspension strip
-Distance to the floor 56 mm
-Recommended oil filter (l/min): 30
-Includes 2 hydraulic functions
-Different contact surface pads and 180o rotary system on request
DEMOSTRATIVE VIDEO

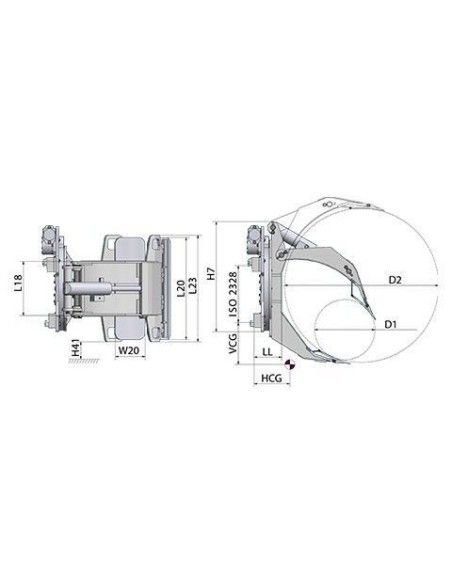

TECHNICAL CHARACTERISTICS
|
Assembly class 1 (ISO 2328) |
FEM2 |
|
Type of assembly class (TY-MOU) |
A |
|
Clamp capacity between the arms in load center (Q2) (kg) |
1300 |
|
Charging center (LC) (mm) |
550 |
|
Minimal diameter of the roll (D1) (mm) |
250 |
|
Maximum diameter of the roll (D2) (mm) |
1100 |
|
Longitude of undivided contact pad (L20) (mm) |
720 |
|
Width of contact pads (mm) |
770 |
|
Width of contact pads (W20) (mm) |
230 |
|
Type of long arm |
Inseparable arm |
|
Type of short arm |
Positionable short arm |
|
Rolls of different diameter handled at once |
1 |
|
Maximum fixed frame width (W4) (mm) |
690 |
|
Loss of capacity (LL) (mm) |
205 |
|
Horizontal gravity center (HCG) (mm) |
230 |
|
Vertical gravity center (VCG) (mm) |
297 |
|
Implementing weight (G) (kg) |
560 |
|
Distance on the arms (L18) (mm) |
690 |
|
Side slider included |
NO |
|
Rotation angle (RA) (°) |
360 |
|
Mounting angle (MA) (°) |
2 |
|
H7 frame height (mm) |
890 |
|
Distance between broken frame to 90o and soil (H41) (mm) |
145 |
|
Suspension range 1 (H4) (mm) |
407 |
|
Ground distance (H6) (mm) |
76 |
|
Description of attachment |
Pinza for rolls of rotary paper |
|
Type of attachment |
CR |
|
Minimal oil flow-Pinza (OFR-min-CL) (l/min) |
20 |
|
Recommended oil flow-Pinza (OFR-rec-CL) (l/min) |
30 |
|
Max-Pinza oil flow (OFR-max-CL) (l/min) |
45 |
|
Hydraulic functions |
2 |
|
Different contact surface pads on request |
YES |
|
Different contact pads (black gum, yellow unmarked rubber, steel, etc) |
YES |
|
Tissu paper models available on request |
YES |
|
180° rotary system, available on request |
YES |
|
Pressure reluctance valve included. |
NO |
|
Pressure gauge included |
NO |
Also available for other load capacities and different diameters of paper rolls. Consult us
- Load capacity (kg)
- -
- Weight (kg)
- 560
- Diameter (mm)
- 250-1100
- Description
- Rotary brush for paper rolls
- Dimensions (mm)
- -
