Bullet launch forklift FEM3
M103070067

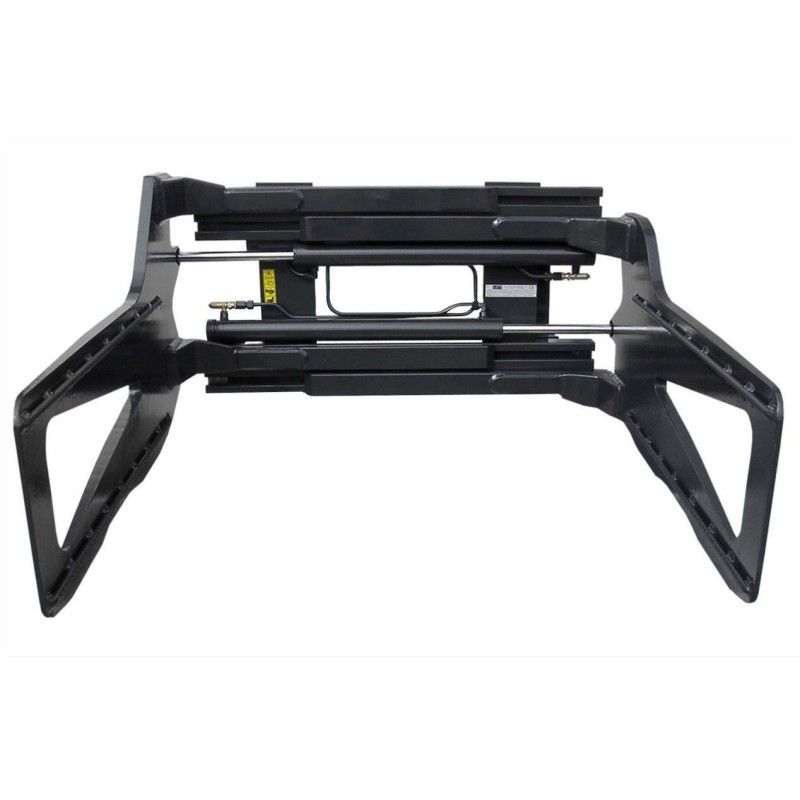

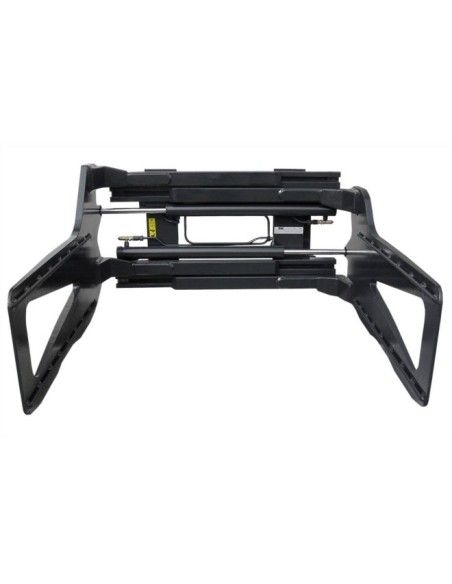

Implementation of bullet clamps for forklift. Application load capacity up to 3000 Kg and opening range from 630 to 2090 mm.
Bullet clamps is an implement for forklift. These implements are able to manipulate most of the materials in bullets, such as paper waste, recycled plastic products, cloth rags, natural and synthetic textile fibres.
This implement has a load capacity of 3000 Kg and has an opening range of 630-2090 mm.
Bullet clamps for forklift are available for different load capacities (from 1800 to 4200Kg) and with variable opening ranges ranging from 460 to 2200 mm.
CHARACTERISTICS
-Rechargeability of the 3000 Kg implement
-Opening range 630-2090 mm
-Clase mounting for FEM3 trucks
-500 mm loading center
-Longitude of armrests 1200 mm
-Side slider included
-Recommended oil filter (l/min):25
-2 hydraulic functions
-Lower fast replacement equipment on request
DEMOSTRATIVE VIDEO

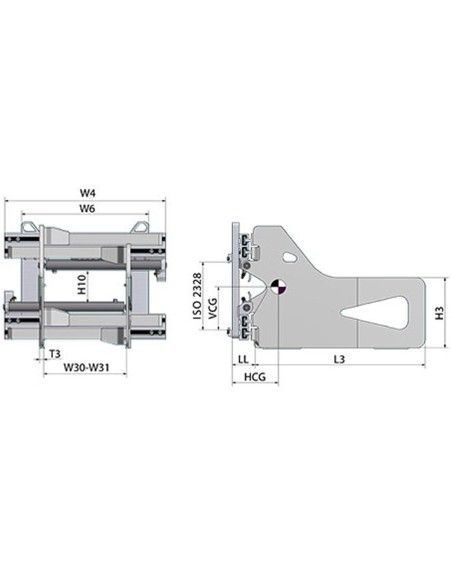

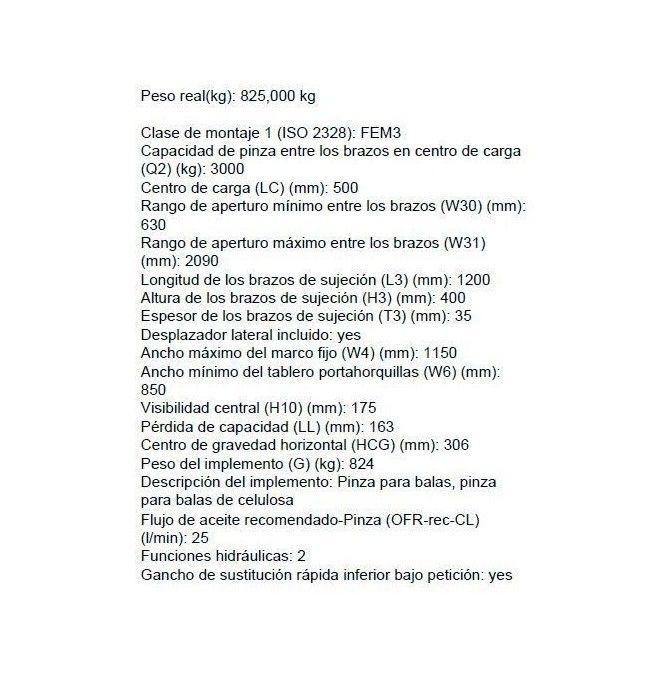

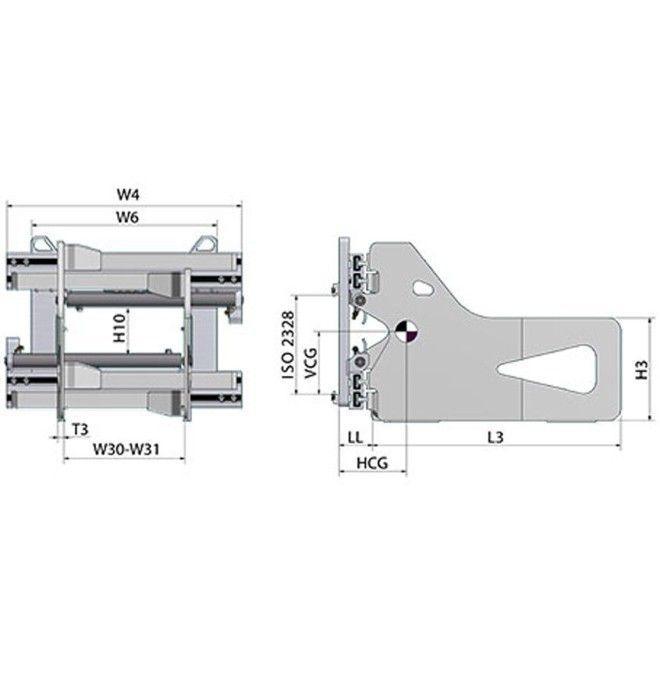

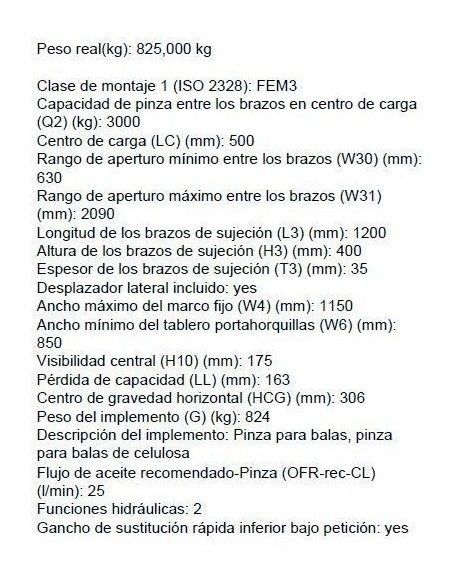

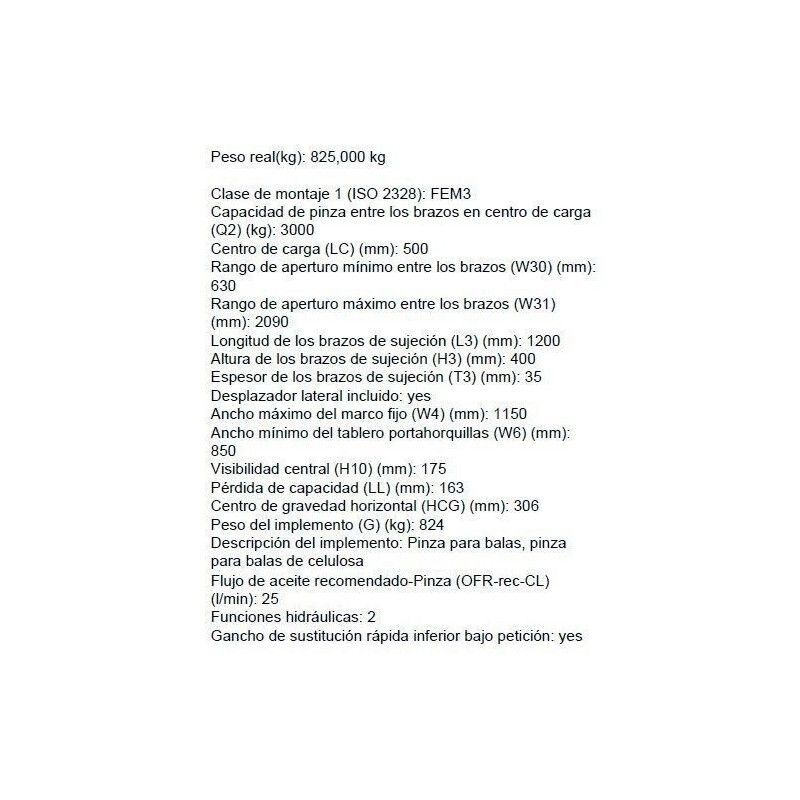

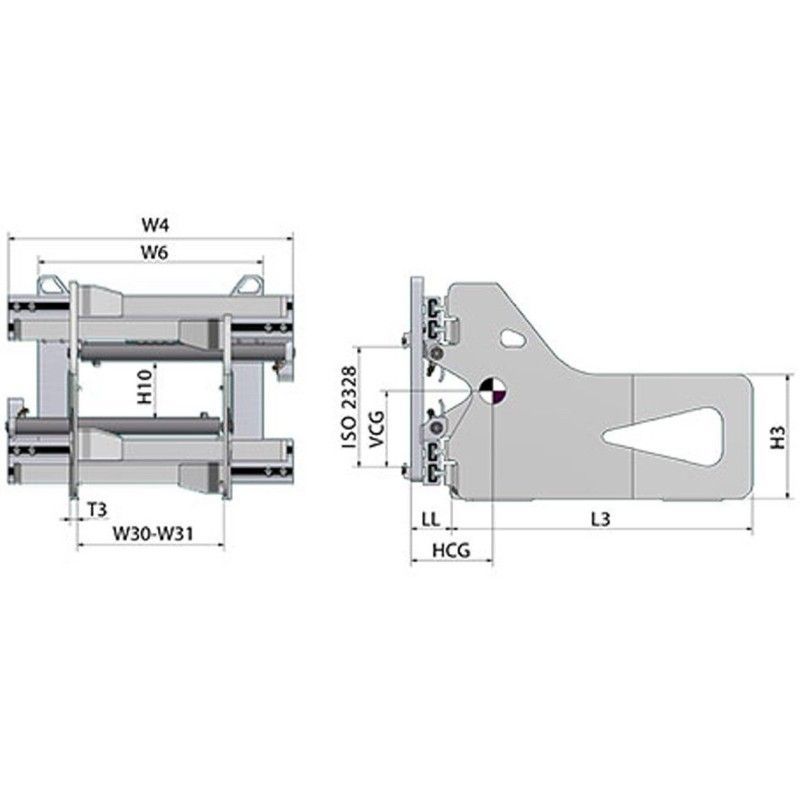

TECHNICAL CHARACTERISTICS
| Assembly class 1 (ISO 2328) | FEM3 |
|---|---|
| Type of assembly class (TY-MOU) | A |
| Clamp capacity between the arms in load center (Q2) (kg) | 3000 |
| Charging center (LC) (mm) | 500 |
| Minimal aperture range between arms (W30) (mm) | 630 |
| Maximum aperture range between the arms (W31) (mm) | 2090 |
| Length of the holding arms (L3) (mm) | 1200 |
| Height of the clamping arms (H3) (mm) | 400 |
| Holding arm thickness (T3) (mm) | 35 |
| Side slider included | YES |
| Type of lateral scroller | Integrated displacement |
| Maximum fixed frame width (W4) (mm) | 1150 |
| Minimum width of the portable board (W6) (mm) | 850 |
| Central visibility (H10) (mm) | 175 |
| Loss of capacity (LL) (mm) | 163 |
| Horizontal gravity center (HCG) (mm) | 303 |
| Vertical gravity center (VCG) (mm) | 264 |
| Implementing weight (G) (kg) | 824 |
| Description of attachment | Bullet clamp, cellulose bullet clamp |
| Suspension range 1 (H4) (mm) | 508 |
| Ground distance (H6) (mm) | 76 |
| No arms included | 2 |
| Minimum Pressure-Pinza (P-min-CL) (Bar) | 100 |
| Minimal oil flow-Pinza (OFR-min-CL) (l/min) | 18 |
| Recommended oil flow-Pinza (OFR-rec-CL) (l/min) | 25 |
| Max-Pinza oil flow (OFR-max-CL) (l/min) | 35 |
| Hydraulic functions | 2 |
| Type of attachment arm | Soldier arms |
| Lower fast replacement hook on request | YES |
*Available in various measures and capacities. Consult us.
