FEM2 2500kg width 1020mm
M103070048
€397.00
397,00 € (tax incl.)

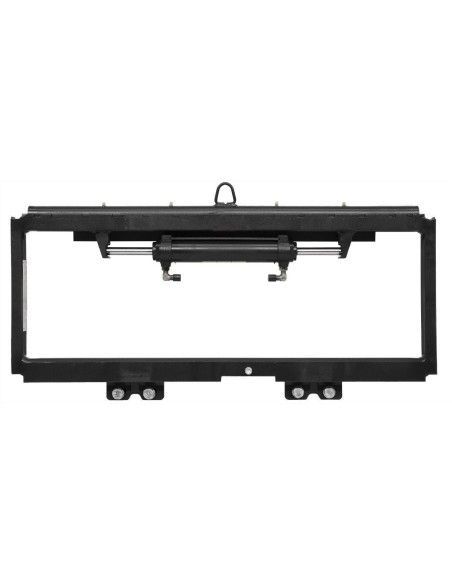

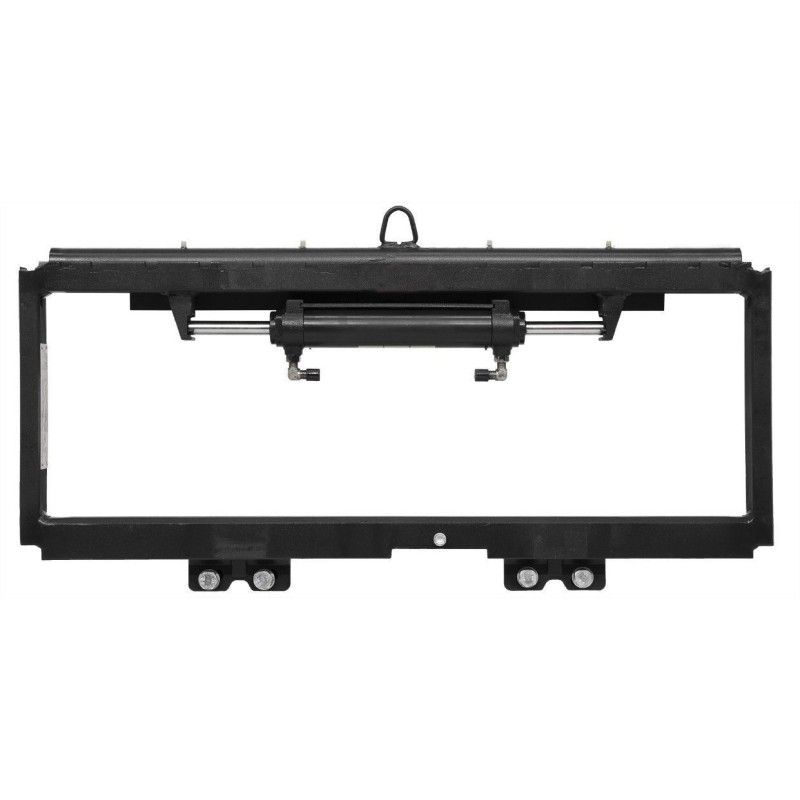

Side slider for forklift (FEM2), with a load capacity of 2500kg and 1020mm wide.
Side shifters are one of the most used lifting implements. It allows you to move a load from one side to another quickly and accurately.
This implement has a load capacity of 2500kg and a width of1020mm.
Side scrollers are usually used in industries dedicated to agriculture, paper handling, construction, food and drinks.
BENEFITS
-Improved operator safety
-Reduction of total handling time
-Damage reduction in pallets and other goods
CHARACTERISTICS
-Capacity at the center of the load of 2500kg
-500 mm loading center
-Clase mounting on FEM2 trucks
-Maximum fixed frame width 1020 mm
-Total side route 100+100 mm

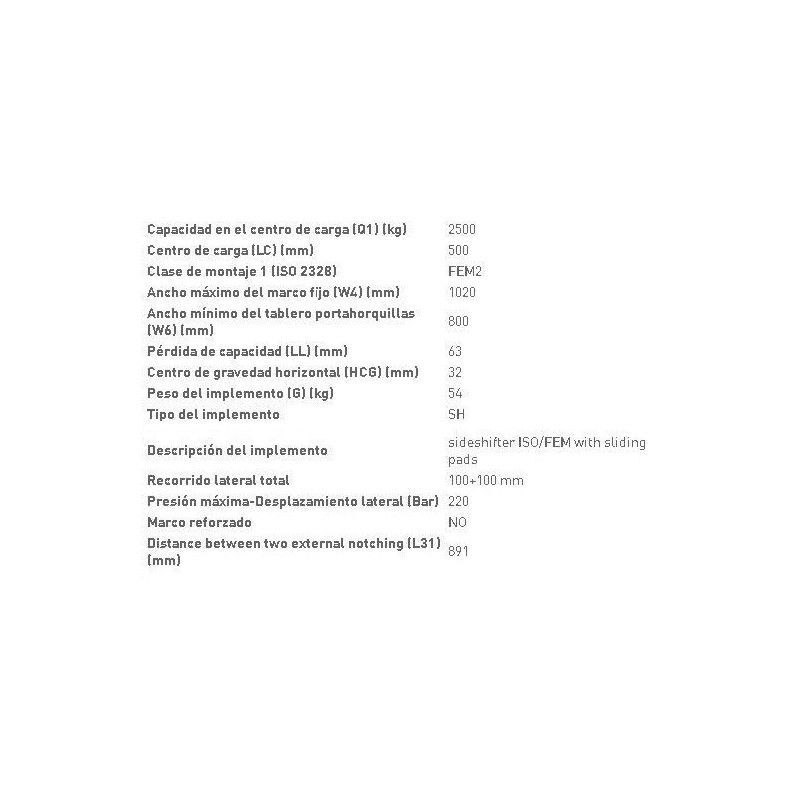

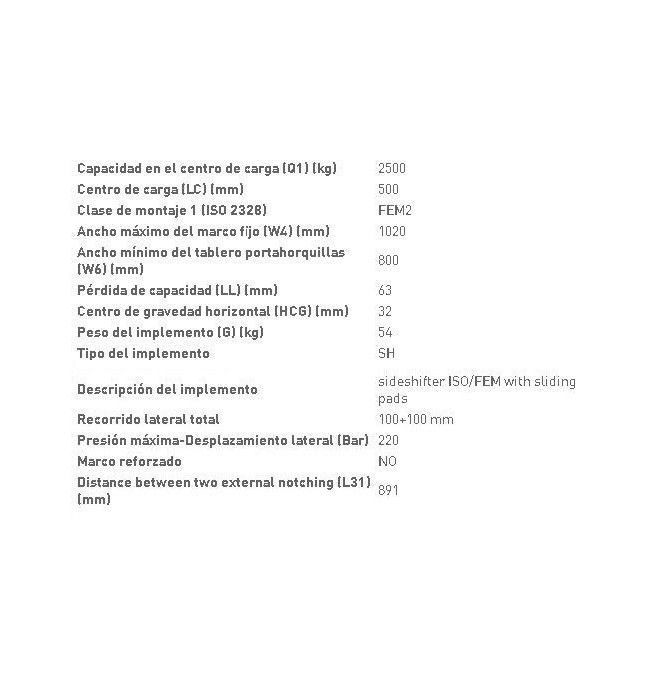

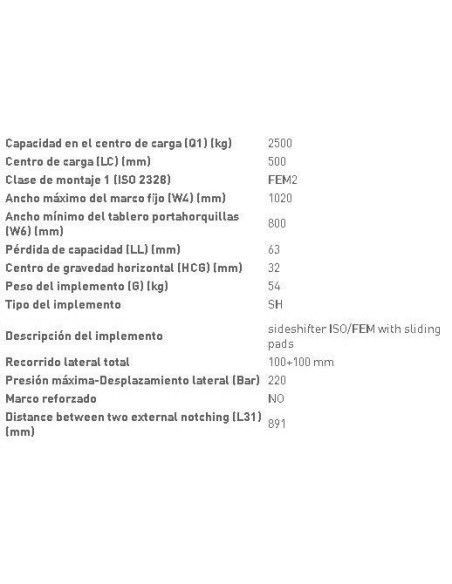

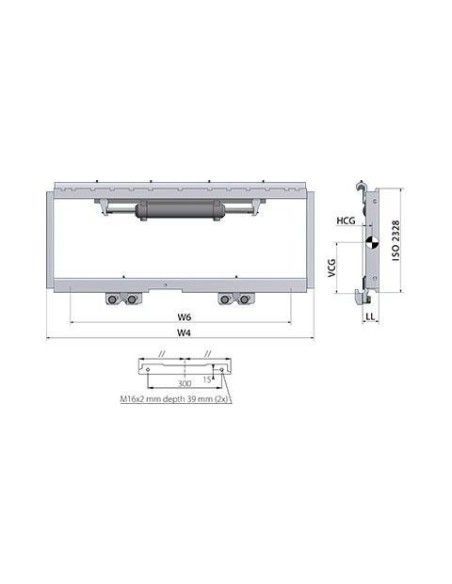

TECHNICAL CHARACTERISTICS
|
Capacity in loading center (Q1) (kg) |
2500 |
|
Charging center (LC) (mm) |
500 |
|
Assembly class 1 (ISO 2328) |
FEM 2 |
|

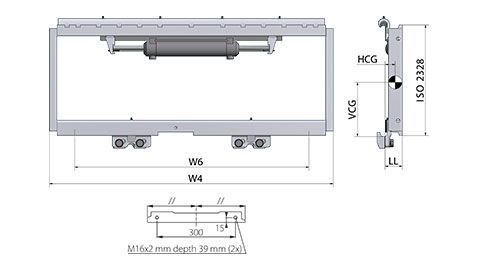

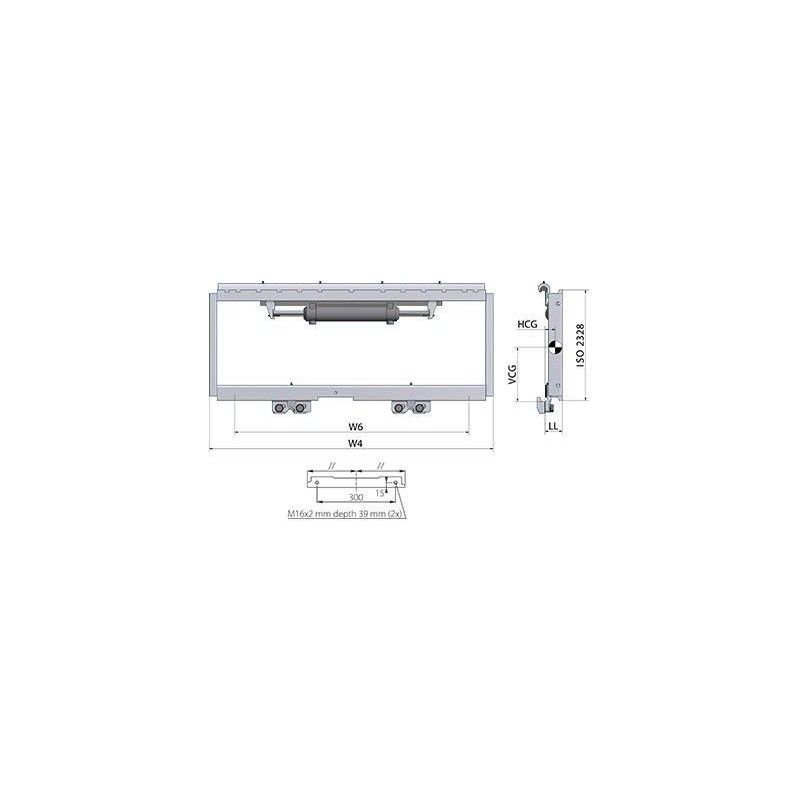

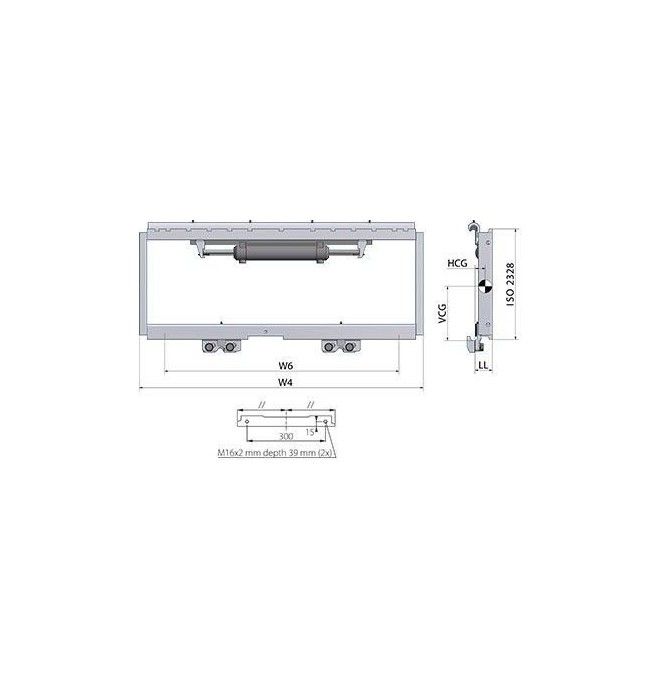

Maximum fixed frame width (W4) (mm) |
1020 |
|
Minimum width of the portable board (W6) (mm) |
800 |
|
Loss of capacity (LL) (mm) |
63 |
|
Horizontal gravity center (HCG) (mm) |
32 |
|
Implementing weight (G) (kg) |
54 |
|
Type of attachment |
SH |
|
Description of attachment |
ISO/FEM2 side slider with slide pads |
|
Total lateral route |
100+100 mm |
|
Maximum Pressure - Side Displacement (Bar) |
220 |
|
Reinforced framework |
NO |
|
Distance between external mosses (L31) (mm) |
891 |
Multiple combinations according to load capacity (from 2500 to 5000 Kg) and according to width (from 920 to 1350 mm). Consult us
- Load capacity (kg)
- 2500
- Weight (kg)
- 54
- Description
- Forklift side shifter
- Dimensions (mm)
- 1020
