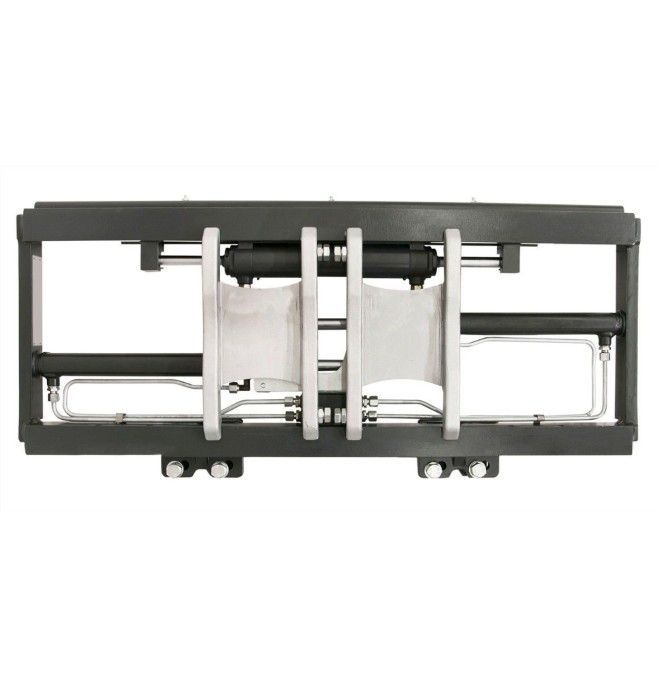

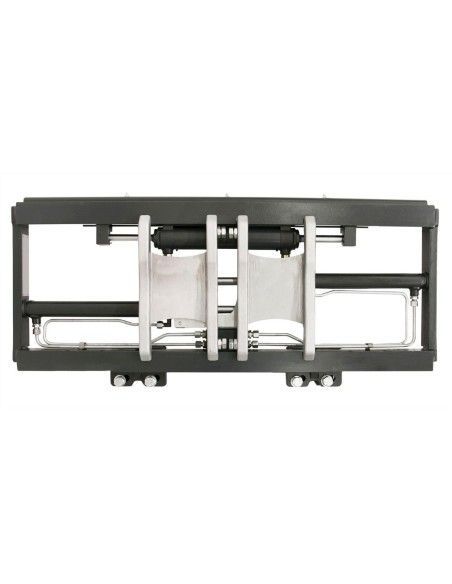

FEM2 Fork Positioner 2500kg, 1020mm wide with Displacer
M103070029
€1,985.00
1.985,00 € (tax incl.)
Fork conditioner for forklift with 2500 Kg of capacity (FEM2) and 1020 mm width. Indicated for forklift Trucks of FEM2.
Fork conditioner for forklift with 2500 Kg of capacity (FEM2) and maximum width of the 1020 mm fixed frame. It allows you to approach or remove the forks hydraulically. Especially useful for the handling and handling of pallets.
Uses: industries engaged in agriculture, paper handling, construction, food and drinks.
BENEFITS
It eliminates the need for manual adjustment of the forks by the operator, being automatic.
It reduces the damage to pallets and the handling of goods.
DEMOSTRATIVE VIDEO
CHARACTERISTICS
-Capacity at the center of load 2500 Kg
-500 mm loading center
-For mounting on FEM2 wheelbarrows
-Rango wide adjustment of the fork 100-125 mm
-Maximum fixed frame width 1020 mm
-Maximum opening range above the wheelbarrow 2090 mm
-Includes lateral scroller, which is independent and with a 100+100 mm route
-It has rear load support on request
-Easy installation of standard forks forklift Trucks
-Recommended maximum length of 1600 mm forks

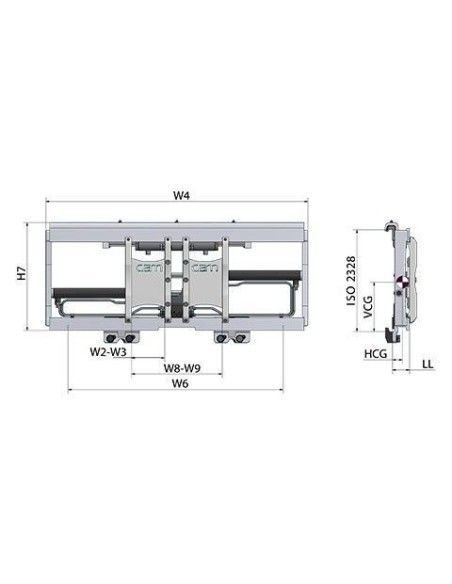

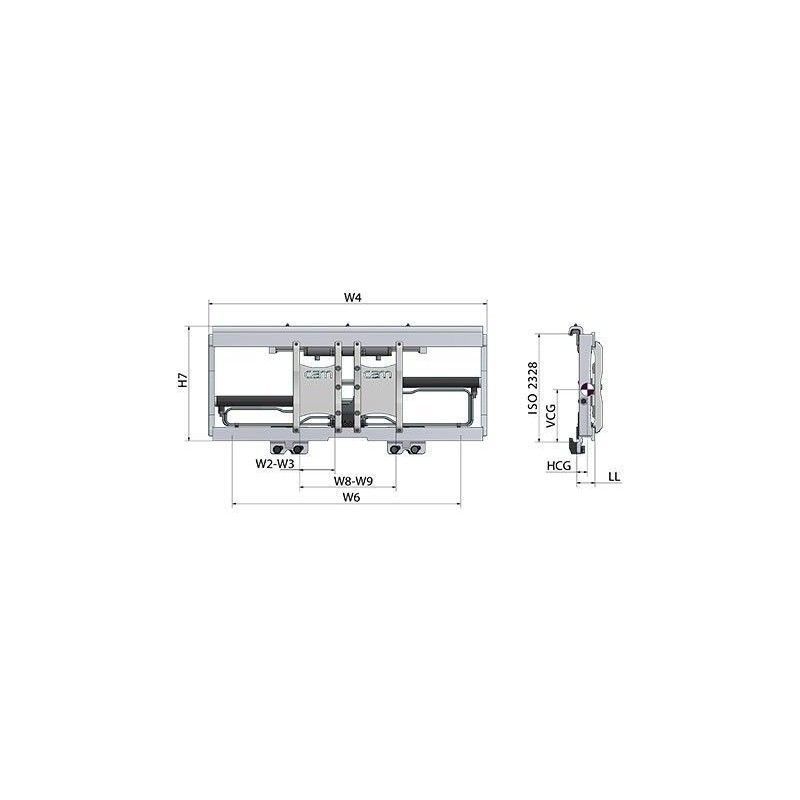

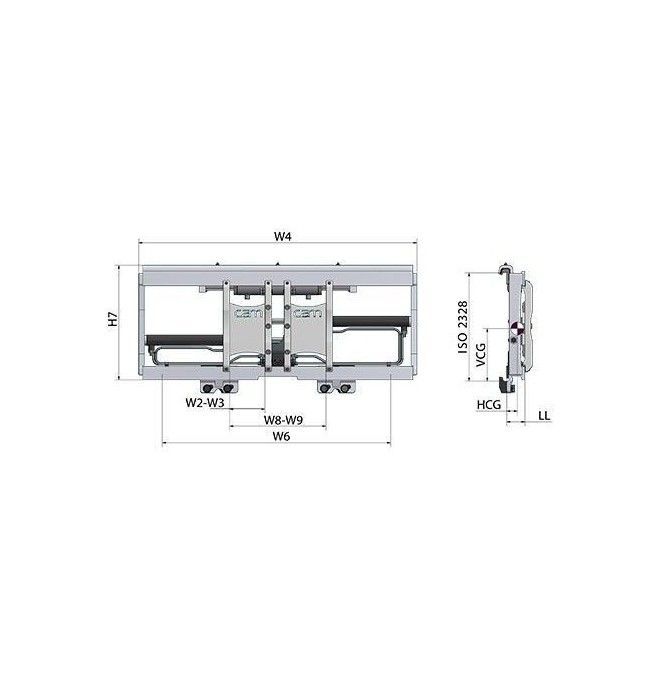

TECHNICAL CHARACTERISTICS
| Assembly class 1 (ISO 2328) | FEM2 |
|---|---|
| Type of assembly class (TY-MOU) | A |
| Clamp capacity between the arms in load center (Q2) (kg) | 2500 |
| Charging center (LC) (mm) | 500 |
| Minimal aperture range between arms (W30) (mm) | 630 |
| Maximum aperture range between the arms (W31) (mm) | 2090 |
| Length of the holding arms (L3) (mm) | 1200 |
| Height of the clamping arms (H3) (mm) | 400 |
| Holding arm thickness (T3) (mm) | 35 |
| Side slider included | YES |
| Type of lateral scroller | Integrated displacement |
| Maximum fixed frame width (W4) (mm) | 1150 |
| Minimum width of the portable board (W6) (mm) | 850 |
| Central visibility (H10) (mm) | 175 |
| Loss of capacity (LL) (mm) | 163 |
| Horizontal gravity center (HCG) (mm) | 303 |
| Vertical gravity center (VCG) (mm) | 264 |
| Implementing weight (G) (kg) | 824 |
| Description of attachment | Bullet clamp, cellulose bullet clamp |
| Suspension range 1 (H4) (mm) | 508 |
| Ground distance (H6) (mm) | 76 |
| Number of arms included | 2 |
| Minimum Pressure-Pinza (P-min-CL) (Bar) | 100 |
| Minimal oil flow-Pinza (OFR-min-CL) (l/min) | 18 |
| Recommended oil flow-Pinza (OFR-rec-CL) (l/min) | 25 |
| Max-Pinza oil flow (OFR-max-CL) (l/min) | 35 |
| Hydraulic functions | 2 |
| Type of attachment arm | Soldier arms |
| Lower fast replacement hook on request | YES |
Multiple combinations according to load capacity (from 2500 to 5000 Kg) and according to width (from 920 to 1350 mm). Side slider (optional). Consult us
- Load capacity (kg)
- 2500
- Weight (kg)
- -
- Width (mm)
- 1020
- Description
- Fork conditioner
- Dimensions (mm)
- -
