Loading ramp Tramex 12m

Loading ramp with tramex

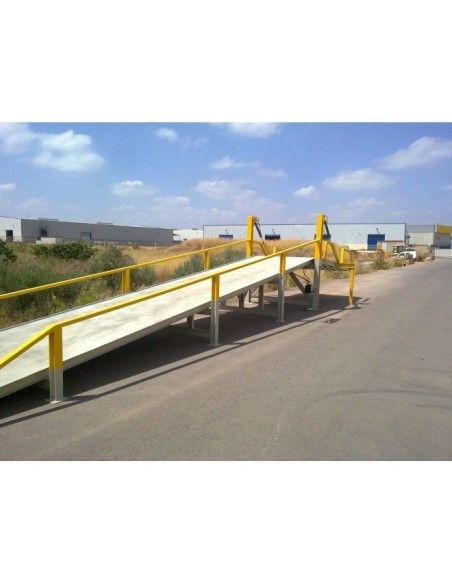

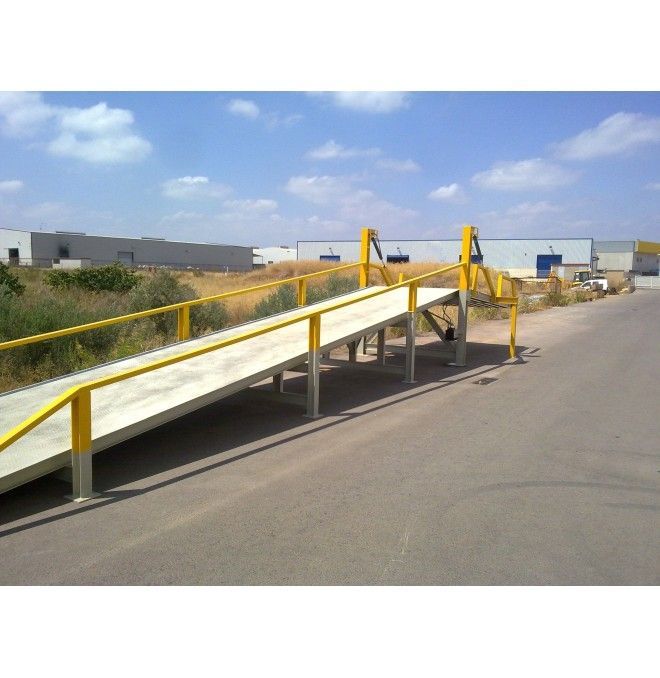

Loading ramp manufactured in Spain, with protective rails in UPN 80mm along the ramp as well as on the loading platform.

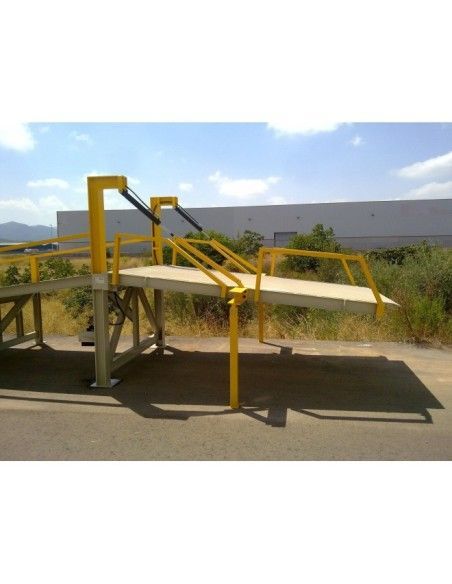

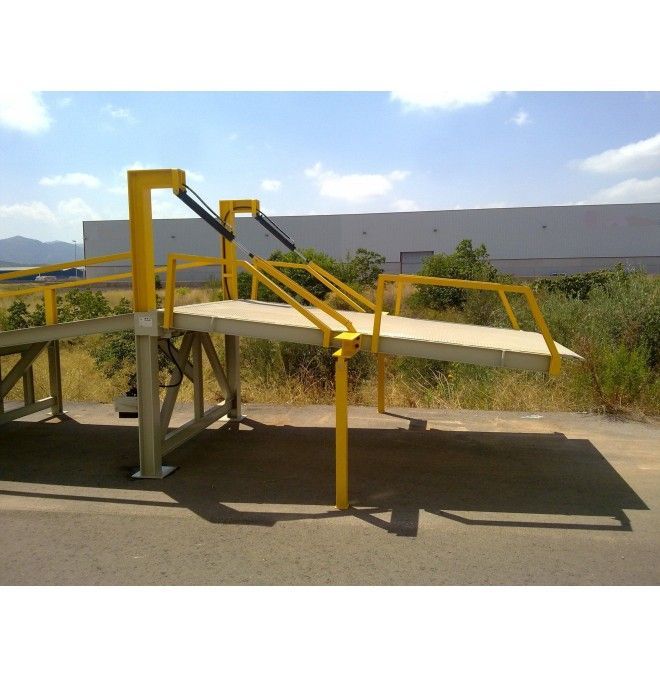

Ramp up from 12m to 2m wide, with a 1’48m (dependent of 7o or 12%). Barandillas protection at UPN 80mm along the ramp as well as on the loading platform. 3’5m folding platform in length for 2’5m width. With 2 hydraulic and manual central cylinders for lifting.

Equipped with belt bearing ramp with 30mm thick galvanized tramex (except lower toe), to avoid slips. Reinforced lower edge, with 10mm support sheet, 10mm plate reinforcements and 6:8mm stud sheet top.

Built with longitudinal beams to avoid undulations in the same (evitates wheel direction and wear problems in the forklift). Length of ramp 12m ideal for outdoor loads (evitates traction problems with wet or wet soil even with double pallet).

Finished and painted with a coat of print and a layer of enamel.

Certificate of conformity: CE and instruction book.

The price indicated does not include transportation, or assembly.
