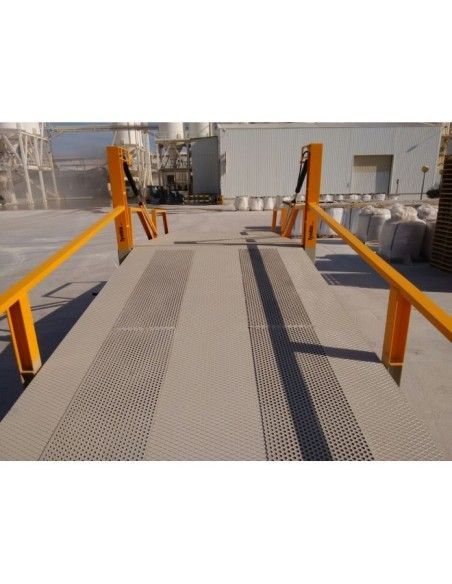

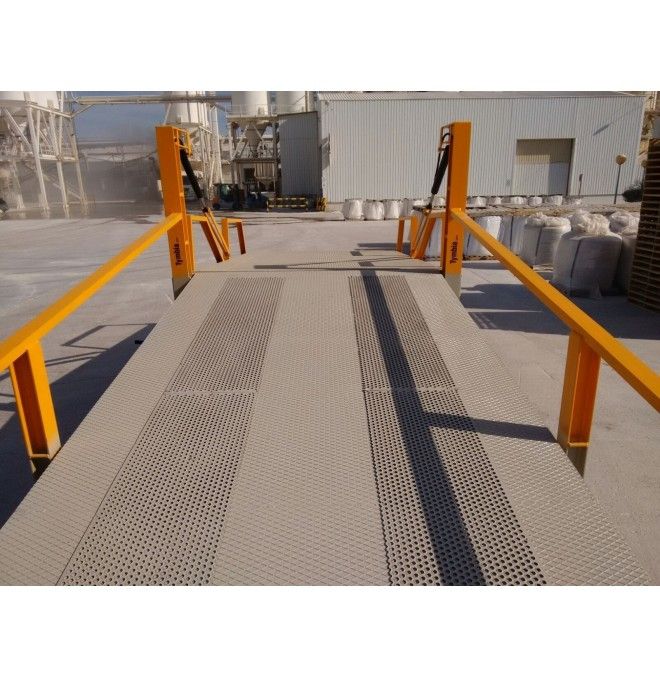

Loading ramp with non-slip sheets

Ramp WITH TRAMEX PASARELS

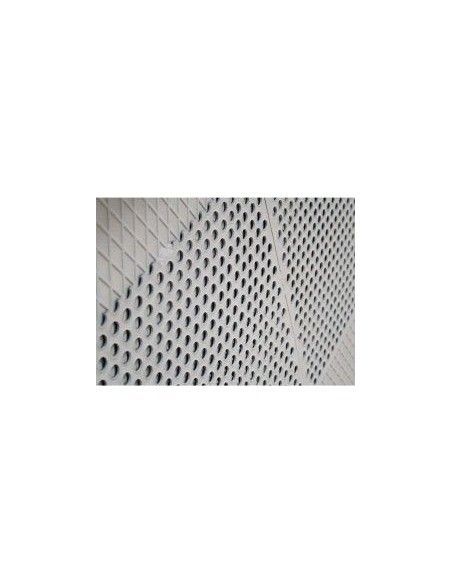

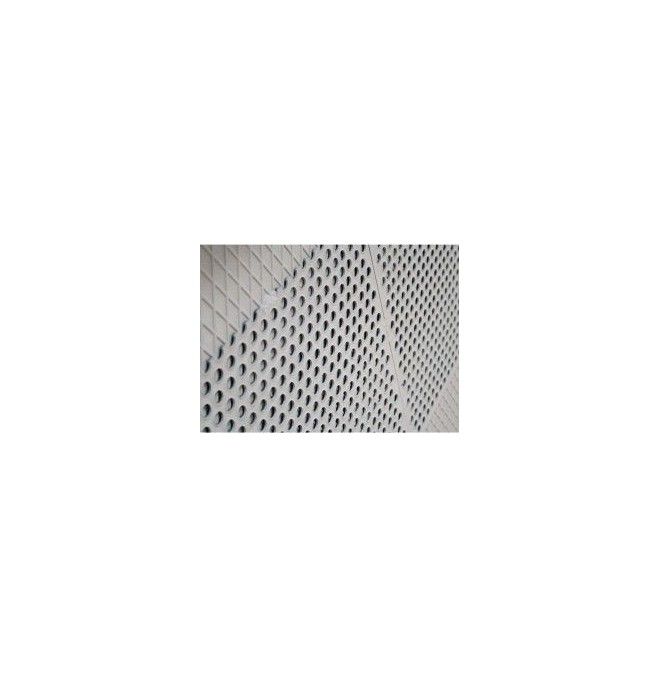

It allows to be used by wheelbarrows where the load weight plus that of the machine does not exceed 10 tonnes. The useful width of the ramp is 2 meters and has a protective rail in both the ramp as on the loading platform. It is suitable for external loads, thanks to Tramex walkways, thus avoiding traction problems.

The loading Ramps Tymbia are manufactured in Spain, equipped with protective rails at UPN 80mm along the ramp as well as on the loading platform.

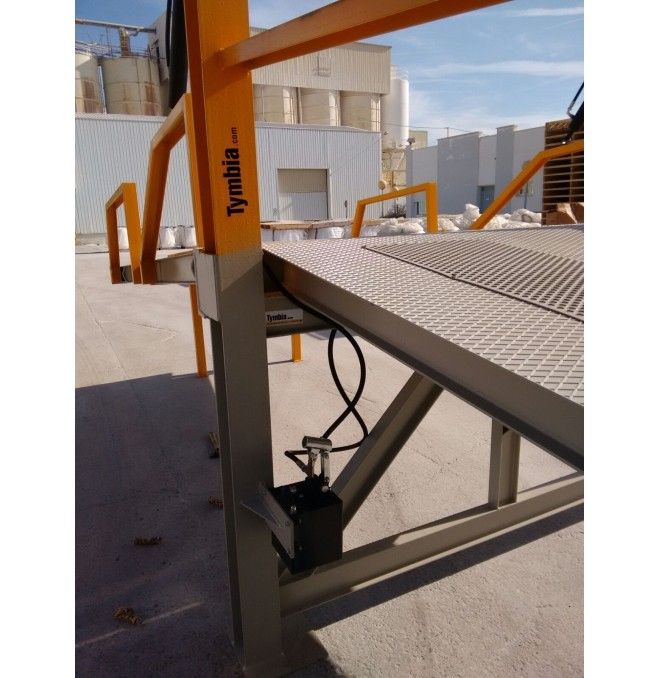

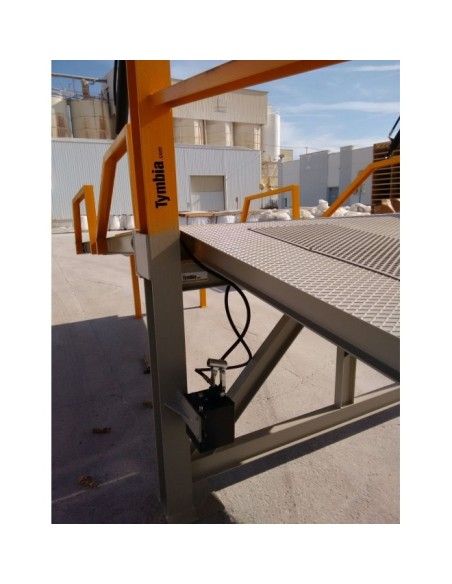

Ramp up from 12m to 2m wide, with a 1’48m (dependent of 7o - 12%). With folding platform of 3’5m length for 2’5m width. With 2 hydraulic and manual central cylinders for lifting.

Built with longitudinal beams to avoid undulations in the same (evitates wheel direction and wear problems in the forklift). Length of ramp 12m ideal for outdoor loads (evitates traction problems with wet or wet soil even with double pallet).

Finished and painted with a coat of print and a layer of enamel.

Certificate of conformity: CE and instruction book.

The price indicated does not include transportation, or assembly.
