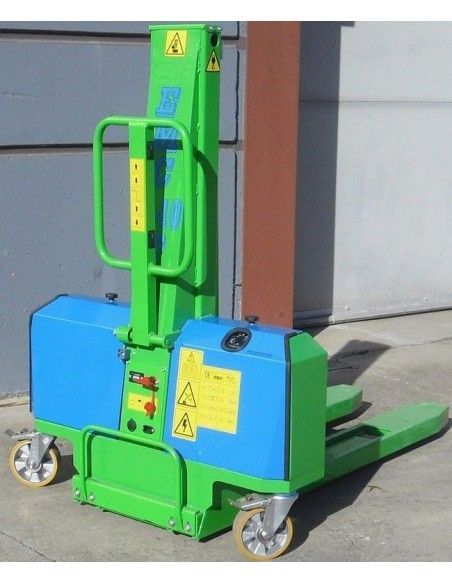

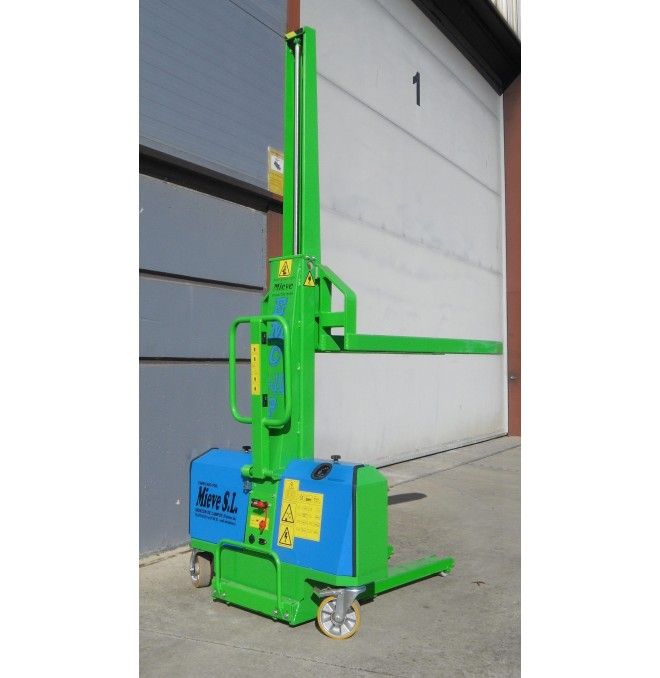

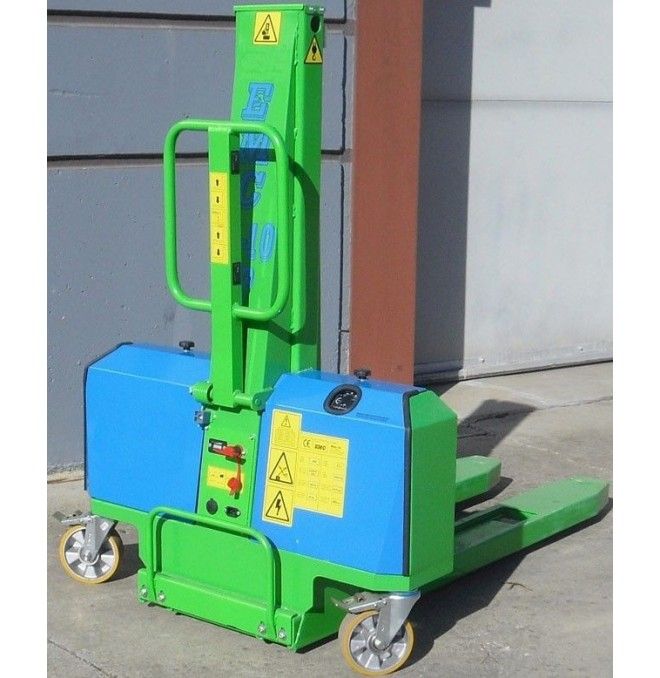

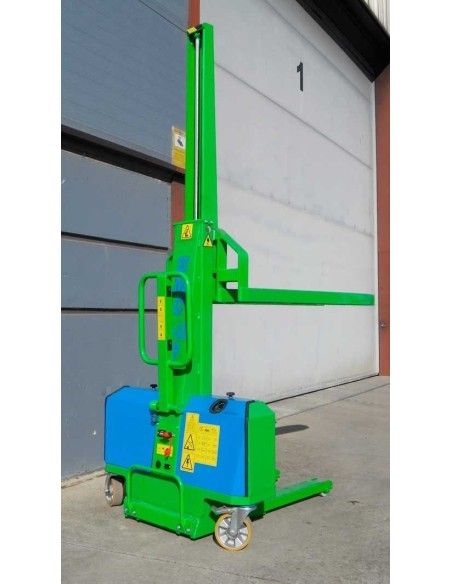

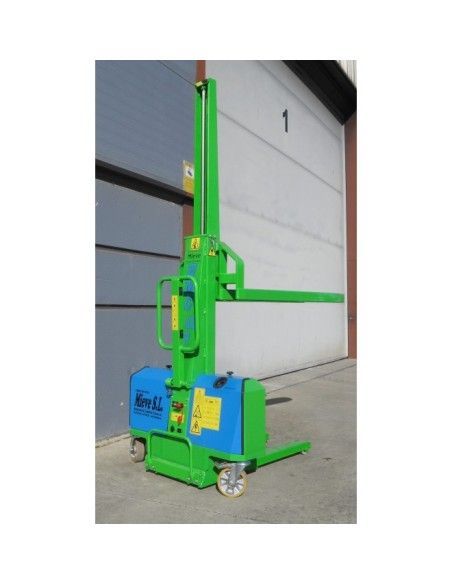

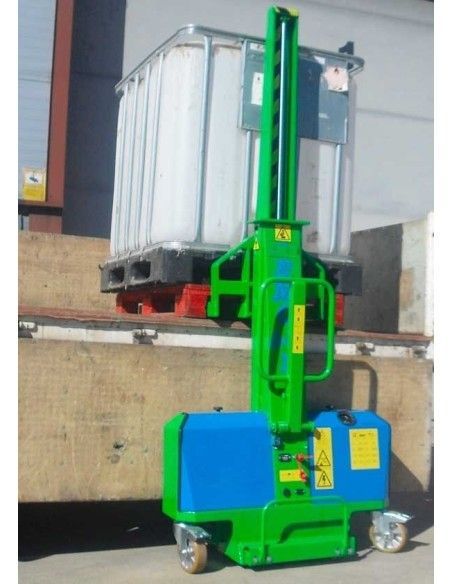

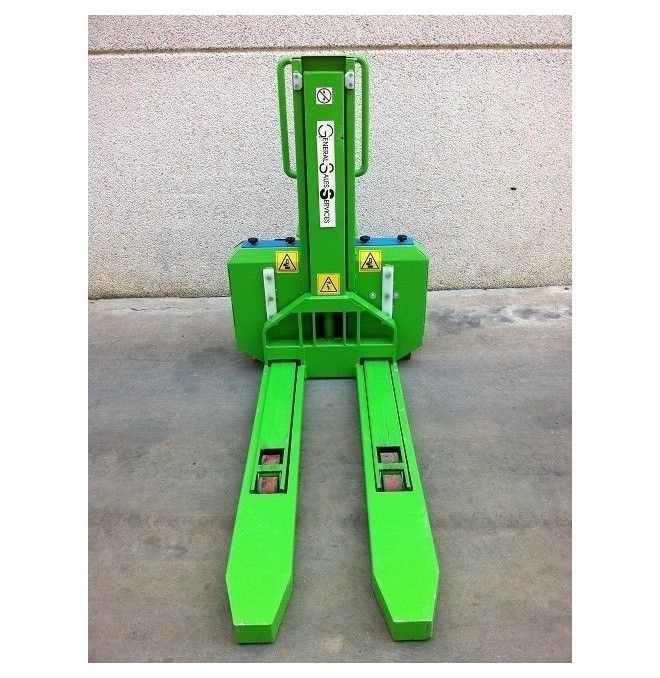

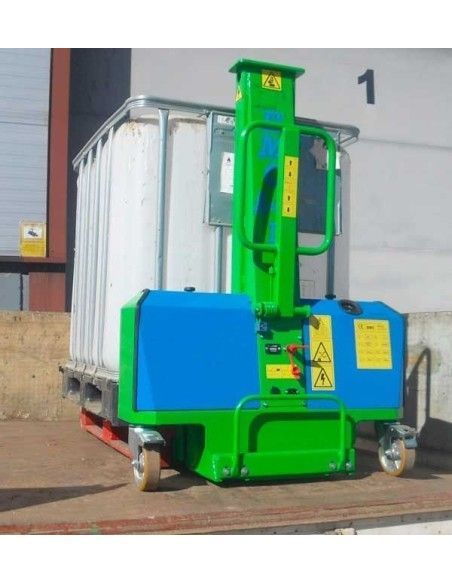

Self-supporting stacker 1000kg to 1050mm
M104040005
€6,249.00
6.249,00 € (tax incl.)
Self-supporting stacker with load capacity of 1000 kg and elevation to 1050 mm.

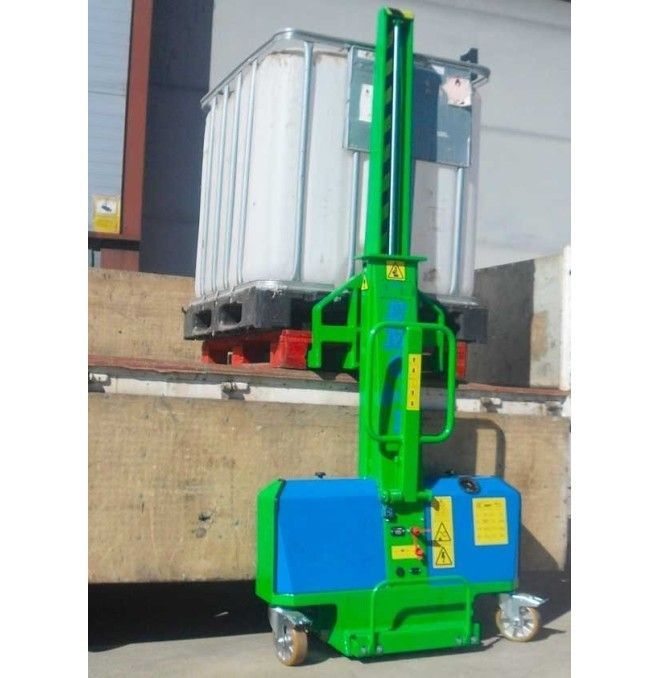

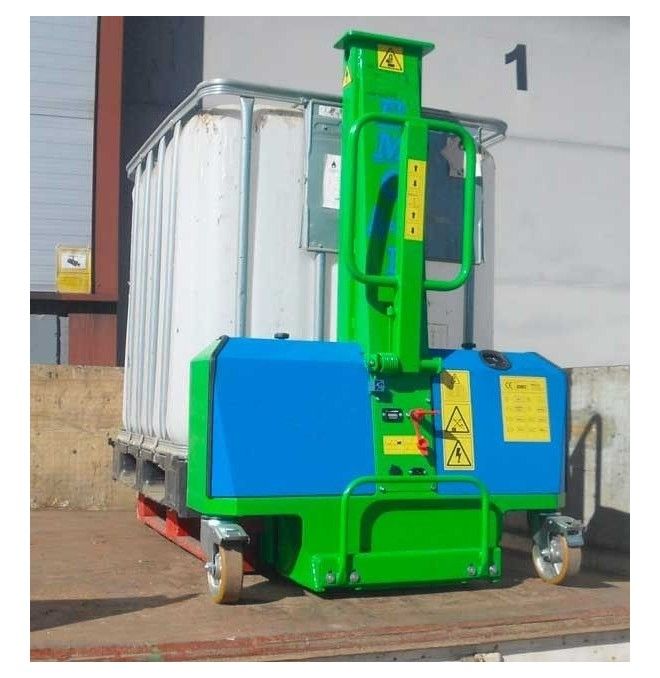

Designed to carry in vans and small trucks.
CE marking.
Self-supporting stacker capacity of 1000kg
Hand-wheel drive and electro-hydric lifting using control rudder.

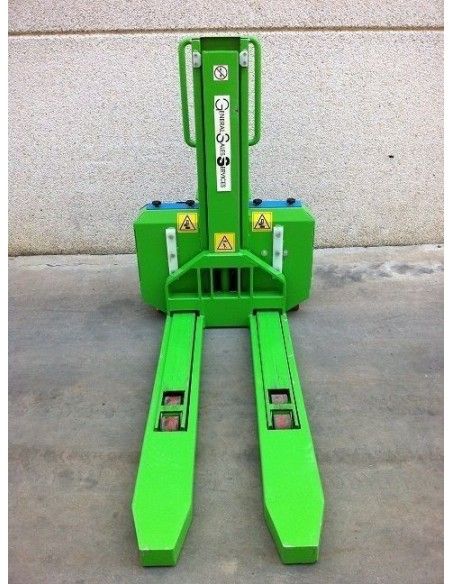

Forks made of 3 mm steel sheet, minimum fork height of 85mm and width of 540mm.
Polyurethane pivot wheel for a perfect movement and facilitate your use within vehicles.
Electric motor 12V - 800 W, battery 12V - 115 Ah
12V - 7Ah loader integrated into the machine.
It includes security systems as a load-limiting valve that does not allow the wheelbarrow to lift more weight than the one specified by the manufacturer.
Antireturn valve that prevents involuntary movements due to lack of fluid
Fusible 20 A avoids overload in the consumption of the lifting circuit
Fusible 125 A avoids overload in engine circuit consumption
Own weight: 290kg
CHARACTERISTICS
- Maximum lift height: 1050mm
- Total length: 1600mm
- Width:1000mm
- Height with mast collected: 1450mm
- Height with extended mast: 2440mm
- Maximum load capacity: 1000kg
- Minimum height fork: 85mm
- Exterior fork: 540mm
- Freight center distance: 600mm
- Electric motor: 12V/800W
- Battery: 12V/115Ah
- Total weight: 295kg
- TYPE
- Semi-electric
- Load capacity (kg)
- 1000
- Lifting height (mm)
- 1050
- Battery
- Lead-acid
- Lifting system
- Electric
- Weight (kg)
- 295
- Width (mm)
- 1000
- Description
- apilador
- Mast height (mm)
- 1450
- Propeller system
- Manual
- Motor (W)
- 12V / 800 W
- Height with folded mast (mm)
- -
