Loading ramp 12m Standard
M103090001
Loading ramp fixed 12m long and 10 tons capacity.
Loading ramp fixed in Spain

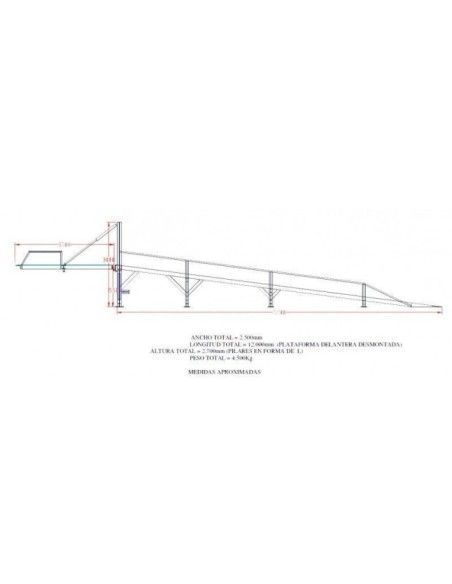

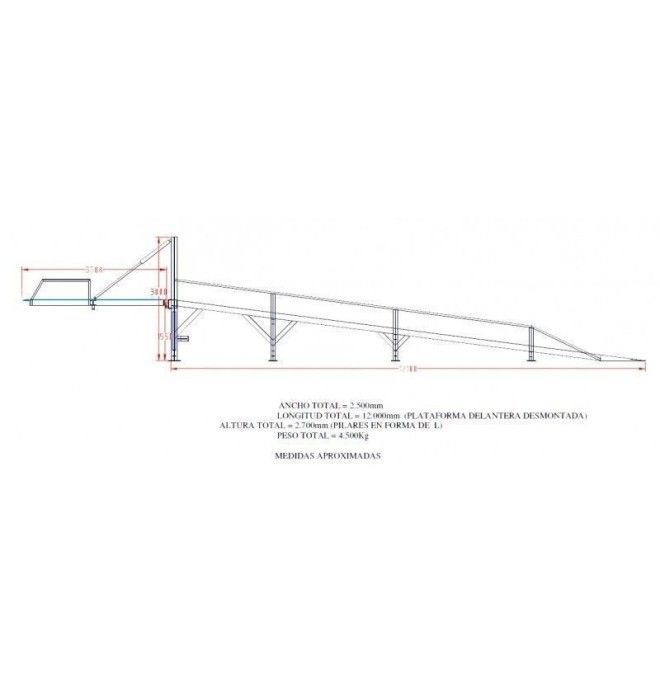

The loading ramp standard has a maximum load capacity of 10 tons, being the length of the ramp 12m and 2m wide, with a 1’48m (dependent of 7o or 12%).
Equipped with protective rails at UPN 80mm along the ramp as well as on the loading platform. And 2 hydraulic and manual central cylinders for lifting.

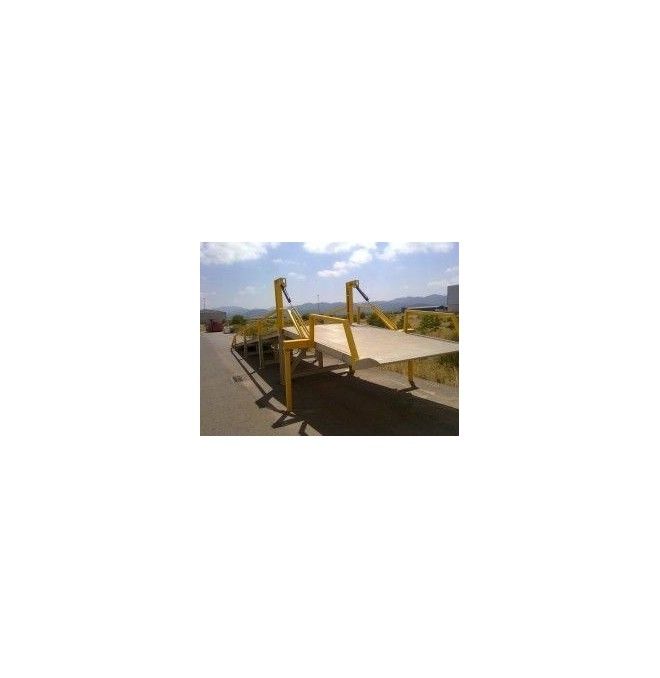

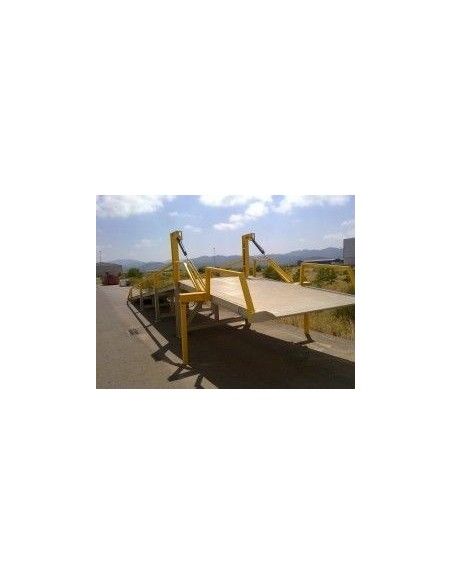

The tilting platform is 3’5m long and 2’5m wide. Ramp ideal for loading and unloading trucks.
It is built with longitudinal beams to avoid undulations in it (evitates wheel direction and wear problems in the forkliftFinished and painted with a layer of printing and another layer of enamel.
With CE certificate and instruction book.
Possibility of custom manufacturing.
The price does not include VAT or transportation.
- Load capacity (kg)
- 10.000
- Description
- Load haul
- Dimensions (mm)
- -
- Wheels
- No, not at all
New
