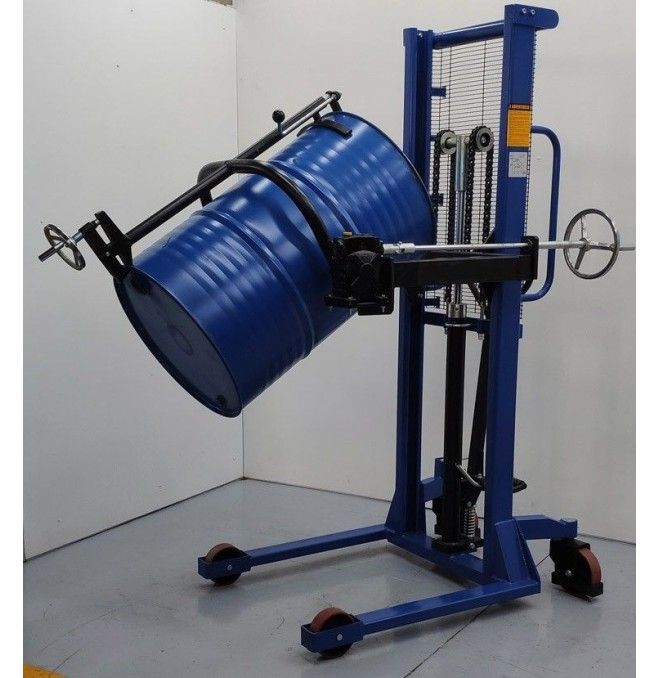

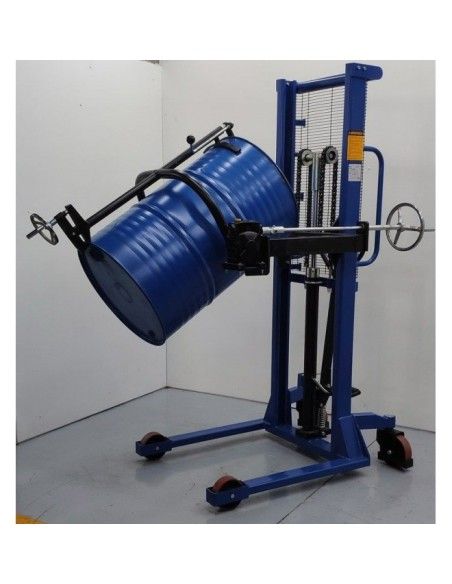

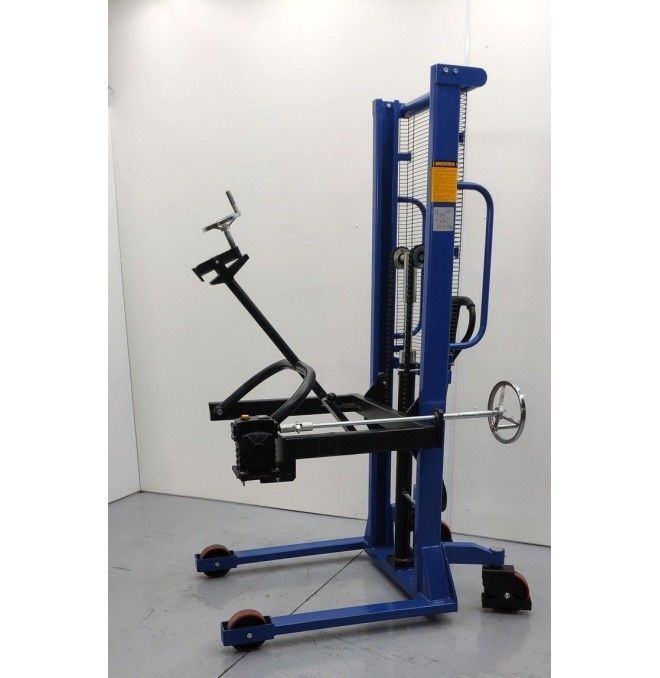

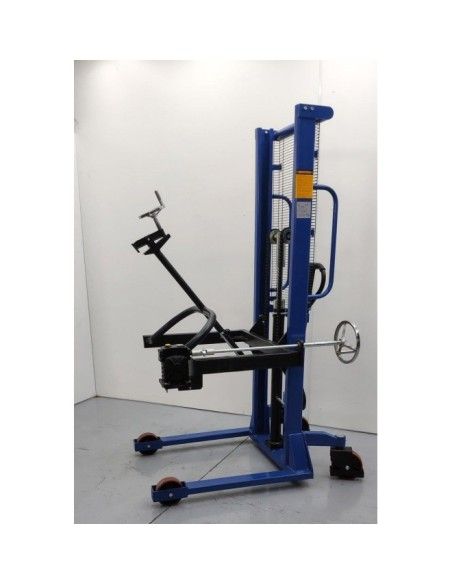

Bidom Rotator Stacker

The drums flying lift, designed to handle drums with great ease thanks to the hand crank and powerful hydraulic pump.

Rotating stacker for both plastic and sheet drums up to 220 liters of capacity. The handler stacker of drums allows to hold the drums easily and safely.

CHARACTERISTICS

• Capacity: 350 kg.
• Lift height of the vertical drum: 1440 mm.
• Minimum drum height: 0 mm.
• Maximum drum diameter: 590 mm.
• Outside width of legs: 835 mm.
• Inside width of legs: 660 mm.
• Lifting speed: 16 mm/print.
• Decreasing speed: Controlable.
• Total length: 1300+80 mm.
• Total width: 960 mm.
• Mast height: 2040 mm.
• Front wheels: Polyurethane 150x50 mm .
• Rear wheels: Polyurethane 180x50 mm .
• Minimum distance to the floor: 50 mm.
• Maximum turn radio: 1870 mm.
• Total weight: 155 Kg.
