- On sale!
5000kg tilt crane capacity, 3700mm length
M103010012
€2,939.00
2.939,00 € (tax incl.)

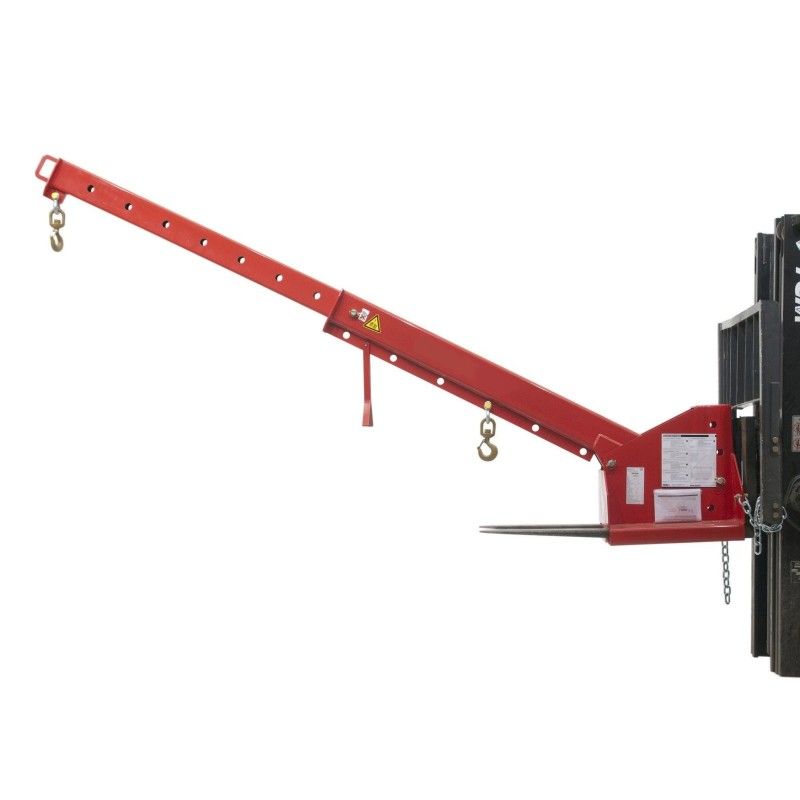

Crane for forklift with load capacity up to 5,000 kg and extendable arm up to 3700mm.
Implement arm tilt crane, mounted on the guy's forks. With positionable arm, 15 available positions, and two hooks.
Its maximum load capacity is 5000kg, being the minimum arm length of 2100kg and the maximum 3700mm.
The forks must be maximum of width 180mm and maximum thickness of 70mm. 250kg weight.
| Fixed arm | Extensible | ||||||||||||||
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Ref. M103010013. Capacity 2500kg | |||||||||||||||
| Capacity (kg) | 2500 | 2500 | 2500 | 1800 | 1400 | 1200 | 1050 | 950 | 850 | 770 | 700 | 650 | 600 | 560 | 500 |
| Cargo center (mm) | 700 | 950 | 1200 | 1450 | 1700 | 1950 | 2100 | 2300 | 2500 | 2700 | 2900 | 3100 | 3300 | 3500 | 3700 |
| Ref. M103010012. 5000kg capacity | |||||||||||||||
| Capacity (kg) | 5000 | 3550 | 2750 | 2250 | 1950 | 1700 | 1550 | 1400 | 1300 | 1200 | 1150 | 1050 | 1000 | 950 | 900 |
| Cargo center (mm) | 700 | 950 | 1200 | 1450 | 1700 | 1950 | 2100 | 2300 | 2500 | 2700 | 2900 | 3100 | 3300 | 3500 | 3700 |
- Load capacity (kg)
- 5.000
- Total length (mm)
- 3700
- Weight (kg)
- 250
- Description
- Crane
- Dimensions (mm)
- -
- Extendable arm (mm)
- From 2100 to 3700
New
