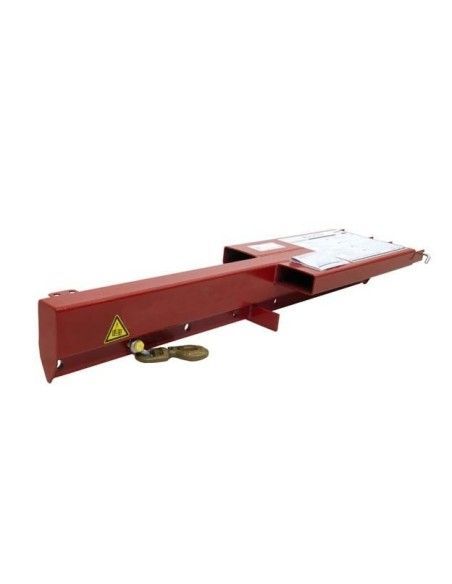

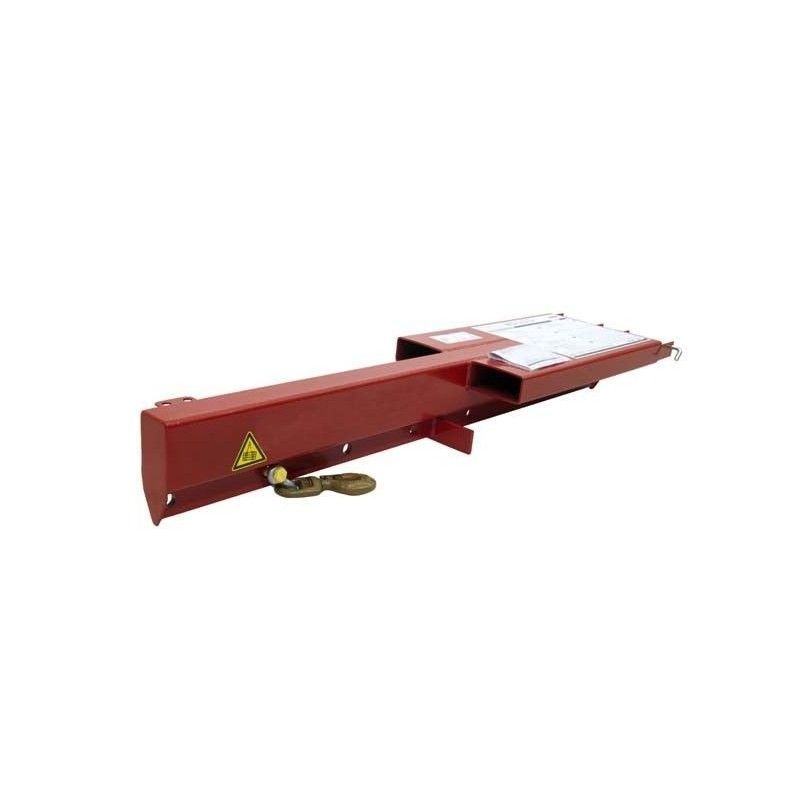

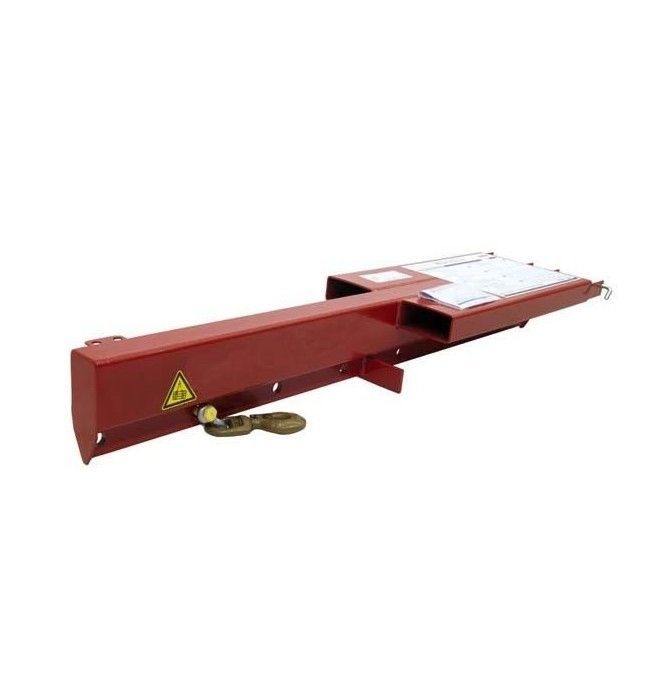

Arms Crane Fijo of 4000kg capacity, 1750mm length
M103010010
€1,090.00
1.090,00 € (tax incl.)
Implementation crane for forklift 4000kg load capacity and arm of 1750mm maximum length. Separation between the forks: 100mm.
Crane fixed position with mounting on forks, with a hook to make the function crane. The maximum width of the fork is 155 mm and the thickness of 60mm. Separation between the forks: 100mm.
In the table below you can see the attachment load capacity diagram craneThe following:
| REF | Charging centre 500mm 1 (kg) | Charge center 750mm 2 (kg) | Charging center 1000mm 3 (kg) | Charging centre 1250mm 4 (kg) | Charging center 1500mm 5 (kg) | Charging center 1750mm 6 (kg) | Maximum arm length (mm) |
| M103010011 | 2000 | 1800 | 1600 | 1200 | 900 | 600 | 1750 |
| M103010010 | 4000 | 3800 | 3200 | 2500 | 1900 | 1100 | 1750 |
- Load capacity (kg)
- 4.000
- Total length (mm)
- 1750
- Weight (kg)
- 100
- Description
- Crane
- Center of gravity (mm)
- 757
- Dimensions (mm)
- -
- Extendable arm (mm)
- -
