FEM3 360o Carreton
M103070014
€4,899.00
4.899,00 € (tax incl.)

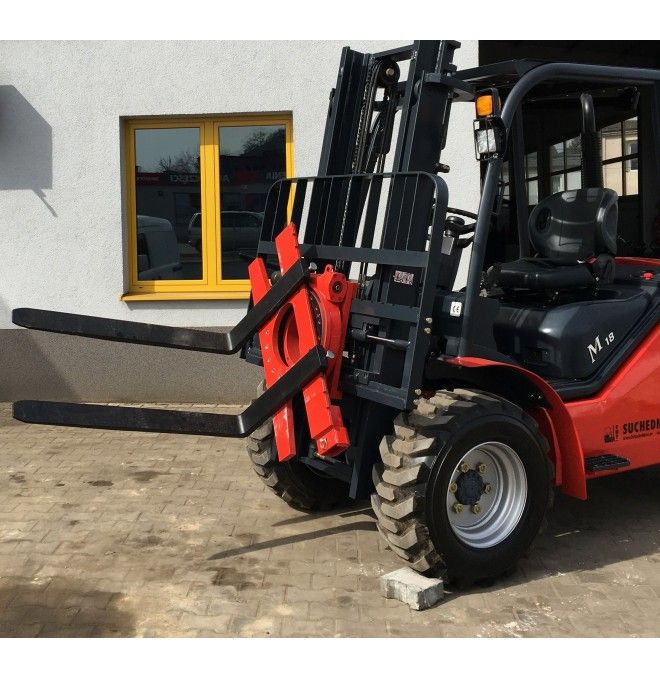

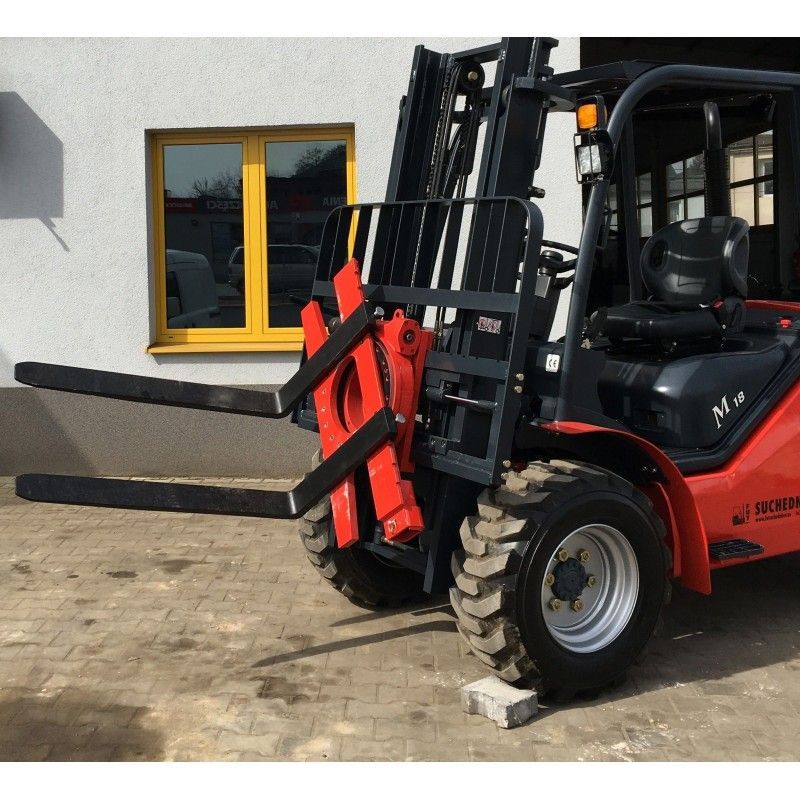

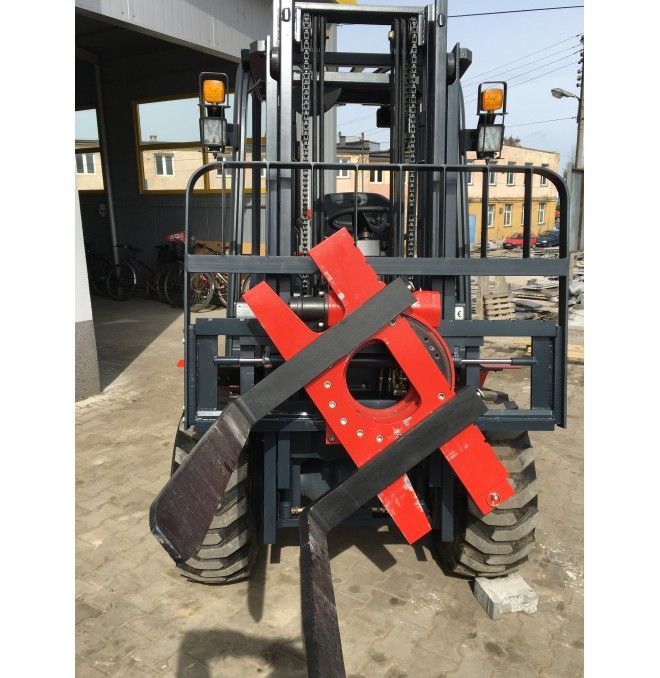

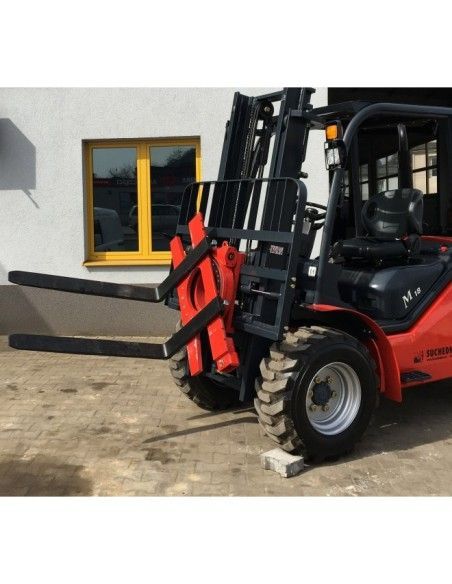

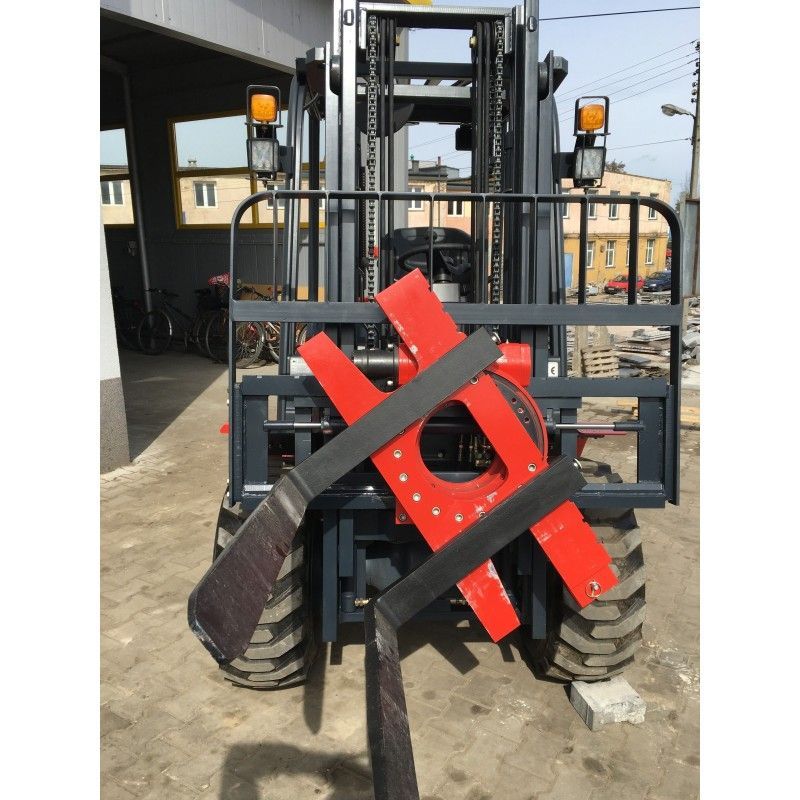

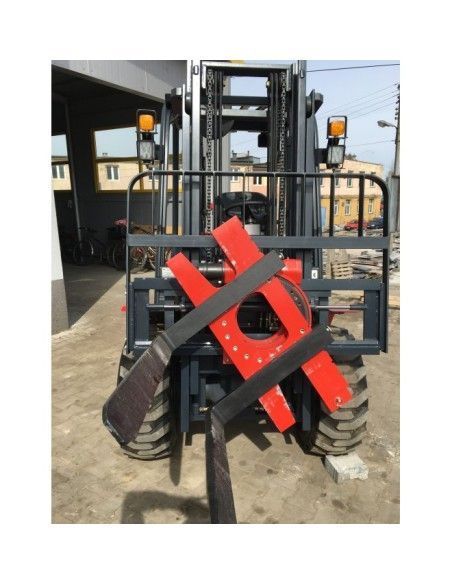

Rotator attachment for forklift 360o, FEM 3.
Rotating board for all torito brands: TCM, Yale, Still, Nissan, Linde, ...

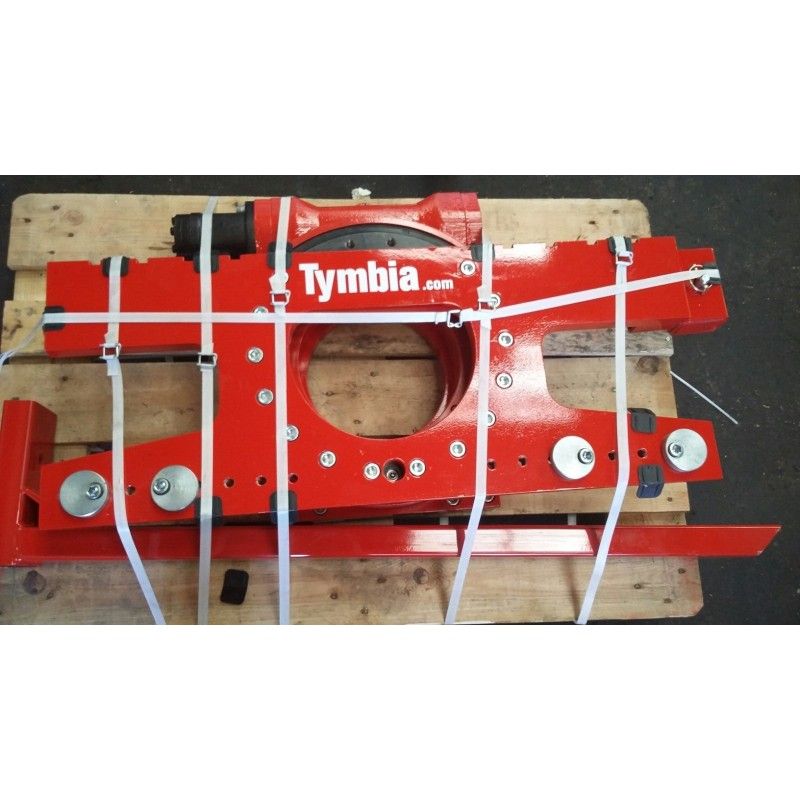

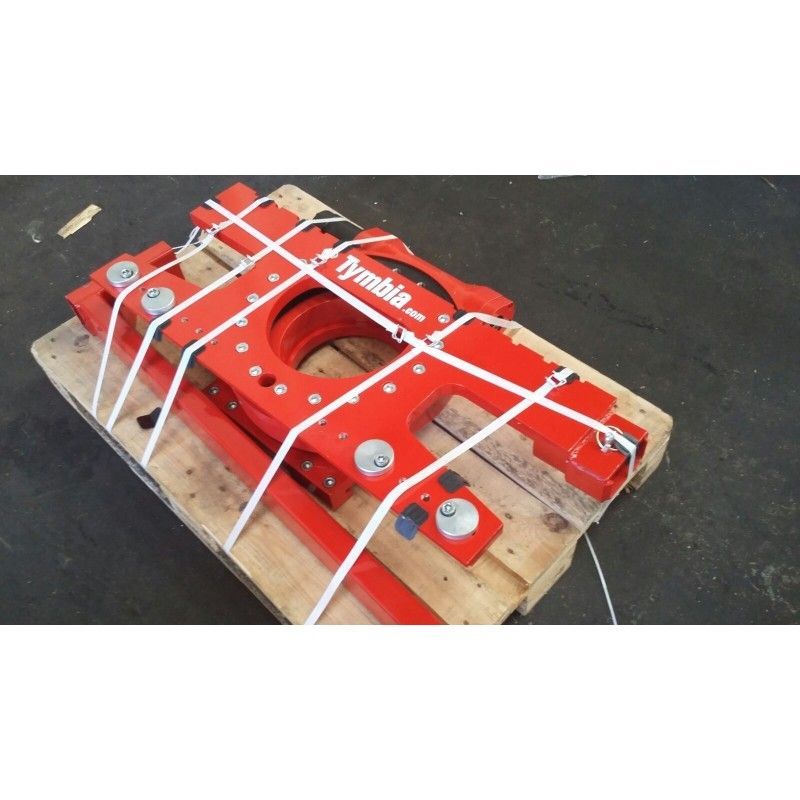

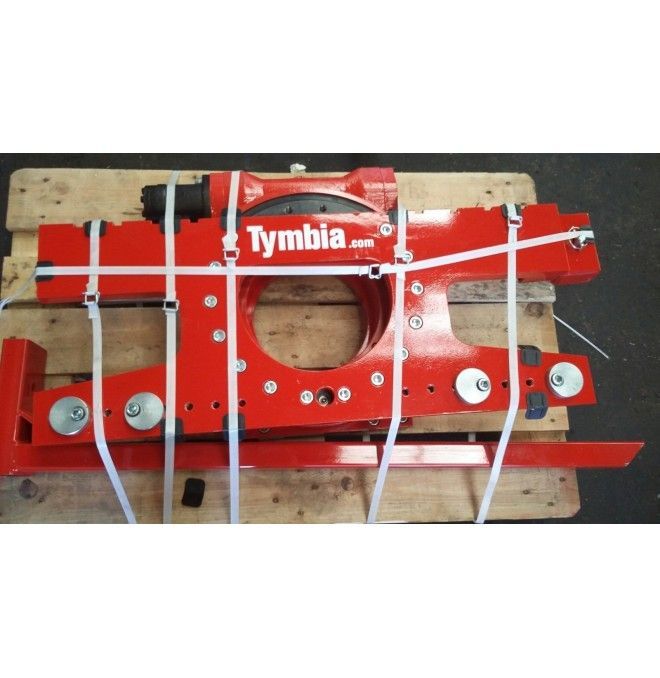

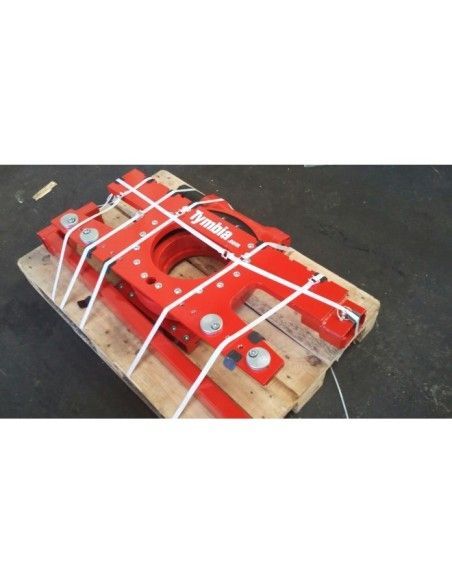

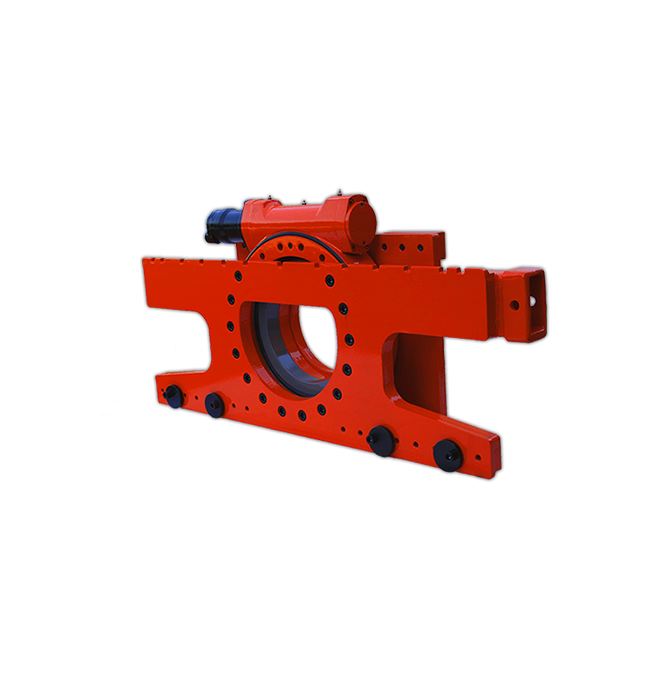

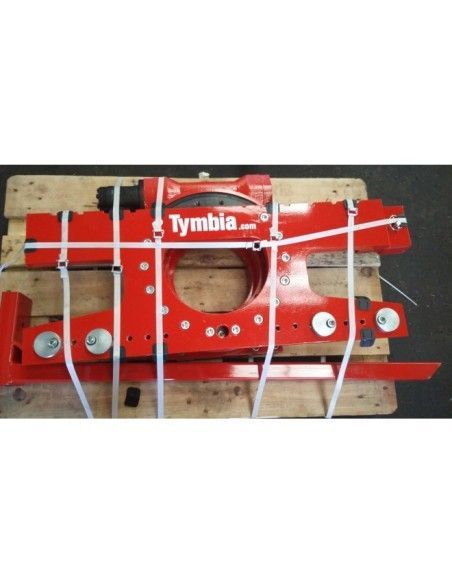

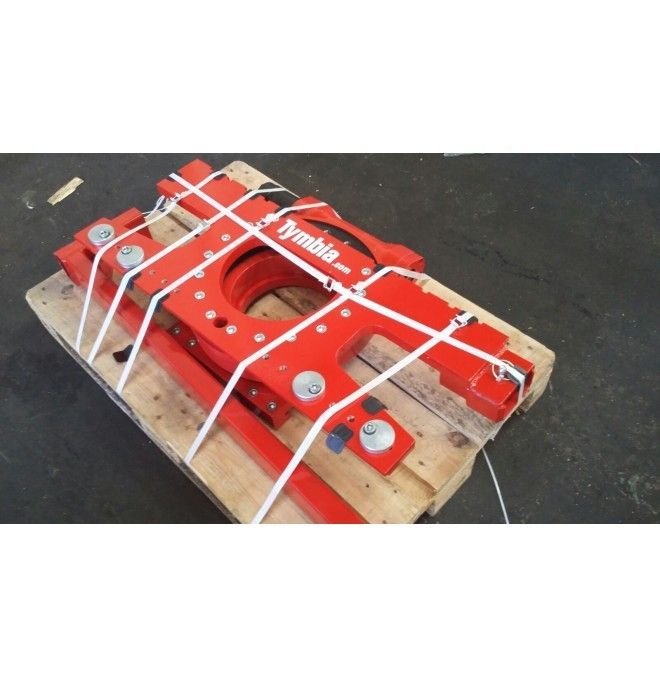

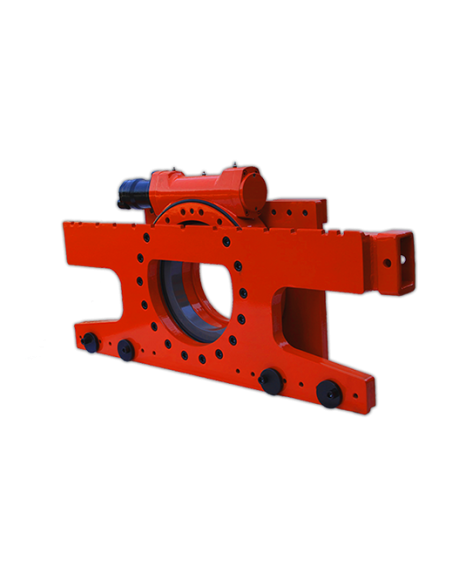

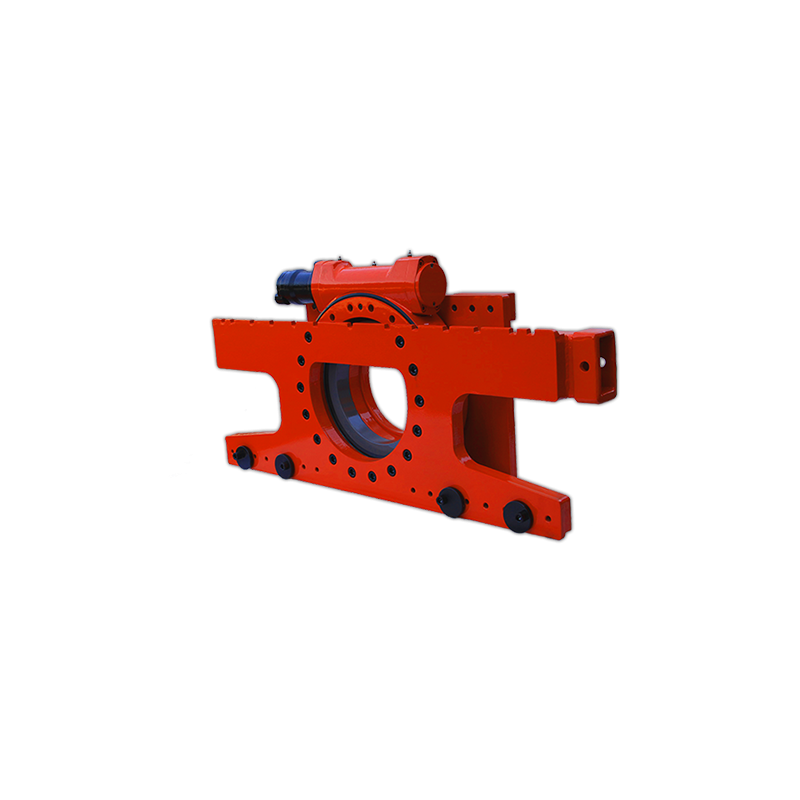

The rotator implement is constructed from a front plate (1) and a base plate (2) with hydraulic system actuated by gearbox (3) and hydraulic motor (4). The bearing (5) is attached to the front plate and the forks board (6) with screws. The forks board (6) is equipped with safety pins (7) and plates (8) that prevent the forks from slipping from the car while rotating. All equipment is suspended and secured on the board of the forklift with upper hooks (9) and lower (10).
- Load capacity (kg)
- FEM 3A
- Weight (kg)
- 382
- Description
- Rotator
- Giro (o)
- 360
- Maximum capacity (kg)
- 3500
- Altura hasta conexiones
- 530
- Width Front plate (mm)
- 1200
- Center of gravity (mm)
- 120
- Distance from Forks (mm)
- 75
- Presión máxima (bar)
- 160
- Dimensions (mm)
- -
