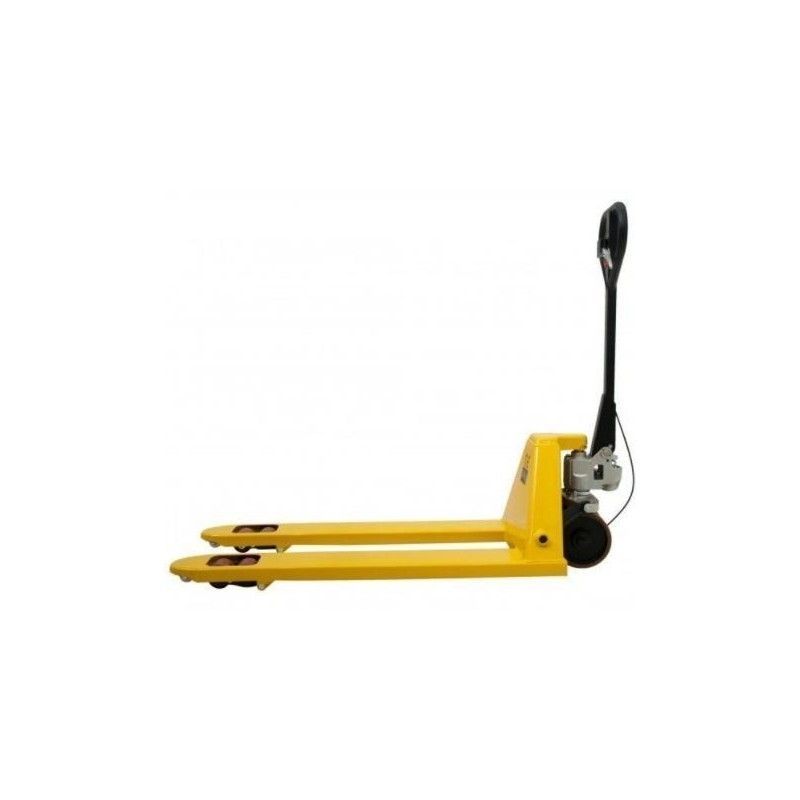

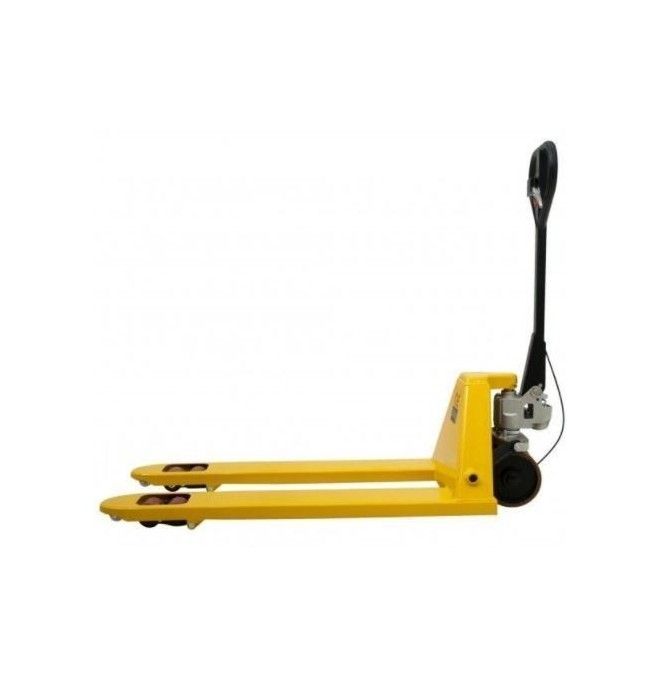

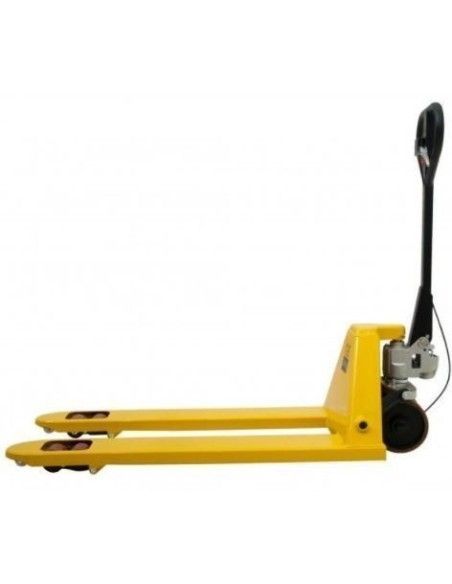

Manual Transphase with 2500kg Brake - Ramp Control
M101010030
€999.00
999,00 € (tax incl.)
MANUAL TRANSPALET OF 2500KG WITH 1150X540MM FORKS AND HAND BRAKE FOR CONTROL IN LOAD DRILLS. Structure of reinforced steel guarantees stability and safety in the intensive transport of pallets.
- Charging capacity: Supports up to 2500kg for intensive use in warehouses, optimizing productivity and performance.
- Braking system: Integrated handbrake that guarantees operating safety and precise control on slope surfaces.
- Polyurethane rolling: Front roller and direction wheels that ensure fluid displacement and high strength.
- Industrial Safety: Steel structure with compulsory CE certification according to European regulations for professional load handling.
Standard manual transparent, with brake. Load capacity of 2500kg and the dimensions of the 1150x540mm forks.
Features
- Load capacity: 2500kg
- Forks measures: 1150x540mm
- Center of gravity: 575mm
- Type of pump: Standard
- Brake type: Hand brake
- Color: Yellow (RAL Color of the RAL1003 TRANSPALET (Yellow Signal)).
- Minimum height: 80mm
- Lifting height: 200mm
- Maximum height (with rudder): 1230mm
- Total length: 1550mm
- Length of forks: 1150mm
- Rudder length: 400mm
- Distance to center: 327mm
- Thickness of forks: 55mm
- Width of forks: 160mm
- Wide to the end of forks: 540mm
- Width between fork interiors: 220mm
- Minimum hall width: 1750mm
- Number of fork wheels: 4
- Forks wheel equipment: Polyurethane
- Steering wheel equipment: Polyurethane
- Transparent material: Steel
* Information note *
This transparent is supplied with dismantled, if you want to send it assembled assembly.
Assembly instructions will be provided together with the material or PDF to the order confirmation.
- TYPE
- Manual
- Load capacity (kg)
- 2500
- Horquillas (mm)
- 1150x540
- Lifting system
- Manual
- Weight (kg)
- 90
- Width (mm)
- 540
- Description
- Standard with brake
- Max. (mm)
- 200
- Height Min. (mm)
- 80
- Length fork (mm)
- 1150
- Rudder
- Polyurethane
- Rolls
- Poliuretano
