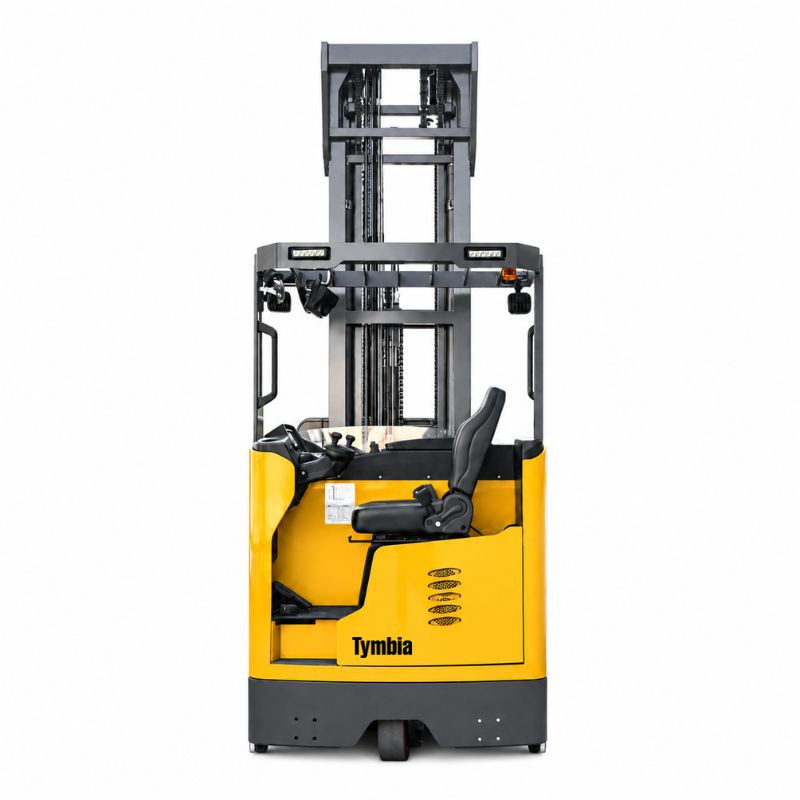

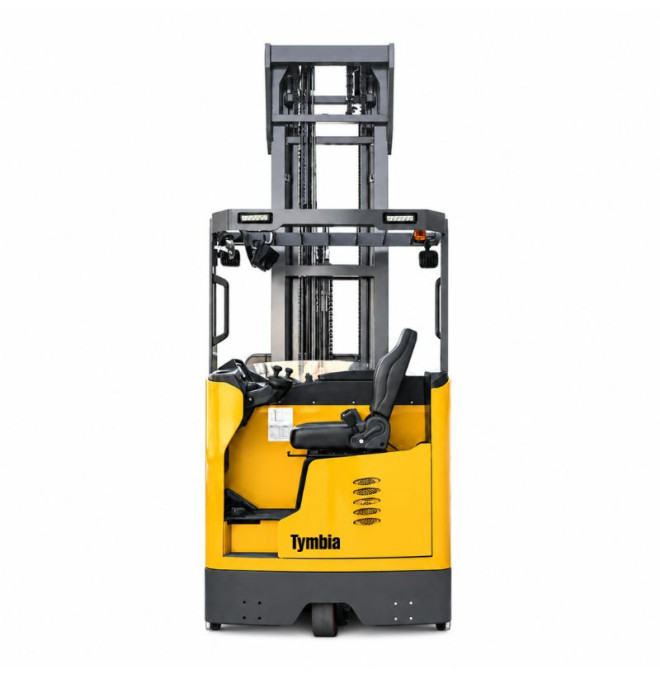

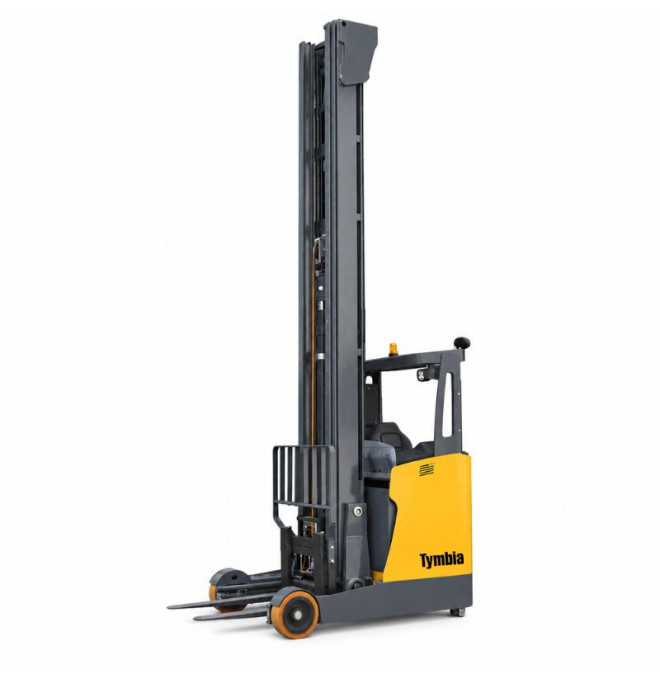

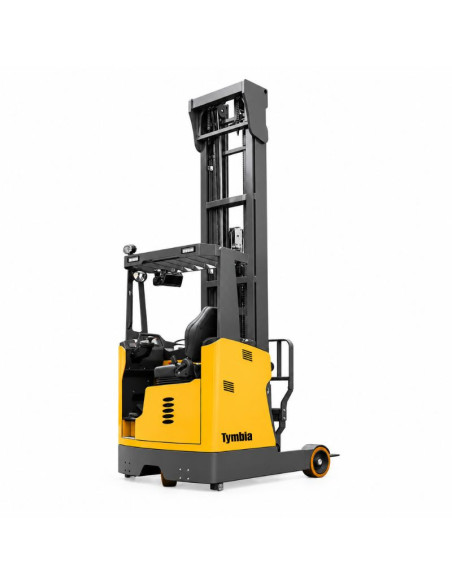

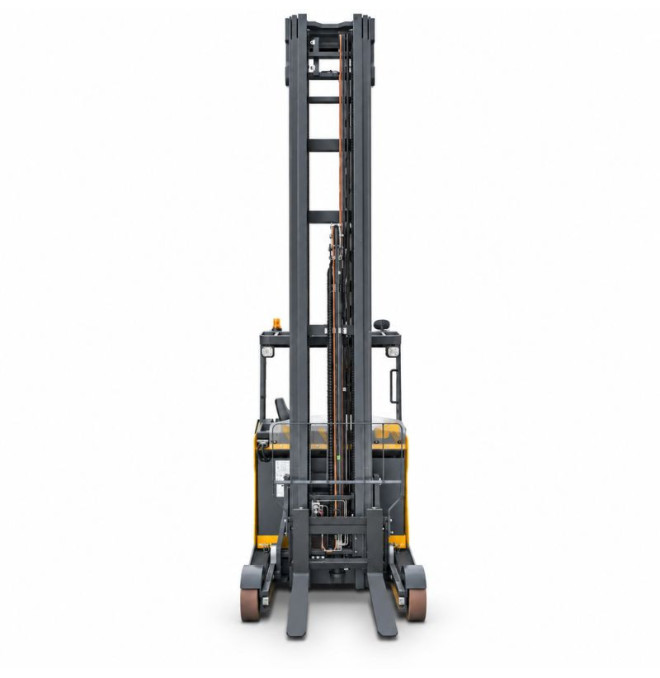

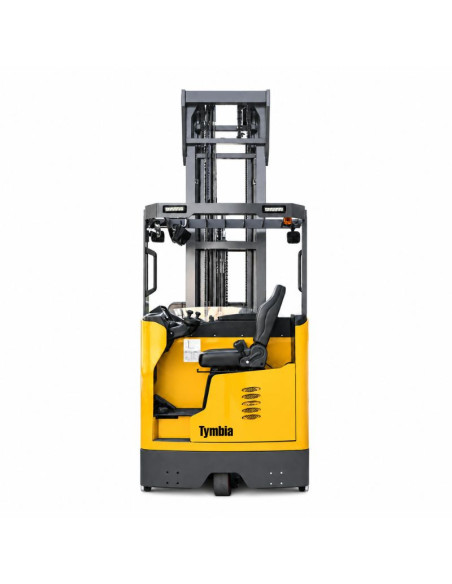

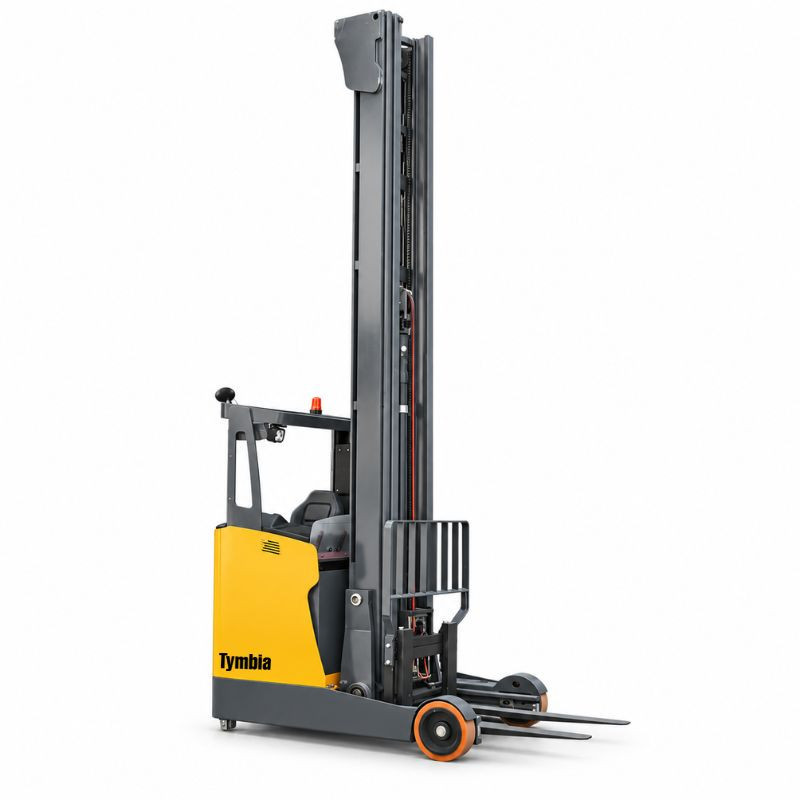

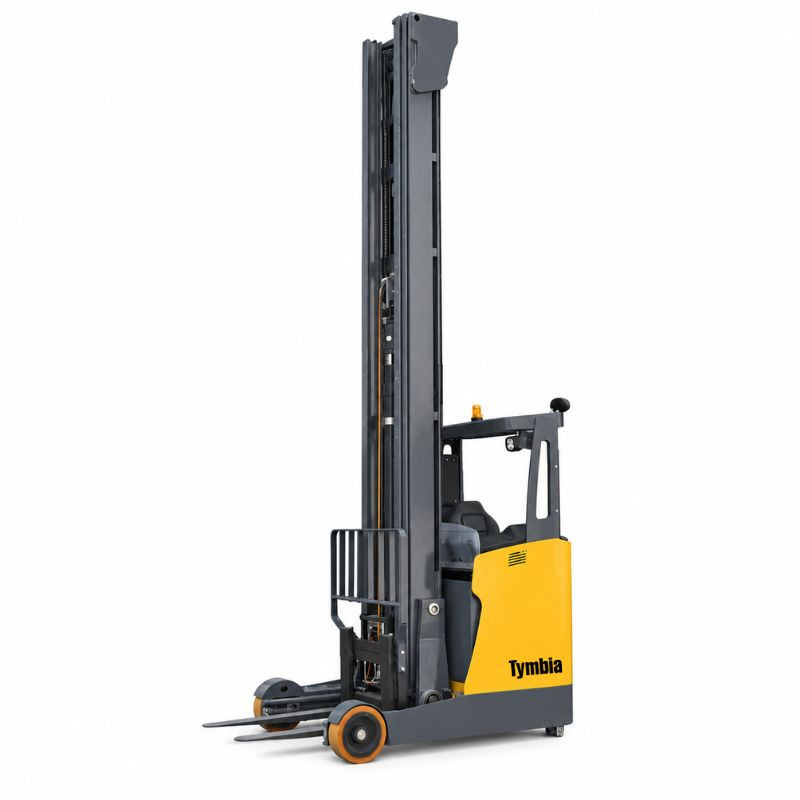

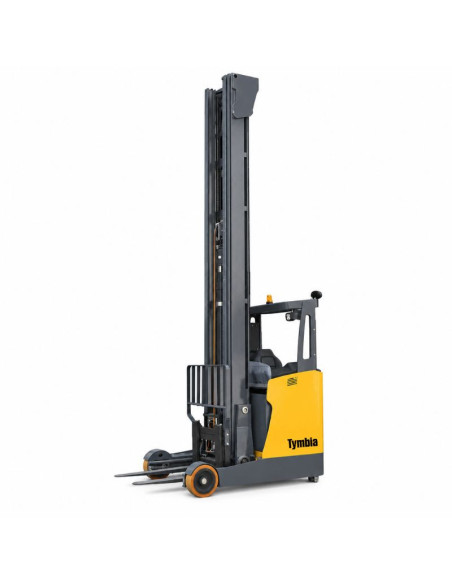

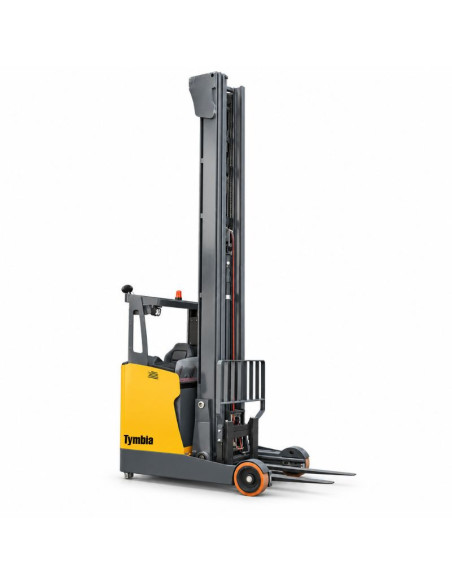

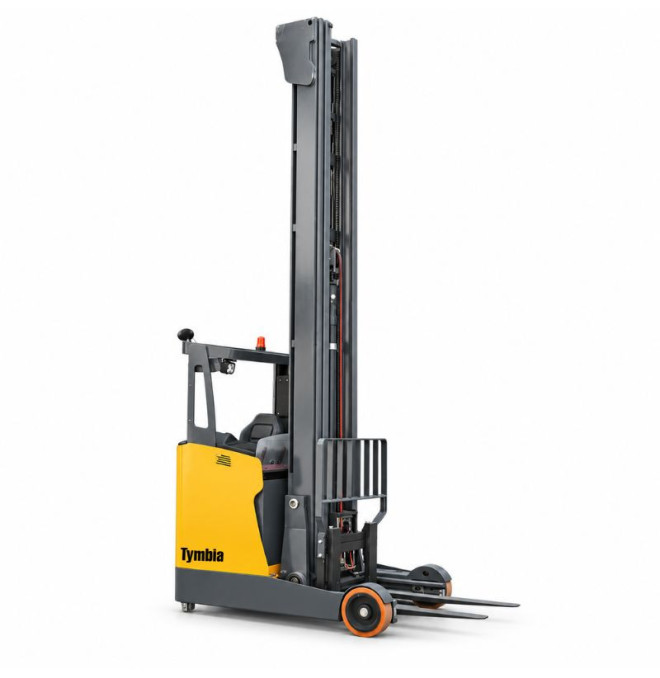

Retractable trolley MFZ16 / 20/25 / 30M - MFZ16 / 20H

Electric retractable trolley Tymbia MFZ series is designed for professional storage, stacking and movement operations in warehouses where it is necessary to combine great lifting height, compact dimensions and high productivity.

The range is available with nominal capacities of 1600, 2000, 2500 and 3000kg, all with a cargo center of 600mm. The different configurations allow selecting the most suitable machine according to the weight of the merchandise, the height of the racking and shelving and the dimensions of the corridor.

The mast can move forward and retract to collect and position the load, reducing the necessary space during maneuvers. In addition, it incorporates an integrated lateral displacement of ± 50mm, which facilitates the precise adjustment of the forks against the pallet.

The versions of 1600 and 2000 kg offer scroll speeds of up to 14km / h, while versions of 2500 and 3000kg reach 10km / h. The retraction system works at 0.20m / s.

The maximum height depends specifically on the version. The MFZ16M reaches up to 9500mm, the MFZ16H up to 10,500mm, while the MFZ20M and MFZ20H can reach up to 12,500mm. The higher versions of MFZ25M and MFZ30M reach up to 8500mm.

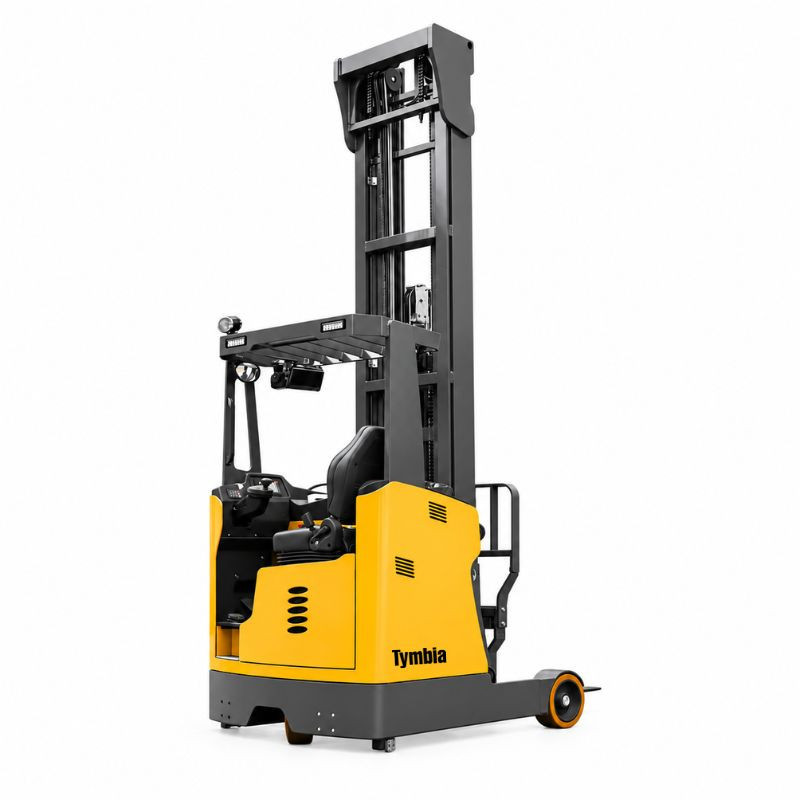

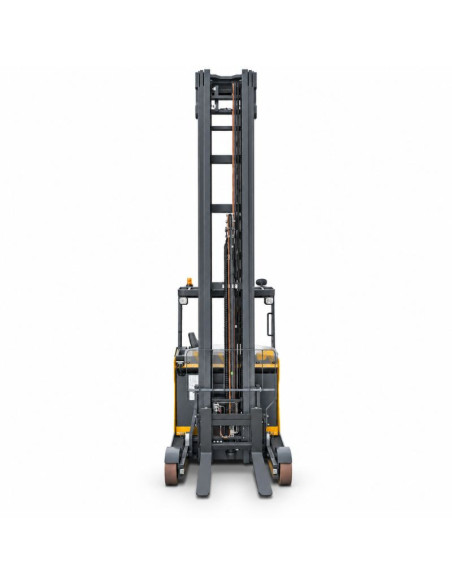

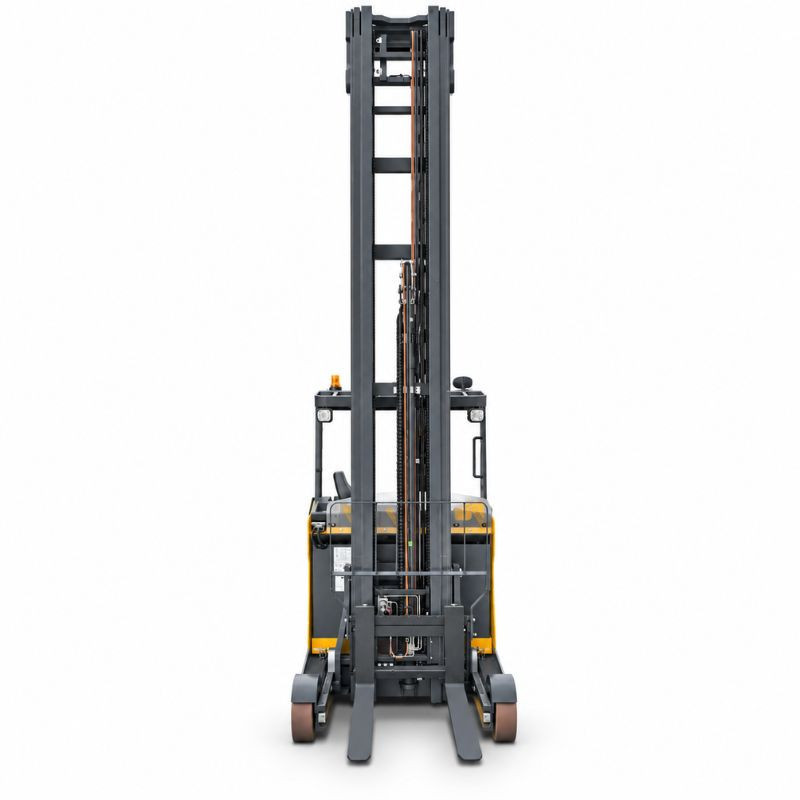

The sitting driving position provides an ergonomic environment for long days. It has adjustable seat, multifunction panel, integrated controls and precise electric direction. Visibility is optimized by a narrow mast, displaced lifting cylinders and a structure that facilitates the observation of the forks and load.

Security is completed with braking on wheels, OPS operator presence system, indicator of the position of the wheel, HD camera of forks with laser assistance and different electronic systems aimed at improving the accuracy of the maneuvers.

Featured features:

• Capacities of 1600 to 3000kg
• Cargo center of 600 mm
• Lifting heights up to 12,500mm according to model
• Sitting
• 48 V electrical system
• AC
• Maximum speed of up to 14km / h
• Integrated lateral displacement of ± 50mm
• Retraction speed of 0.20 m / s
• Electrical address
• High visibility mast
• HD camera on forks
• Laser Help to Positioning
• OPS System of Operator Presence
• Hydraulic braking
• Front extraction battery
• Adjustable seat
• Protective roof
• Optimized design for narrow corridors

Advantages:

• Capabilities from 1600 to 3000kg
• Alights available up to 12.500mm
• Halls from about 2.72m
• Maximum speed of up to 14km / h
• Retractable mast
• Integrated side scroller
• High visibility
• Sitting
• Different battery configurations
• Electric motors AC
• Rapid lift available according to version
• Camera and laser for high-altitude positioning
• Designed for intensive jobs

Uses:

• Media and high rotation stores
• Racking and Shelving high-rise
• Logistic and distribution centers
• Storage of pallets
• Preparation and expedition of goods
• Production centers
• Industrial warehouses
• Narrow corridors
• Intensive stacking operations
• Facilities that need to take advantage of the height available

** They must have their own discharge means.
